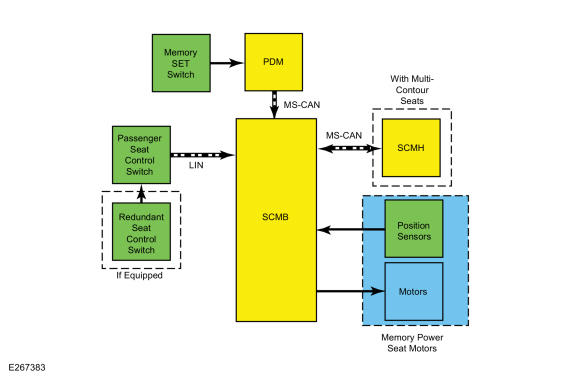

System Diagram - Passenger Memory Seat
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Memory Power Seat Motors |
| 2 |
SCMB |
| 3 |
MS-CAN |
| 4 |
PDM |
| 5 |
Motors |
| 6 |
LIN |
| 7 |
SCMH |
| 8 |
MS-CAN |
| 9 |
With Multi- Contour Seats |
| 10 |
Passenger Seat Control Switch |
| 11 |
Memory SET Switch |
| 12 |
Position Sensors |
| 13 |
Redundant Seat Control Switch |
| 14 |
If Equipped |
