Side Obstacle Detection (SOD) Module: Removal

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the SOD-L or SOD-R following the on-screen instructions.

2.

Remove the rear bumper cover. REFER to Bumper Cover - Rear . Refer to Bumpers .

3.

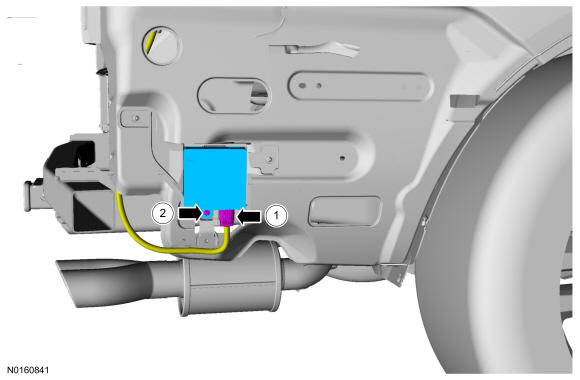

Remove the SOD-L or SOD-R.
1. 1.

  Disconnect the electrical connector.
1. 2.

  Remove the SOD-L or SOD-R bolt.

Courtesy of FORD MOTOR COMPANY

4.

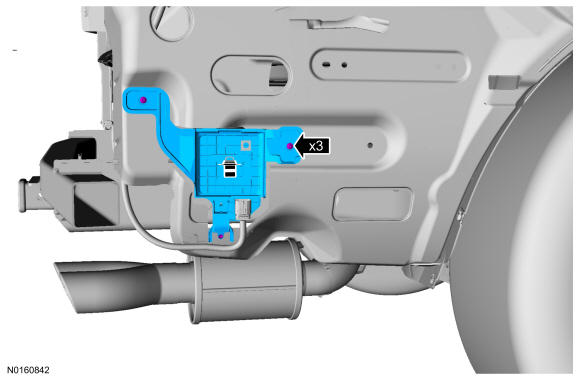

Remove the SOD-L or SOD-R bracket screws and the bracket.

Courtesy of FORD MOTOR COMPANY
