Powertrain Control Module (PCM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
-
NOTE: This step is only necessary when installing a new component.
Download the module information to the diagnostic tool using the PMI routine. Use the General Equipment: Ford Diagnostic Equipment
- Remove the LHF fender splash shield. Refer to: FENDER SPLASH SHIELD .

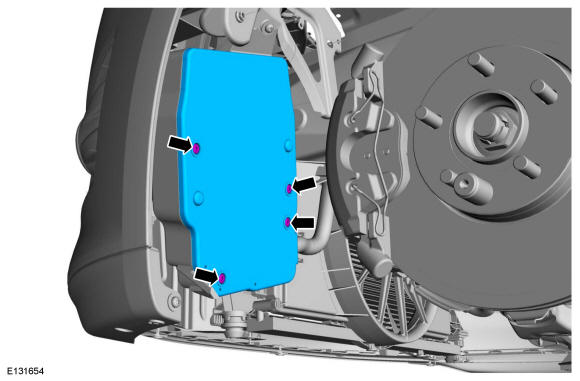

- Remove the retainers and the PCM cover.
-

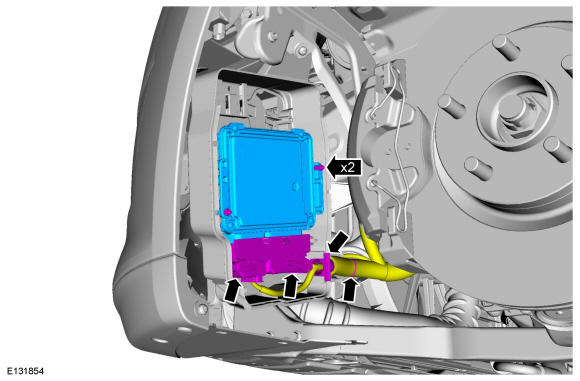

- Disconnect the PCM electrical connectors.
- Remove the retainers and the PCM.
