Fuel Pump Driver Module (FPDM): Installation

NOTE: Make sure that the mating surface is clean and free of foreign material.

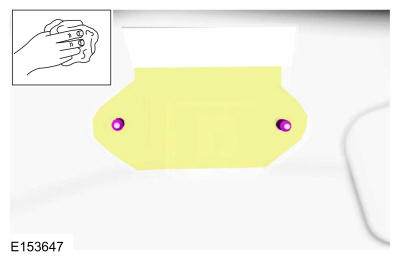

Clean the FPDM mounting surface.

Courtesy of FORD MOTOR COMPANY

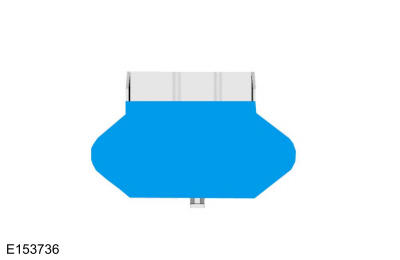

Peel off the protective backing from the new FPDM.

Courtesy of FORD MOTOR COMPANY

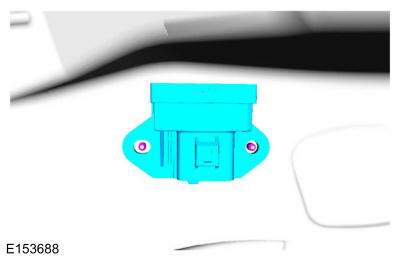

Locate the FPDM over the 2 studs (for location purposes only) and press down firmly.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
