Fuel Pump Driver Module (FPDM): Removal

Vehicles with rear bench seat

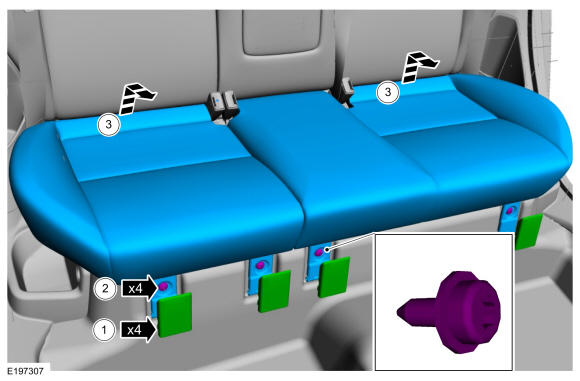

1. Remove the rear seat cushion.
   1. Detach the fastener covers.
   2. Remove the fasteners.

      Torque

      : 18 lb.ft (24 Nm)

   3. Lift the cushion forward and remove.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with split rear seat backrest

2. Position the RH front seat all of the way forward.
3. Raise the RH rear seat cushion and fold forward.

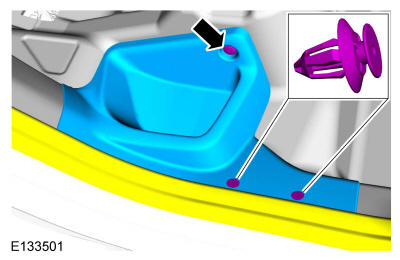

4. Position the RH weather-strip aside and then remove scuff plate.

   Courtesy of FORD MOTOR COMPANY

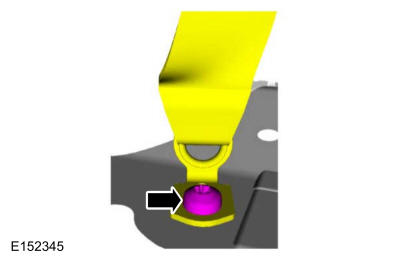

5. Remove the RH outboard safety belt lower anchor bolt.

   Torque

   : 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

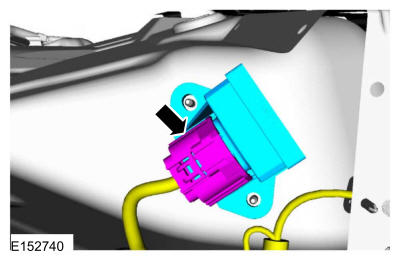

6. NOTE: The FPDM is held in place with an adhesive backing.

   Disconnect the FPDM electrical connector and remove the FPDM.

Courtesy of FORD MOTOR COMPANY
