Remote Function Actuator (RFA) Module: Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

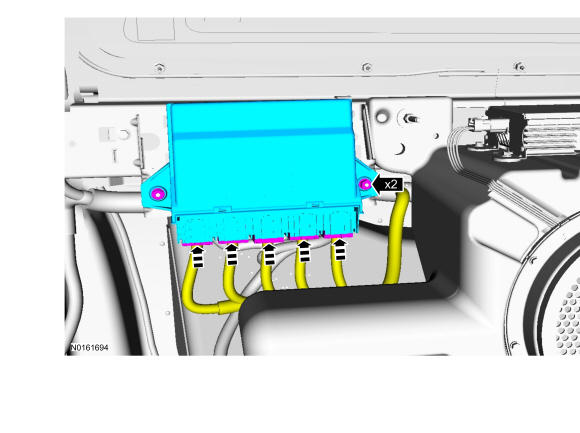

Install the Remote Function Actuator (RFA) module and the 2 nuts.- 1.
Connect the electrical connectors.
- 2.
Tighten to 3 Nm (27 lb-in).
- 1.
- 2.
Install the LH side quarter trim panel. For additional information, refer to Interior Trim and Ornamentation .
- 3.
Program the Intelligent Access (IA) keys (minimum of 2) into the new RFA module. For additional information, refer to Key Programming Using Diagnostic Equipment in Anti-Theft Passive Anti-Theft System (PATS) .
- 4.
Carry out the parameter reset between the RFA module and the BCM. For additional information, refer to Passive Anti-Theft System (PATS) Parameter Reset in Anti-Theft Passive Anti-Theft System (PATS) .
- 5.
Download the RFA module configuration information from the scan tool to the new RFA module by following the scan tool on screen instructions.
- 7.
Carry out the keyless entry keypad code reset. For additional information, refer to Keyless Entry Keypad Code Programming in Handles, Locks, Latches and Entry Systems .
