Audio Control Module (ACM): Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

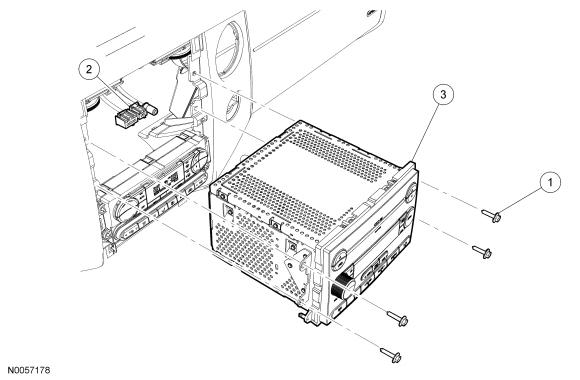

Expedition without navigation shown, all others similar.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
W707628-S-S |
Audio Front Control Module (ACM) screws (4 required) |
| 2 |
- |
ACM electrical connectors and antenna cable connector (part of 14401) |
| 3 |
18C815/18C869/ 18K931/18C869/ 18K931 |
ACM |
