Seat - Exploded View, Third Row

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

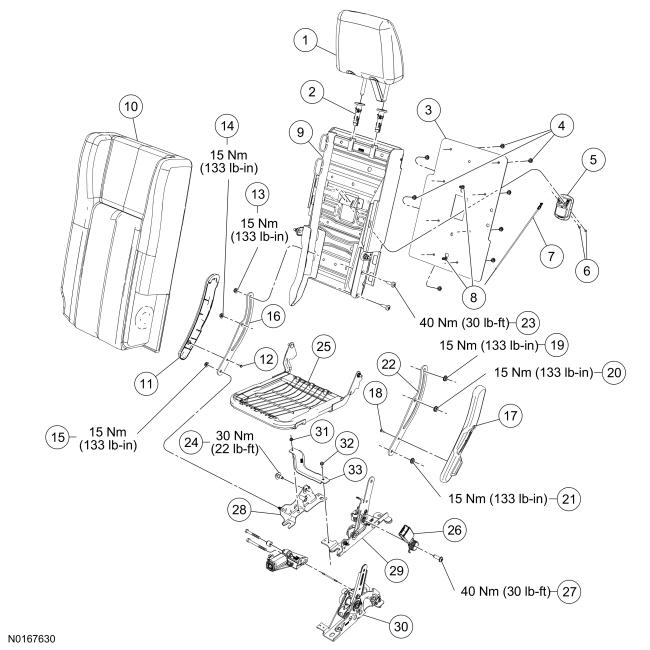

Seat Backrest - 40 percent

Fig 1: Exploded View Of Third Row Seat Backrest (40 Percent) With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	611A08	Head restraint assembly
2	610A16	Head restraint guide
3	-	Backrest support panel (part of 613A38)
4	-	Backrest support panel-to-backrest frame screws (part of 613A38) (8 required)
5	666C02	Manual latch handle
6	W505274	Manual latch handle-to-backrest support panel screws (2 required)
7	-	Manual latch release cable
8	-	Pin-type retainers
9	613A38	Backrest frame
10	66600/66800/66800	Backrest trim cover/foam pad
11	624C32	Outboard slide bracket cover
12	W708686	Outboard slide bracket cover-to-outboard slide bracket screw
13	613F18	Outboard slide bracket-to-backrest frame nut
14	613F18	Outboard slide bracket-to-cushion frame nut
15	613F18	Outboard slide bracket-to-outboard latch nut
16	624C30	Outboard slide bracket
17	624C33	Inboard slide bracket cover
18	W708686	Inboard slide bracket cover-to-inboard slide bracket screw
19	613F18	Inboard slide bracket-to-backrest frame nut
20	613F18	Inboard slide bracket-to-cushion frame nut
21	613F18	Inboard slide bracket-to-inboard latch nut
22	624C30	Inboard slide bracket
23	W700883	Inboard latch-to-backrest frame bolt (2 required)
24	613F18	Outboard latch-to-cushion frame bolt
25	63160	Cushion frame
26	60044	Safety belt buckle
27	-	Safety belt buckle bolt (part of 60044)
28	613D60	Outboard latch
29	613D61	Inboard manual latch
30	600M46	Inboard power latch (includes motor)
31	N620480	Nut, support bar
32	60108	Bolt, support bar
33	-	Support bar

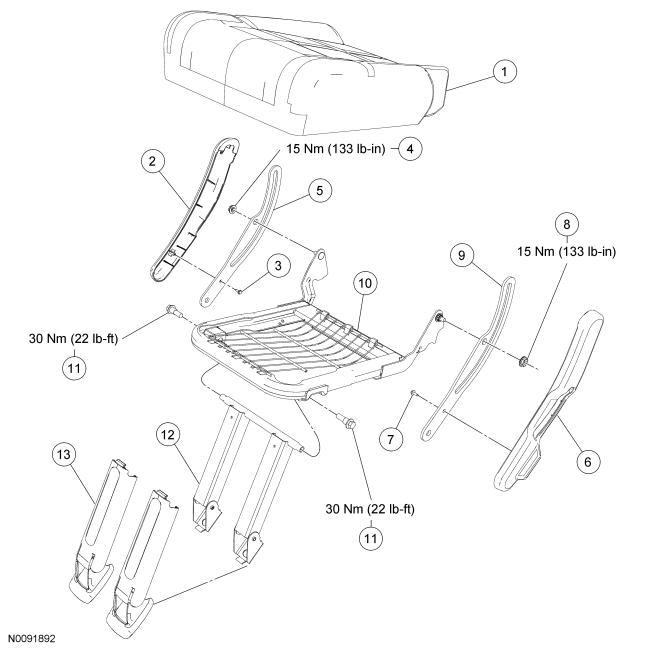

Seat Cushion - 40 Percent

Fig 2: Exploded View Of Third Row Seat Cushion (40 Percent) With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	63804/63840/63840	Cushion trim cover/foam pad
2	624C32	Outboard slide bracket cover
3	W708686	Outboard slide bracket cover-to-outboard slide bracket screw
4	613F18	Outboard slide bracket-to-cushion frame nut
5	624C30	Outboard slide bracket
6	624C33	Inboard slide bracket cover
7	W708686	Inboard slide bracket cover-to-inboard slide bracket screw
8	613F18	Inboard slide bracket-to-cushion frame nut
9	624C30	Inboard slide bracket
10	63160	Cushion frame
11	613F18	Riser-to-cushion frame bolts (2 required)
12	613E52	Riser
13	666C00	Riser cover (2 required)

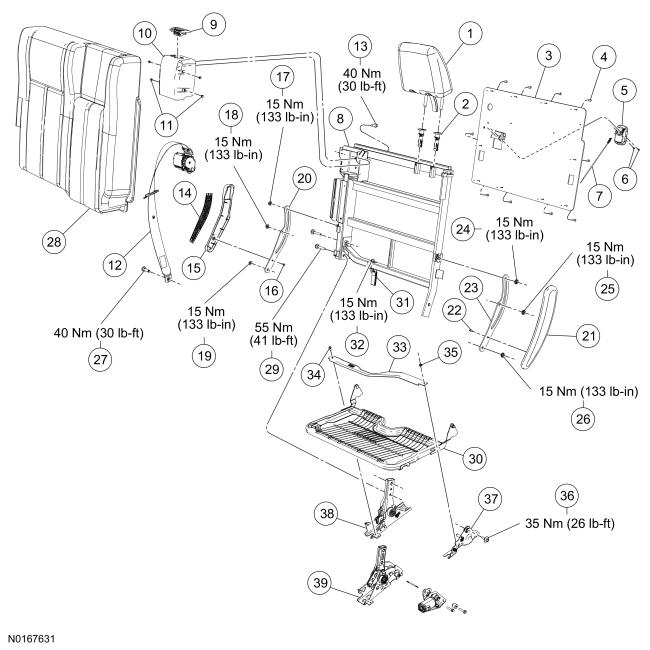

Seat Backrest - 60 Percent

Fig 3: Exploded View Of Third Row Seat Backrest (60 Percent) With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	611A08	Head restraint assembly
2	610A16	Head restraint guide (2 required)
3	-	Backrest support panel
4	W505274	Backrest support panel-to-backrest frame screw (15 required)
5	666C02	Manual latch handle
6	W505274	Manual latch handle-to-backrest support panel screws (2 required)
7	-	Backrest release cable
8	613A39	Backrest frame
9	666C04	Safety belt guide cover
10	613C46	Safety belt retractor cover
11	W505274	Safety belt retractor cover screws (4 required)
12	611B64	Safety belt retractor
13	W505274	Safety belt retractor bolt (part of 611B64)
14	611A70	Cover, safety belt webbing
15	624C32	Inboard slide bracket cover
16	W708686	Inboard slide bracket cover-to-inboard slide bracket screw
17	613F18	Inboard slide bracket-to-backrest frame nut
18	613F18	Inboard slide bracket-to-cushion frame nut
19	613F18	Inboard slide bracket-to-inboard latch nut
20	624C30	Inboard slide bracket
21	624C33	Outboard slide bracket cover
22	W708686	Outboard slide bracket cover-to-outboard slide bracket screw
23	624C30	Outboard slide bracket
24	613F18	Outboard slide bracket-to-backrest frame nut
25	613F18	Outboard slide bracket-to-cushion frame nut
26	613F18	Outboard slide bracket-to-outboard latch nut
27	-	Safety belt anchor bolt (part of 611B64)
28	66601/66801/66801	Backrest trim cover/foam pad
29	613F18	Inboard latch-to-backrest frame bolt (2 required)
30	63161	Cushion frame
31	-	Child safety seat tether anchor (part of 613A39)
32	-	Child safety seat tether anchor bolt (part of 613A39)
33	-	Support bracket
34	-	Bolt, support bracket
35	N620480	Nut, support bracket
36	613F18	Outboard latch-to-cushion frame bolt
37	613D61	Outboard latch
38	600M47	Inboard manual latch
39	600M46	Inboard power latch (includes motor)

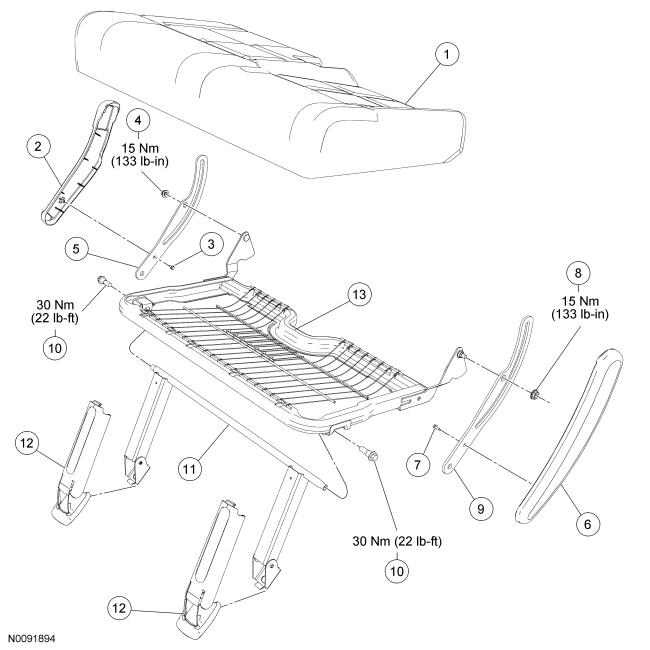

Seat Cushion - 60 Percent

Fig 4: Exploded View Of Third Row Seat Cushion (60 Percent) With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	63805/63841/63841	Cushion trim cover/foam pad
2	624C32	Inboard slide bracket cover
3	W708686	Inboard slide bracket cover-to-inboard slide bracket screw
4	613F18	Inboard slide bracket-to-cushion frame nut
5	624C30	Inboard slide bracket
6	624C33	Outboard slide bracket cover
7	W708686	Outboard slide bracket cover-to-outboard slide bracket screw
8	613F18	Outboard slide bracket-to-cushion frame nut
9	624C30	Outboard slide bracket
10	613F18	Riser-to-cushion frame bolts
11	613E53	Riser
12	666C00	Riser covers (2 required)
13	63161	Cushion frame
