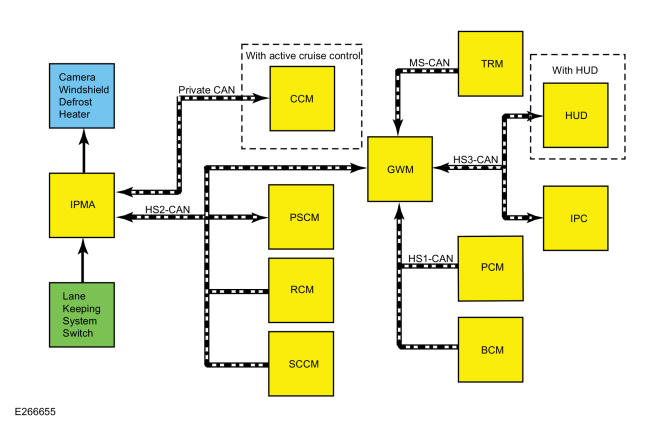

Lane Keeping Alert and Lane Keeping Aid System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Lane keeping system switch |
| 2 |
IPMA |
| 3 |
GWM |
| 4 |
Camera windshield defrost heater |
| 5 |
RCM |
| 6 |
SCCM |
| 7 |
IPC |
| 8 |
BCM |
| 9 |
PSCM |
| 10 |
CCM |
| 11 |
With active cruise control |
| 12 |
HUD |
| 13 |
With HUD |
| 14 |
TRM |
| 15 |
PCM |
