Restraints Control Module (RCM): Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Pyrotechnic Device Health and Safety Precautions .
-
NOTE: This step is only necessary when installing a new component.NOTE: The PMI process must begin with the current RCM installed. If the current RCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the RCM following the on-screen instructions.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Remove the floor console. Refer to: Floor Console .
- Detach the wiring harness retainers.
-

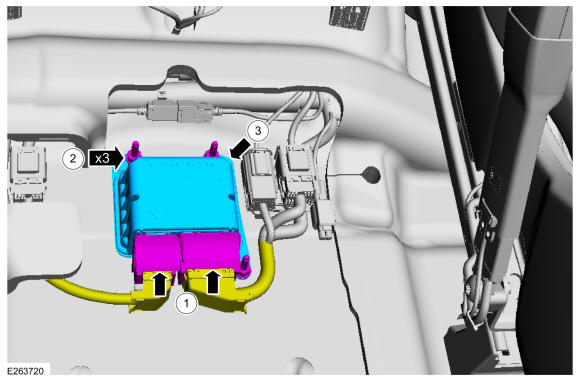

- Disconnect the RCM electrical connectors.
- Remove the bolts.
Torque: 106 lb.in (12 Nm)
- Remove the RCM.
