Powertrain Control Module (PCM): Removal

NOTE: Removal Steps In This Procedure May Contain Installation Details.

NOTE: This Step Is Only Necessary When Installing A New Component.

Download The Module Information To The Diagnostic Tool Using The Programmable Modules Installation Routine.

Use The General Equipment: Ford Diagnostic Equipment

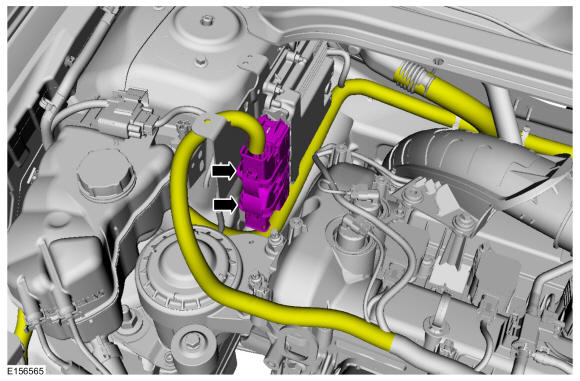

Disconnect The PCM Electrical Connectors.

Courtesy of FORD MOTOR COMPANY

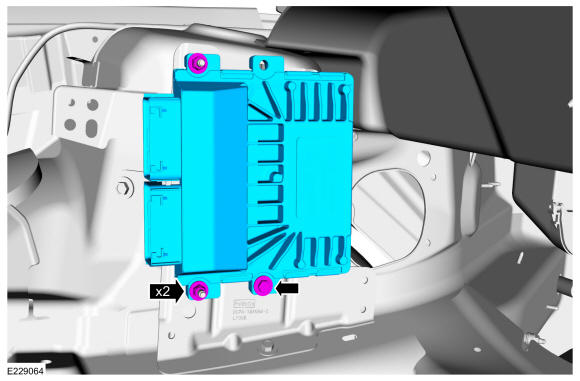

Remove The Bolt, Nuts And The PCM.
Torque: 89 Lb.In (10 Nm)

Courtesy of FORD MOTOR COMPANY
