Fuel Pump Driver Module (FPDM): Installation

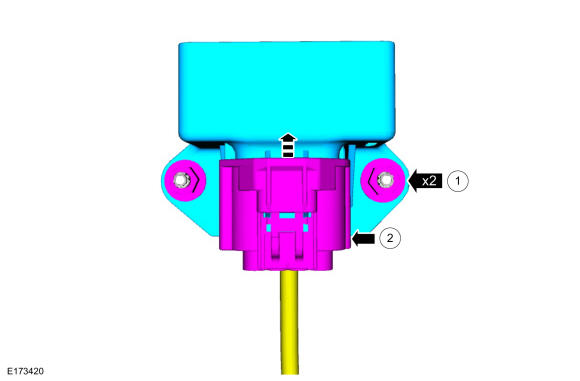

    1. Install the FPDM, then install and tighten the FPDM retaining nuts.

      Torque: 44 lb.in (5 Nm)

    2. Connect the FPDM electrical connector.
    GFD286908Courtesy of FORD MOTOR COMPANY
  2. Install the rear seat cushion. Refer to: Rear Seat Cushion .
