System Diagram

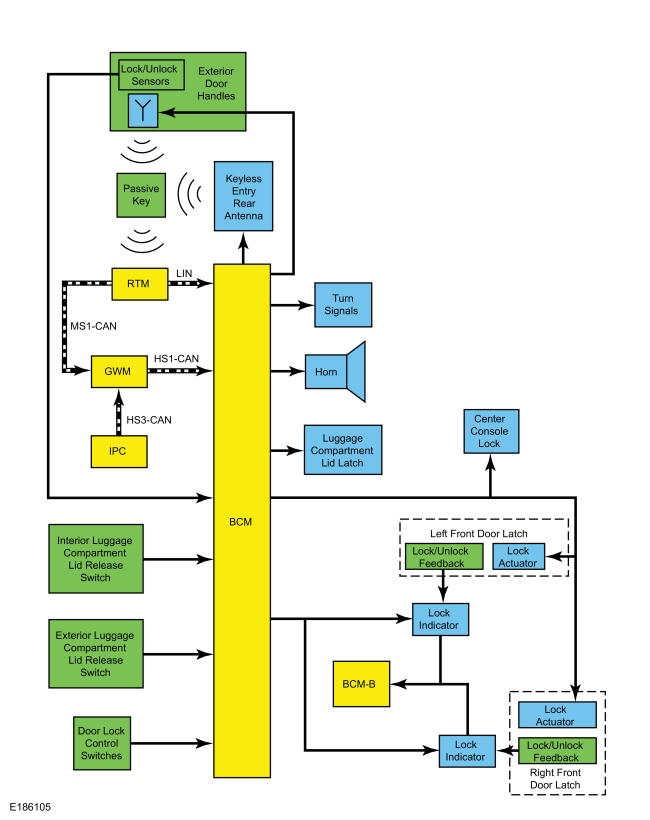

Without Memory Seat
Courtesy of FORD MOTOR COMPANY

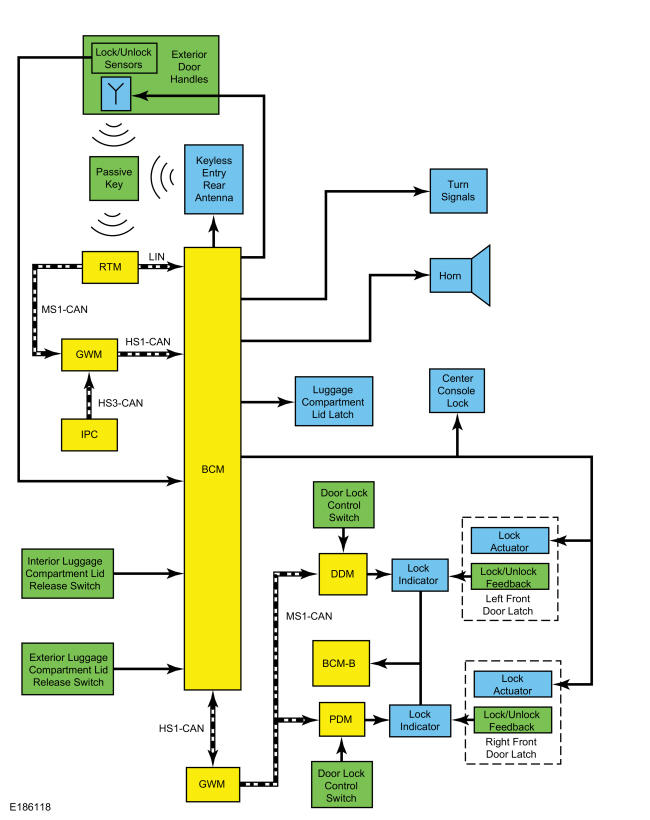

With Memory Seat
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
