Pinpoint Test DV: Throttle Body Assembly Electronic Throttle Control (Etc): Introduction

WARNING: SUBSTANTIAL OPENING AND CLOSING TORQUE IS APPLIED BY THIS SYSTEM. TO PREVENT INJURY, BE CAREFUL TO KEEP FINGERS AWAY FROM THROTTLE MECHANISM WHEN ACTUATED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

This pinpoint test is intended to diagnose the following:

electronic throttle body (ETB) (9F991)
electronic throttle body throttle position sensor (ETBTPS) (9E928)
harness circuits: ETCRTN, ETCREF, TP, TP1, TP2, TACM+, and TACM-PCM (12A650)

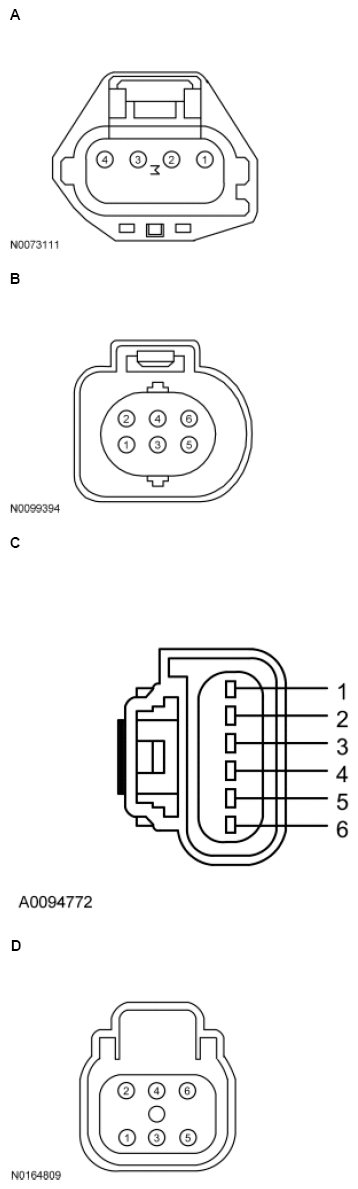

Fig 1: Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
E-Series 6.8L, Explorer GTDI 3.5L, F-650/F-750, F-Series Super Duty 6.8L, Flex GTDI 3.5L, MKT 3.5L, Motorhome/Stripped Chassis/Step Van, Taurus GTDI 3.5L	A	1 4 3 2	TP2 TP1 ETCRTN ETCREF
EcoSport 1.5L, EcoSport 1.0L, Escape/Kuga 1.5L, Fusion 1.5L	B	5 2 3 1	TP2 TP1 ETCRTN ETCREF
Expedition, F-150, Mustang 5.0L, Mustang 2.3L, Navigator	C	3 4 5	TP ETCRTN ETCREF
Fiesta 1.0L, Focus 1.0L, KA 1.0L	B	2 5 3 1	TP2 TP1 ETCRTN ETCREF
Fiesta 1.6L	D	4 1 2 6	TP2 TP1 ETCRTN ETCREF
KA 1.5L	B	4 1 2 6	TP2 TP1 ETCRTN ETCREF
All other vehicles	C	6 3 4 5	TP2 TP1 ETCRTN ETCREF

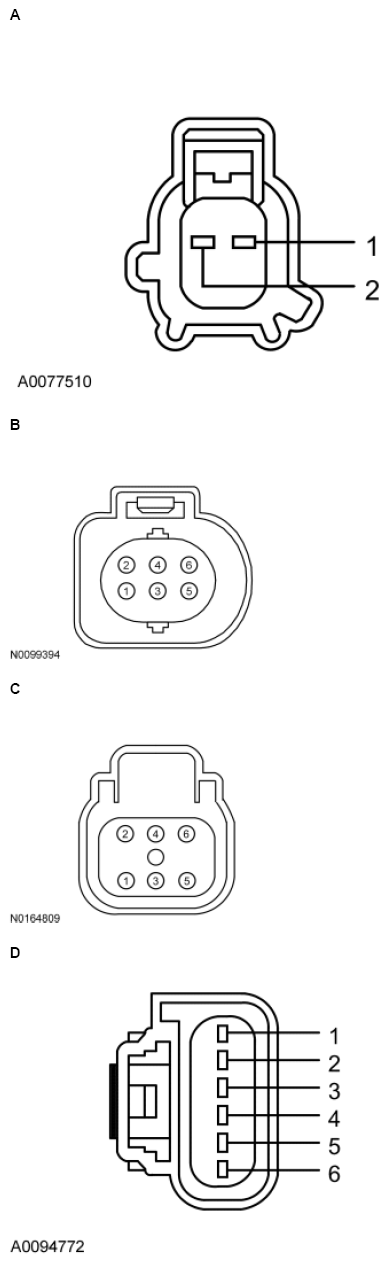

Fig 2: Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
E-Series 6.8L, Explorer GTDI 3.5L, F-650/F-750, F-Series Super Duty 6.8L, Flex GTDI 3.5L, MKT 3.5L, Motorhome/Stripped Chassis/Step Van, Taurus GTDI 3.5L	A	2 1	TACMTACM+
EcoSport 1.5L, EcoSport 1.0L, Escape/Kuga 1.5L, Fiesta 1.0L, Focus 1.0L, Fusion 1.5L, KA 1.0L	B	4 6	TACMTACM+
Fiesta 1.6L	C	3 5	TACMTACM+
KA 1.5L	B	3 5	TACMTACM+
All other vehicles	D	2 1	TACMTACM+

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .

Vehicle	Connector	Pin	Circuit
Continental 3.7L, E-Series, Edge 3.5L, Explorer TiVCT 3.5L, Explorer 3.7L, F-650/F-750, F-Series Super Duty, Flex TiVCT 3.5L, MKT 3.7L, MKX 3.7L, Motorhome/Stripped Chassis/Step Van, Mustang 5.2L, Taurus TiVCT 3.5L, Taurus 3.7L, Transit 3.7L	198 PIN	E8 E23 B97, B99 B100, B102, B103, B5 E81 E82 E9 E10	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
EcoSport 1.0L Manual Transmission	198 PIN	E5 E18 B101, B102, B103 B96, B97, B98, B99 E89 E94 E34 E33	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
EcoSport 1.5L Automatic Transmission, Escape/Kuga 2.5L	198 PIN	E8 E23 B97, B99 B100, B102, B103, B5 E49 E50 E9 E10	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
EcoSport 1.5L Manual Transmission	112 PIN	E8 E6 B55, B56 B49, B50, B51 E55 E56 E19 E18	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
Escape/Kuga 1.5L	198 PIN	E10 E12 B101, B102, B103 B96, B97, B98, B99 E87 E92 E43 E58	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
Expedition, F-150 3.5L, Navigator	198 PIN	E4 E35 B101, B102, B103 B96, B97, B98, B99 E80 E79 E1	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP
Explorer GTDI 3.5L	198 PIN	E35 E4 B101, B102, B103 B96, B97, B98, B99 E91 E86 E52 E68	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
F-150 2.7L, F-150 3.3L, F-150 5.0L, Mustang 5.0L	306 PIN	E117 E114 B1, B16, B2 B46, B47, B61, B62, B76, B77 E85 E106 E12	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP
Fiesta 1.0L, Fiesta GTDI 1.6L	198 PIN	E5 E18 B101, B102, B103 B96, B97, B99 E89 E94 E34 E33	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
Fiesta TiVCT 1.6L	128 PIN	E28 E4 B11, B12, E13, E37 B35, B36, B47, B48 E36 E48 E27 E16	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
Focus GDI 2.0L	154 PIN	E19 E58 B5, B6 B1, B2, B4 E50 E74 E81 E6	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
Fusion 2.5L	198 PIN	E8 E23 B97, B99 B50, B69, B70 E49 E50 E9 E10	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
KA	128 PIN	T27 T19 B36, E24 B48, E12, T23, T31, T32 T15 T7 T1 T25	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
Mustang 2.3L	198 PIN	E10 E16 B101, B102, B103 B96, B97, B98, B99 E51 E50 E54	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP
Ranger	128 PIN	E28 E4 B11, B12 B35, B36, B47, B48 E36 E48 E16 E27	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
Transit Connect	198 PIN	E8 E23 B97, B99 B100, B102, B103, B5 E49 E30 E9 E10	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
All other vehicles	198 PIN	E7 E31 B101, B102, B103 B96, B97, B98, B99 E91 E86 E52 E68	ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1
