Connector End View (C175B) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C175B POWERTRAIN CONTROL MODULE (PCM) 14290 part# N/A Not Available

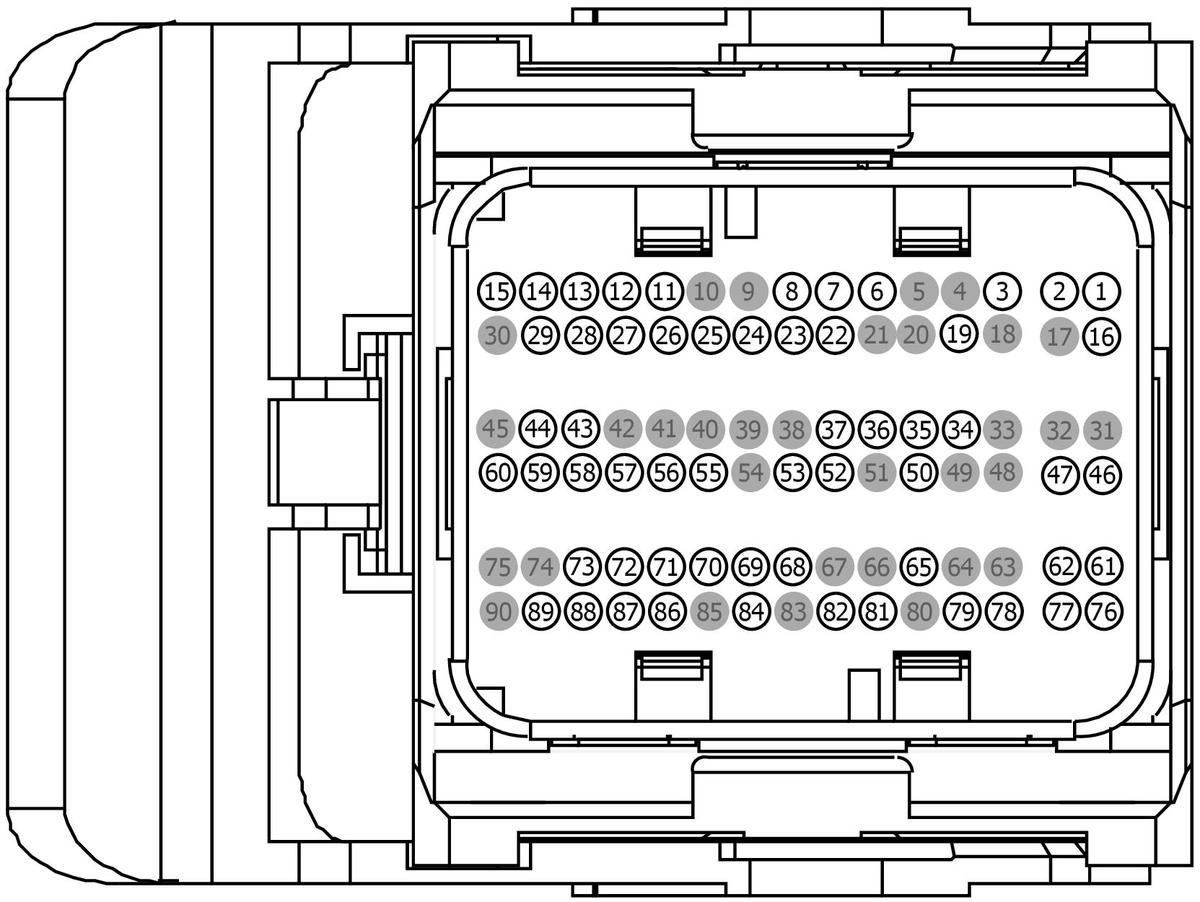

GFDWR10215Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-AA DU2Z-14474-CA 0.64
BU5T-14474-BA DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CBK01 (BU) 16 FUSE - 1 OR CIRCUIT BREAKER (VPWR F) 7C3T-14474-DA
2 CBK01 (BU) 16 FUSE - 1 OR CIRCUIT BREAKER (VPWR F) N/A
3 VE225 (YE-OG) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 CET47 (BU) 22 SWITCH - REVERSE (RS) BU5T-14474-AA
7 CE436 (VT-OG) 22 CTRL MOD. -WAKE UP PCM N/A
8 CCB08 (VT-WH) 22 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN BU5T-14474-AA
9 * * Not Used N/A
10 * * Not Used N/A
11 VE376 (VT-BN) 20 CTRL MOD. - LIN BUS # ACTIVE GRILLE SHUTTER MODULE N/A
12 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW N/A
13 CBB60 (YE-VT) 18 FUSE - 60 OR CIRCUIT BREAKER BU5T-14474-AA
14 RE226 (GN-VT) 18 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - BU5T-14474-AA
15 CDC10 (BU-OG) 22 CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) BU5T-14474-AA
16 CBK01 (BU) 16 FUSE - 1 OR CIRCUIT BREAKER (VPWR F) N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 CH302 (WH-BN) 20 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) N/A
20 * * Not Used N/A
21 * * Not Used N/A
22 CPK34 (GN-WH) 20 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + BU5T-14474-AA
23 CES09 (VT-OG) 22 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + BU5T-14474-AA
24 VE740 (VT-GY) 18 SENSOR - INTAKE AIR TEMPERATURE (IAT) N/A
25 VET66 (GN) 22 SENSOR - REAR DIFFERENTIAL OIL TEMPERATURE POS N/A
26 RE406 (GY-VT) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) BU5T-14474-AA
27 VDB04 (BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH BU5T-14474-AA
28 RH433 (BU-GY) 22 TRANSDUCER - A/C PRESSURE (ACPT) - N/A
29 CE226 (YE) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + BU5T-14474-AA
30 * * Not Used N/A
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 CE114 (GN-BU) 18 CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) BU5T-14474-BA
35 LE182 (VT-BN) 20 CTRL MOD. - POWERTRAIN # ENGINE OIL PRESSURE TRANSDUCER BU5T-14474-AA
36 VE807 (YE-VT) 20 SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) N/A
37 VMT23 (WH-BN) 22 CTRL MOD. - TELEMATICS EMERGENCY NOTIFICATION SIGNAL (ENS) BU5T-14474-AA
38 * * Not Used N/A
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 RE407 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) N/A
44 CDC54 (WH-GN) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) BU5T-14474-BA
45 * * Not Used N/A
46 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT BU5T-14474-AA
47 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT BU5T-14474-AA
48 * * Not Used N/A
49 * * Not Used N/A
50 CDC15 (GN) 22 GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) N/A
51 * * Not Used N/A
52 VE518 (BN-WH) 22 MONITOR - FUEL PUMP (FPM) BU5T-14474-AA
53 CE904 (GN-VT) 22 SWITCH - CLUTCH PEDAL POSITION # TOP OF TRAVEL (CPP-TT) M/T BU5T-14474-AA
53 CET43 (GY) 22 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) A/T N/A
53 CET43 (GY) 22 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) A/T N/A
54 * * Not Used N/A
55 VDC61 (VT-GN) 20 SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR N/A
56 VE701 (YE-OG) 22 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) N/A
57 VE922 (VT-GN) 22 TRANSDUCER - FUEL TANK PRESSURE (FTPT) N/A
58 RE320 (BU) 20 CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN) BU5T-14474-AA
59 CEC02 (GN-BU) 20 CTRL MOD. - COOLING FAN CONTROL (FC1) BU5T-14474-AA
60 CE302 (YE-BU) 20 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) BU5T-14474-AA
61 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT BU5T-14474-AA
62 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT N/A
63 * * Not Used N/A
64 * * Not Used N/A
65 CE903 (BU-OG) 22 SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT) M/T BU5T-14474-AA
65 CET42 (GN-VT) 22 SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) A/T BU5T-14474-AA
66 * * Not Used N/A
67 * * Not Used N/A
68 VE702 (BU-WH) 22 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) N/A
69 VH433 (VT-OG) 22 TRANSDUCER - A/C PRESSURE (ACPT) + BU5T-14474-AA
70 LE230 (BN-BU) 22 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) N/A
71 LE137 (BU-GY) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) BU5T-14474-BA
72 RE137 (YE-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) BU5T-14474-BA
73 RE472 (BU) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SST-SIGRTN) BU5T-14474-AA
74 * * Not Used N/A
75 * * Not Used N/A
76 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT BU5T-14474-AA
77 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT N/A
78 CDC12 (YE) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) N/A
79 VE462 (WH-BN) 18 CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) N/A
80 * * Not Used N/A
81 LE423 (GN-VT) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) N/A
82 LH315 (WH-GN) 20 CTRL MOD. - A/C PRESSURE TRANSDUCER N/A
82 LH315 (WH-GN) 22 CTRL MOD. - A/C PRESSURE TRANSDUCER N/A
83 * * Not Used N/A
84 VH407 (YE-GN) 20 SENSOR - AMBIENT TEMP. N/A
85 * * Not Used N/A
86 LE136 (GN-OG) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) N/A
87 RE136 (VT-GN) 22 CTRL MOD. - SENSOR SIDE IMPACT ROW 3 PASSENGER SIDE - N/A
88 RET47 (YE-VT) 22 SWITCH - REVERSE (RS) N/A
89 CEC01 (WH-BU) 20 CTRL MOD. - COOLING FAN CONTROL (FC2) N/A
90 * * Not Used N/A
