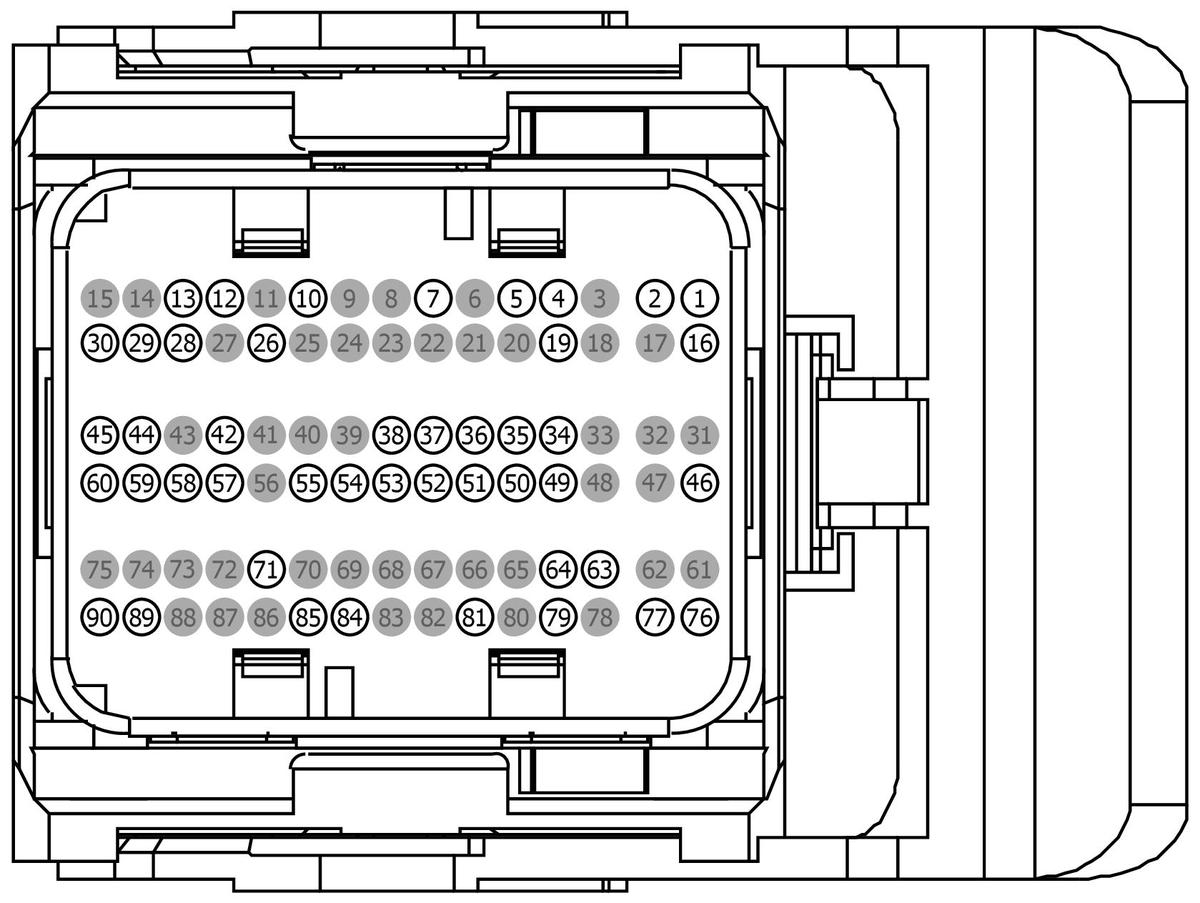

Connector End View (C175T) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C175T POWERTRAIN CONTROL MODULE (PCM) BK 14B060/7C078 part# N/A Not Available
GFDWR10214Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CET49 (BN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2) automatic transmission N/A
2 CET25 (BU-GN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) N/A
3 - () * Not Used N/A
4 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] automatic transmission N/A
5 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] automatic transmission N/A
6 - () * Not Used N/A
7 RET24 (BN-BU) 22 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) N/A
7 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) N/A
8 - () * Not Used N/A
9 - () * Not Used N/A
10 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) N/A
11 - () * Not Used N/A
12 VE722 (BN) 22 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT) N/A
13 VE788 (BU-WH) 18 SENSOR - PARTICULATE FILTER PRESSURE OUTLET LEFT OR SINGLE (PFP_O) N/A
13 VE788 (BU-WH) 22 SENSOR - INTERMEDIATE SHAFT SPEED (ISS) automatic transmission N/A
14 - () * Not Used N/A
15 - () * Not Used N/A
16 CE234 (BU-WH) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) N/A
17 - () * Not Used N/A
18 - () * Not Used N/A
19 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] automatic transmission N/A
20 - () * Not Used N/A
21 - () * Not Used N/A
22 - () * Not Used N/A
23 - () * Not Used N/A
24 - () * Not Used N/A
25 - () * Not Used N/A
26 VE733 (WH) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) N/A
26 VE733 (WH) 20 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) automatic transmission N/A
27 - () * Not Used N/A
28 VE723 (GN-VT) 22 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) + N/A
28 VE723 (GN) 22 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) + automatic transmission N/A
29 LE450 (WH) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21) N/A
30 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) N/A
31 - () * Not Used N/A
32 - () * Not Used N/A
33 - () * Not Used N/A
34 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] N/A
35 LE461 (GY-YE) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2) N/A
36 VET84 (BN-GN) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1) N/A
37 VETB0 (YE-VT) 20 SENSOR - INTERMEDIATE SHAFT SPEED A + N/A
38 VET33 (WH-OG) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + automatic transmission N/A
39 - () * Not Used N/A
40 - () * Not Used N/A
41 - () * Not Used N/A
42 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) N/A
43 - () * Not Used N/A
44 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) N/A
45 LE449 (VT-GN) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21) N/A
46 CE236 (GY-VT) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21) N/A
47 - () * Not Used N/A
48 - () * Not Used N/A
49 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] N/A
50 LE425 (BU-BN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF) N/A
51 VET26 (BN-GN) 20 SENSOR - OUTPUT SHAFT SPEED (OSS) N/A
52 VE915 (BN-GN) 22 VALVE - ACTIVE EXHAUST SOLENOID SINGLE OR LEFT N/A
53 VE939 (WH-BU) 22 VALVE - ACTIVE EXHAUST SOLENOID RIGHT N/A
54 VETB1 (BN-WH) 20 SENSOR - INTERMEDIATE SHAFT SPEED B + N/A
55 VET81 (YE-GY) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2) N/A
56 - () * Not Used N/A
57 RE722 (BU-OG) 18 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT)- N/A
58 VE787 (WH-OG) 18 SENSOR - PARTICULATE FILTER PRESSURE OUTLET RIGHT (PFP_O) N/A
58 VE787 (WH-OG) 22 SENSOR - PARTICULATE FILTER PRESSURE OUTLET RIGHT (PFP_O) automatic transmission N/A
59 VE826 (YE-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) N/A
60 VE827 (WH-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21) N/A
61 - () * Not Used N/A
62 - () * Not Used N/A
63 CET50 (WH-OG) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION LINE PRESSURE CONTROL (LPC) N/A
64 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] N/A
65 - () * Not Used N/A
66 - () * Not Used N/A
67 - () * Not Used N/A
68 - () * Not Used N/A
69 - () * Not Used N/A
70 - () * Not Used N/A
71 RE723 (WH-BU) 18 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) - N/A
72 - () * Not Used N/A
73 - () * Not Used N/A
74 - () * Not Used N/A
75 - () * Not Used N/A
76 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) N/A
77 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) N/A
78 - () * Not Used N/A
79 CET51 (WH) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC) N/A
80 - () * Not Used N/A
81 LE424 (YE-GN) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) N/A
81 LE424 (YE-GN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) automatic transmission N/A
82 - () * Not Used N/A
83 - () * Not Used N/A
84 RE731 (BK) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) N/A
84 RE731 (WH-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) automatic transmission N/A
85 RE733 (GN) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) N/A
86 - () * Not Used N/A
87 - () * Not Used N/A
88 - () * Not Used N/A
89 CE162 (BU-GN) 22 CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE SINGLE OR LEFT N/A
90 CE196 (GY) 22 CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE RIGHT N/A
90 CE196 (WH-BU) 22 CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE RIGHT automatic transmission N/A
