Occupant Classification System Module (OCSM): Notes
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
NOTE:
This procedure only applies to seats equipped with Occupant Classification System (OCS) weight sensor bolts.

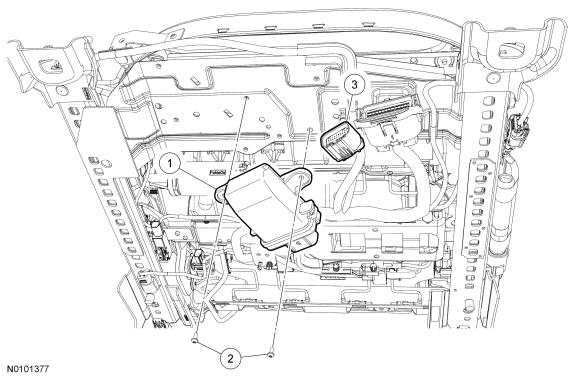

| Item | Part Number | Description |
|---|---|---|
| 1 | 14B056 | Occupant Classification System Module (OCSM) |
| 2 | -- | OCSM screws |
| 3 | -- | OCSM electrical connector (part of 14D230) |
