Fuel Rail: Installation

NOTE: Make sure that new components are installed.

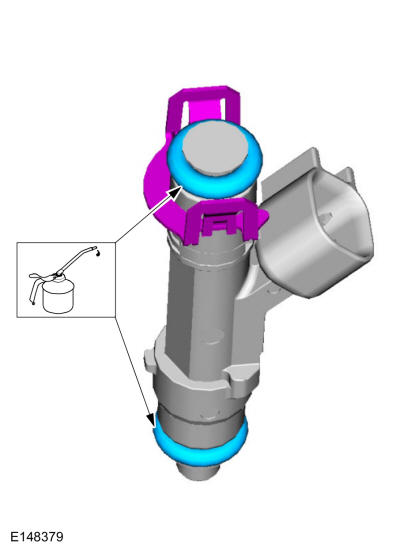

Install the new fuel injector O-ring seals and the fuel injector clips. Lubricate the new O-rings with clean engine oil.

Material: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
