Powertrain Control Module (PCM): Installation

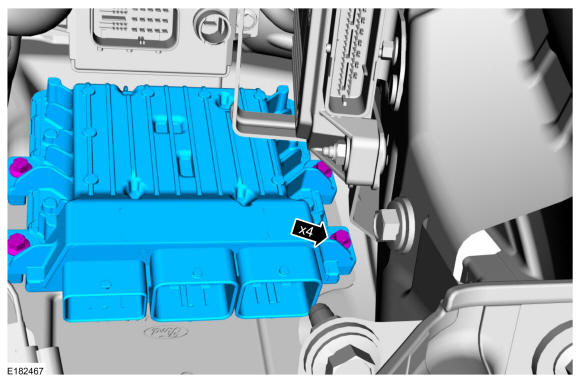

Install the PCM and the bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

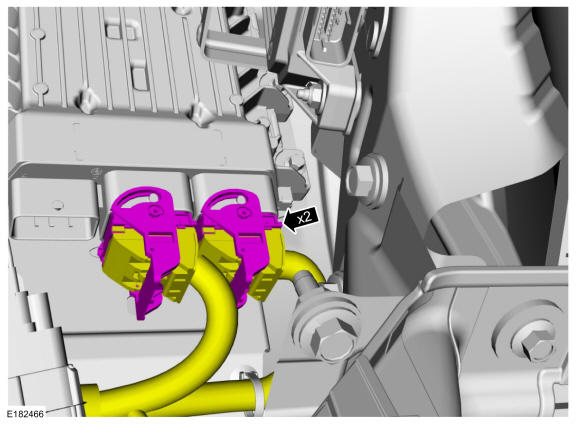

Connect the PCM electrical connectors.

Courtesy of FORD MOTOR COMPANY

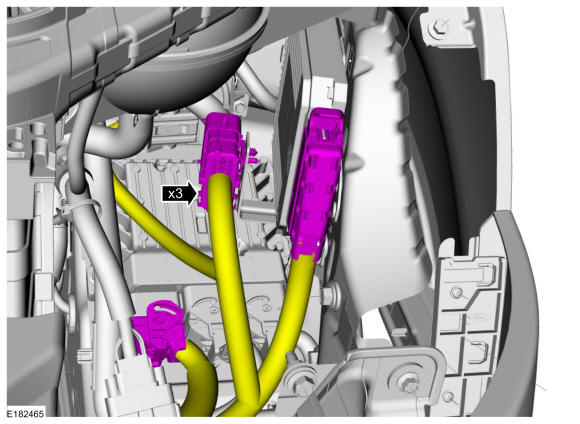

Connect the transmission control module and the engine harnesses.

Courtesy of FORD MOTOR COMPANY
Install the LH headlight. Refer to: Headlamp Assembly .
NOTE: This step is only necessary when installing a new component.

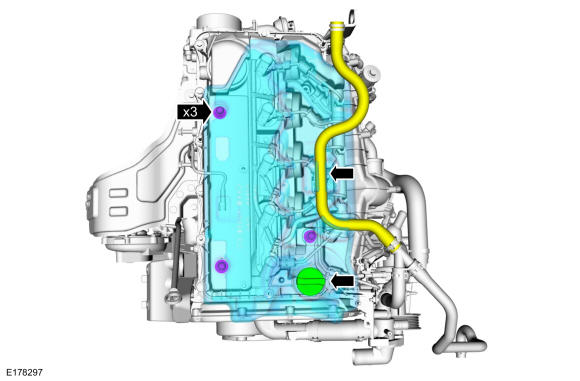

Position the hose aside, remove the oil filler cap and remove the engine appearance cover. Install the oil filler cap.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

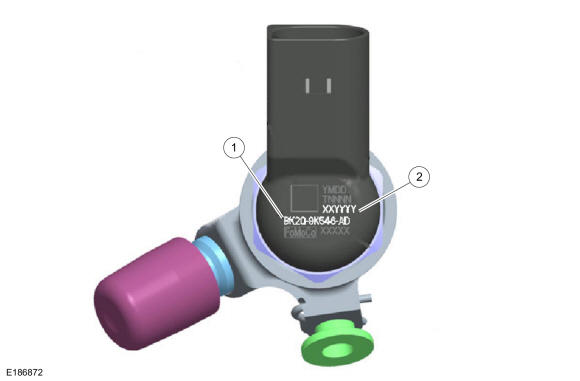

NOTE: The PCM is programmed with an IQA code for each fuel injector. If a new PCM is installed record the fuel injector IQA code located on top of the fuel injector.
- Ford part number (example).
- Fuel injector IQA code.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the oil filler cap. Install the engine appearance cover, position the hose back and install the oil filler cap.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: The PCM must be programmed with the proper fuel injector IQA codes.
- Upload the module information from the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation And Component Description .
- Using the scan tool, follow the on-screen instructions and program the PCM with the appropriate fuel injector IQA code for any fuel injector that was replaced.
NOTE: This step is only necessary when installing a new component.

NOTE: Vehicles without PATS may still require a parameter reset.

Carry out the Parameter Reset procedure. Refer to: Passive Anti-Theft System (PATS) Parameter Reset .
NOTE: This step is only necessary when installing a new component.

Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
