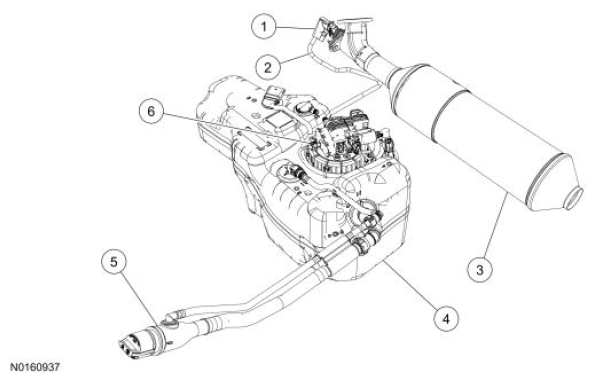

SCR System (Transit)
| Item | Number | Description |
|---|---|---|
| 1 | - | Reductant Injector |
| 2 | - | Reductant Pressure Line |
| 3 | - | SCR Catalyst |
| 4 | - | Reductant Tank |
| 5 | - | Reductant Tank Filler Hose |
| 6 | - | Reductant Pump Assembly |
Selective Catalytic Reduction (SCR) System - All Others
The SCR system reduces nitrogen oxides (NOx) in the exhaust stream by a chemical reduction process using the SCR catalyst and a reductant injection system that introduces diesel exhaust fluid (DEF) into the exhaust system upstream of the SCR catalyst. The reductant injection system is directly controlled and monitored by the PCM. For additional information on the SCR system components, refer to ENGINE CONTROL COMPONENTS .
