Typical SCR System (All Others)

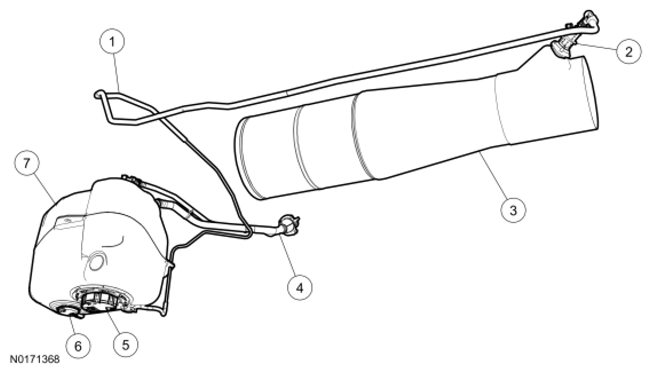

Fig 1: Typical SCR System (Others) Components Location
G11852729Courtesy of FORD MOTOR CO.
Item Number Description
1 - Reductant Pressure Line
2 - Reductant Injector
3 - SCR Catalyst
4 - Reductant Tank Filler Hose
5 - Reductant Pump Assembly
6 - Reductant Level Sensor
7 mdash Reductant Tank
