Pinpoint Tests EB: Engine Brake: Introduction
This pinpoint test is intended to diagnose the following:
- Engine brake switch
- Harness circuits: EBIS and VPWR
- PCM (12A650)
Courtesy of FORD MOTOR CO.

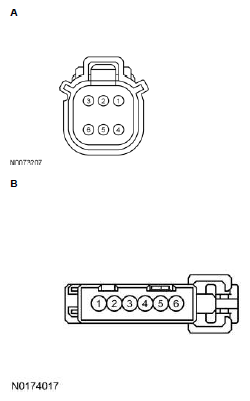

| Vehicle |
Connector |
Pin |
Circuit |
| F-650/F-750 |
A |
2
6 |
EBIS
VPWR |
| F-Series Super Duty |
B |
2
6 |
EBIS
VPWR |
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
| 26 |
EBIS (Engine Brake Input Signal) |
