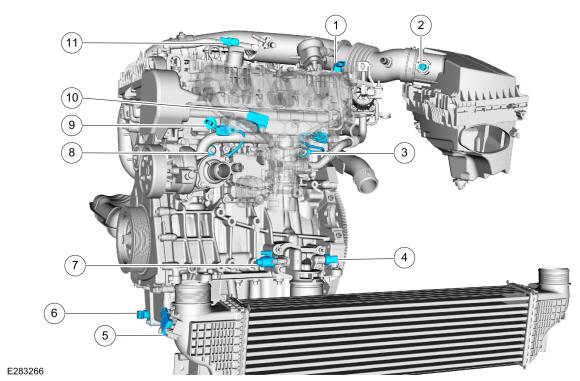

Electronic Engine Controls- Front

GFD383070Courtesy of FORD MOTOR COMPANY
Item Description
1 Intake CMP sensor
2 IAT sensor
3 KS rear
4 EOP sensor
5 Turbocharger Boost Pressure Sensor
6 Engine oil level sensor
7 Oil pressure control solenoid
8 KS front
9 FRP sensor
10 MAPT sensor
11 Crankcase pressure sensor
