Valve Guide Inner Diameter
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Check
NOTE:
Refer to the appropriate service information in the ENGINE - 2.0L ECOBOOST (184KW/250PS) - MI4
/ ENGINE - 2.7L ECOBOOST (238KW/324PS) (1 OF 2)
/ ENGINE - 2.7L ECOBOOST (238KW/324PS) (2 OF 2)
for the specification.
-
NOTE: Valve guides tend to wear in an hourglass pattern. The ball gauge can be inserted into the combustion chamber side of the valve guide, if necessary.

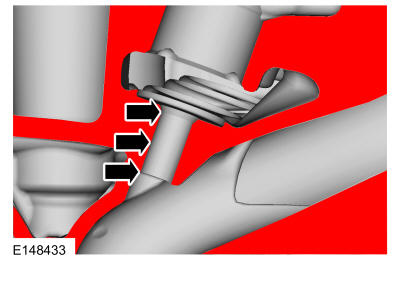

- Use a ball gauge to determine the inside diameter of the valve guides in 2 directions at the top, middle and bottom of the valve guide.
- Measure the ball gauge with a micrometer.
- If the valve guide is not within specifications, install a new cylinder head assembly.
