Cruise Control Module (CCM): Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Cruise control module

NOTE: Replace any damaged CCM grommets.

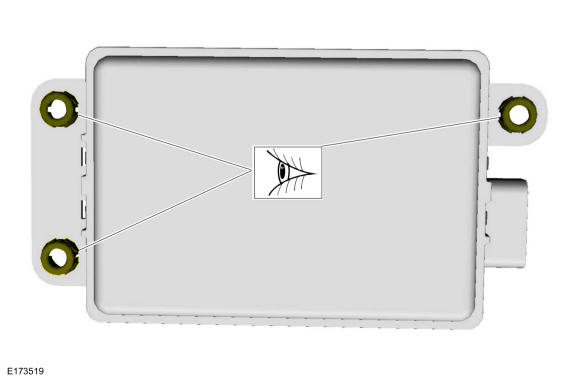

Inspect the CCM grommets for damage.

Courtesy of FORD MOTOR COMPANY

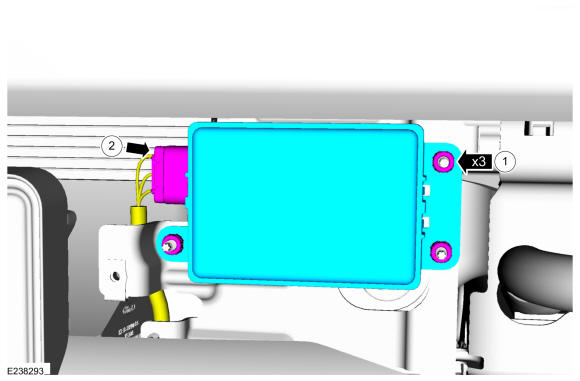

Install the CCM.
1. NOTE: Do not seat the grommets, they will be seated when the nuts are installed and torqued.

  Position the CCM grommets on the ball studs.
2. Connect the CCM electrical connector.
Courtesy of FORD MOTOR COMPANY

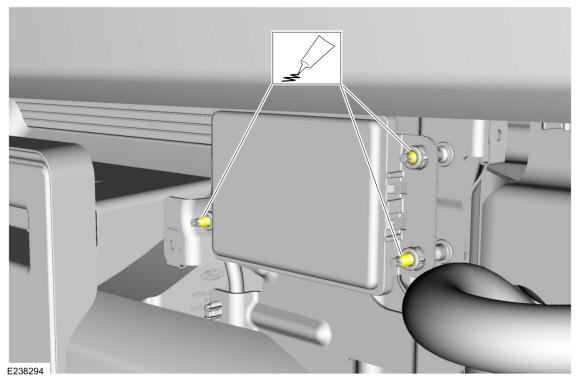

Apply thread locker to the CCM ball stud threads.
Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Courtesy of FORD MOTOR COMPANY

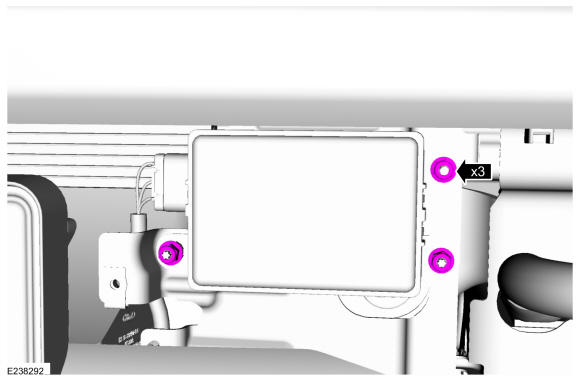

Install the CCM nuts.
Torque: 9 lb.in (1 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the CCM following the on-screen instructions.
Align the CCM. Refer to: Cruise Control Radar Alignment .

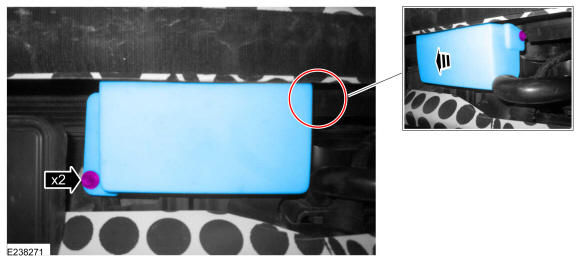

Install the CCM cover and the bolts.
Torque: 24 lb.in (2.7 Nm)

Courtesy of FORD MOTOR COMPANY

Cruise control module bracket
To install, reverse the removal procedure.
