OEM Ground Distribution: Grounds

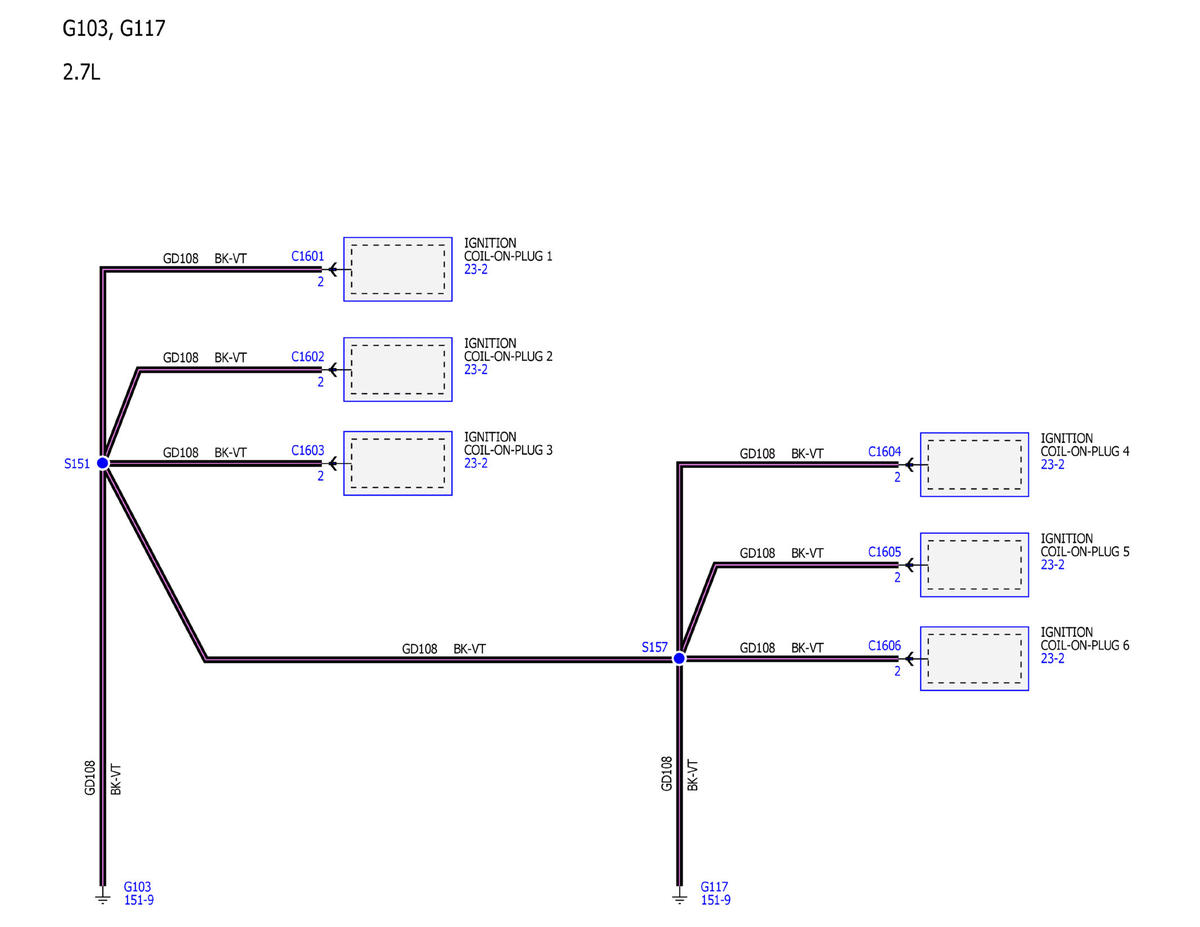

GFDWR52045Courtesy of FORD MOTOR COMPANY

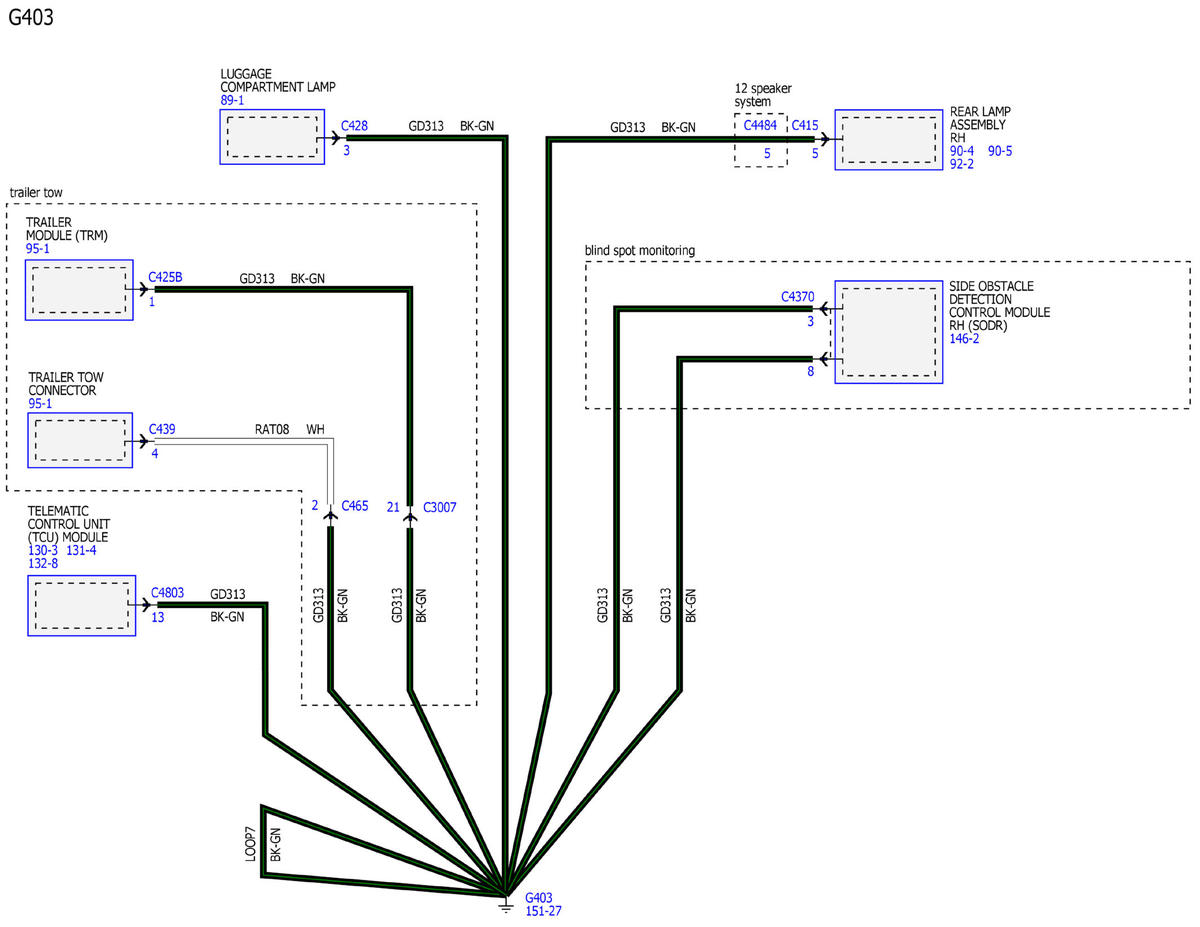

GFDWR52046Courtesy of FORD MOTOR COMPANY

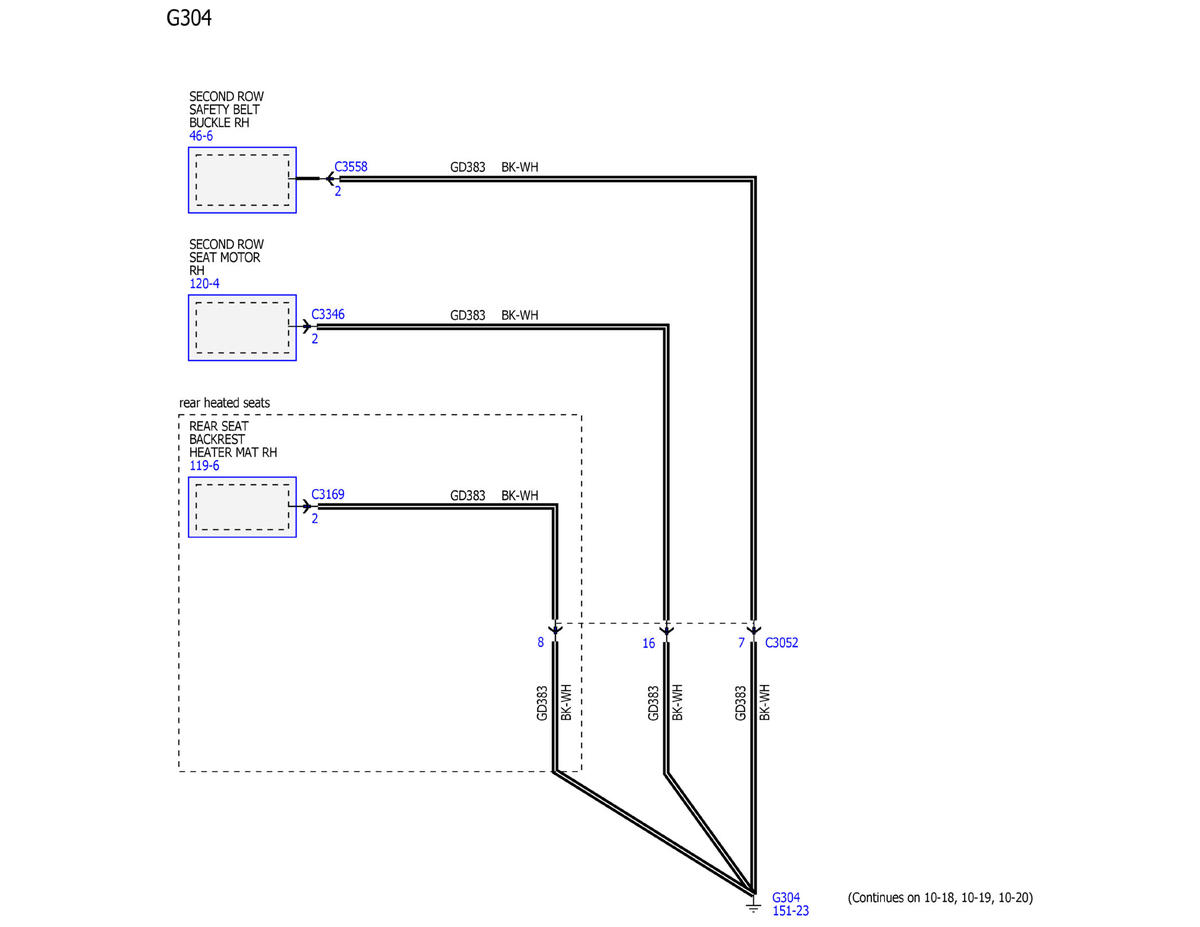

GFDWR52047Courtesy of FORD MOTOR COMPANY

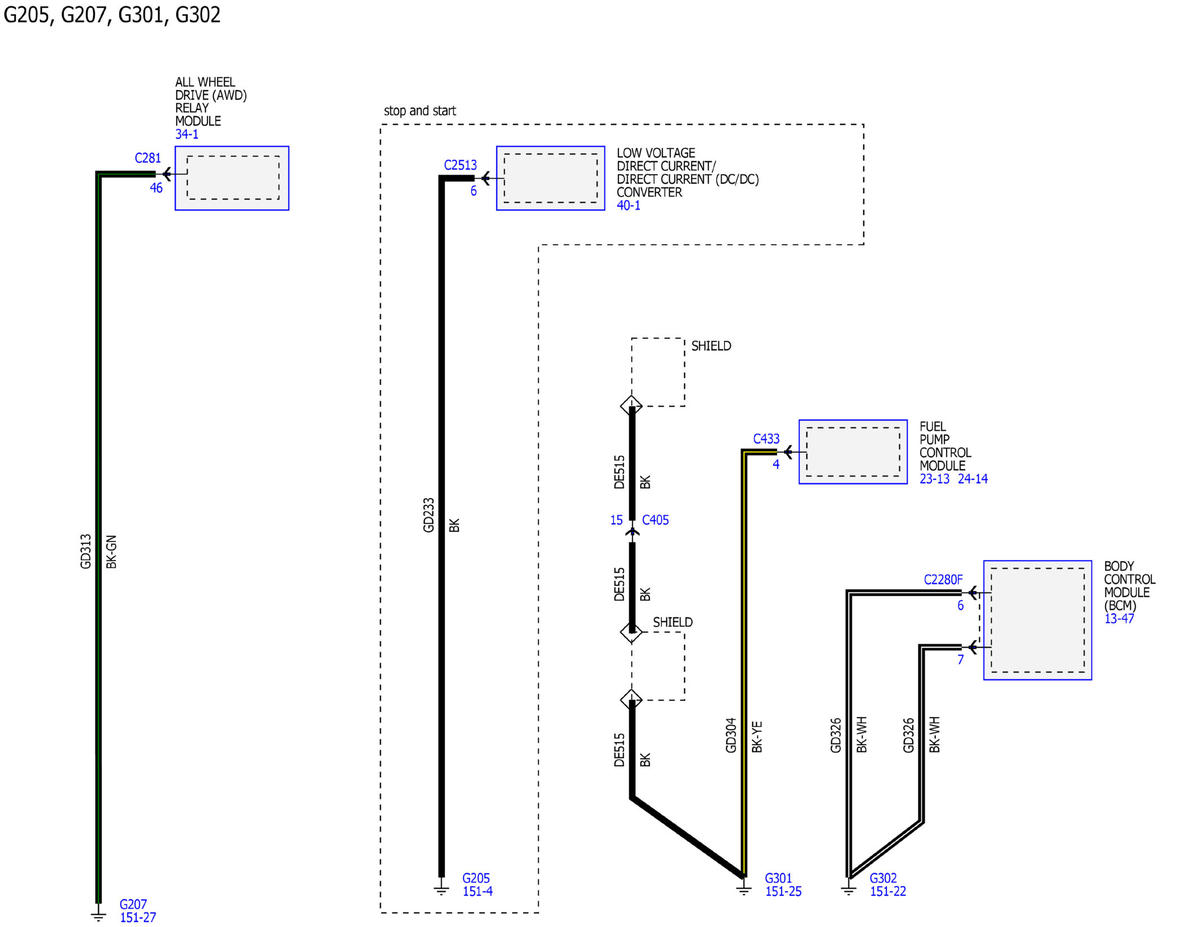

GFDWR52048Courtesy of FORD MOTOR COMPANY

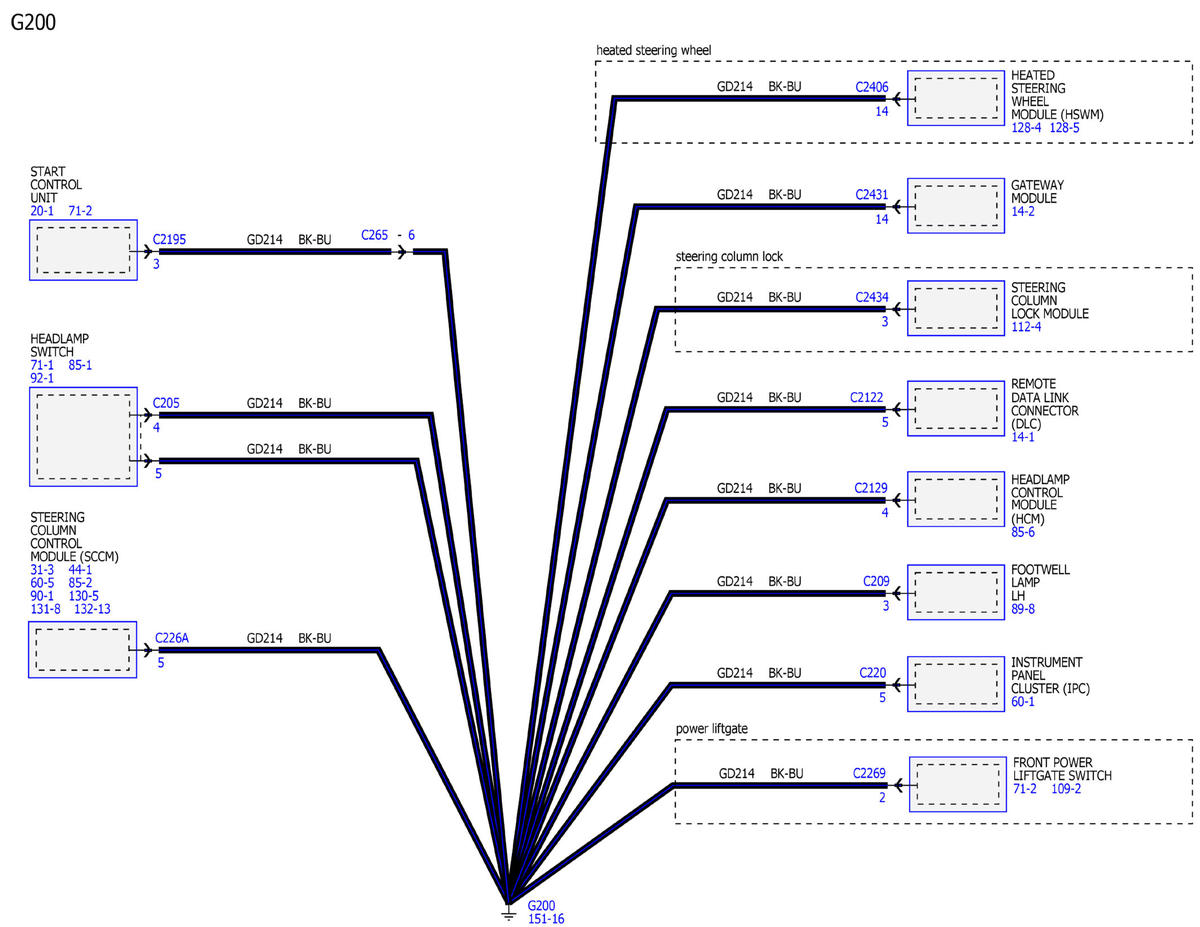

GFDWR52049Courtesy of FORD MOTOR COMPANY

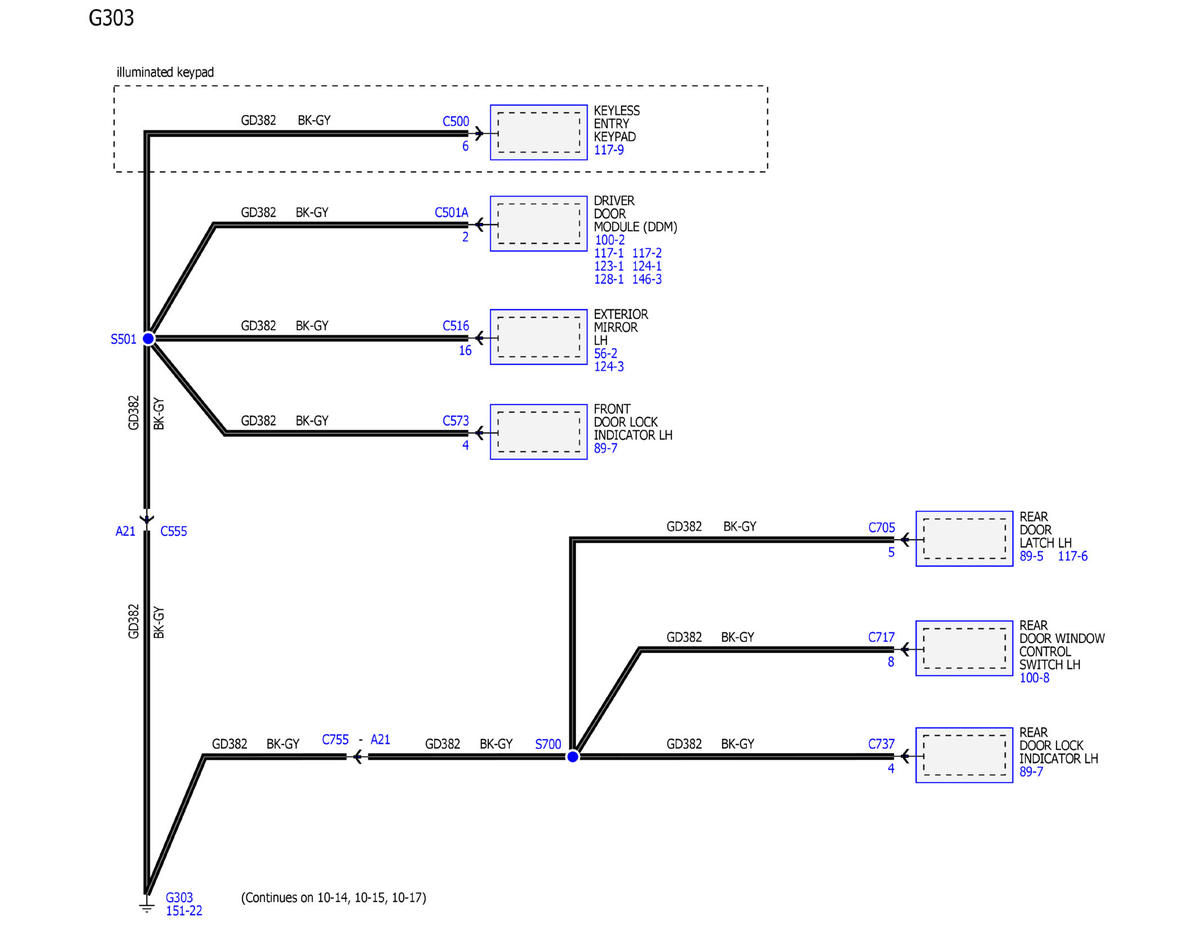

GFDWR52050Courtesy of FORD MOTOR COMPANY

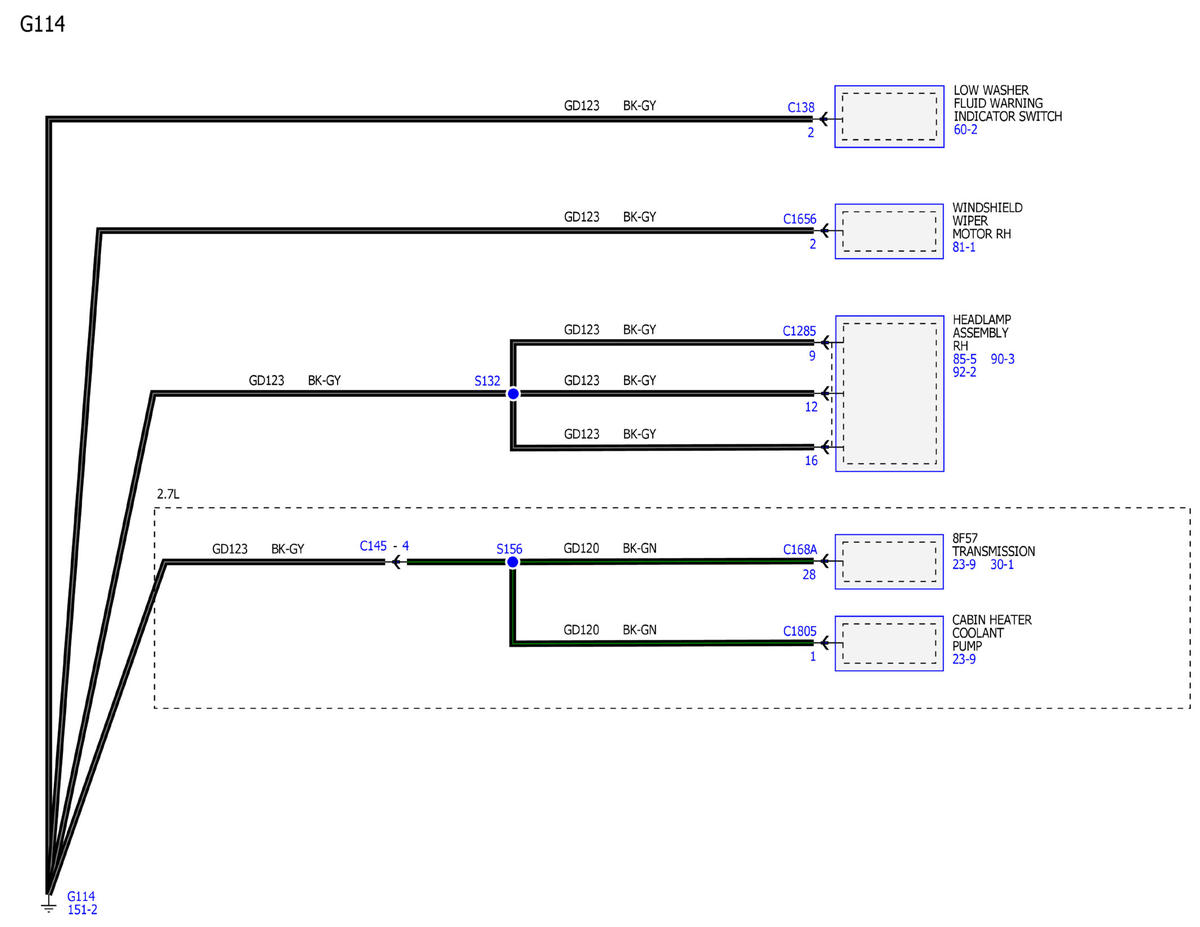

GFDWR52051Courtesy of FORD MOTOR COMPANY

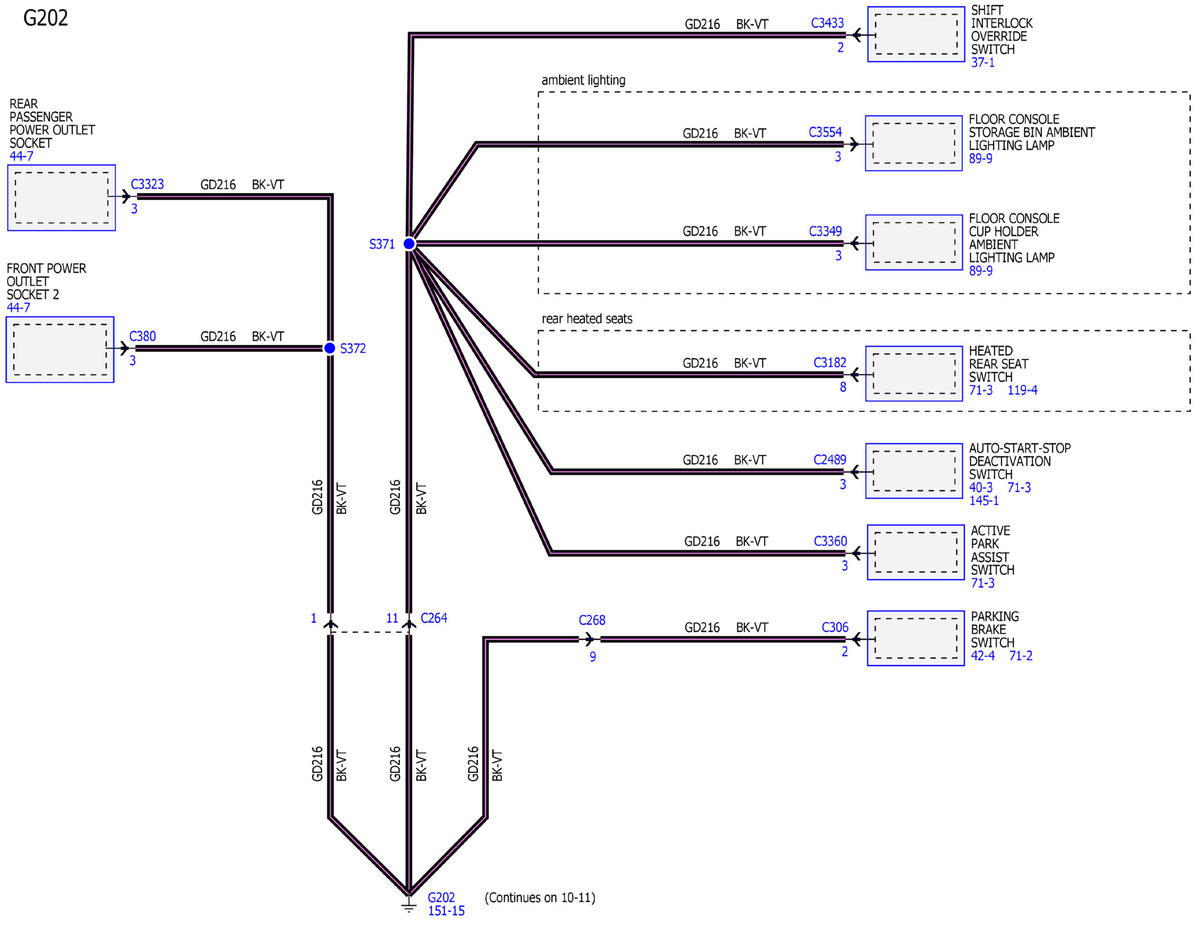

GFDWR52052Courtesy of FORD MOTOR COMPANY

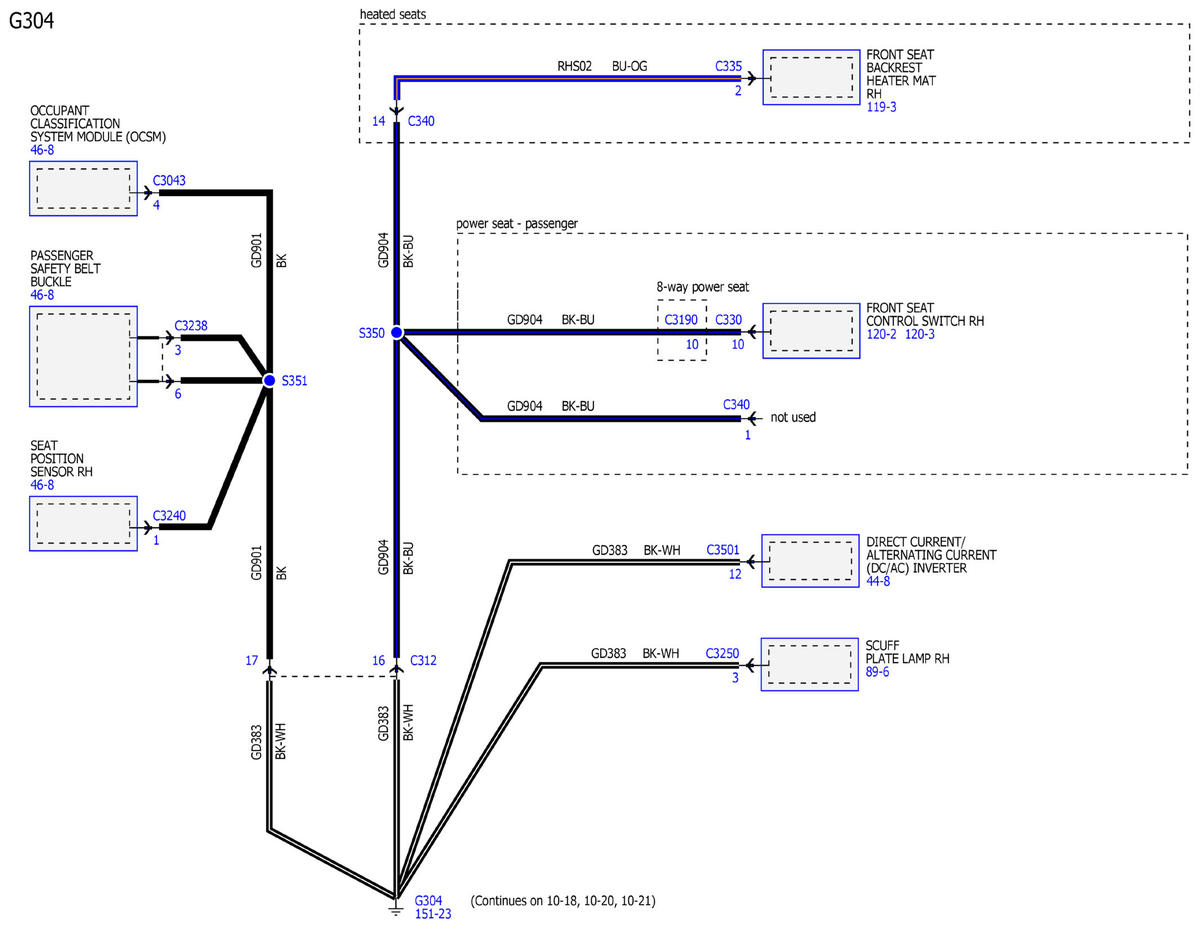

GFDWR52053Courtesy of FORD MOTOR COMPANY

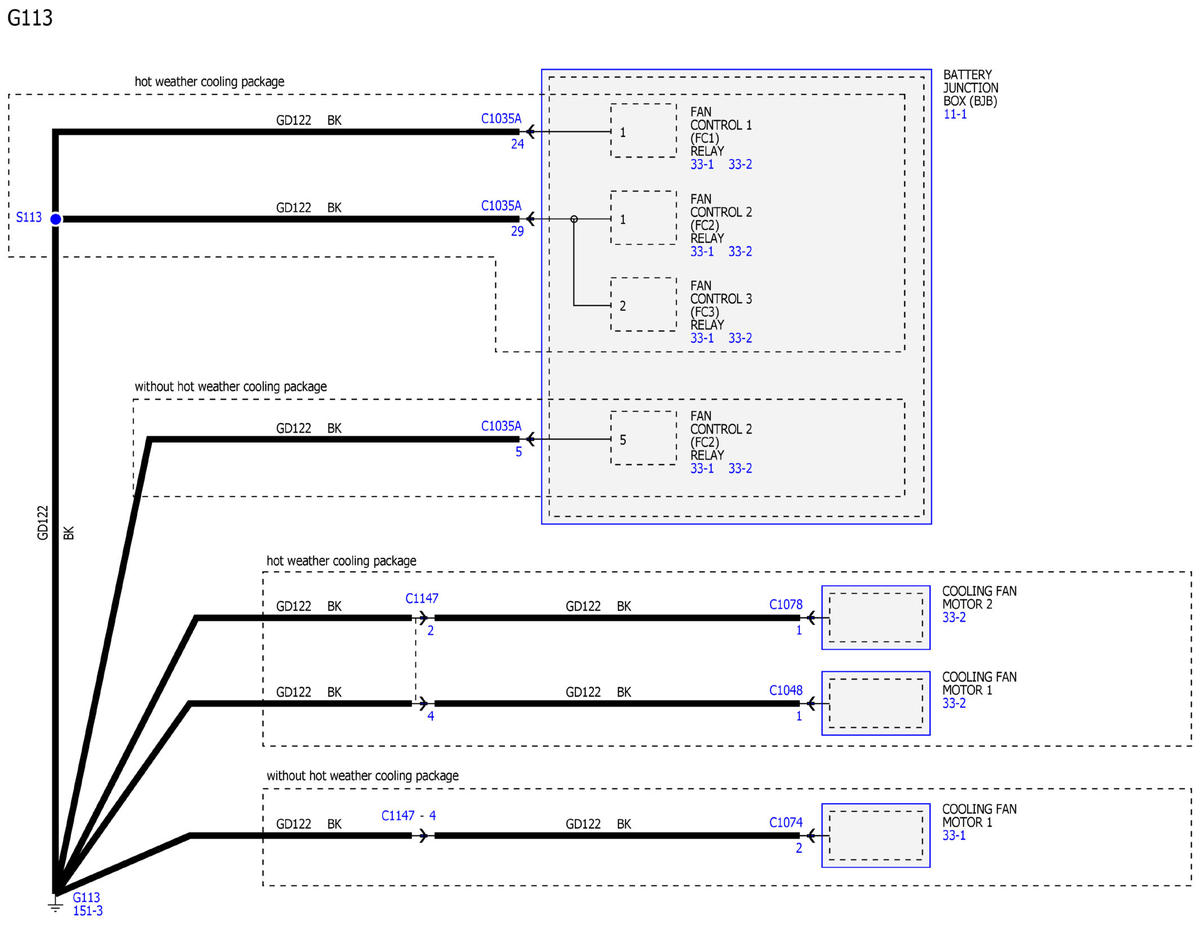

GFDWR52054Courtesy of FORD MOTOR COMPANY

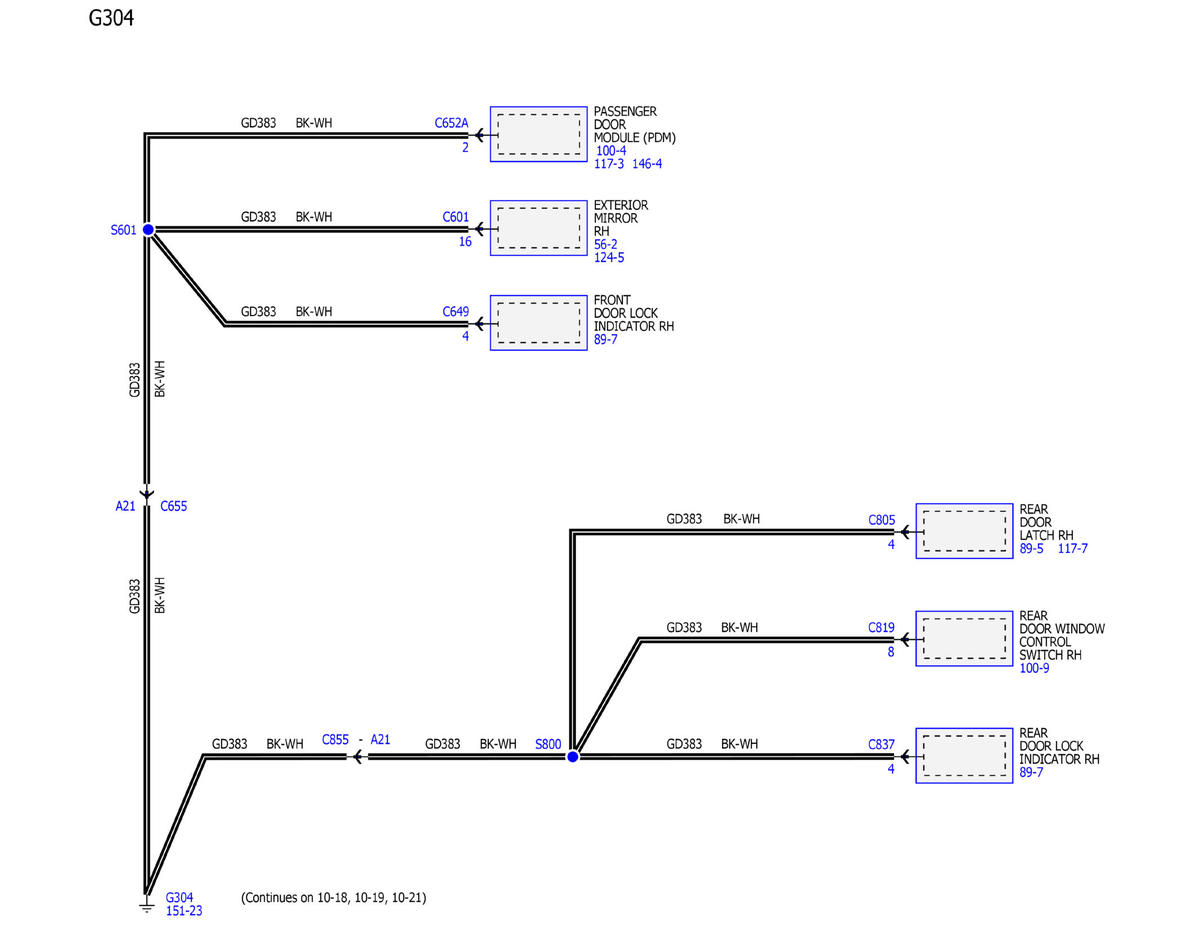

GFDWR52055Courtesy of FORD MOTOR COMPANY

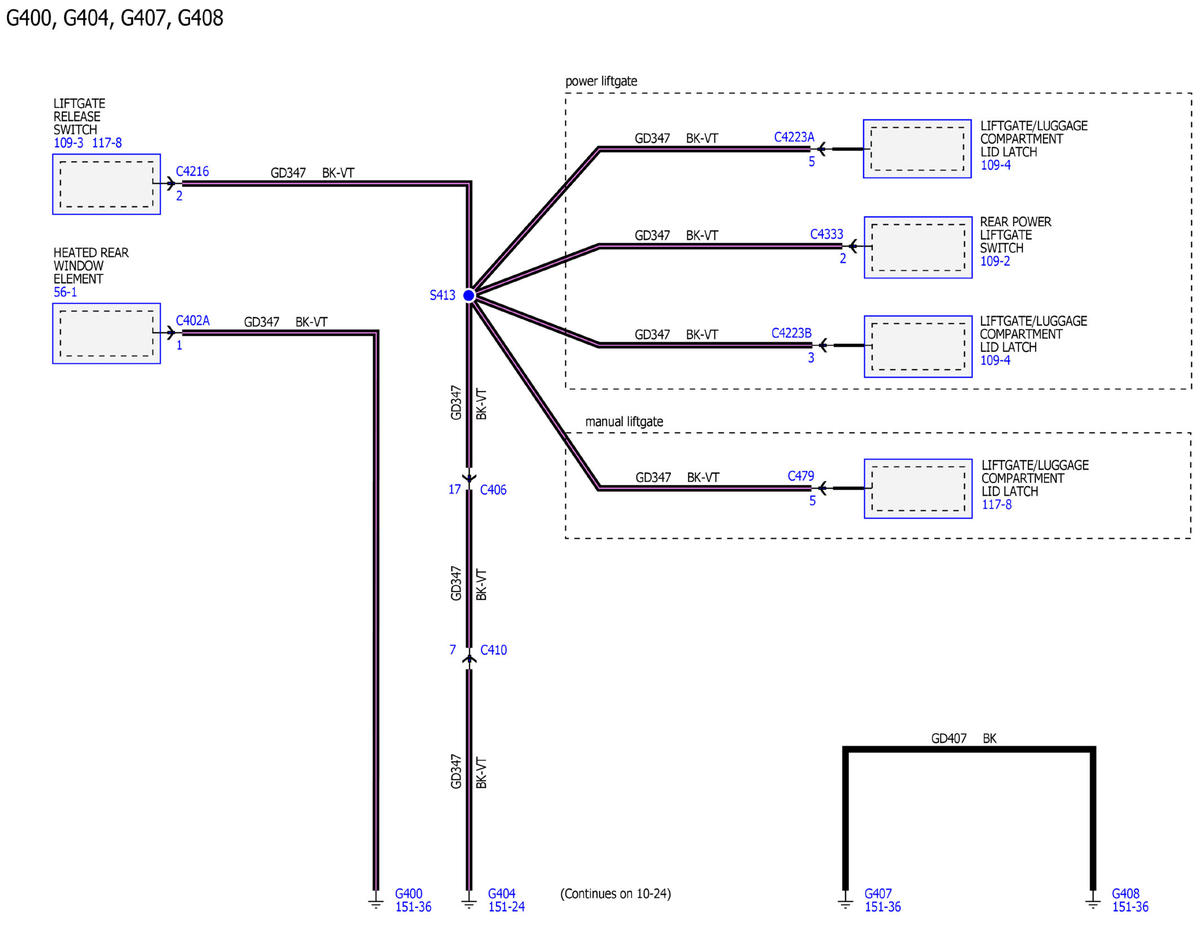

GFDWR52056Courtesy of FORD MOTOR COMPANY

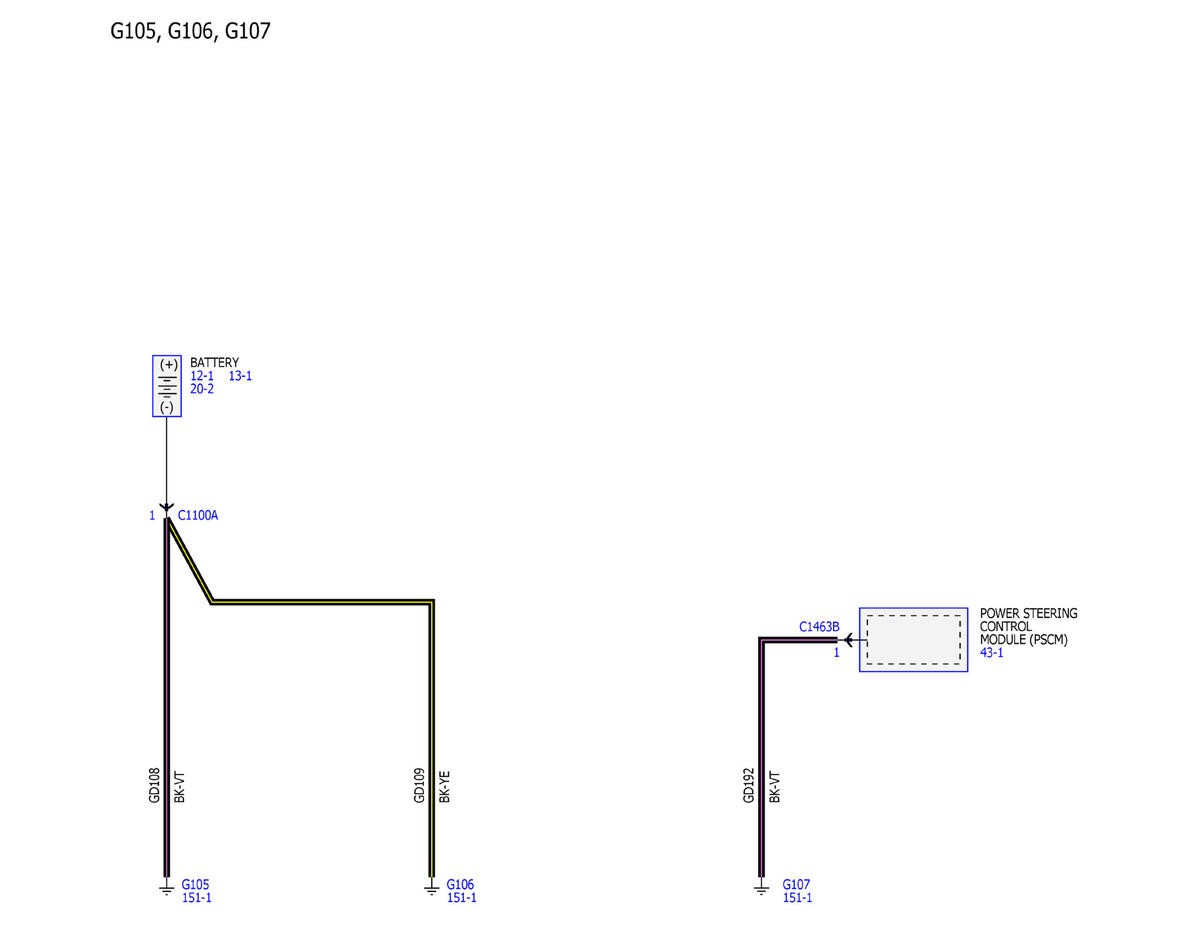

GFDWR52057Courtesy of FORD MOTOR COMPANY

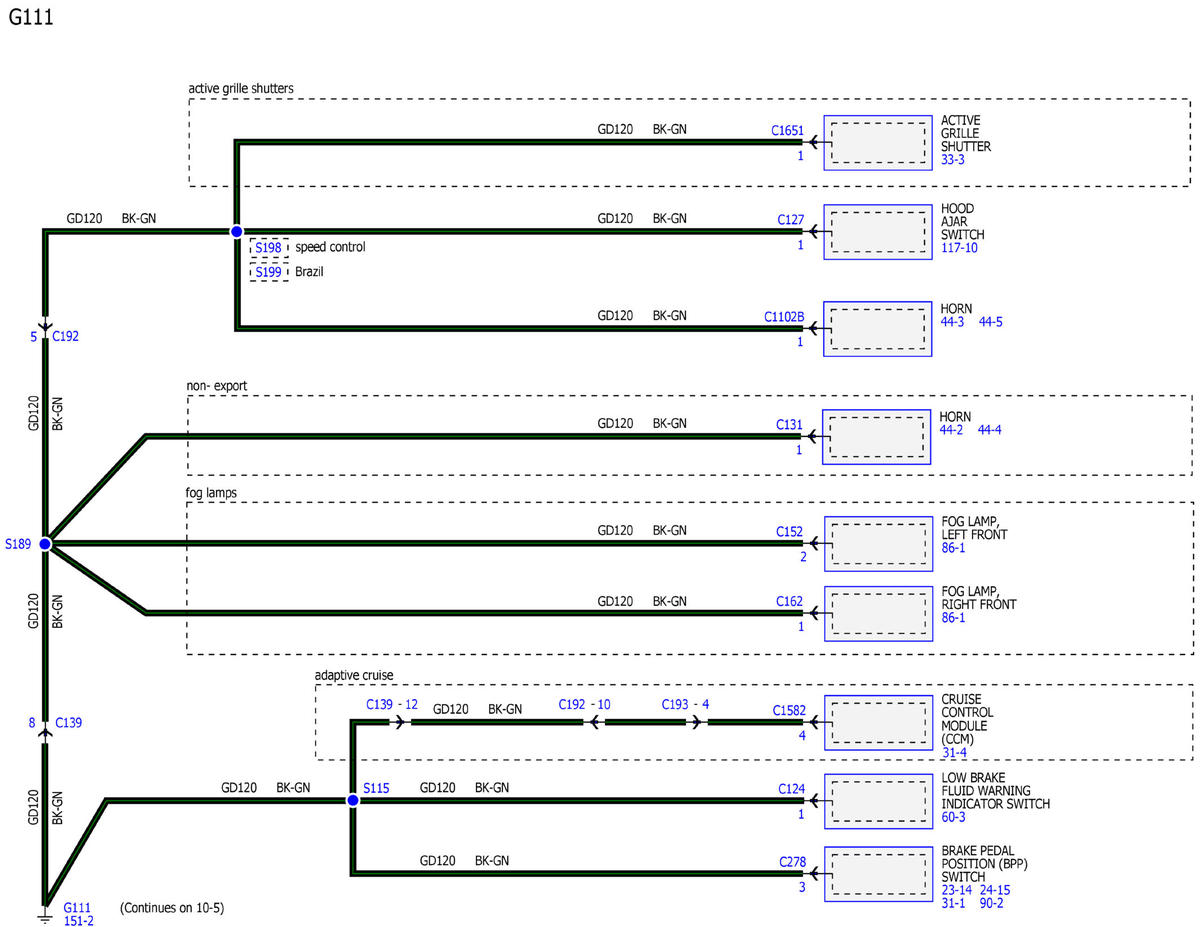

GFDWR52058Courtesy of FORD MOTOR COMPANY

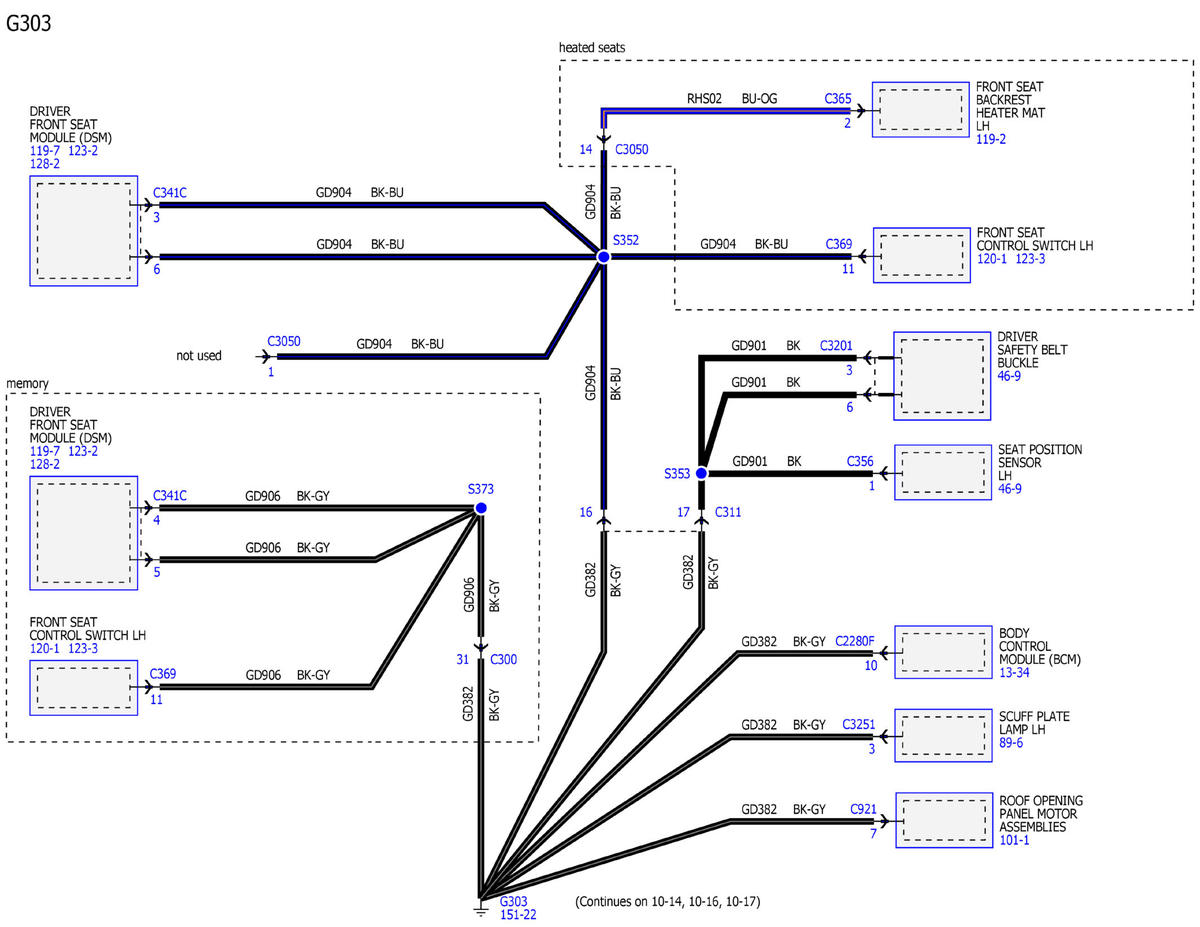

GFDWR52059Courtesy of FORD MOTOR COMPANY

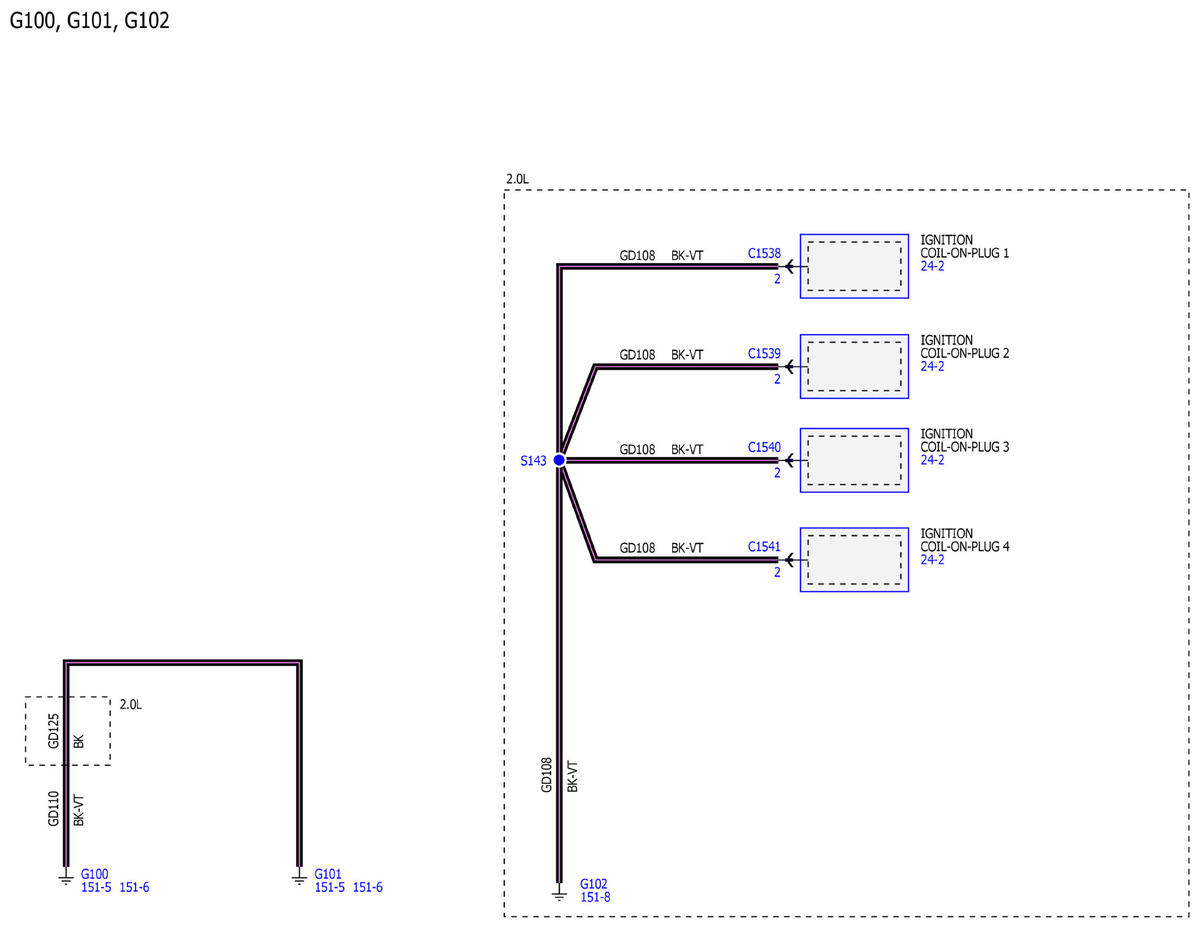

GFDWR52060Courtesy of FORD MOTOR COMPANY

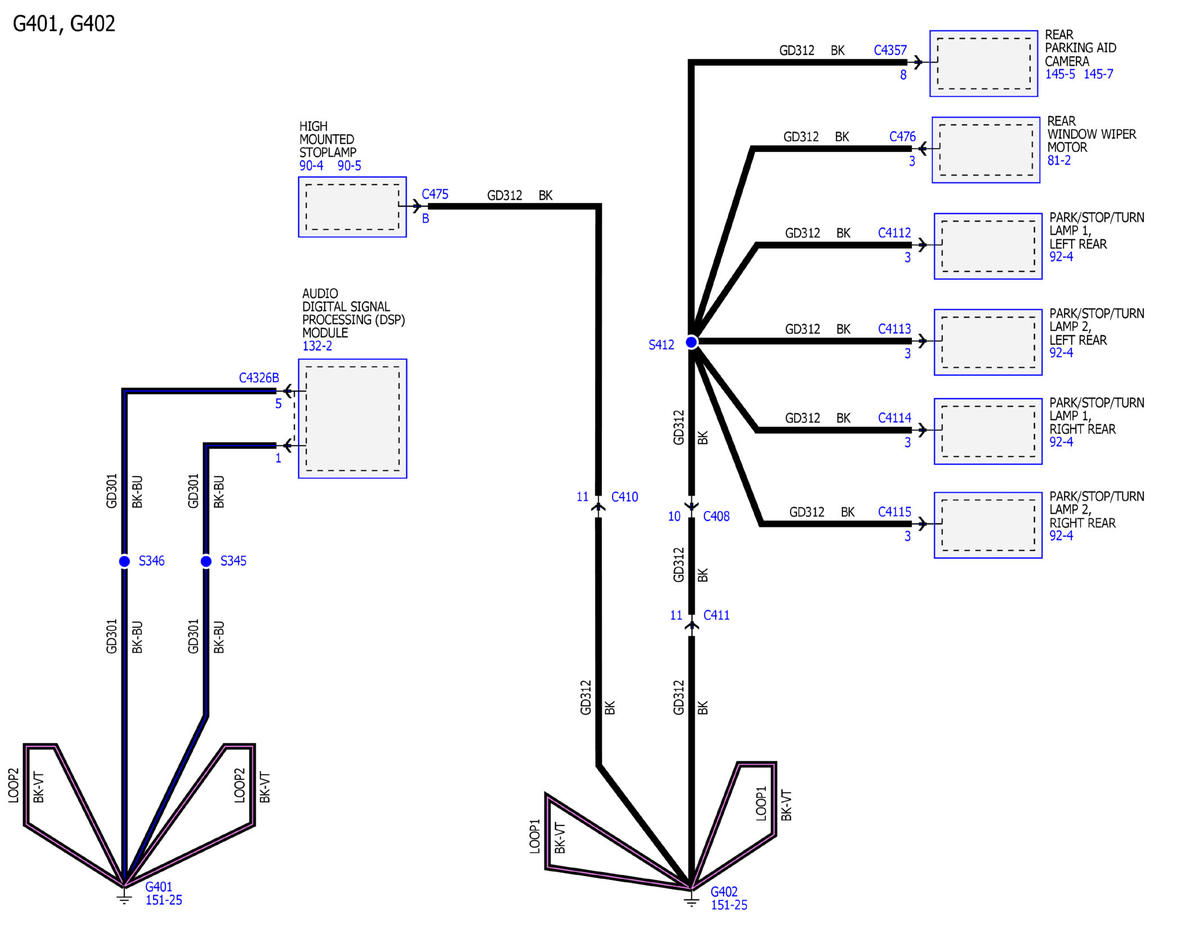

GFDWR52061Courtesy of FORD MOTOR COMPANY

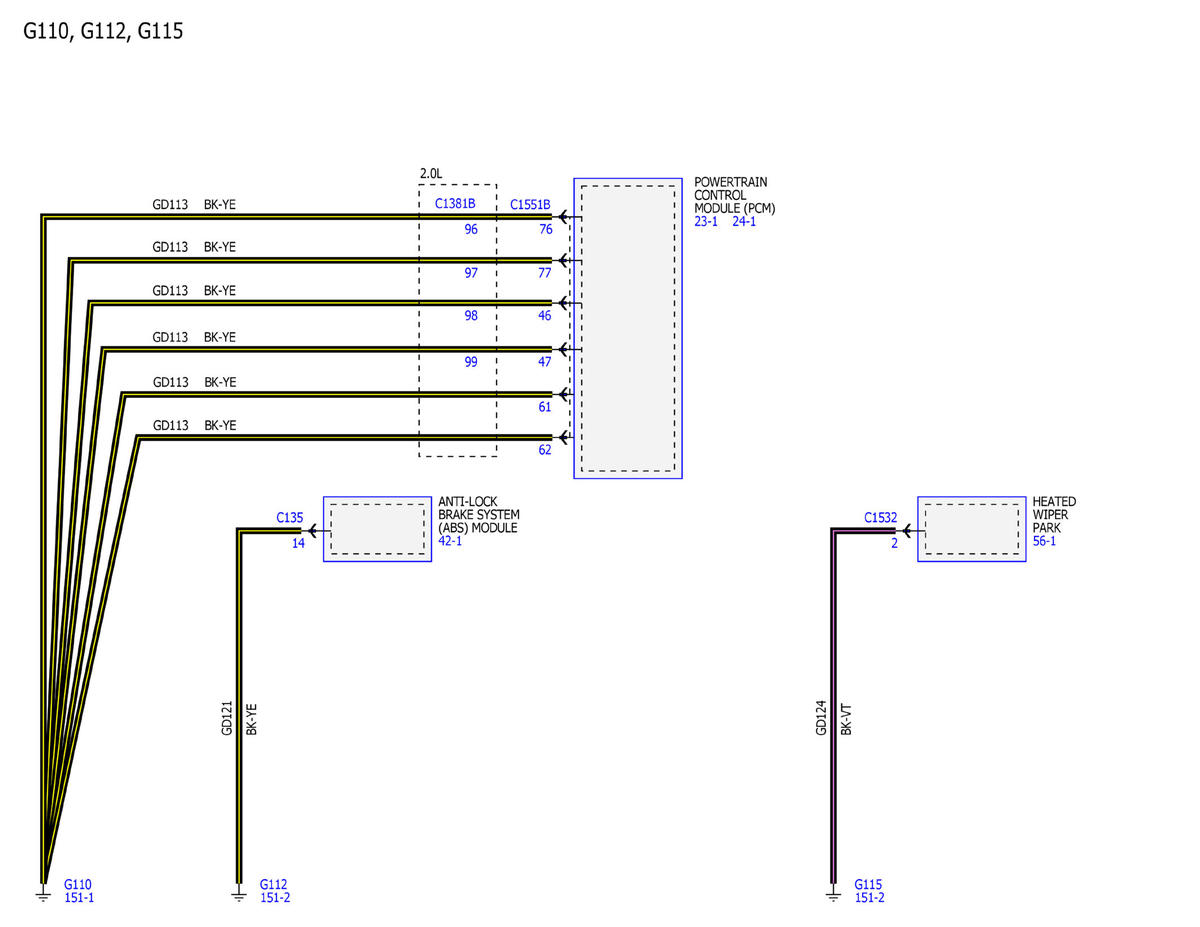

GFDWR52062Courtesy of FORD MOTOR COMPANY

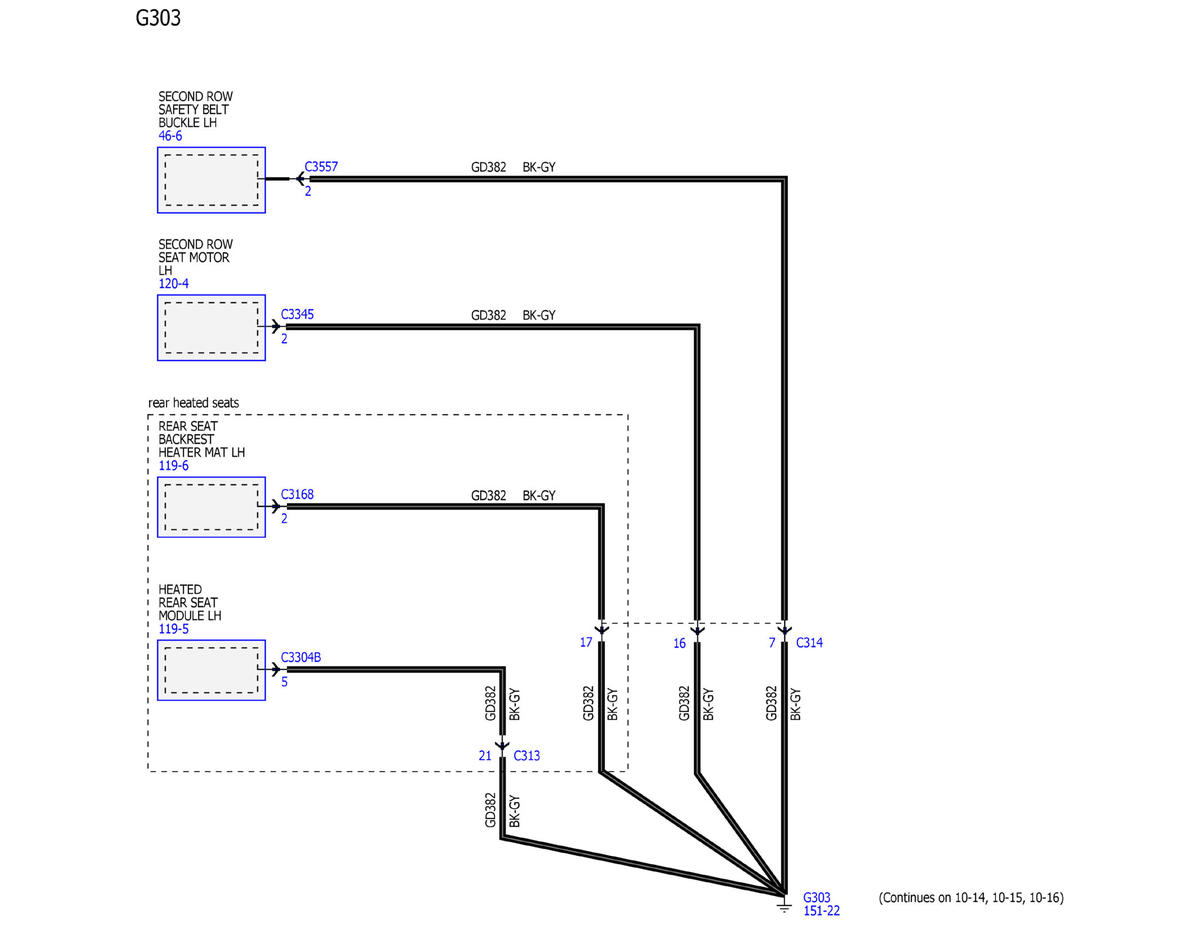

GFDWR52063Courtesy of FORD MOTOR COMPANY

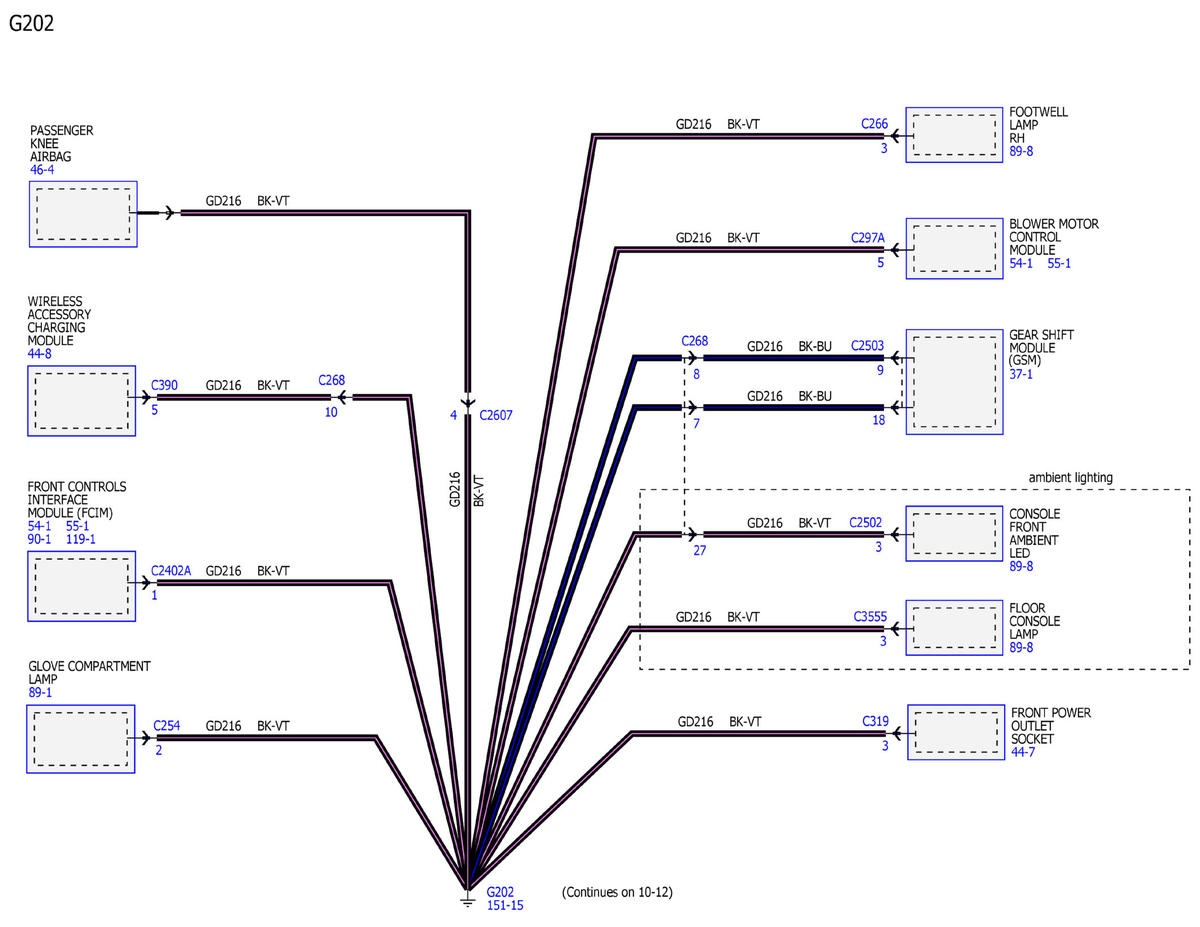

GFDWR52064Courtesy of FORD MOTOR COMPANY

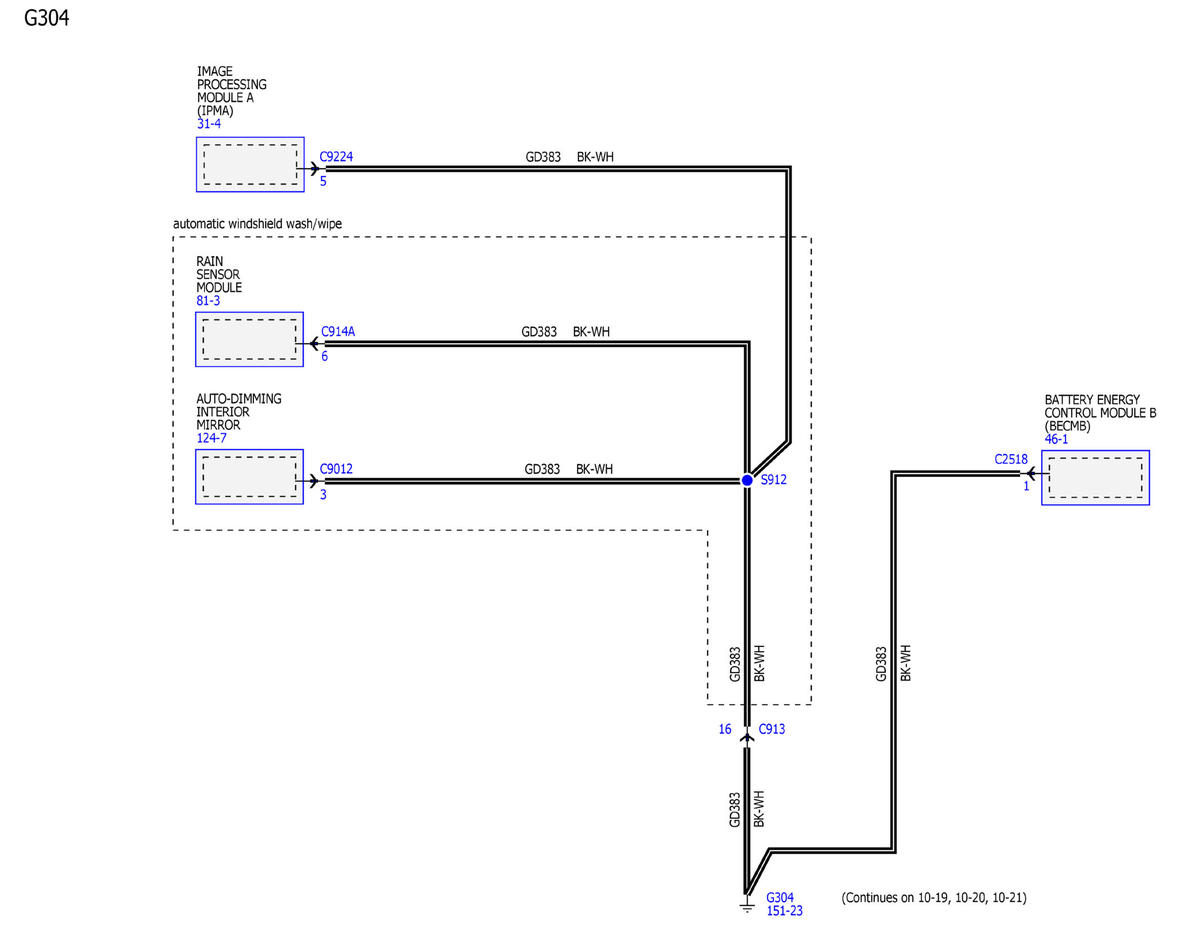

GFDWR52065Courtesy of FORD MOTOR COMPANY

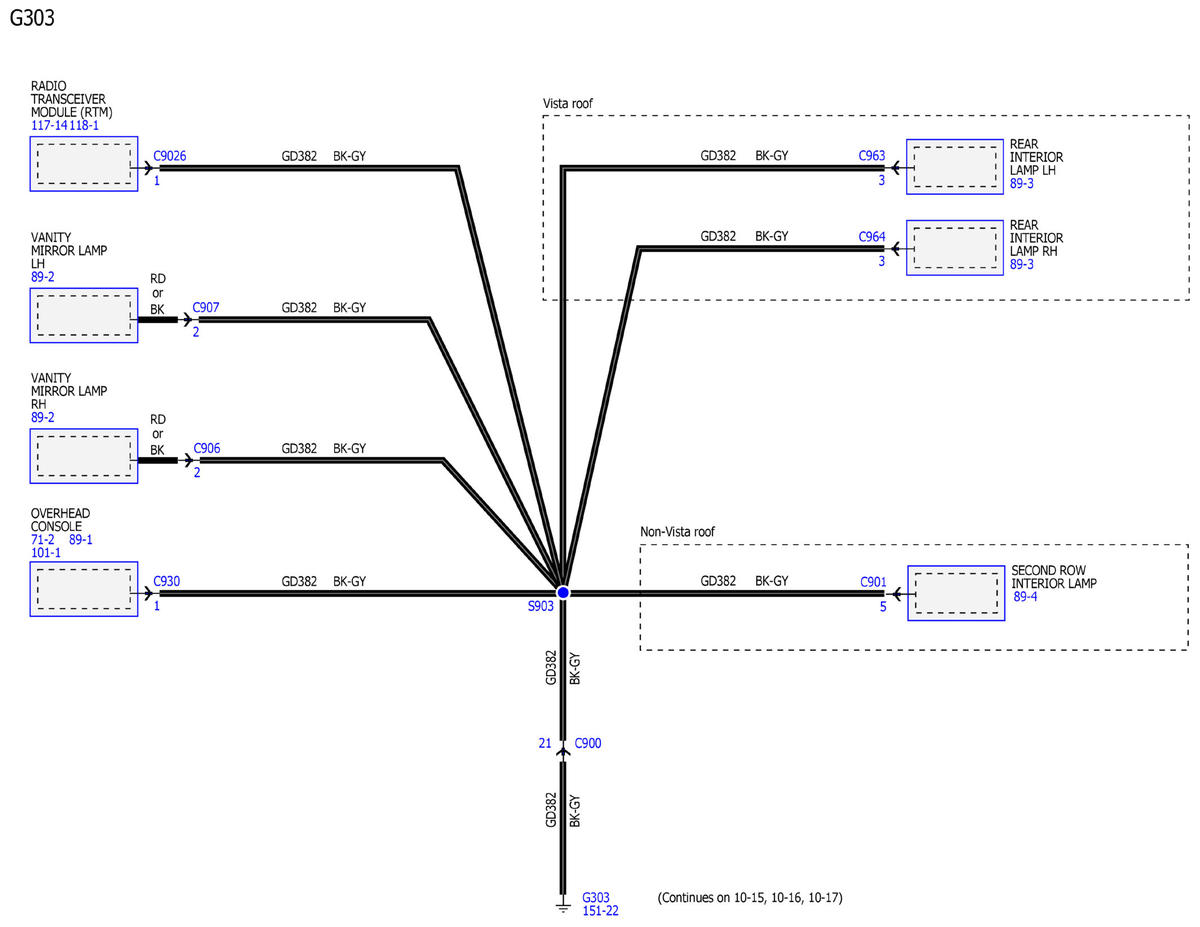

GFDWR52066Courtesy of FORD MOTOR COMPANY

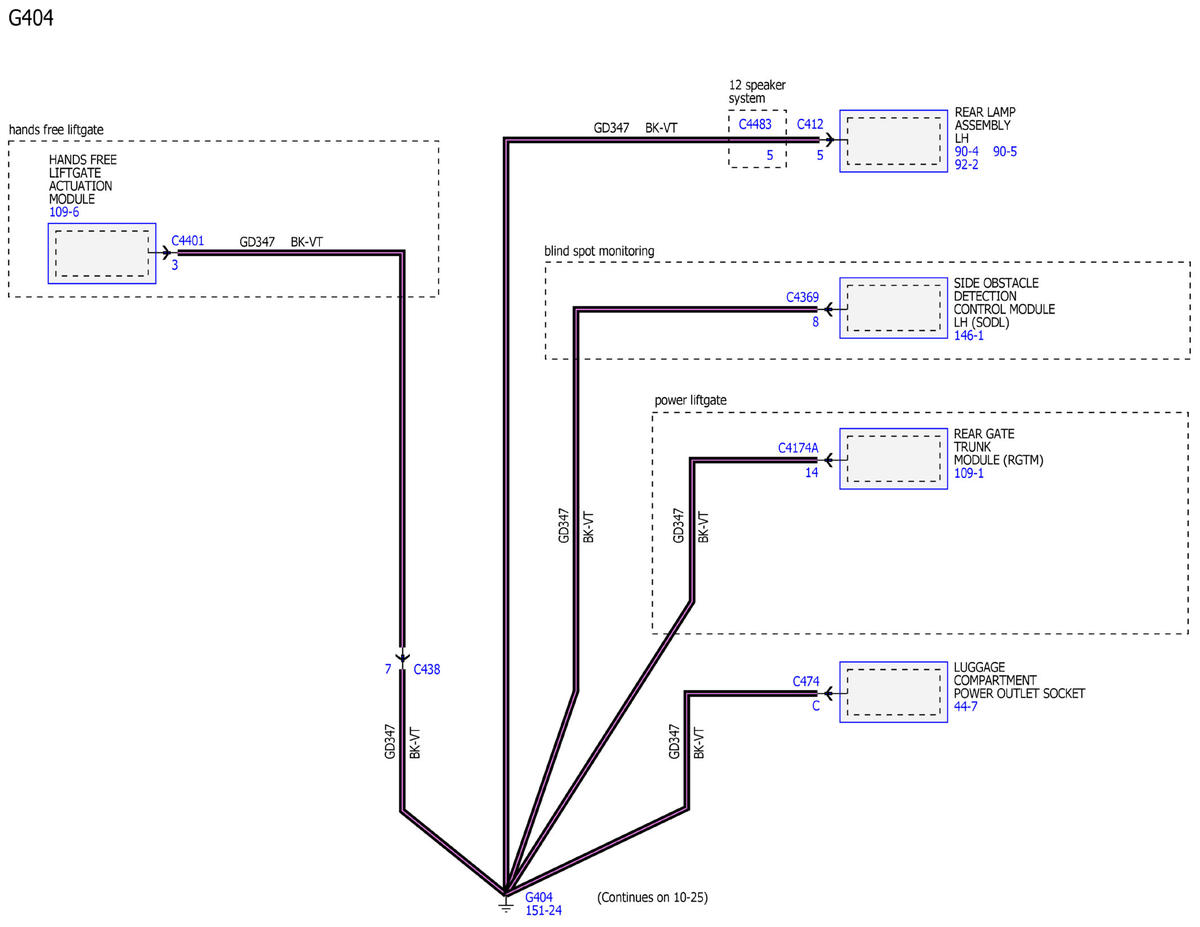

GFDWR52067Courtesy of FORD MOTOR COMPANY

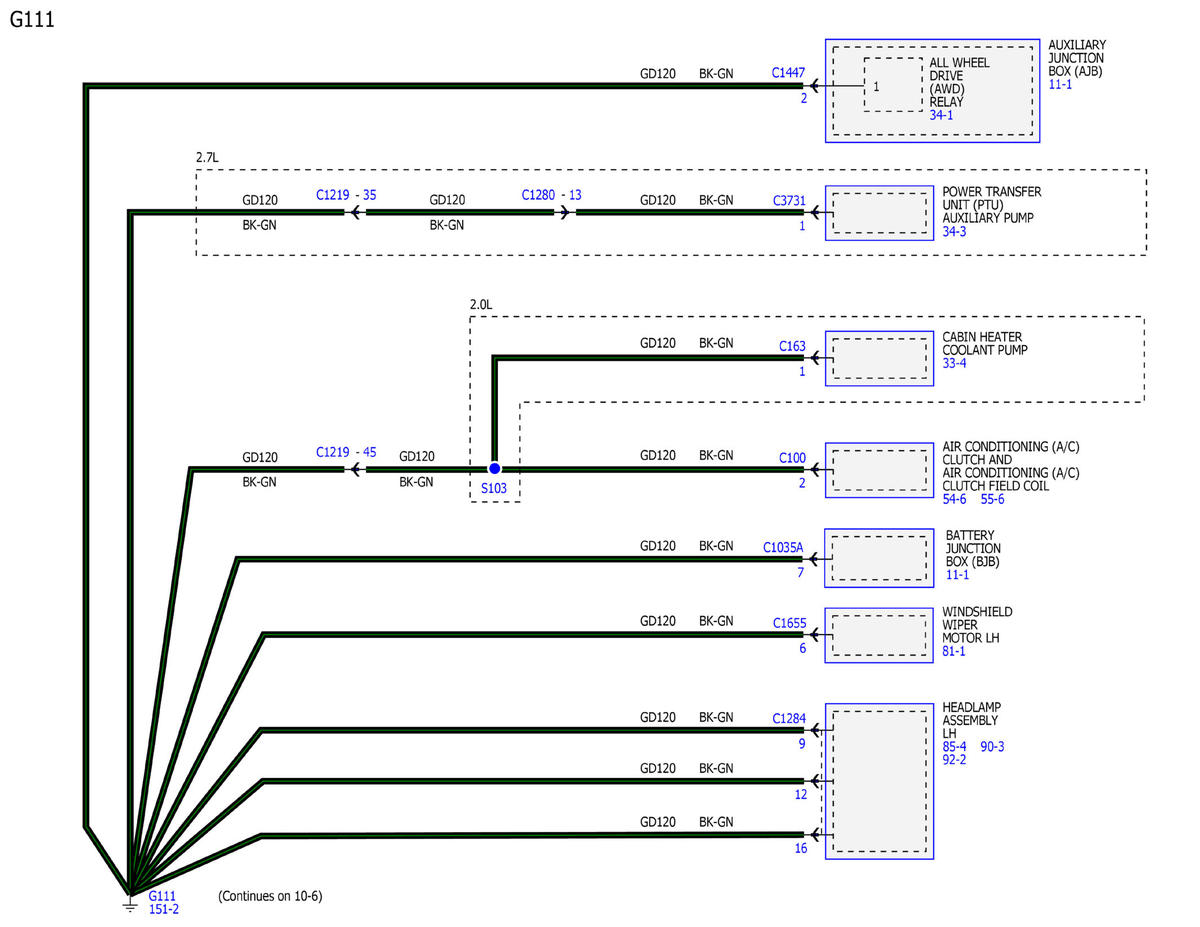

GFDWR52068Courtesy of FORD MOTOR COMPANY

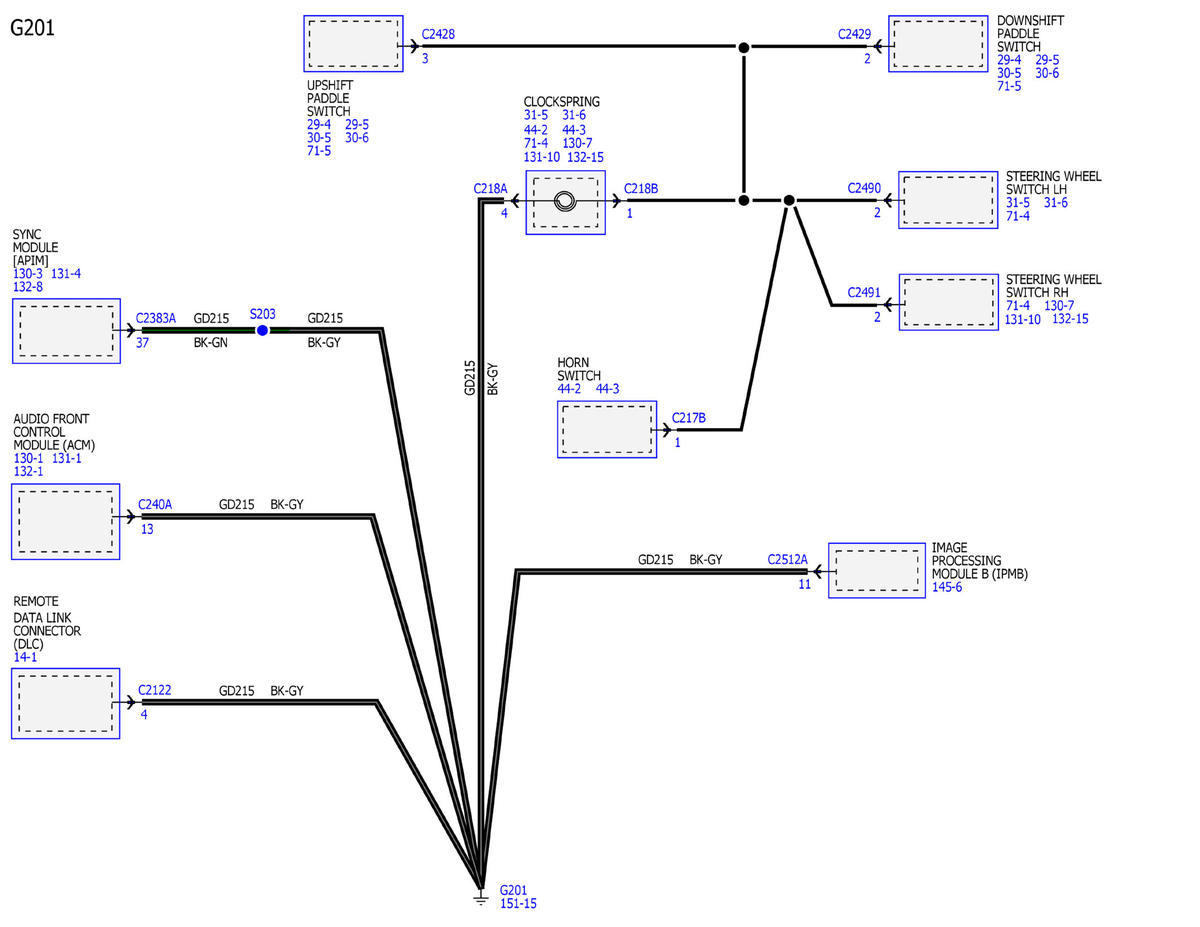

GFDWR52069Courtesy of FORD MOTOR COMPANY
