Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Cruise Control Module (CCM)

NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.

Using a diagnostic scan tool, begin the PMI process for the CCM following the onscreen instructions.
Remove the CCM cover.

Courtesy of FORD MOTOR COMPANY
Disconnect the CCM electrical connector.

Courtesy of FORD MOTOR COMPANY

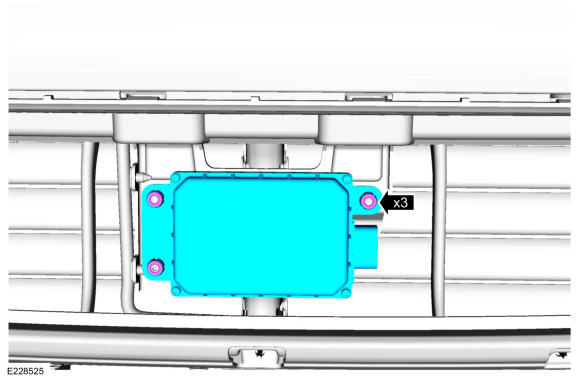

Release the grommets from the ballstuds and remove the CCM.

Courtesy of FORD MOTOR COMPANY
NOTE: Replace any damaged CCM grommets.

Inspect the CCM grommets for damage.

Courtesy of FORD MOTOR COMPANY

Cruise Control Module (CCM) Bracket
Remove the active grille shutter. Refer to: Active Grille Shutter .

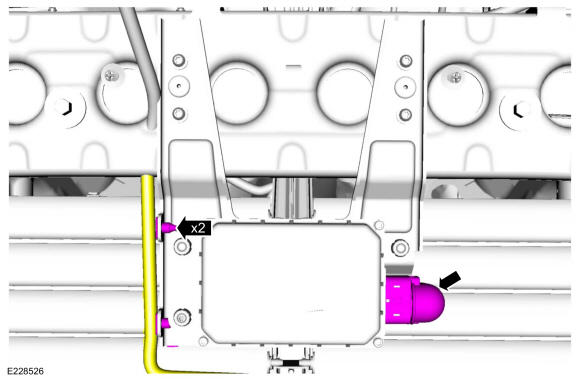

Disconnect the CCM electrical connector and separate the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

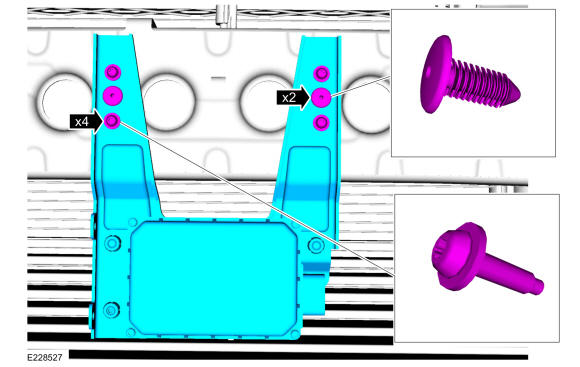

Remove the screws, the pushpins and the CCM bracket.

Courtesy of FORD MOTOR COMPANY
