Connector Repair Procedures

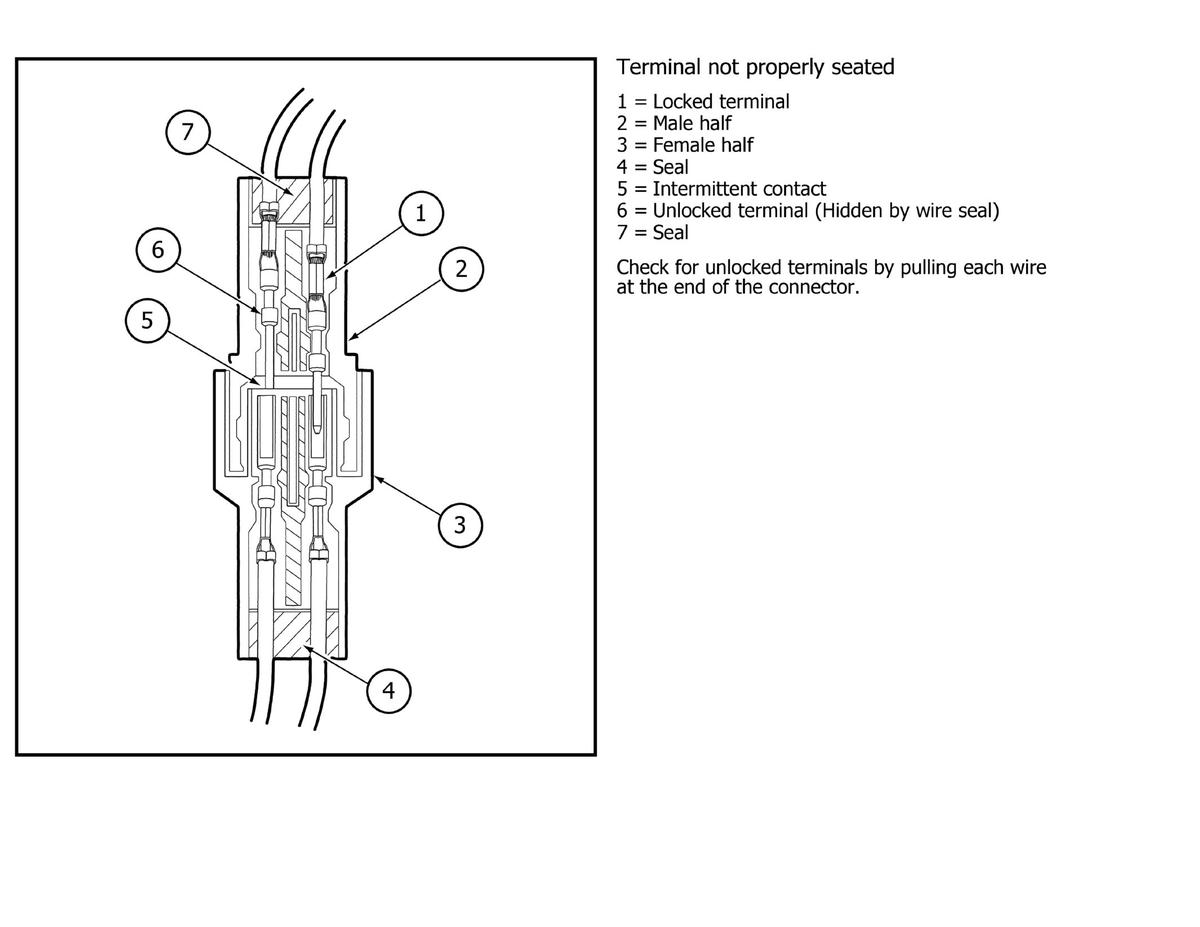

GFDWR47081Courtesy of FORD MOTOR COMPANY

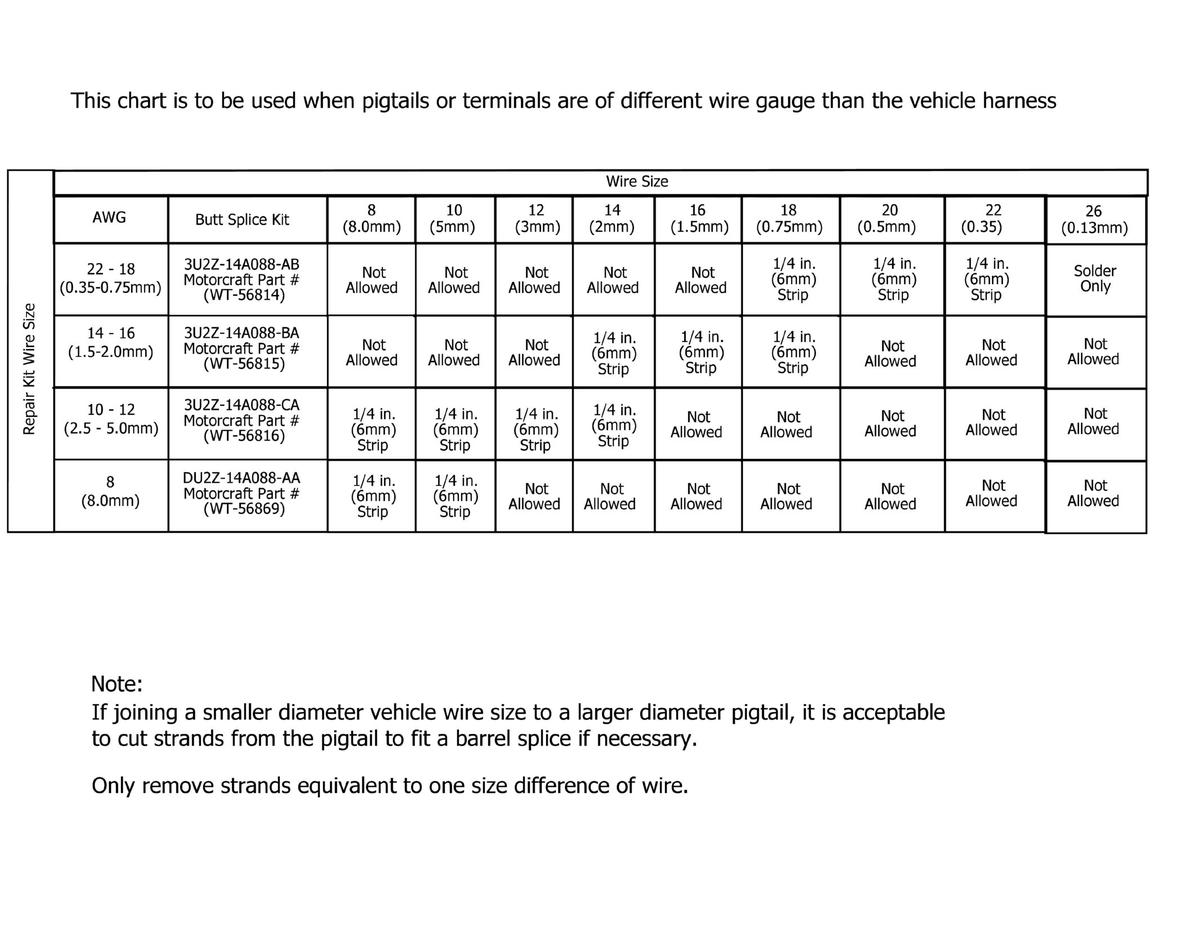

GFDWR47082Courtesy of FORD MOTOR COMPANY

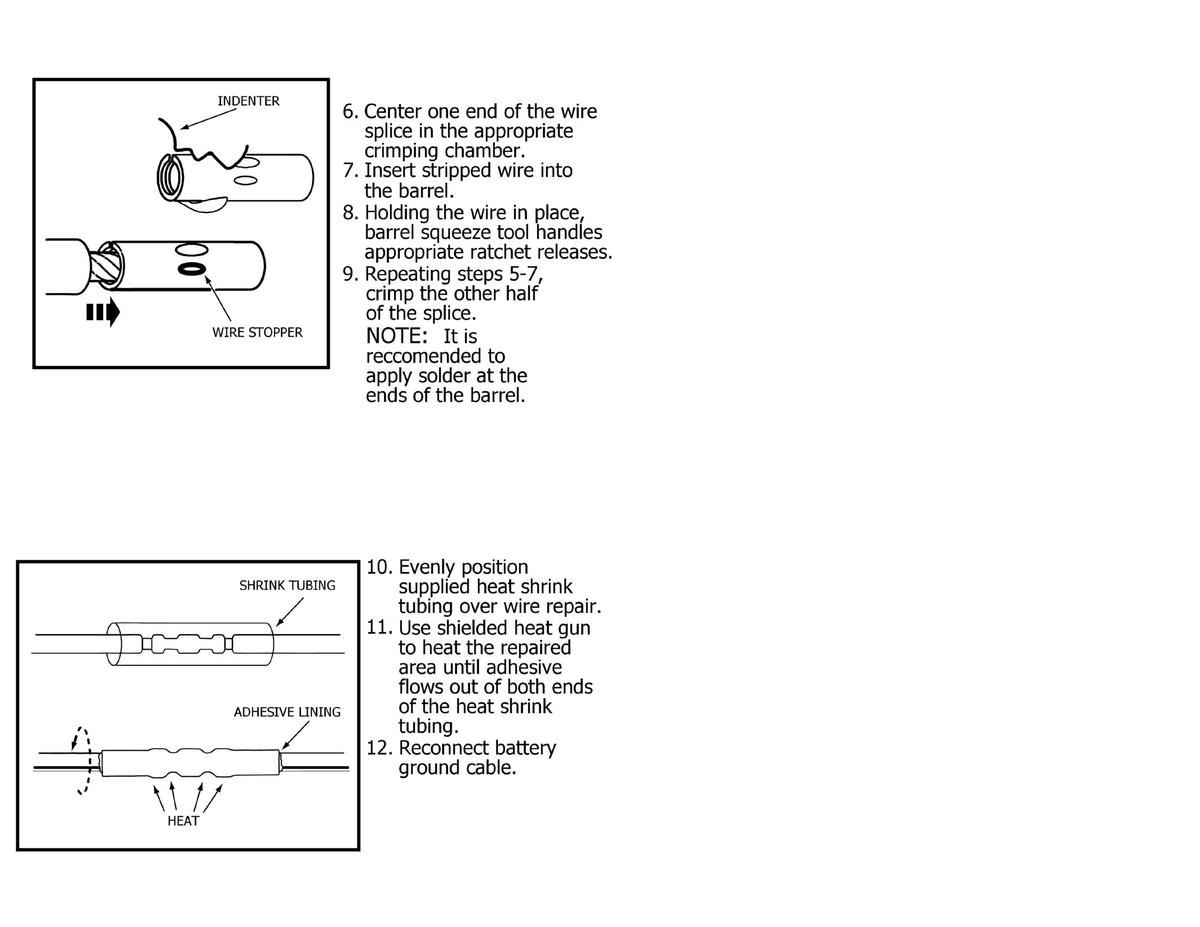

GFDWR47083Courtesy of FORD MOTOR COMPANY

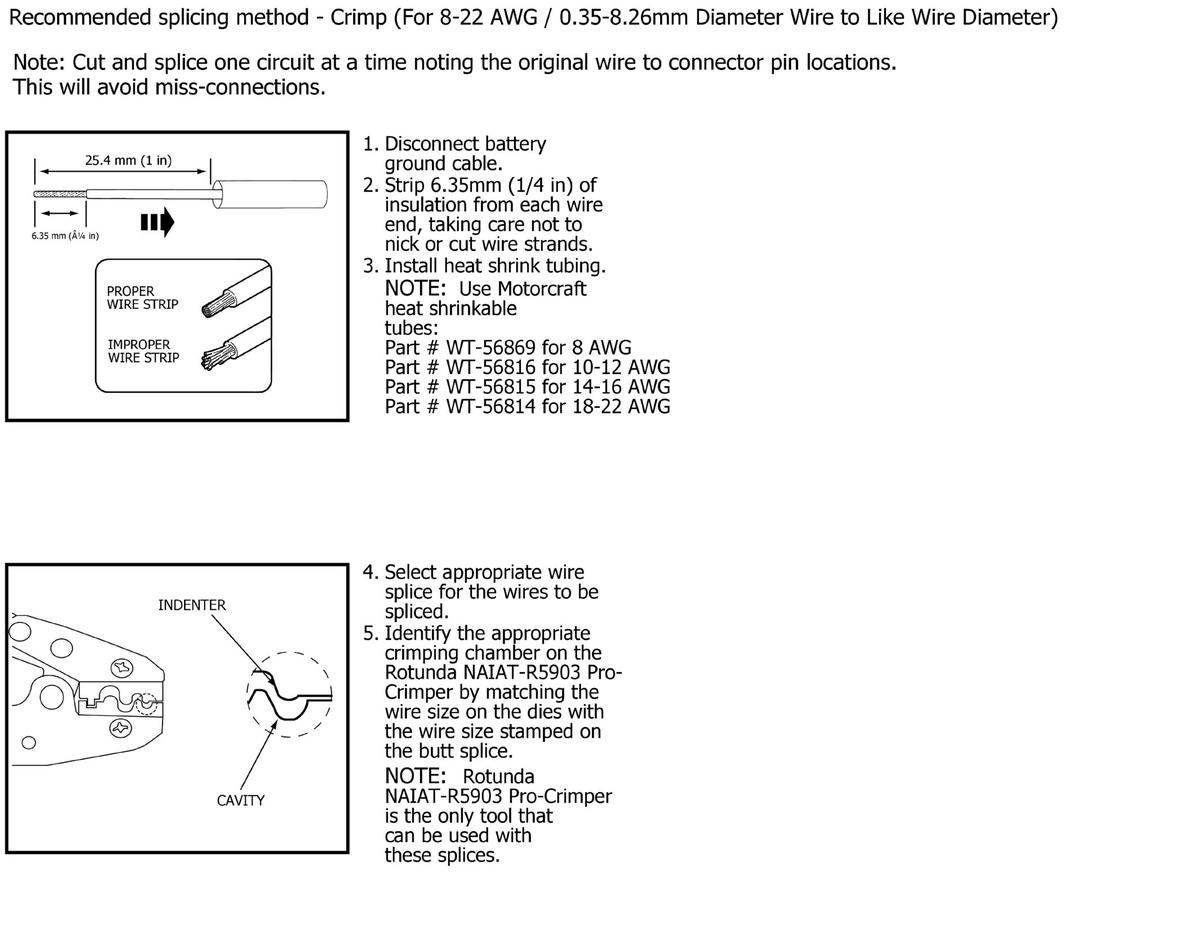

GFDWR47084Courtesy of FORD MOTOR COMPANY

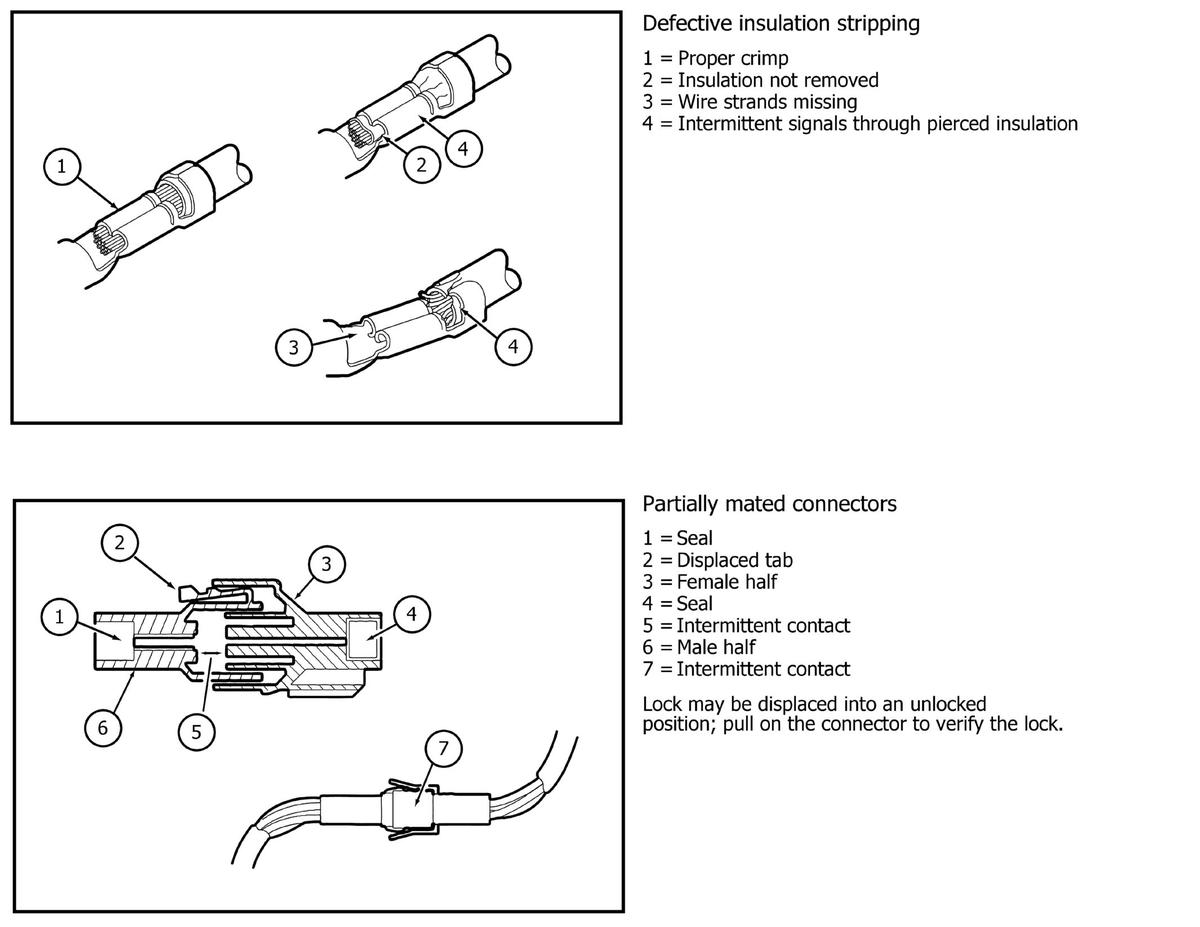

GFDWR47085Courtesy of FORD MOTOR COMPANY

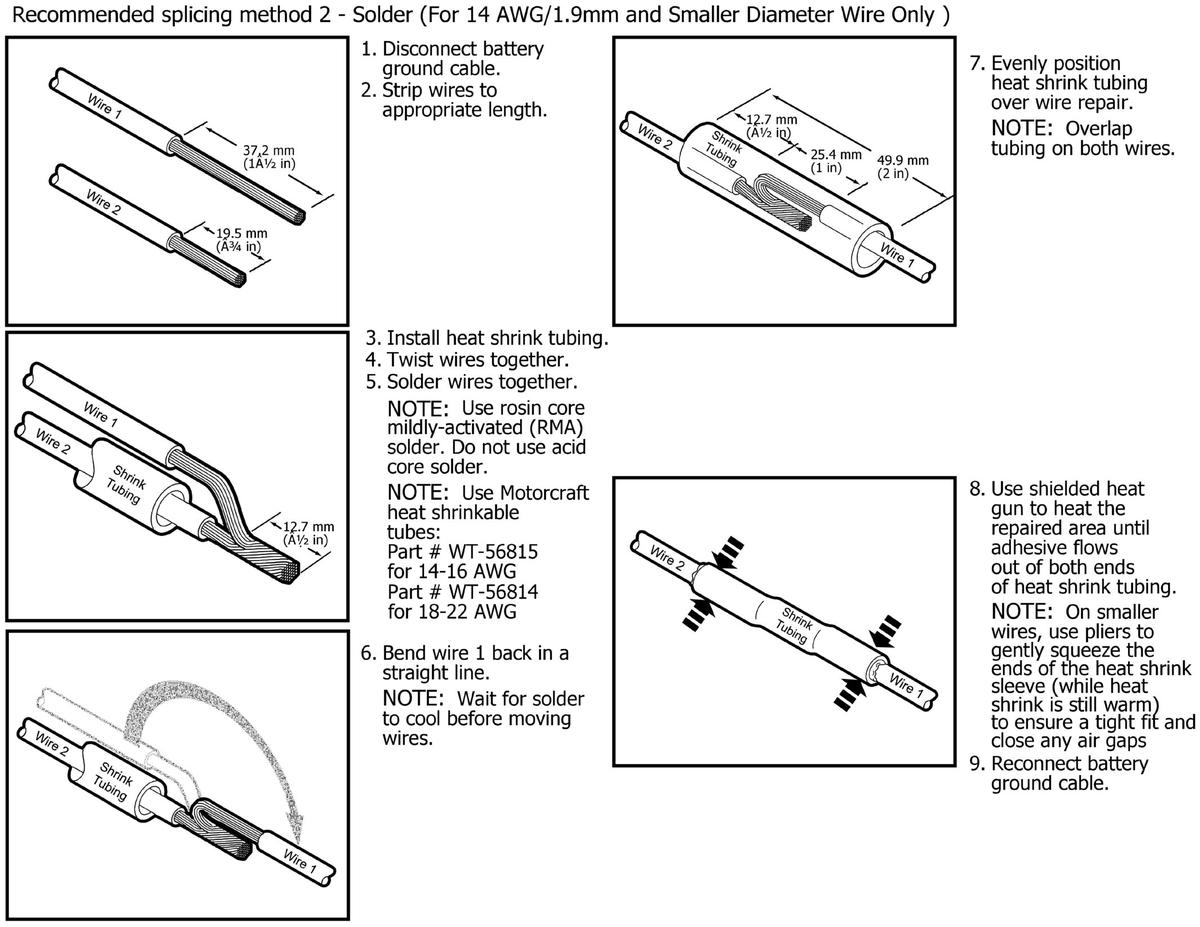

GFDWR47086Courtesy of FORD MOTOR COMPANY

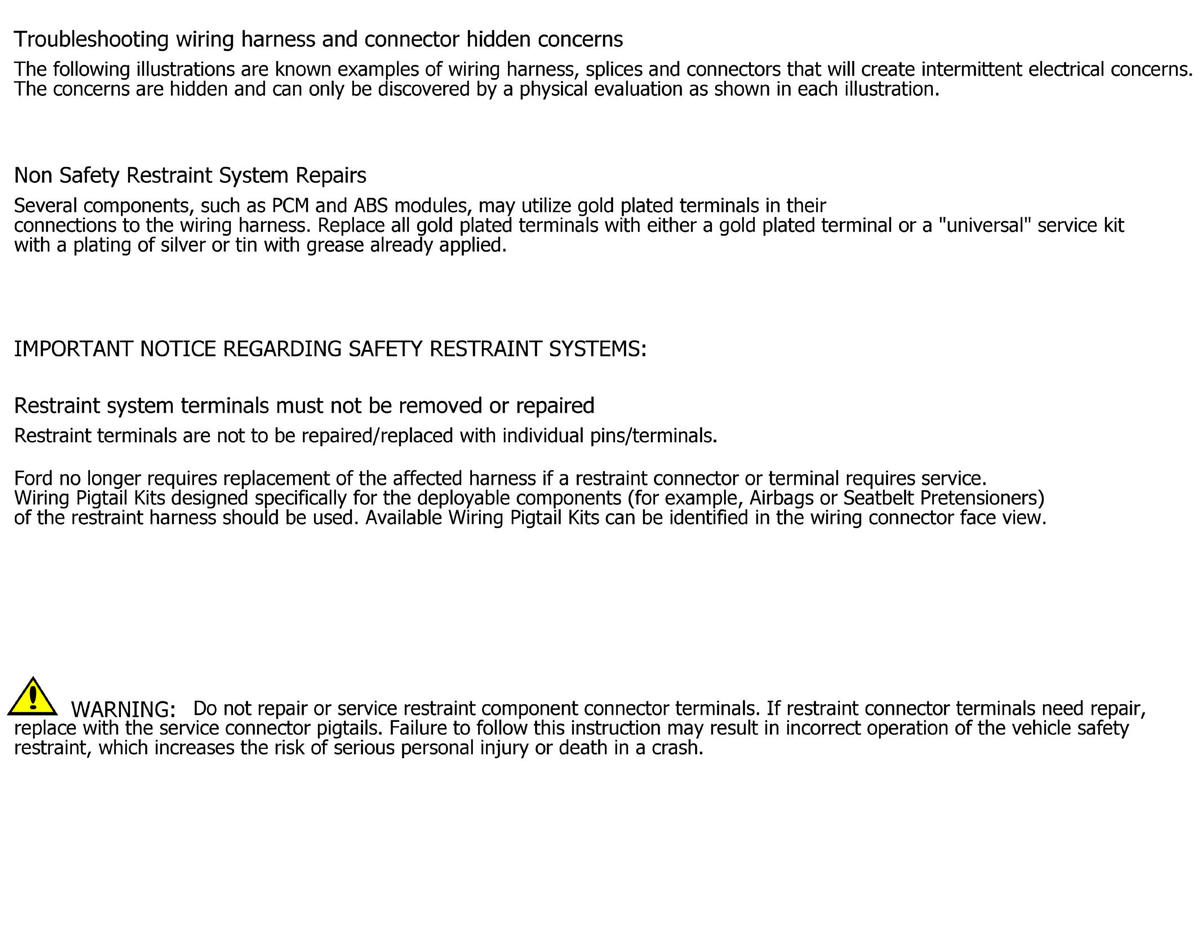

GFDWR47087Courtesy of FORD MOTOR COMPANY

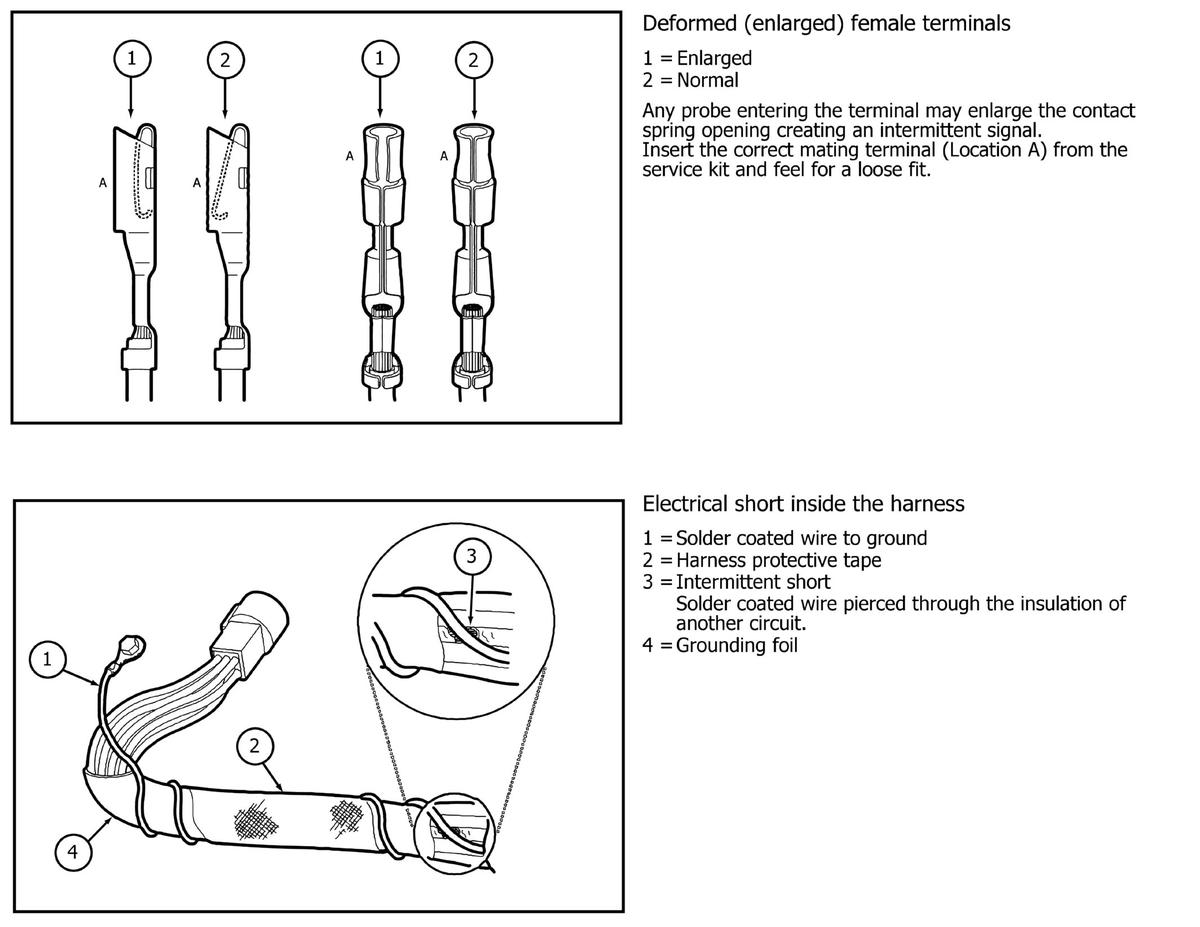

GFDWR47088Courtesy of FORD MOTOR COMPANY

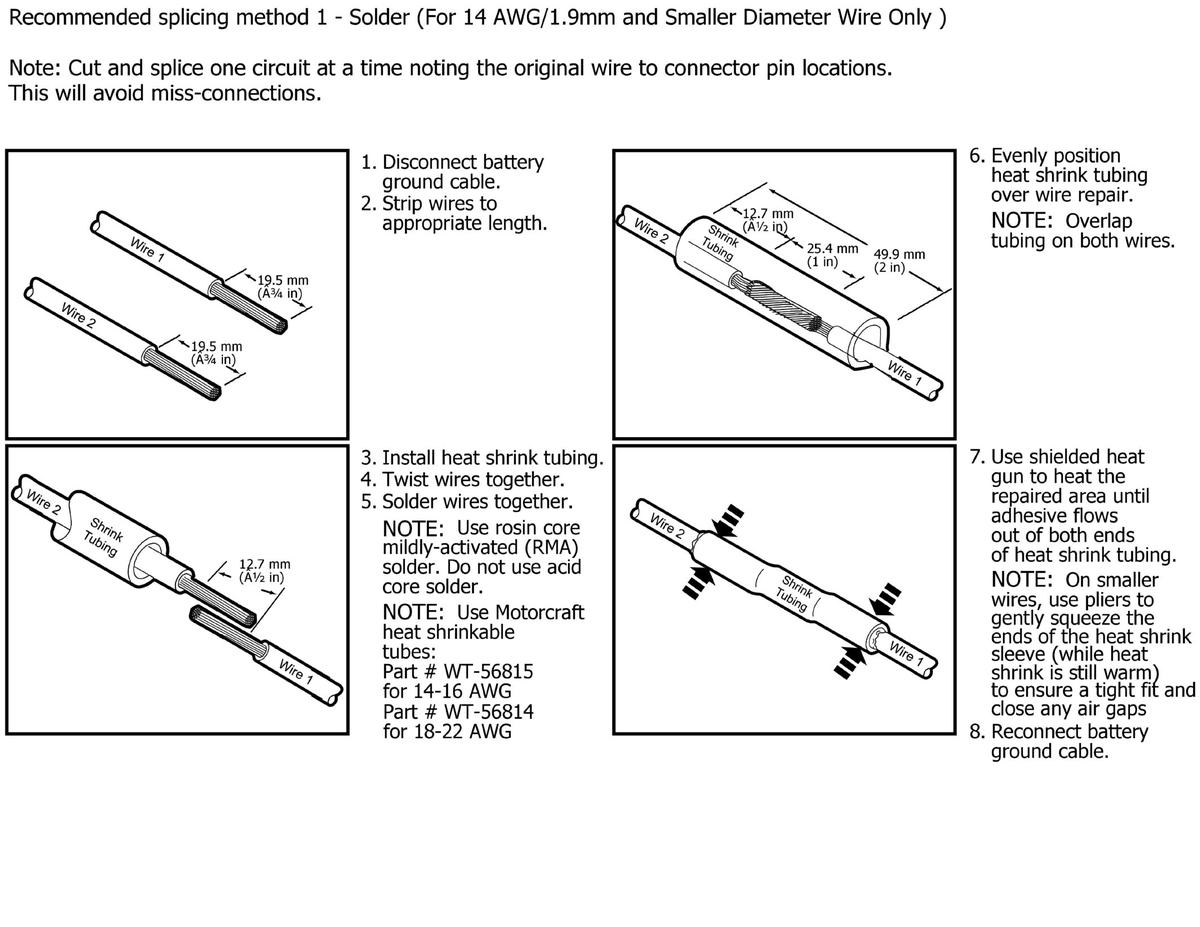

GFDWR47089Courtesy of FORD MOTOR COMPANY
