Body Control Module (BCM): Removal
WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If installing a new BCM, verify at least 2 of the vehicle keys are available prior to carrying out this procedure.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Upload the module configuration information from the BCM into the scan tool by following the scan tool on-screen instructions. Refer to: Module Configuration - System Operation and Component Description .
- Remove the 2 instrument panel insulator retainers and the instrument panel insulator.

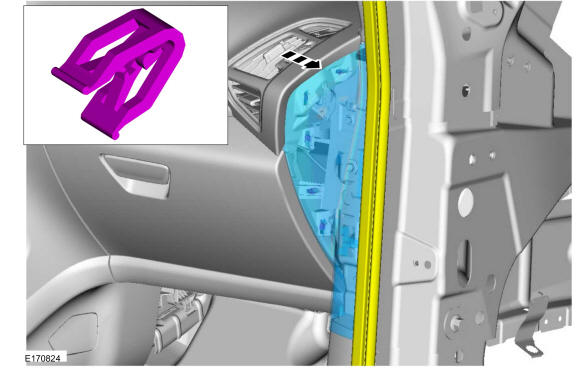

- Position the front door weather-strip aside and remove the instrument side trim panel.

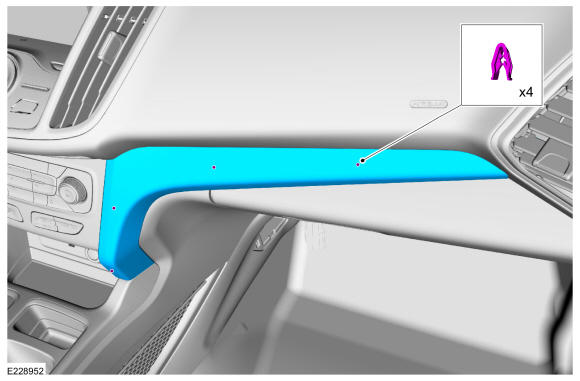

- Detach the clips and remove the RH instrument panel lower finish panel.

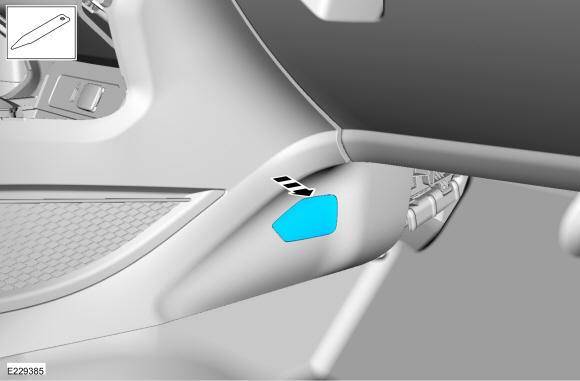

- Remove the RH cover.

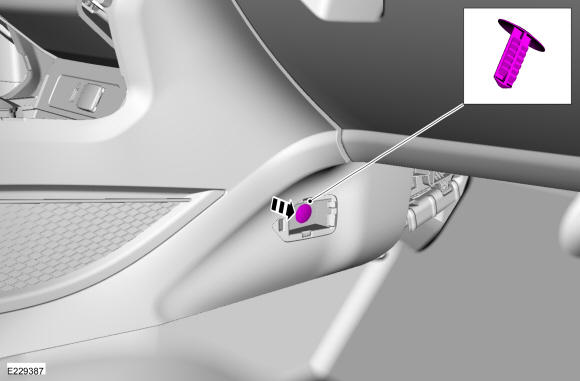

- Remove the RH push pin.

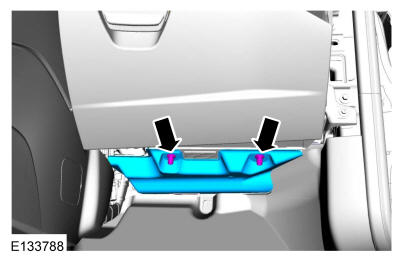

- Remove the bolt, release the clips and remove the RH floor console finish panel.
Torque: 22 lb.in (2.5 Nm)

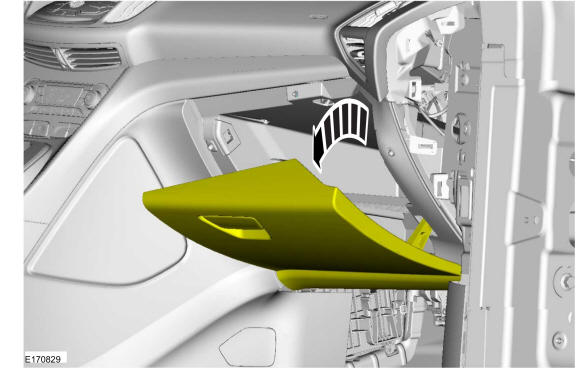

- Open the glove box door.

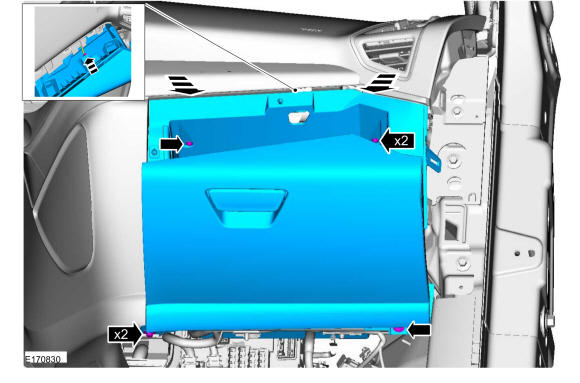

- Remove the screws and the glove compartment.
- Disconnect the electrical connector.
Torque: 18 lb.in (2 Nm)
- Disconnect the electrical connector.

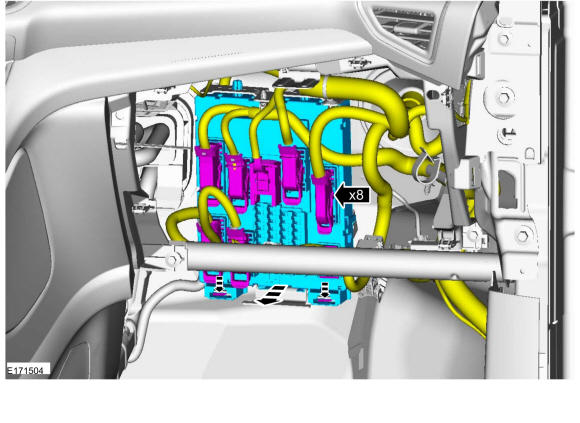

- Disconnect the BCM electrical connectors and remove the BCM.
