VC Codes

WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

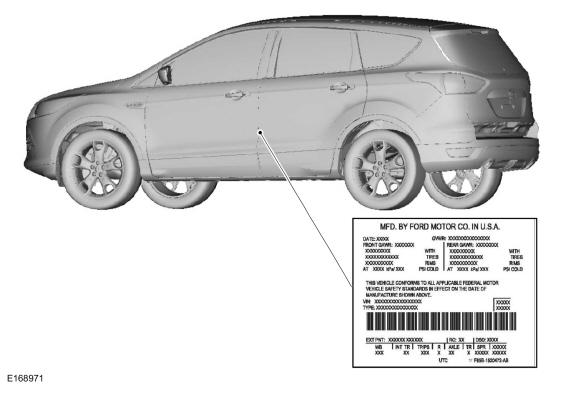

VC Label Locator

Courtesy of FORD MOTOR COMPANY

The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

Courtesy of FORD MOTOR COMPANY

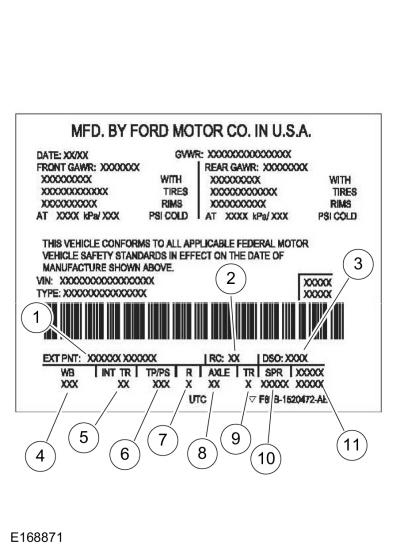

Item	Description
1	Exterior paint code
2	Region code
3	DSO (District Special Order) code
4	Wheelbase code
5	Interior trim code
6	Tape/paint stripe code
7	Radio code
8	Axle code
9	Transmission code
10	Spring code
11	Powertrain calibration information

Paint Code

Paint codes may be listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.

Blank - No paint
C7 - Canyon Red Metallic
G1 - Shadow Black
GN - White Gold Metallic
J7 - Magnetic Metallic
N6 - Blue Lightening Metallic
RR - Ruby Red (tinted clear coat)
TY - Moondust Silver (Mexico only)
UG - White Platinum (tri-coat)
UX - Ingot Silver Metallic
YZ - Oxford White
Z2 - Frozen White (Mexico only)

Wheelbase

The following identifies the vehicle wheelbase:

105 - 2, 690 mm (105.9 in) wheelbase

Interior Trim Codes

Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.

Interior Trim Type

7 - View cloth seats
8 - Salerno Leather 2 (Mexico only)
C - Salerno/Salerno leather seats (Mexico only)
D - Salerno/Salerno leather seats
K - Boost/View cloth seats
W - Groove cloth/Salerno leather seats
V - Boost/View cloth seats (Mexico only)

Interior Trim Color Codes

B - Charcoal Black
L - Medium Light Stone

Tape/Paint Stripe Codes

Tape and paint stripe codes do not apply.

Radio Codes

The following lists available radio codes:

2 - AM/ FM stereo with MYFORD Touch, HD (high-definition), Sirius, navigation, SYNC 3
3 - AM/ FM stereo, CD player, 6 speakers and SYNC
4 - AM/ FM stereo, CD player, 6 speakers, HD (high-definition), Sirius and SYNC
5 - AM/ FM stereo, MYFORD Touch, Sirius, 9 speakers, SYNC 3
6 - AM/ FM stereo with MYFORD Touch,, Sirius, navigation, SYNC 3
7 - AM/ FM stereo with 10 speakers, MYFORD Touch, HD (high-definition), Sirius, SYNC 3
C - AM/ FM stereo, ICE Pack 2 (Mexico only)
J - AM/ FM stereo, ICE Pack 8 (Mexico only)
S - AM/ FM stereo, ICE Pack 14 (Mexico only)

Axle Type

The following lists the available axle ratios and associated codes:

35 - 3.51 ratio
3A - 3.07 axle ratio
3C - 3.21 axle ratio

Transmission Codes

Available transmissions are as follows:

6 - 6-speed automatic (6F mid-range)

Spring Codes

Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.

Front Springs

Base part number - 5310 (coil)

Rear Springs

Base part number - 5B669 (coil)
