OEM Ground Distribution: Grounds

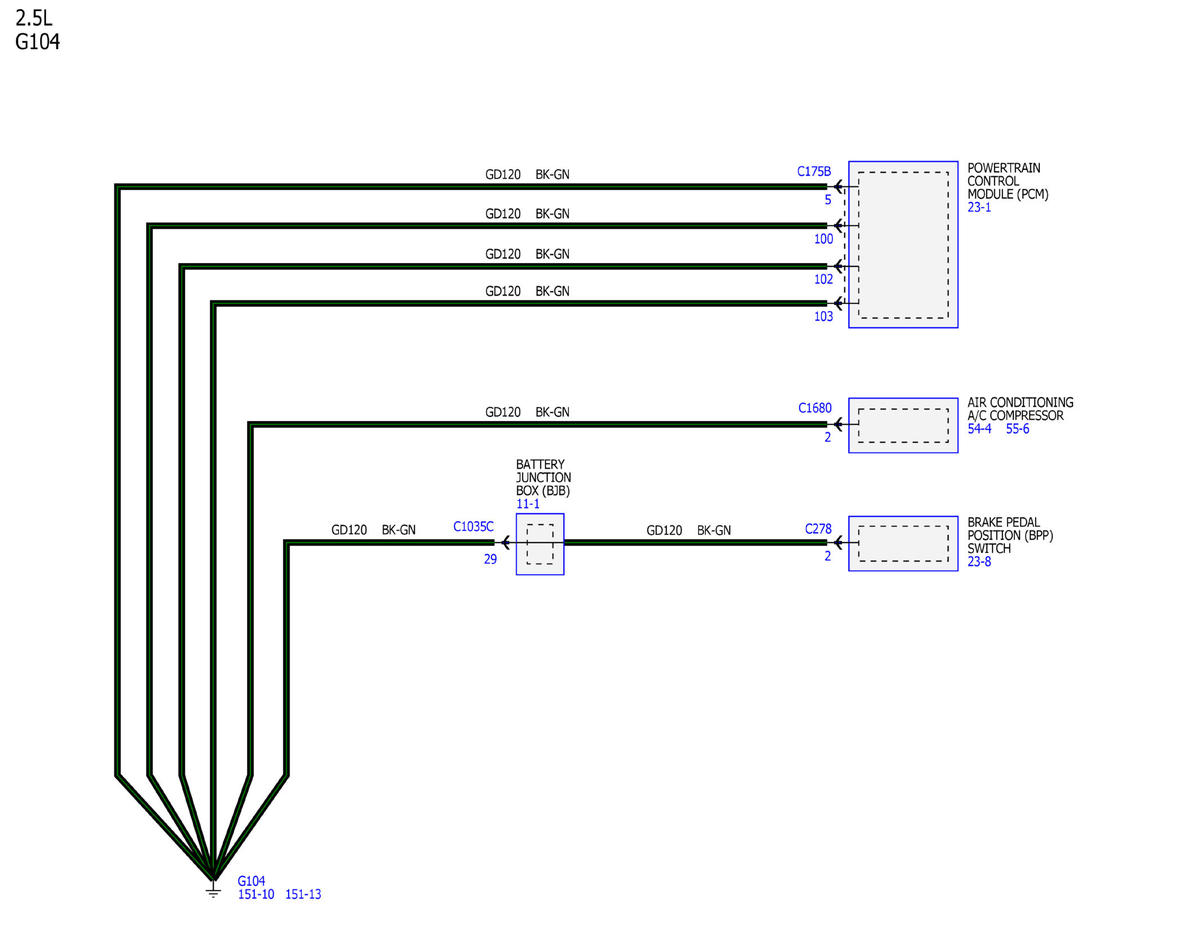

GFDWR47104Courtesy of FORD MOTOR COMPANY

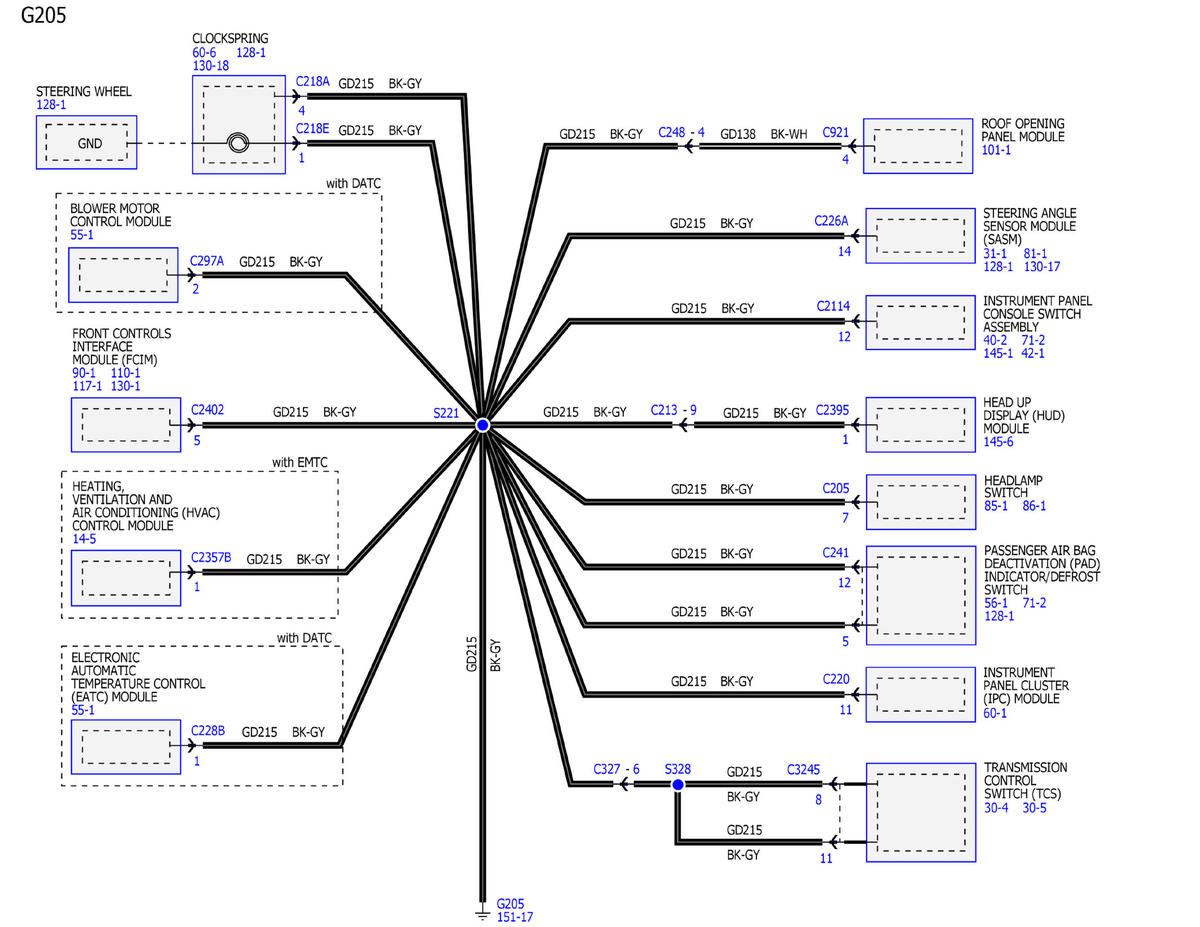

GFDWR47105Courtesy of FORD MOTOR COMPANY

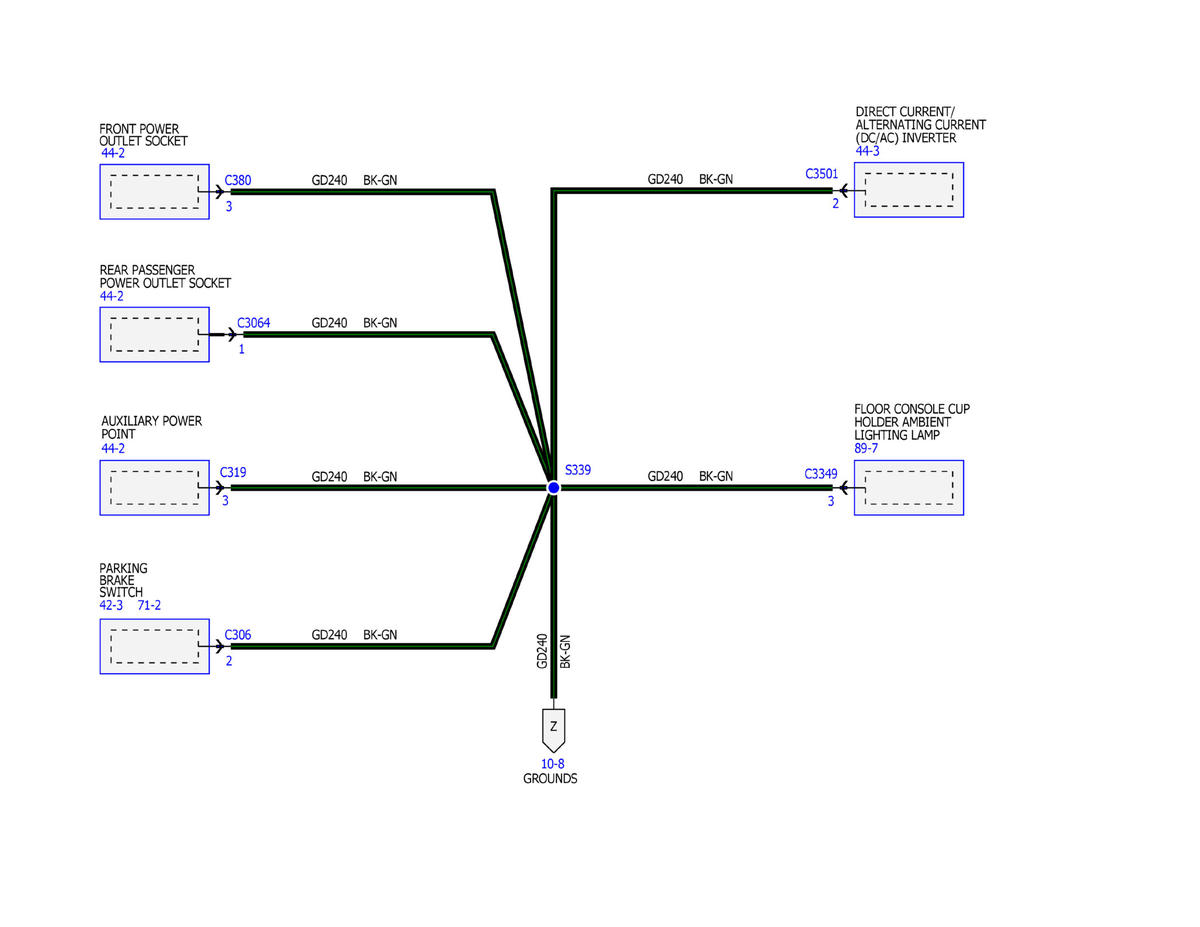

GFDWR47106Courtesy of FORD MOTOR COMPANY

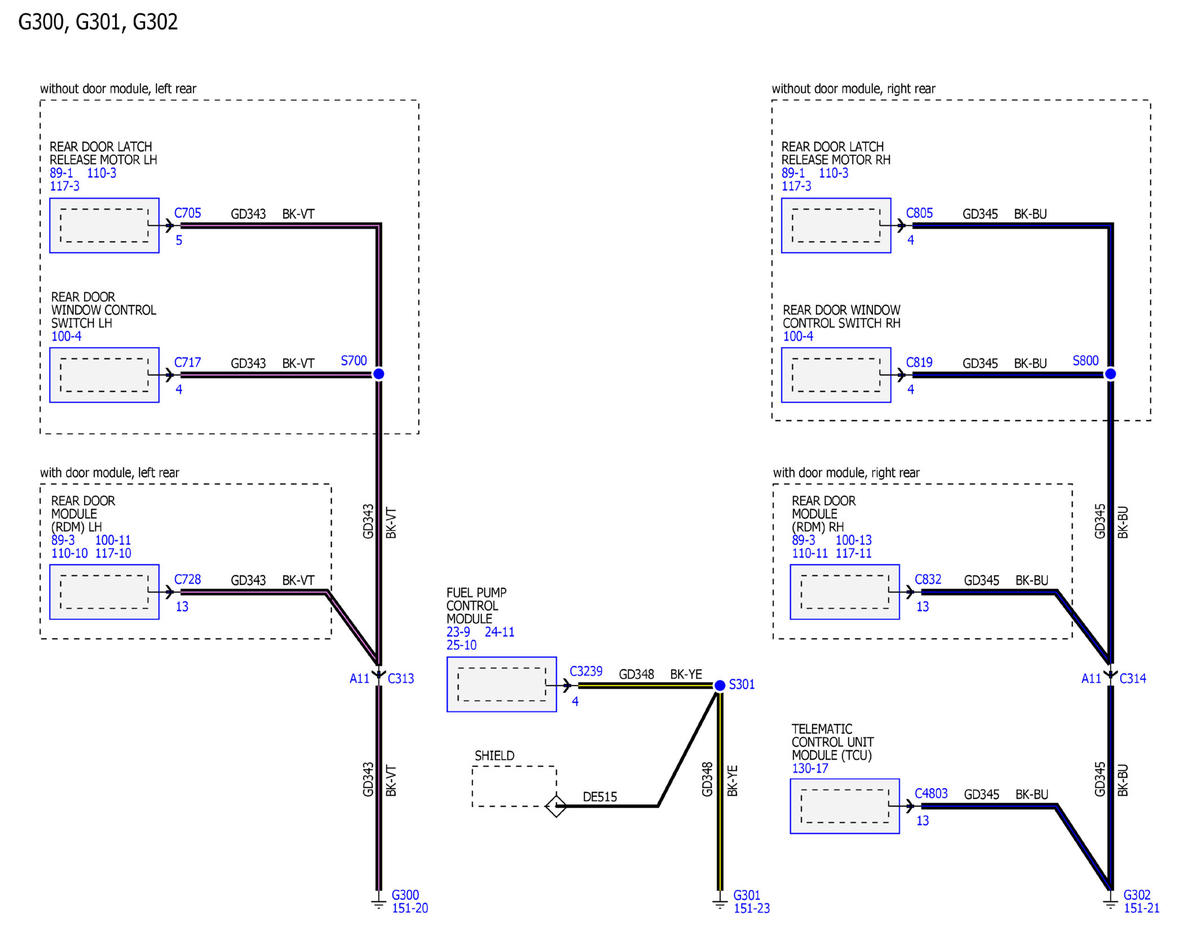

GFDWR47107Courtesy of FORD MOTOR COMPANY

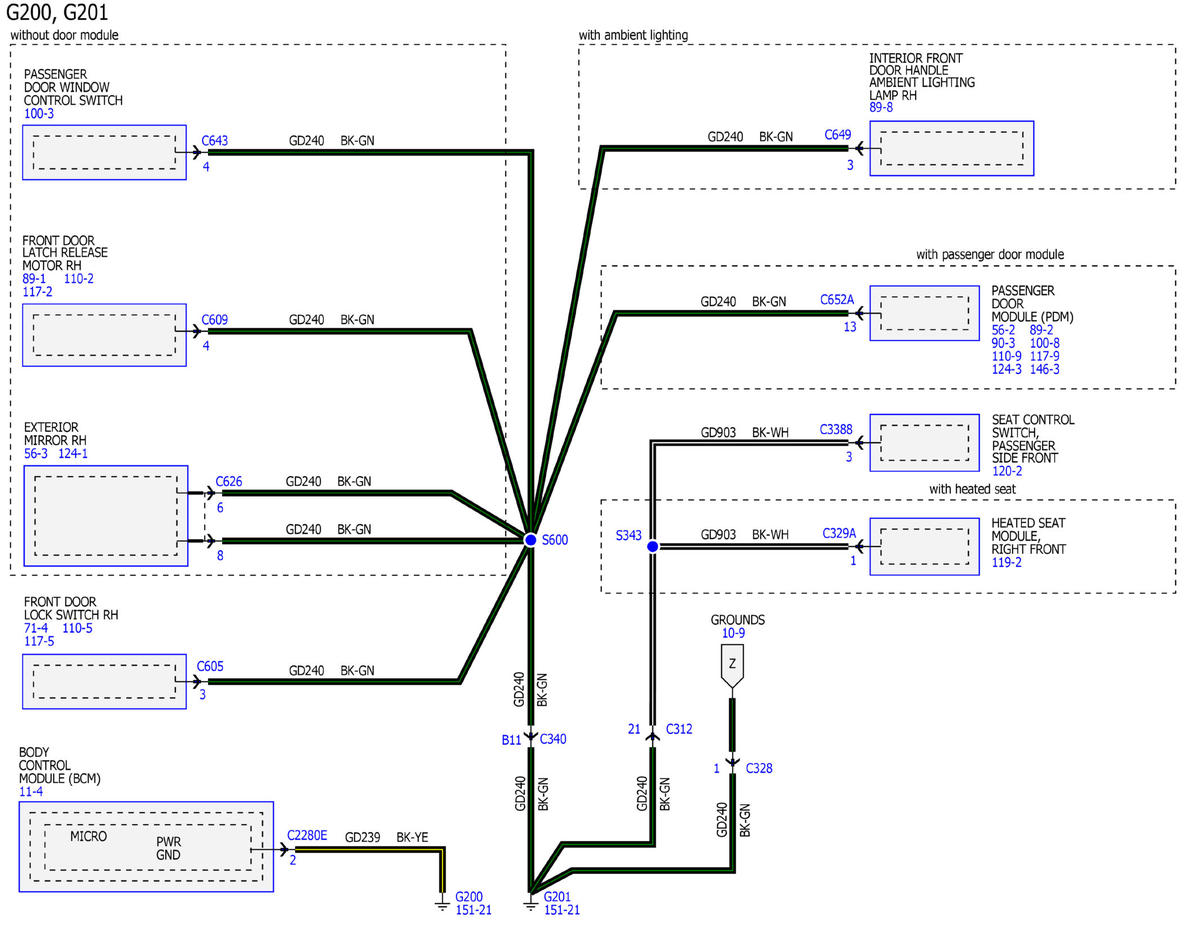

GFDWR47108Courtesy of FORD MOTOR COMPANY

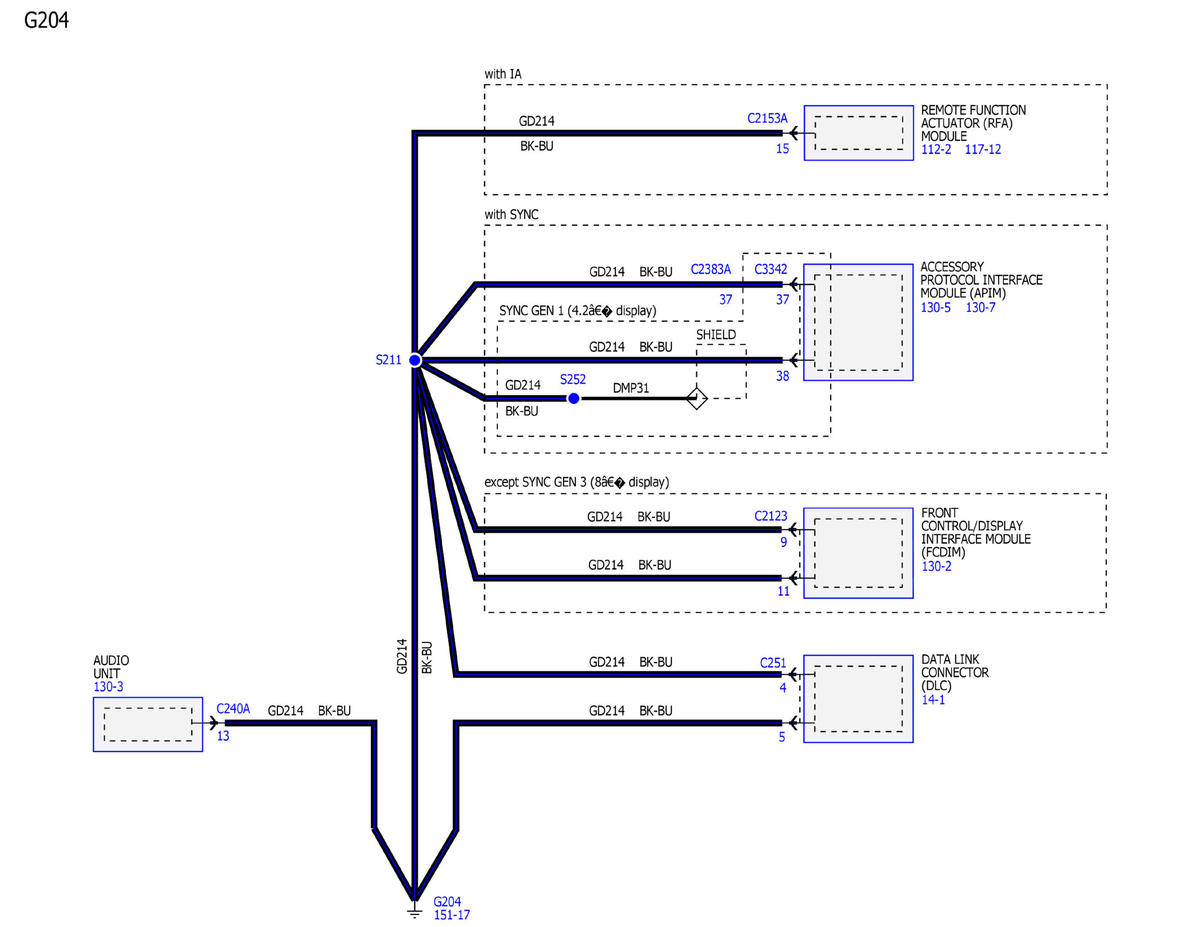

GFDWR47109Courtesy of FORD MOTOR COMPANY

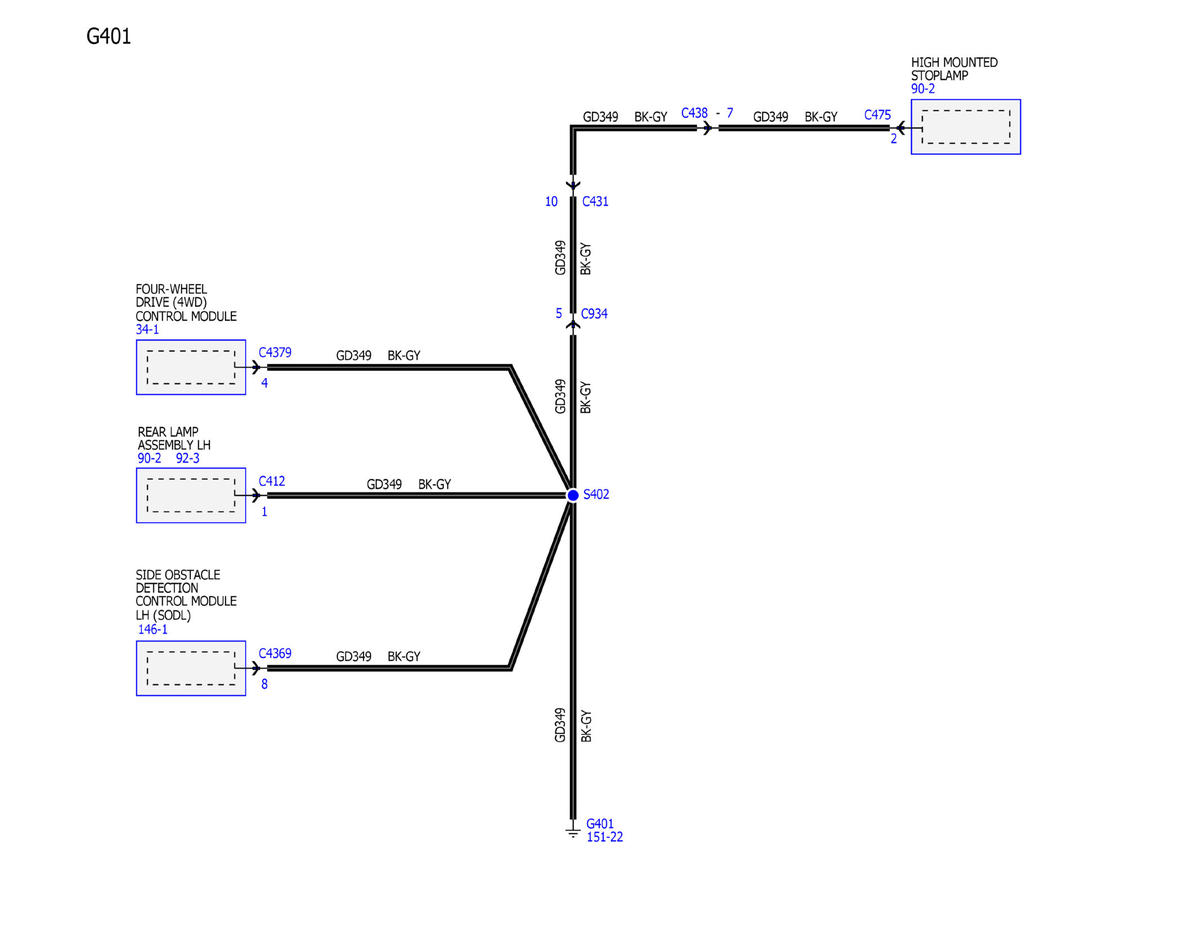

GFDWR47110Courtesy of FORD MOTOR COMPANY

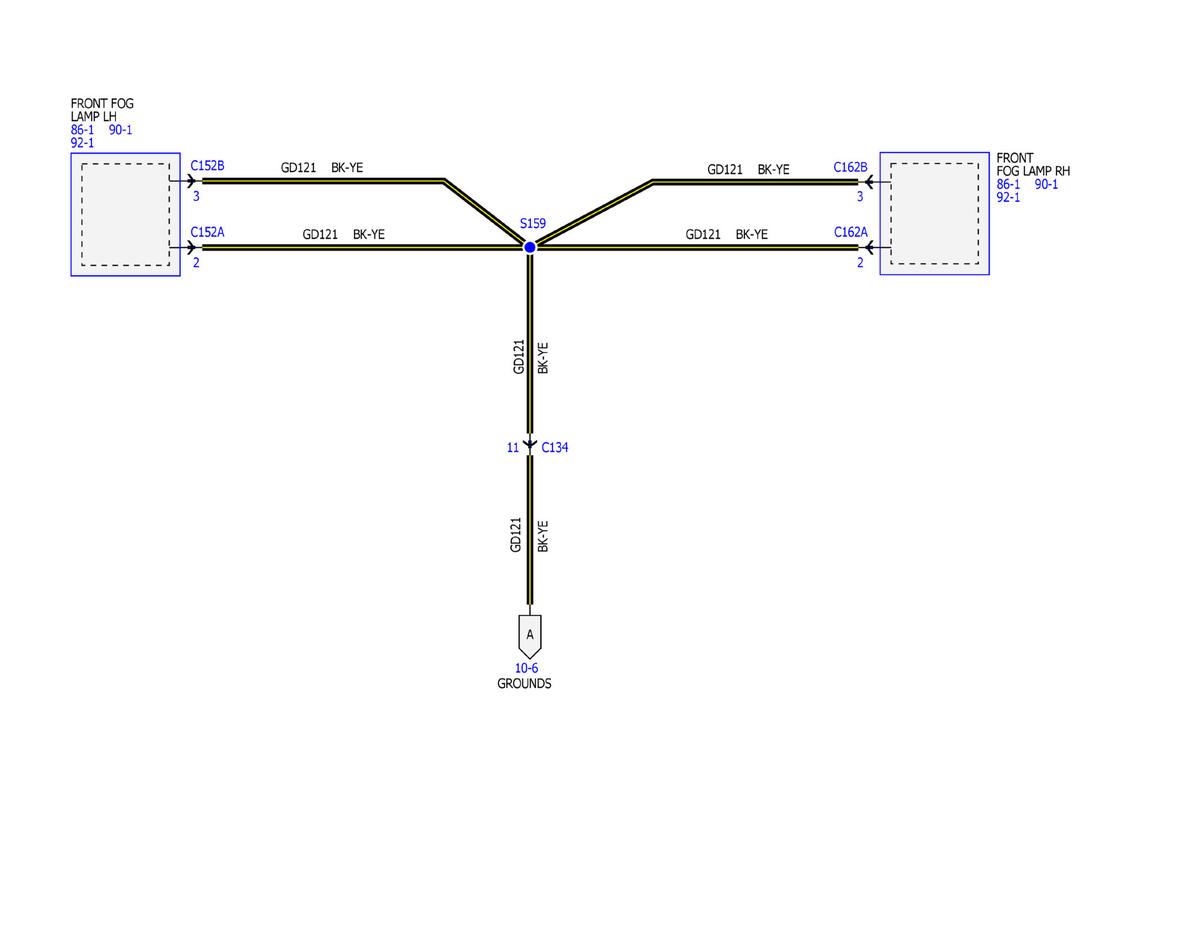

GFDWR47111Courtesy of FORD MOTOR COMPANY

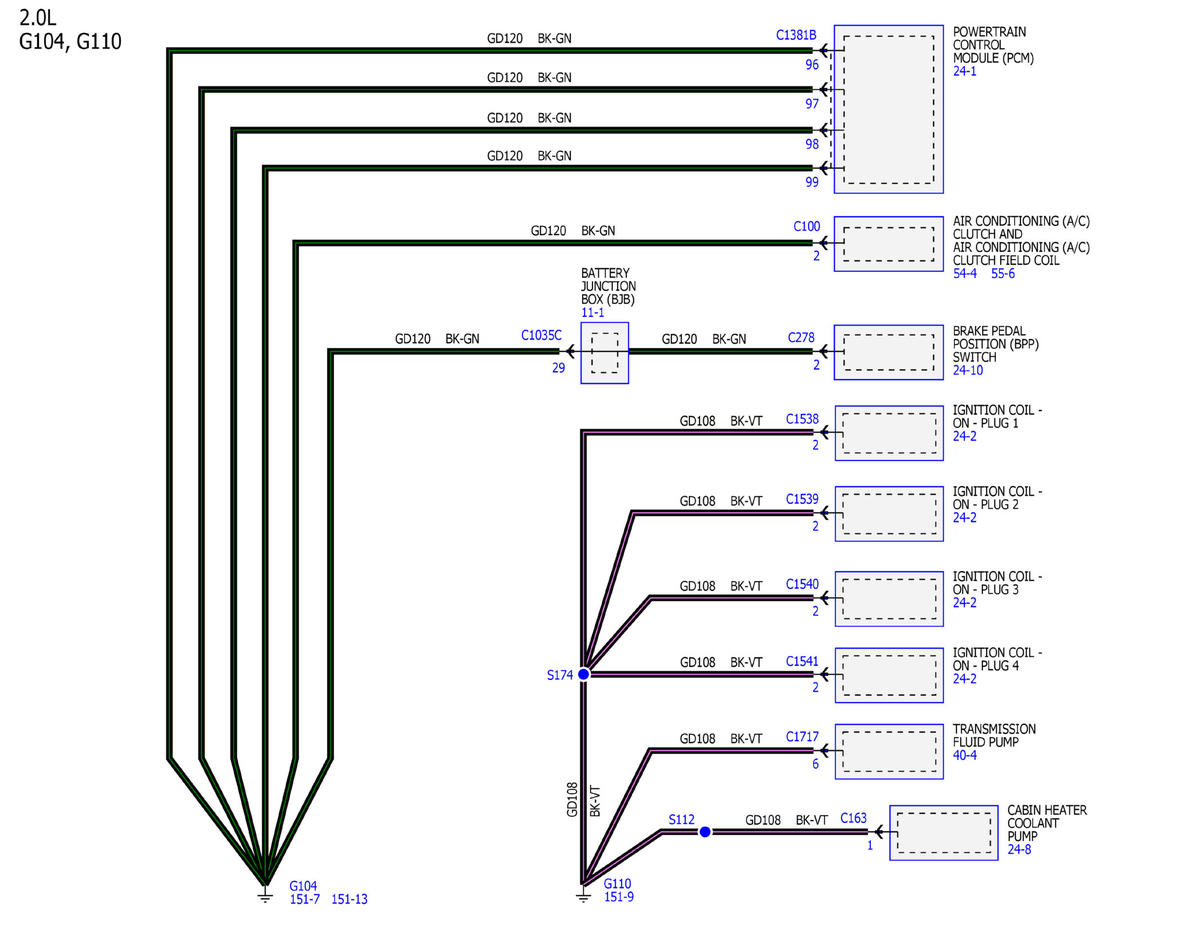

GFDWR47112Courtesy of FORD MOTOR COMPANY

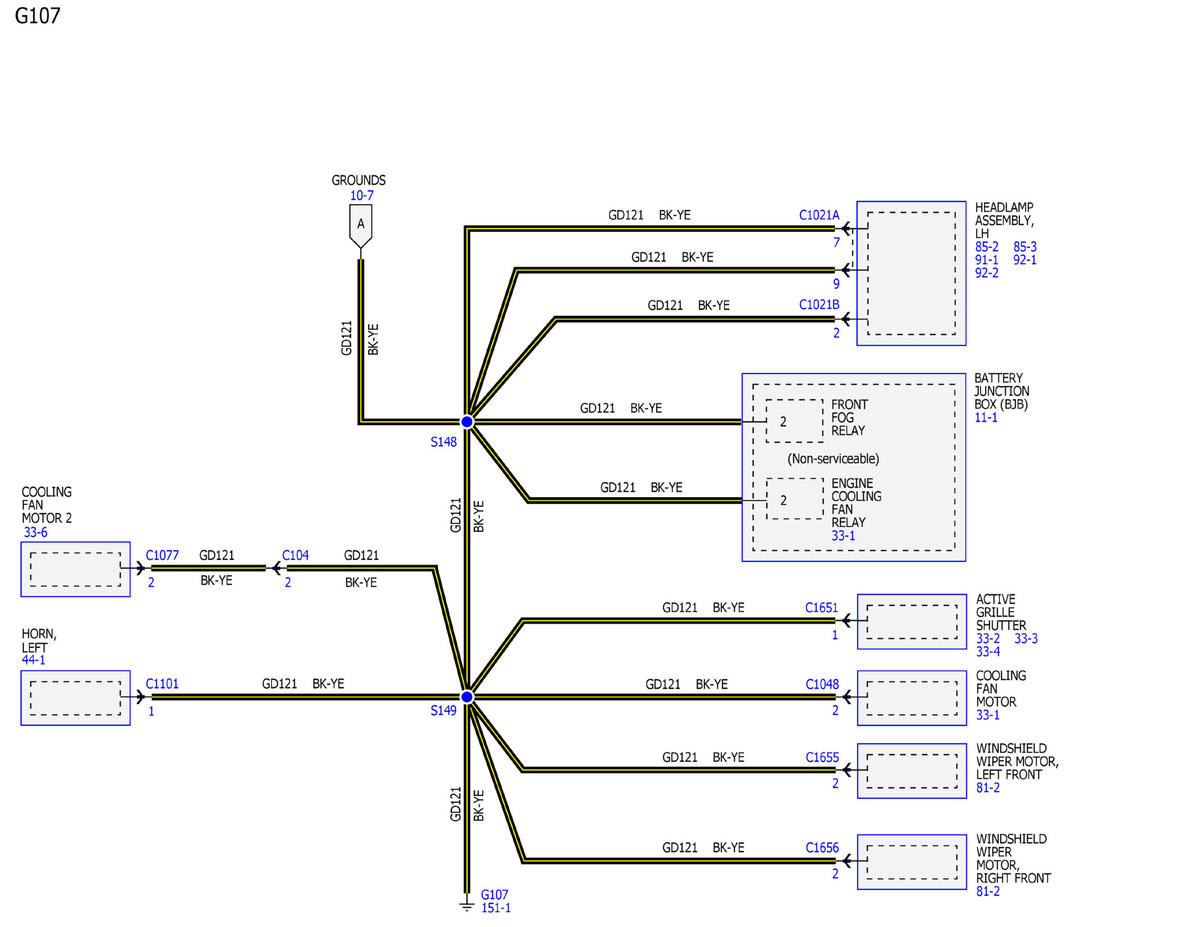

GFDWR47113Courtesy of FORD MOTOR COMPANY

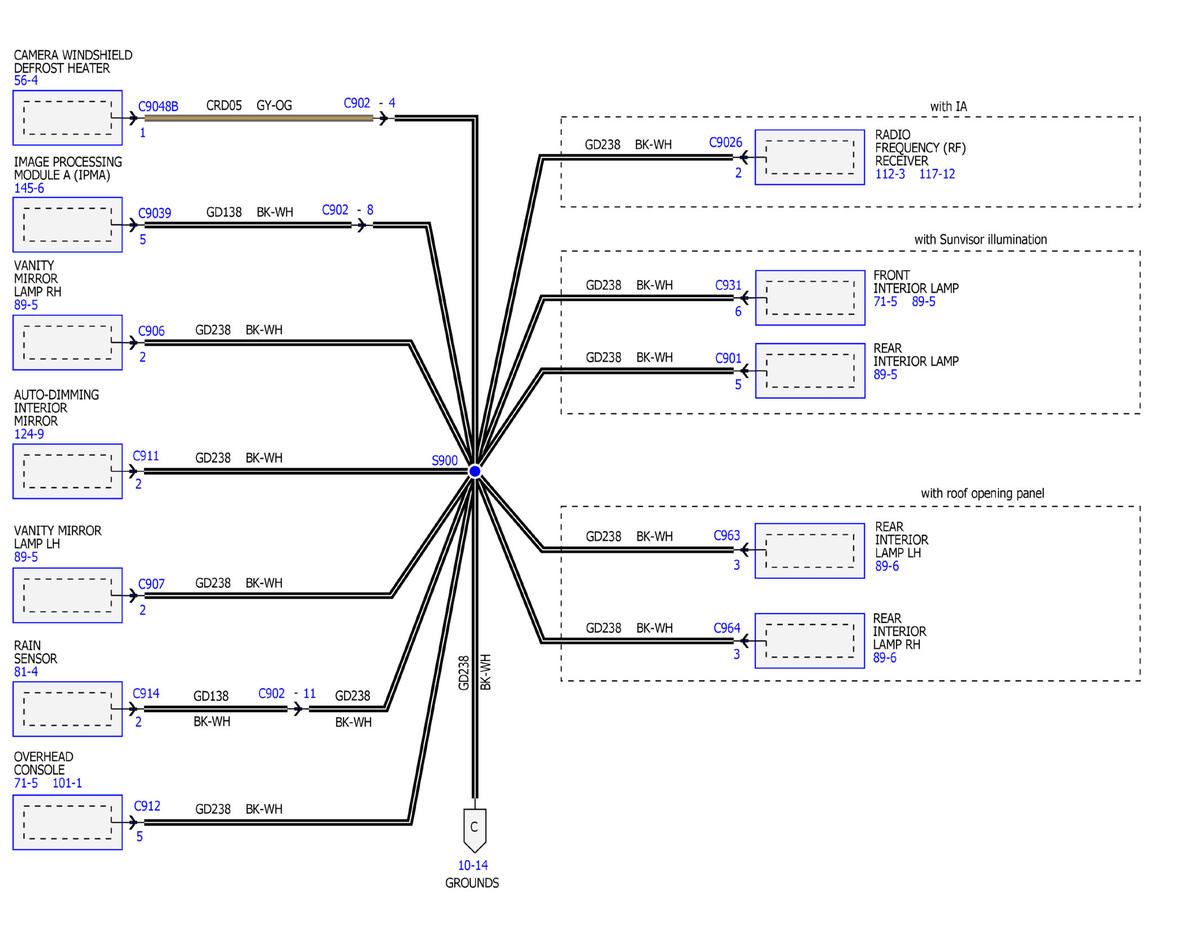

GFDWR47114Courtesy of FORD MOTOR COMPANY

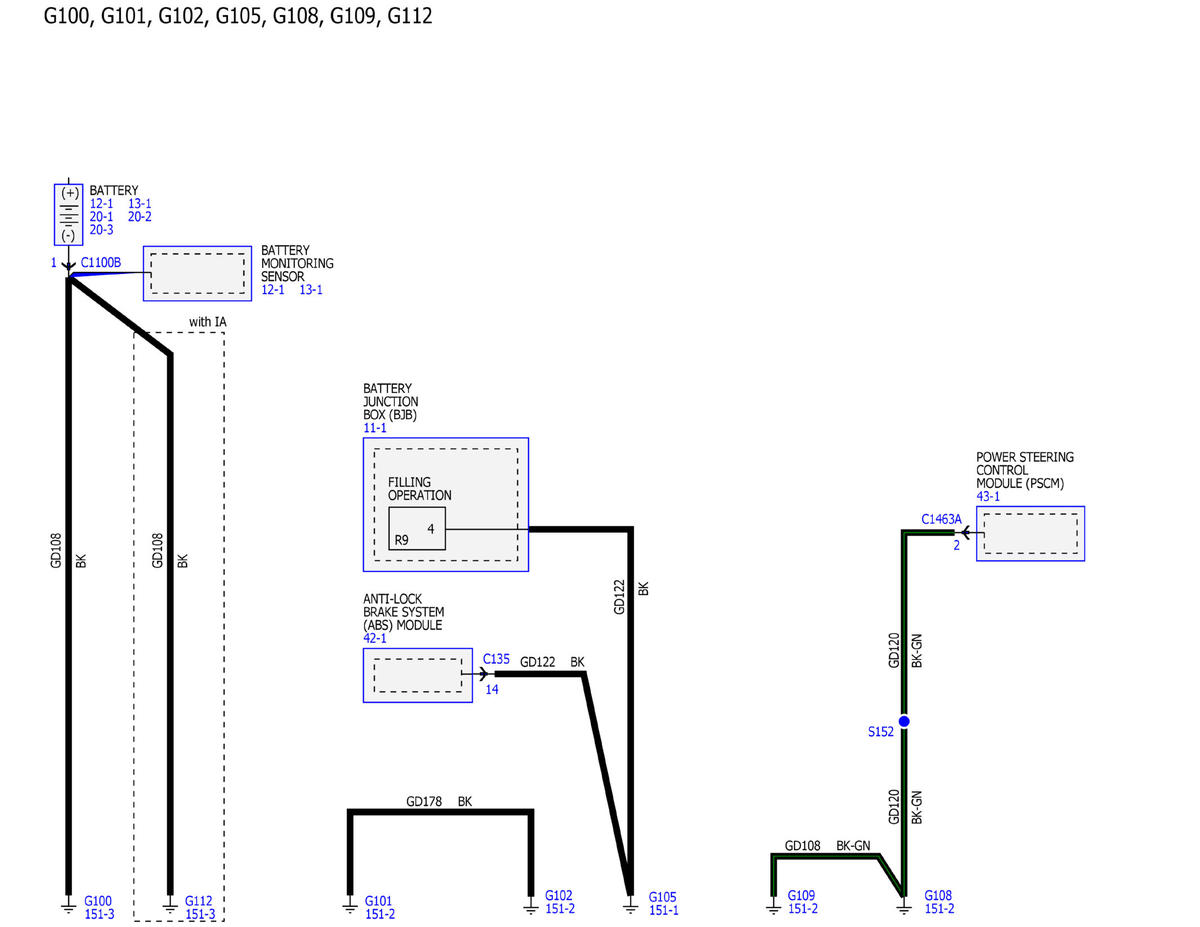

GFDWR47115Courtesy of FORD MOTOR COMPANY

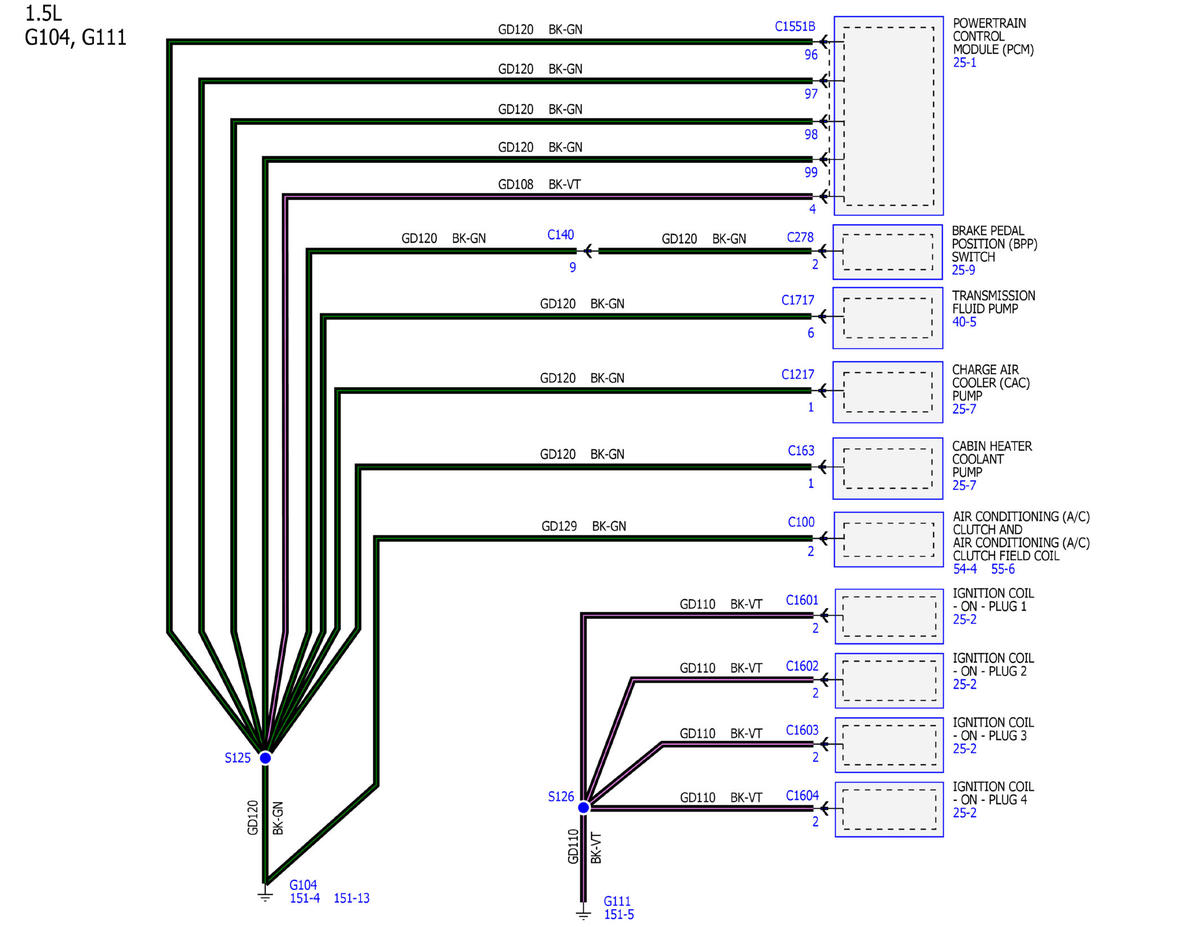

GFDWR47116Courtesy of FORD MOTOR COMPANY

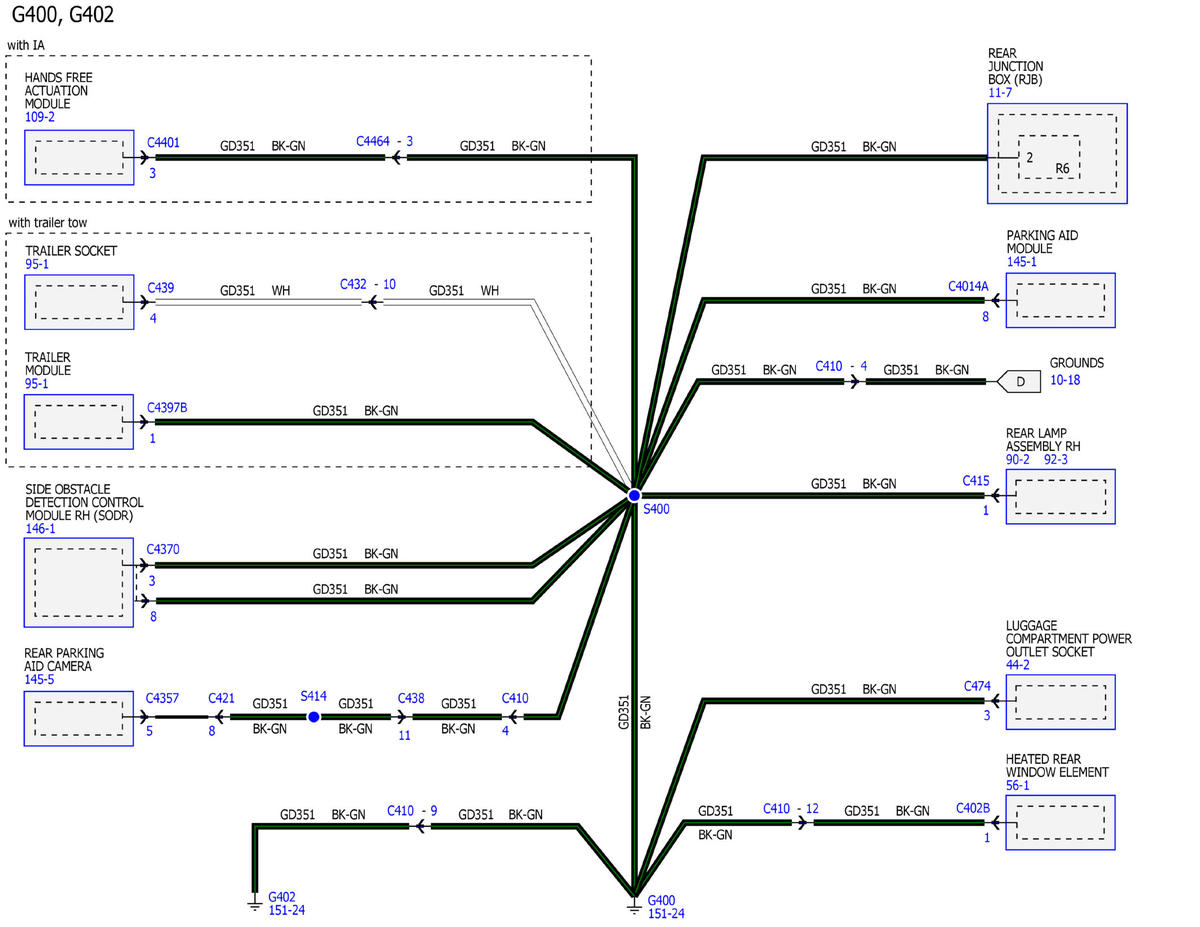

GFDWR47117Courtesy of FORD MOTOR COMPANY

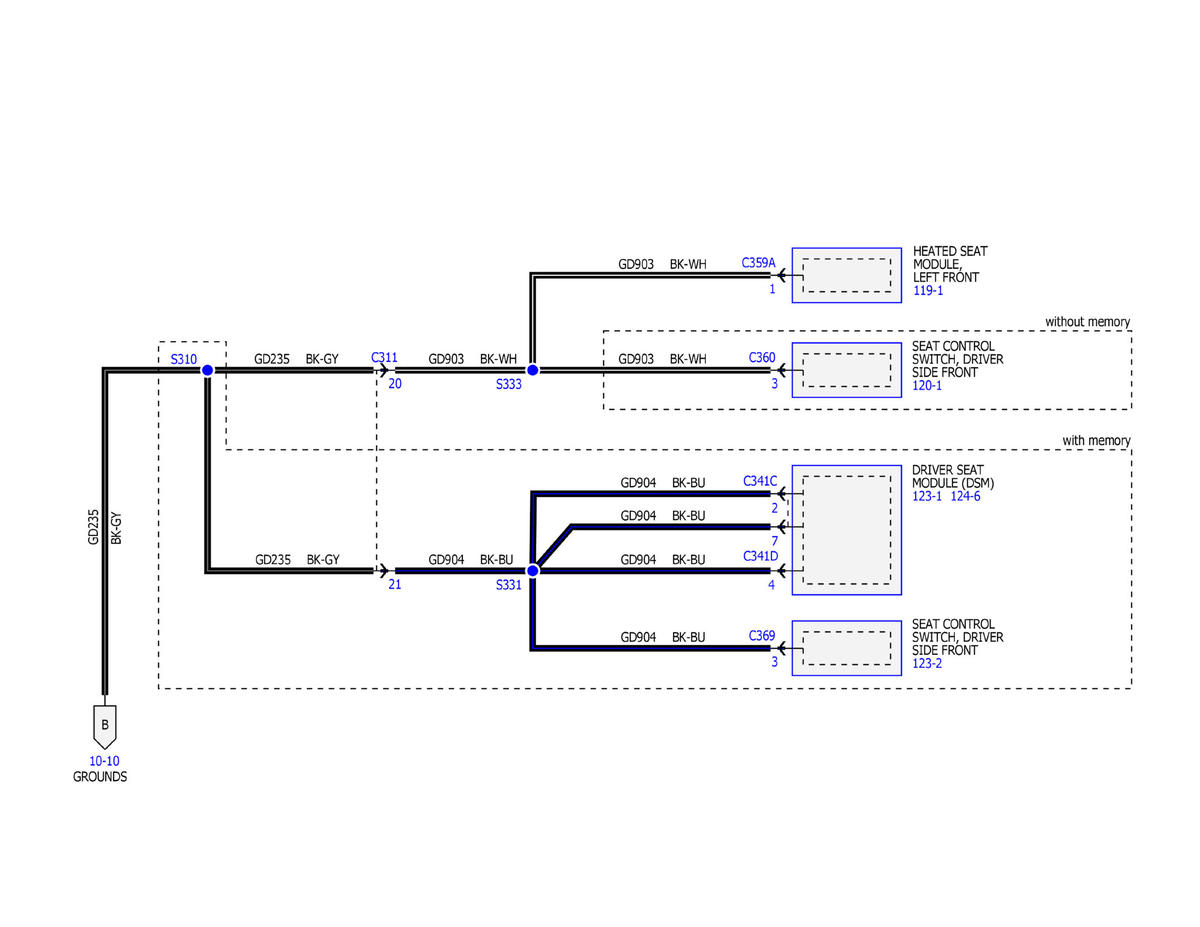

GFDWR47118Courtesy of FORD MOTOR COMPANY

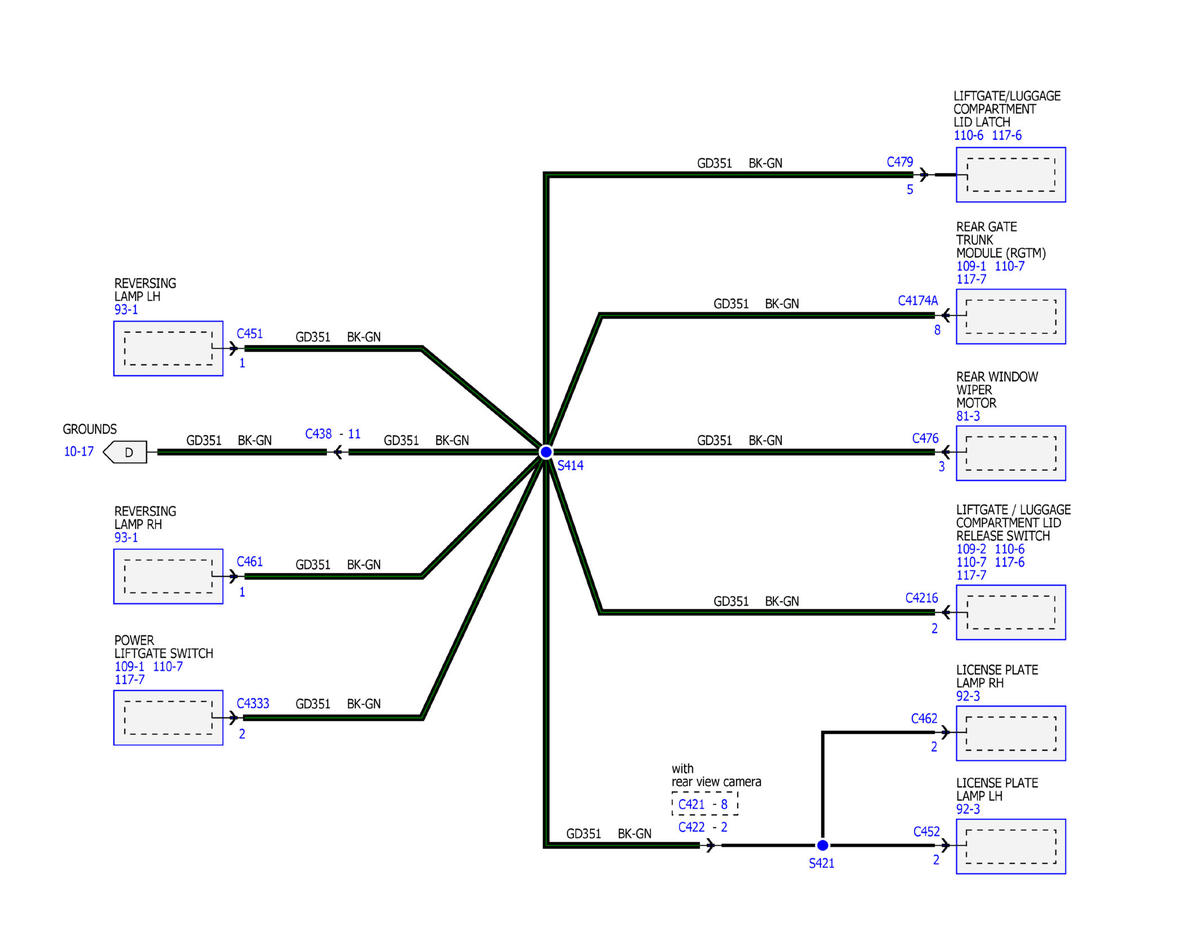

GFDWR47119Courtesy of FORD MOTOR COMPANY

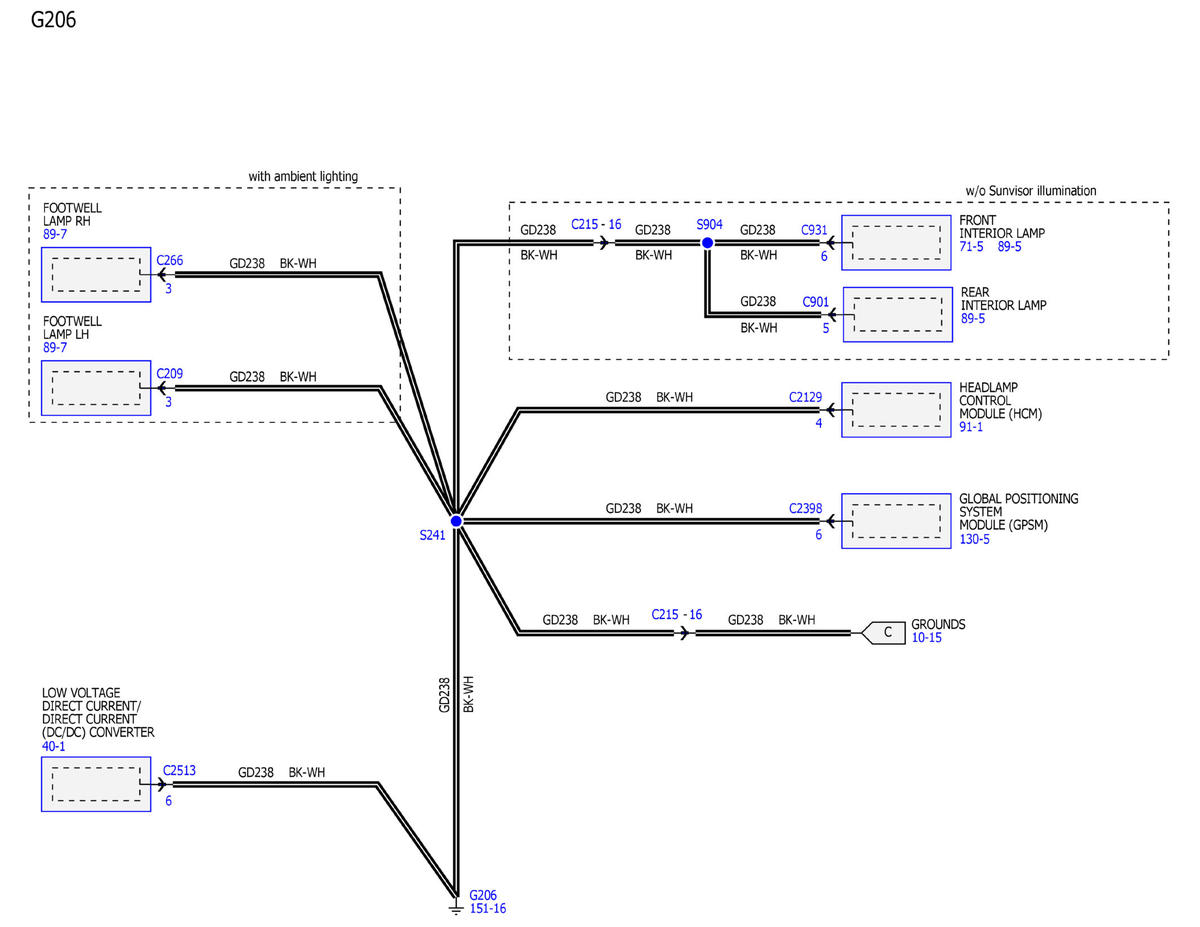

GFDWR47120Courtesy of FORD MOTOR COMPANY

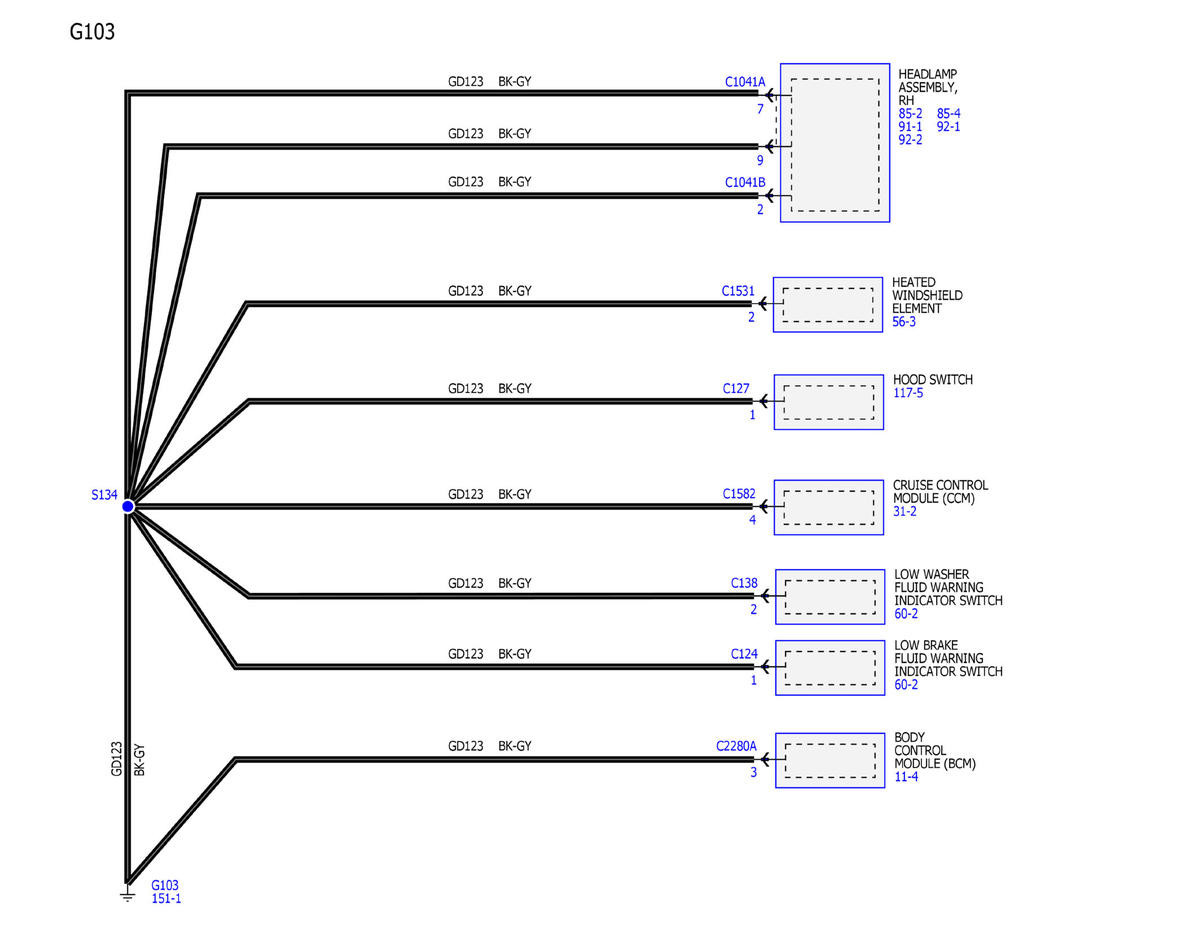

GFDWR47121Courtesy of FORD MOTOR COMPANY

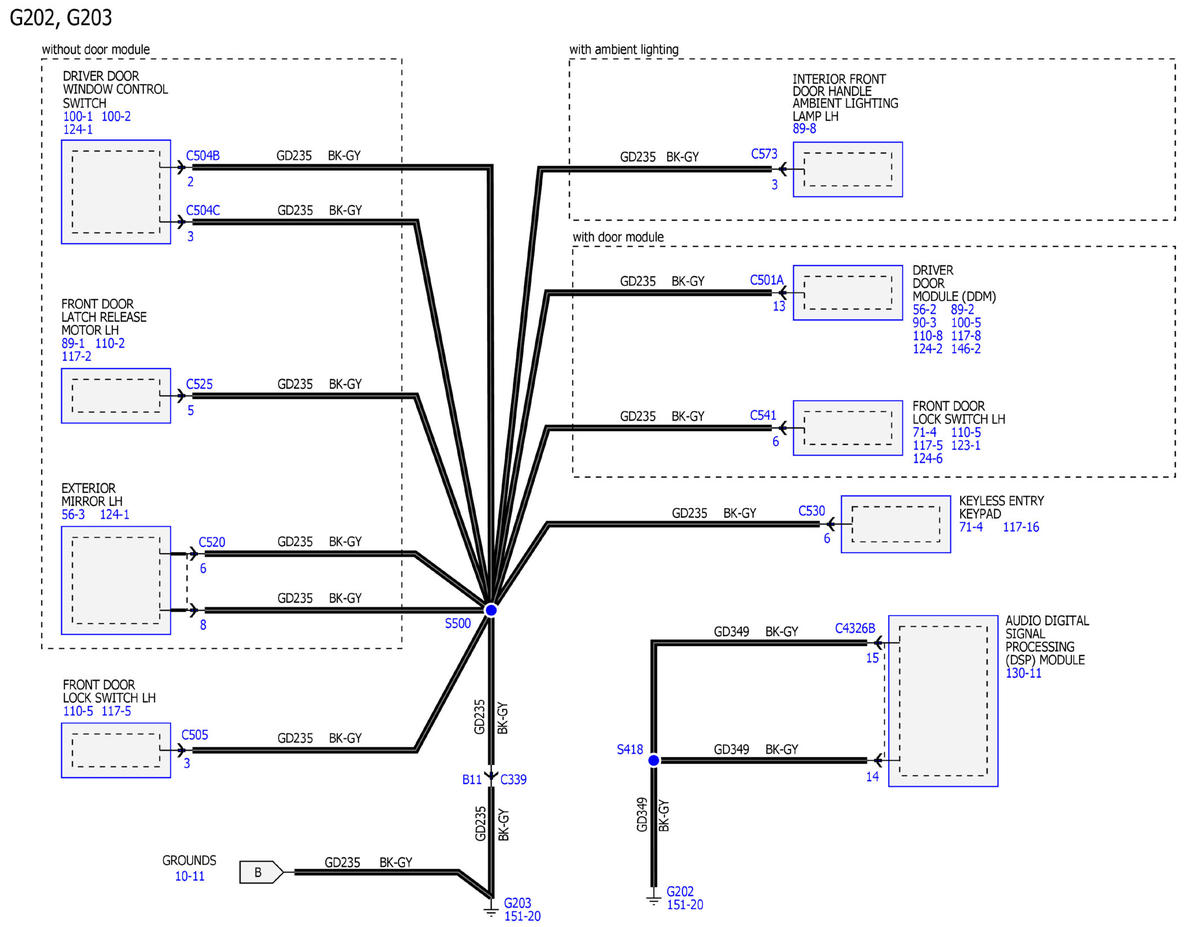

GFDWR47122Courtesy of FORD MOTOR COMPANY
