Fuel Pump Driver Module

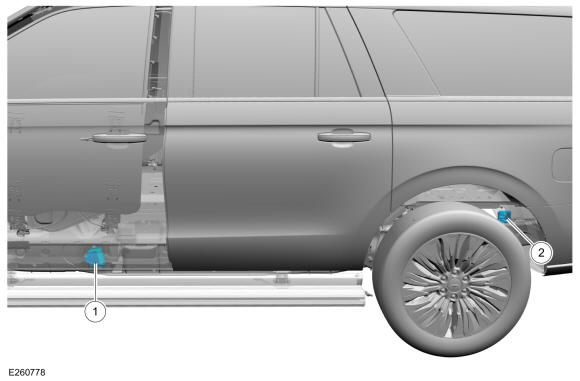

GFD292873Courtesy of FORD MOTOR COMPANY
Item Description
1 Side frame mounted fuel pump driver module. Refer to: Fuel Pump Driver Module (FPDM) .
Comments:
The side frame mountedfuel pump driver module is located midway on the outside of the left frame rail.
2 Top frame mounted fuel pump driver module. Refer to: Fuel Pump Driver Module (FPDM) .
Comments:
The top frame mounted fuel pump driver module is located on top of the left frame rail behind, the left rear wheelwell.
