Connector Repair Procedures

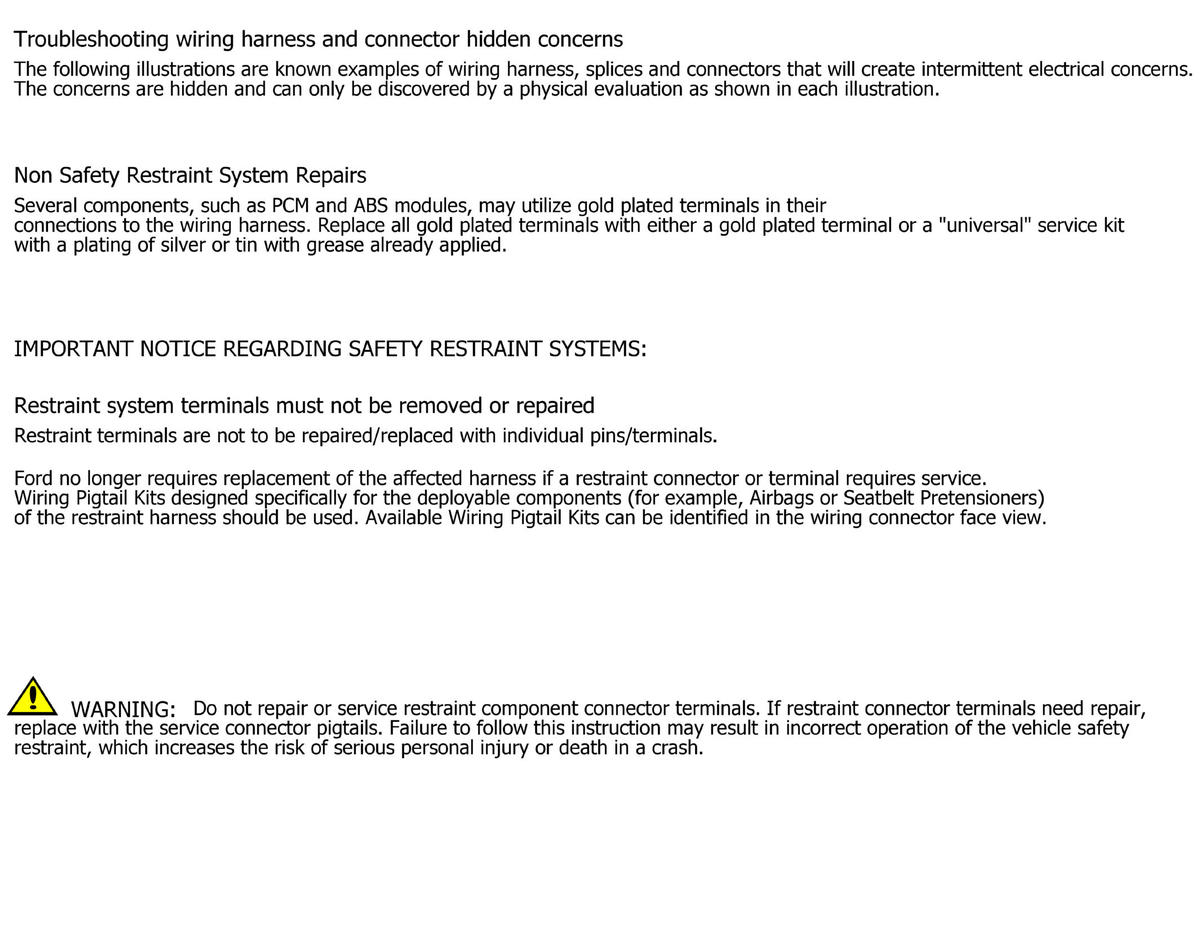

GFDWR13669Courtesy of FORD MOTOR COMPANY

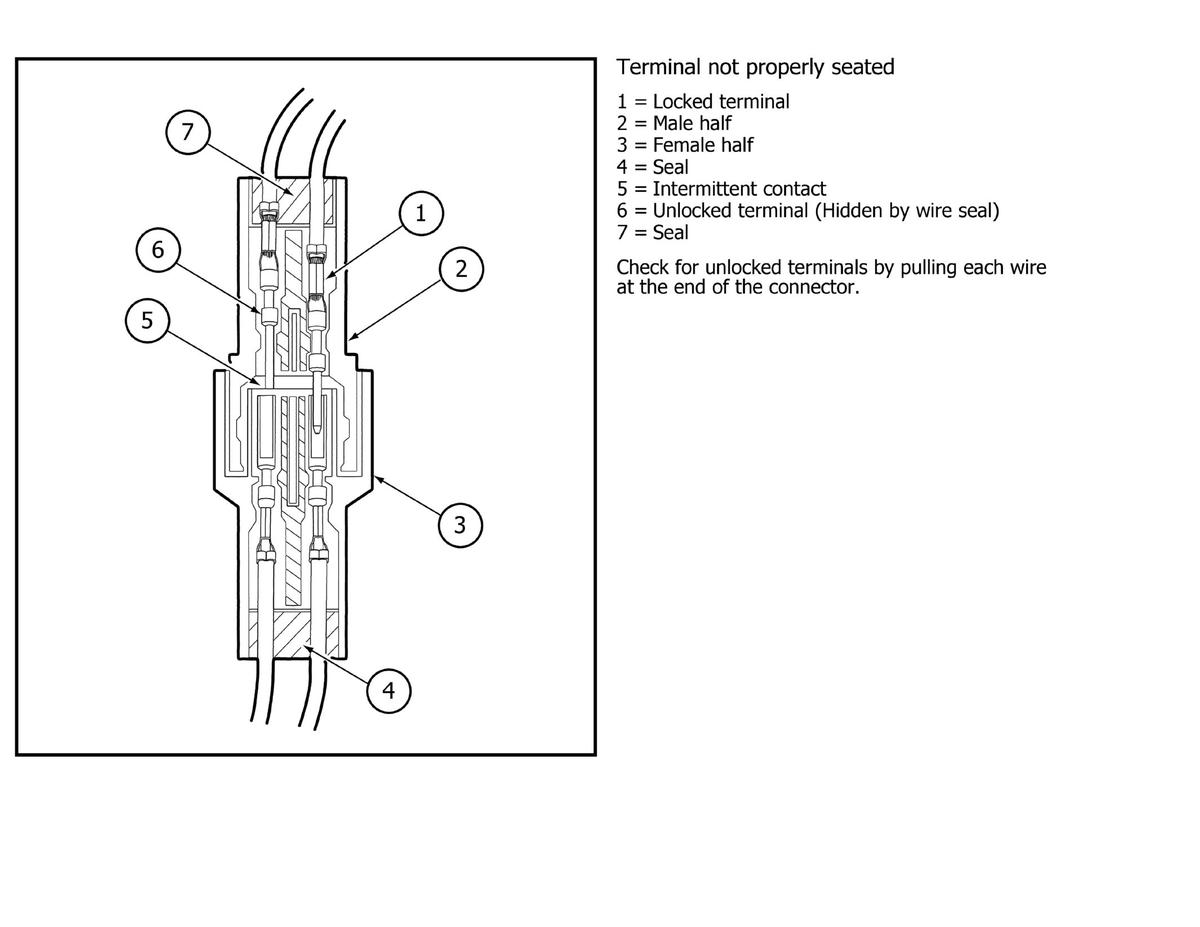

GFDWR13663Courtesy of FORD MOTOR COMPANY

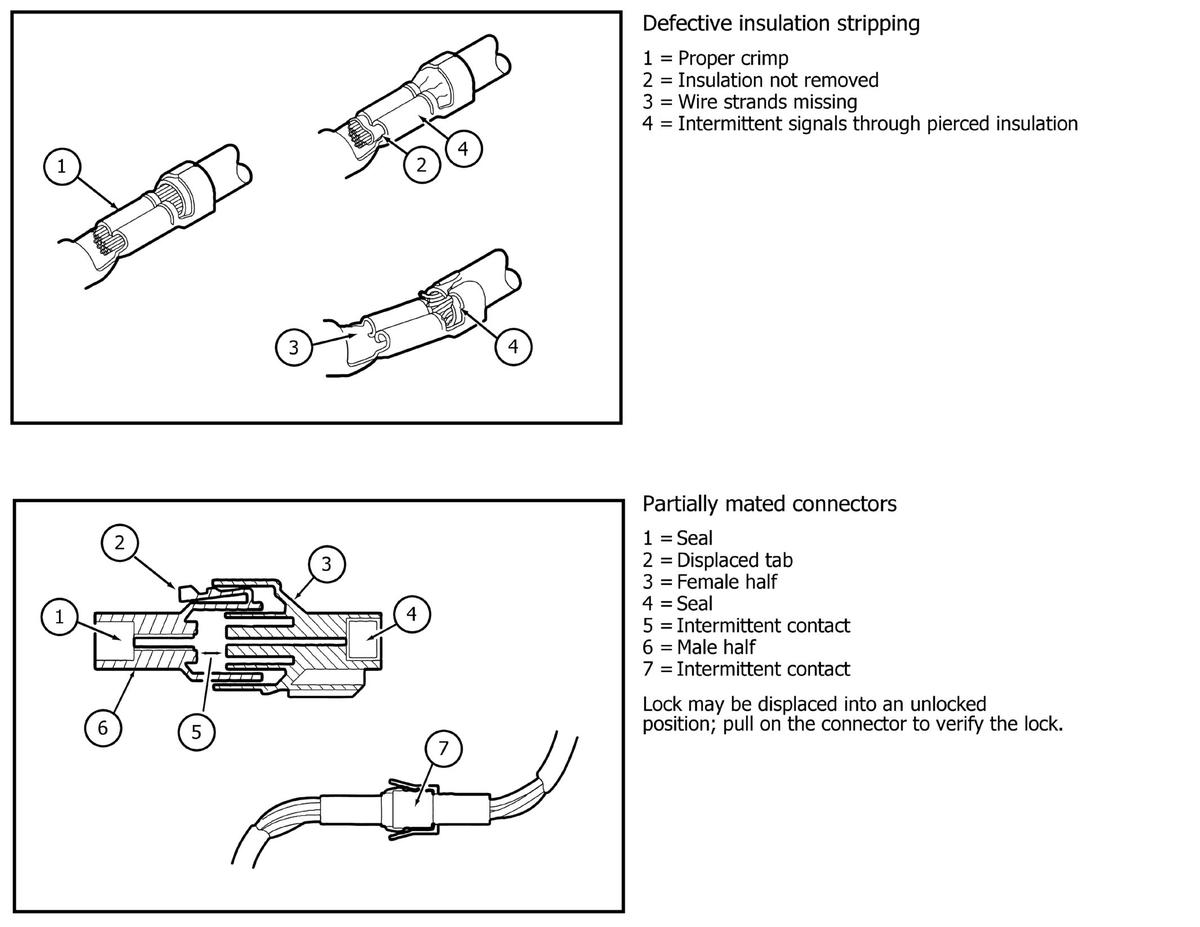

GFDWR13667Courtesy of FORD MOTOR COMPANY

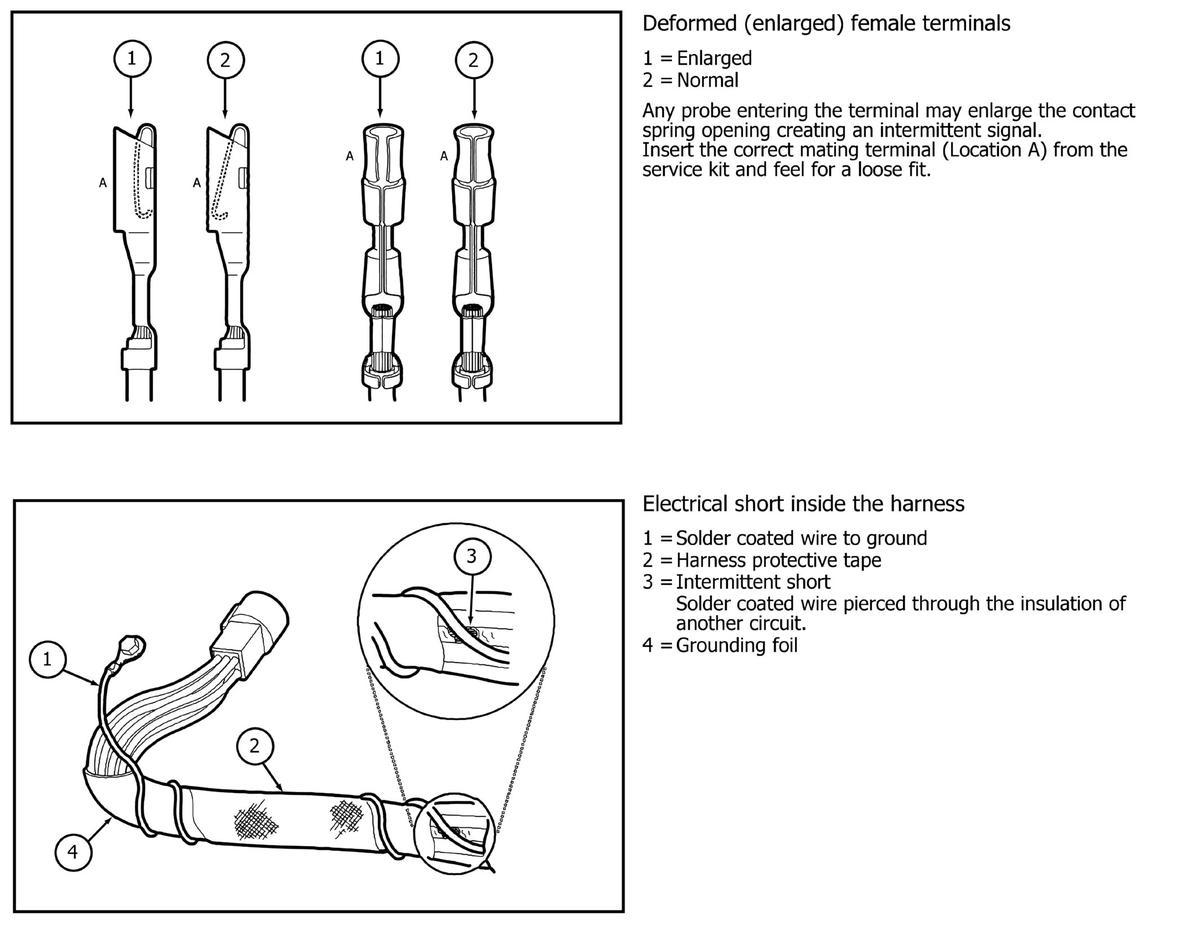

GFDWR13670Courtesy of FORD MOTOR COMPANY

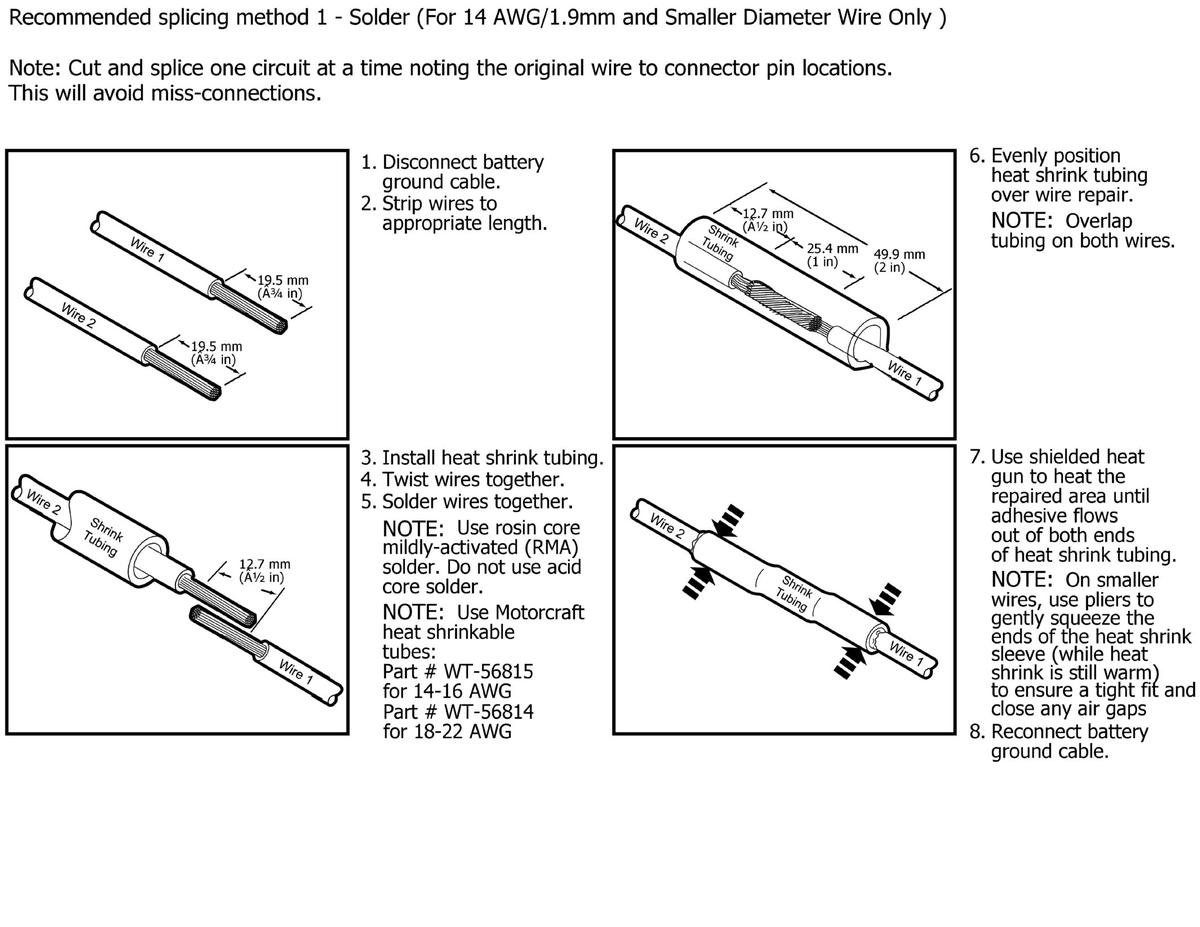

GFDWR13671Courtesy of FORD MOTOR COMPANY

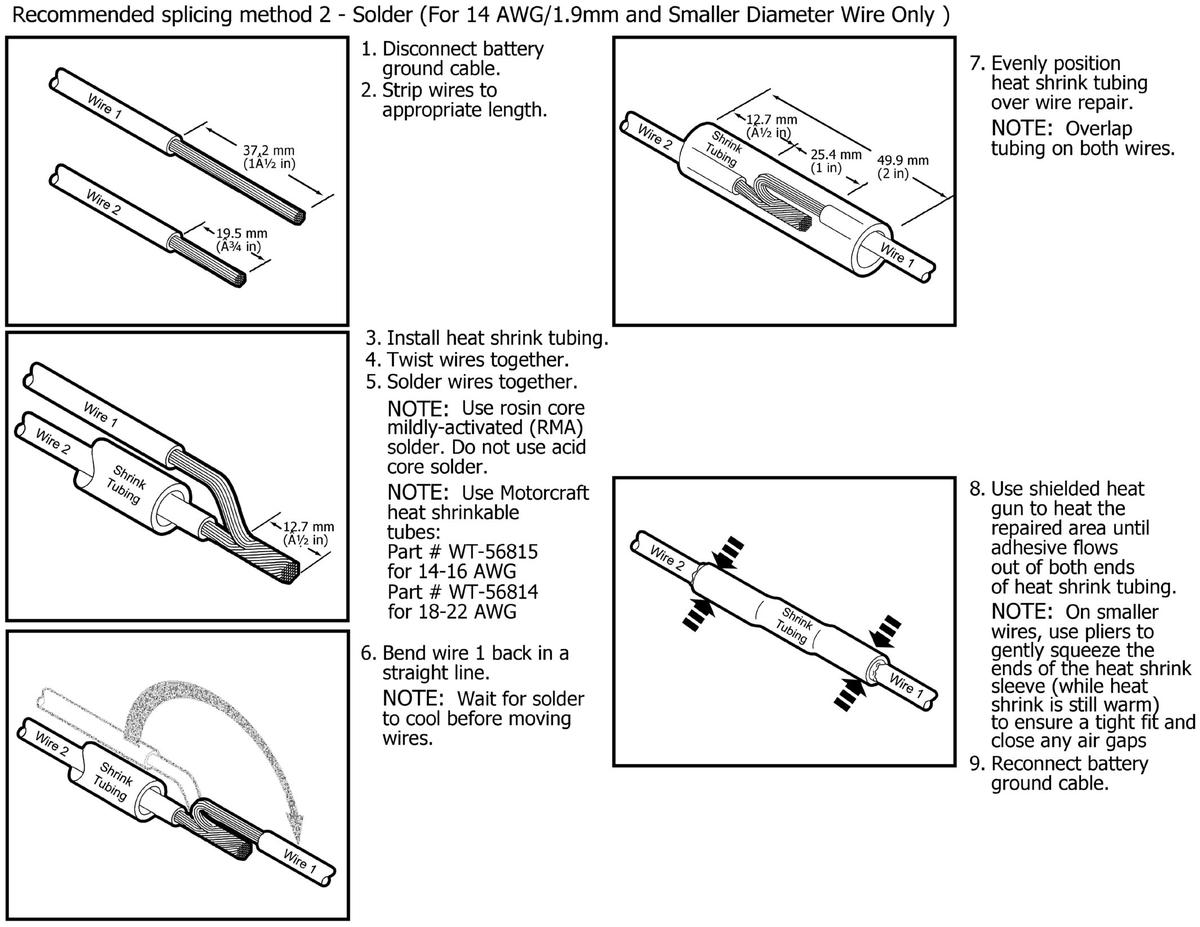

GFDWR13668Courtesy of FORD MOTOR COMPANY

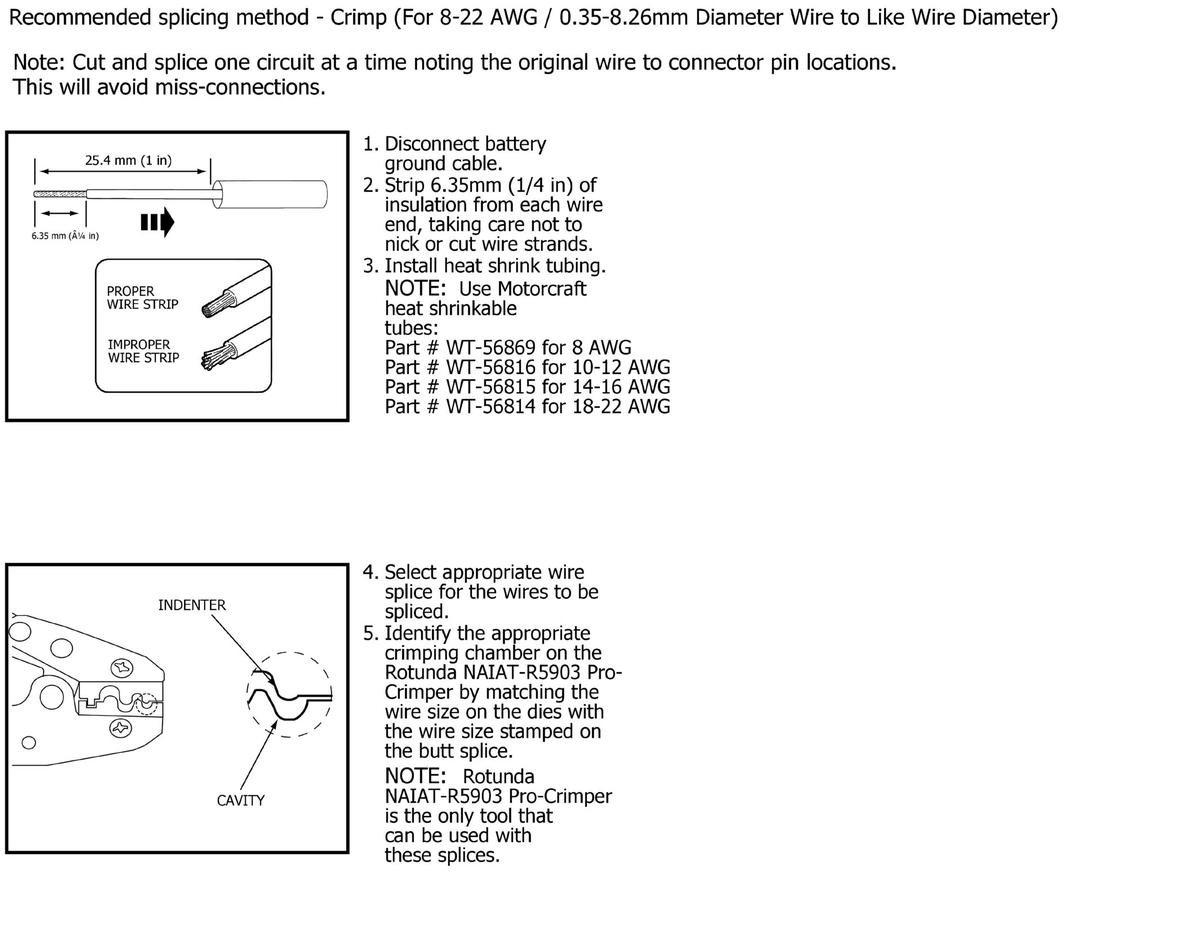

GFDWR13666Courtesy of FORD MOTOR COMPANY

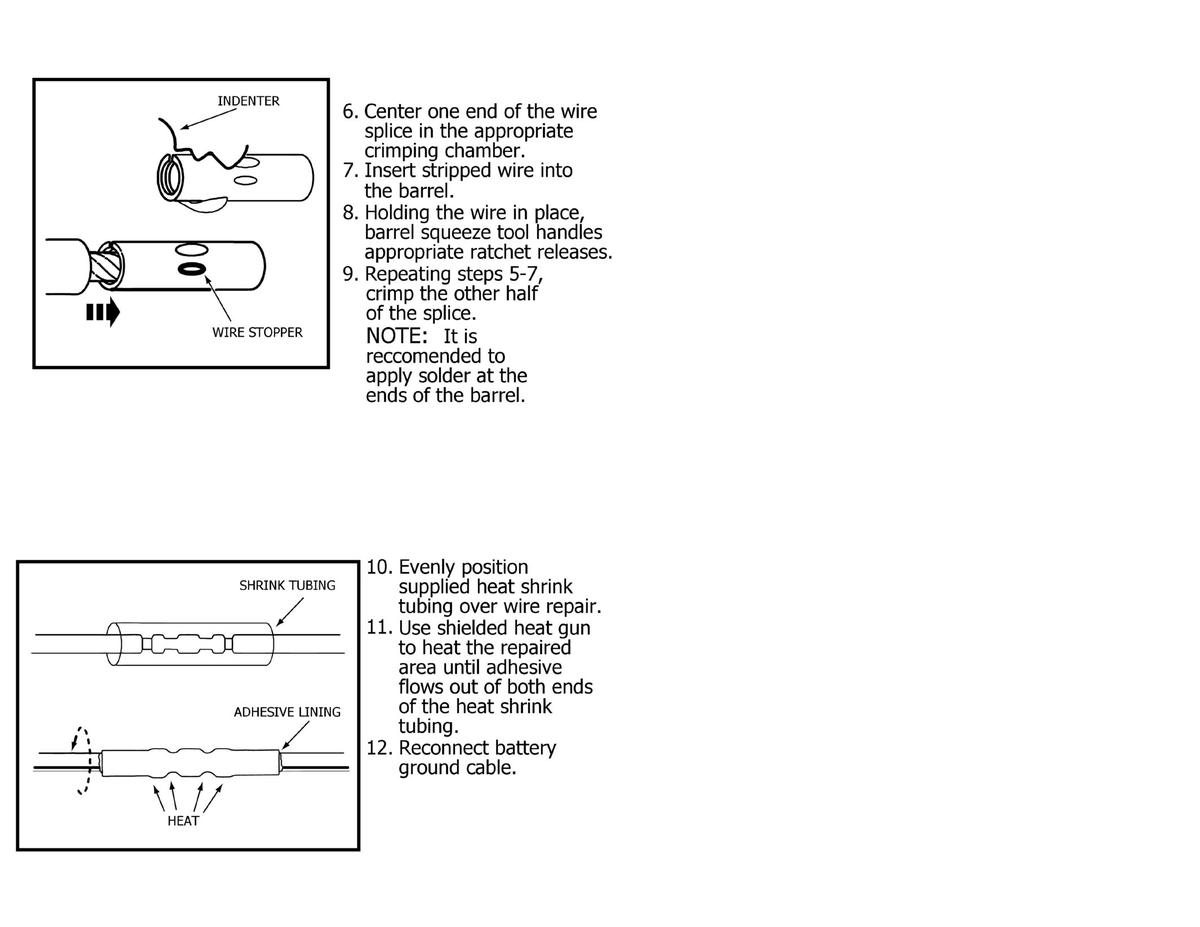

GFDWR13665Courtesy of FORD MOTOR COMPANY

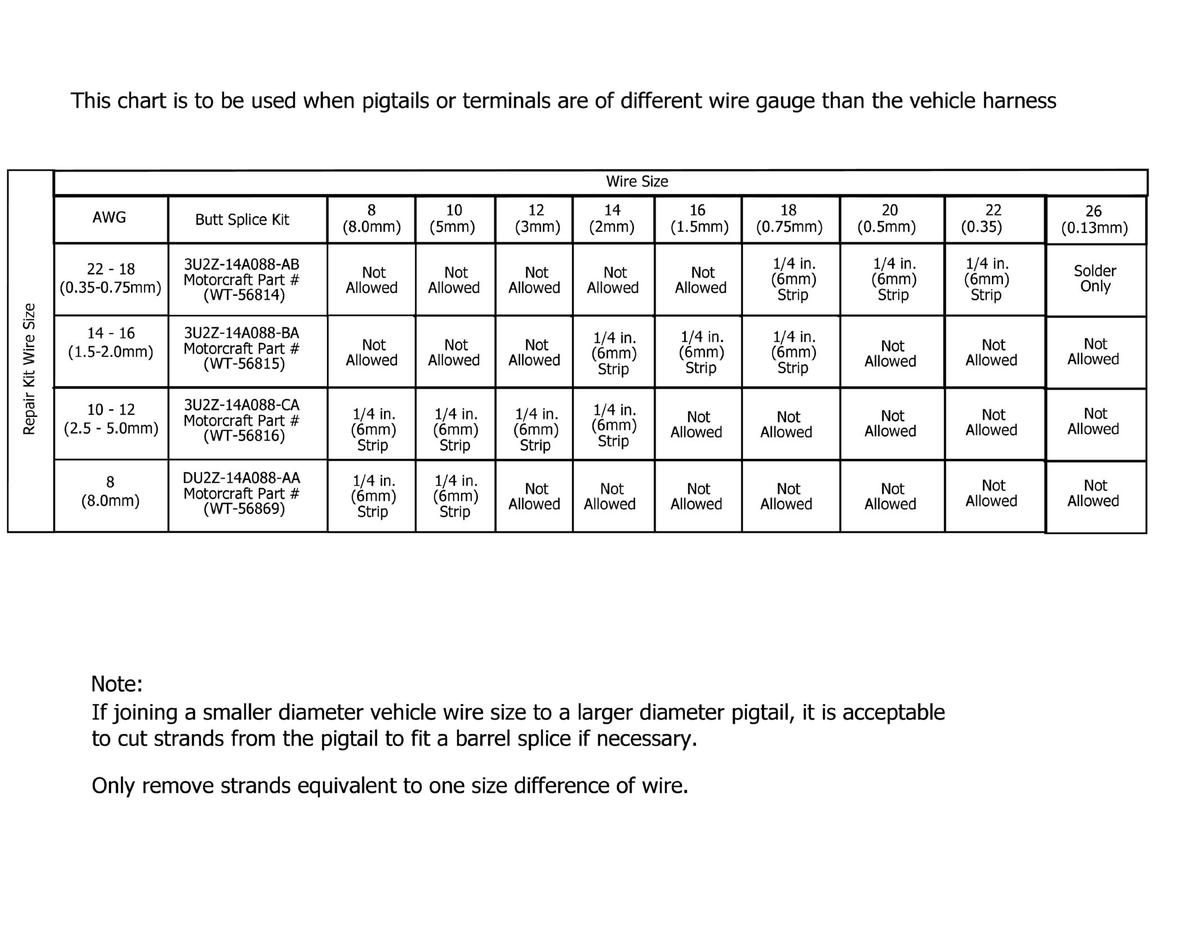

GFDWR13664Courtesy of FORD MOTOR COMPANY
