OEM Ground Distribution: Grounds

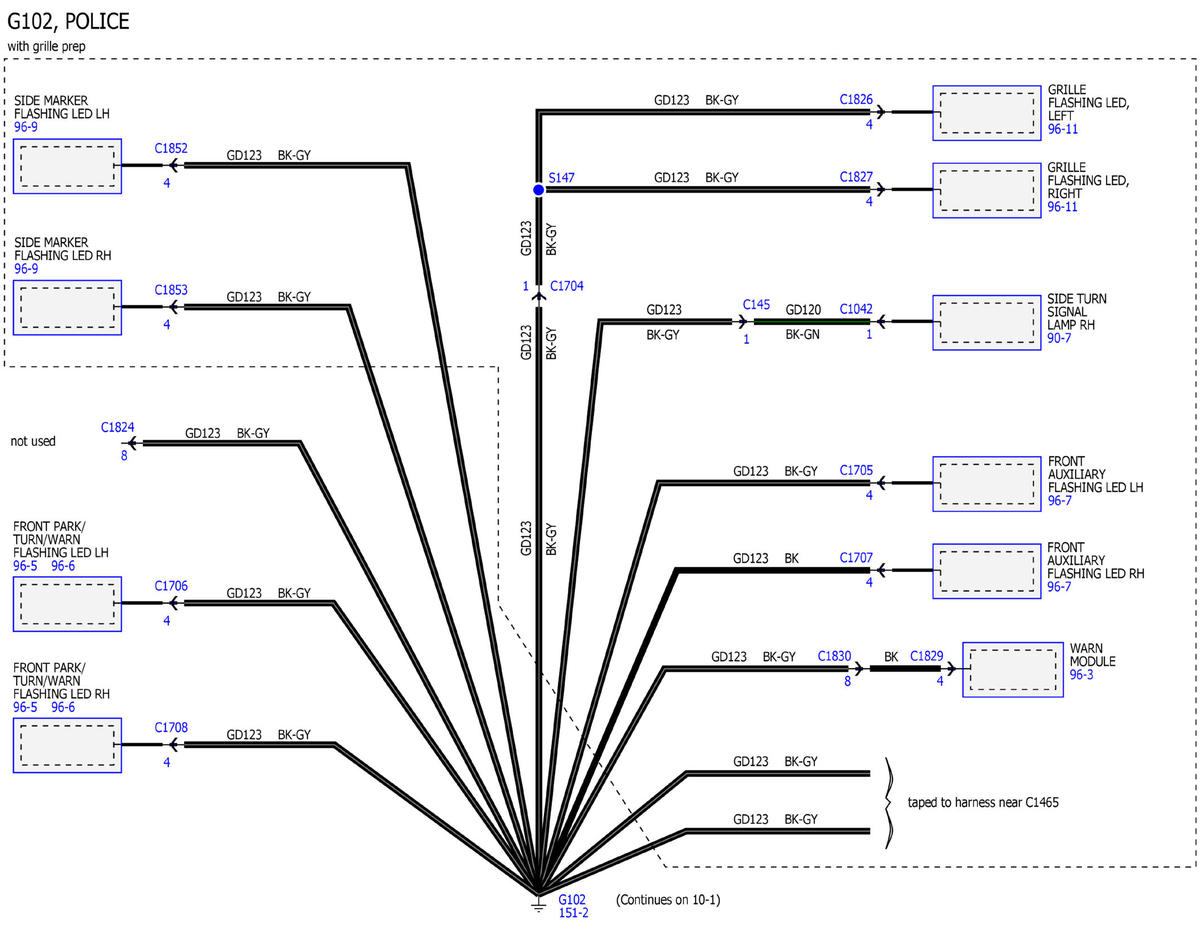

GFDWR63874Courtesy of FORD MOTOR COMPANY

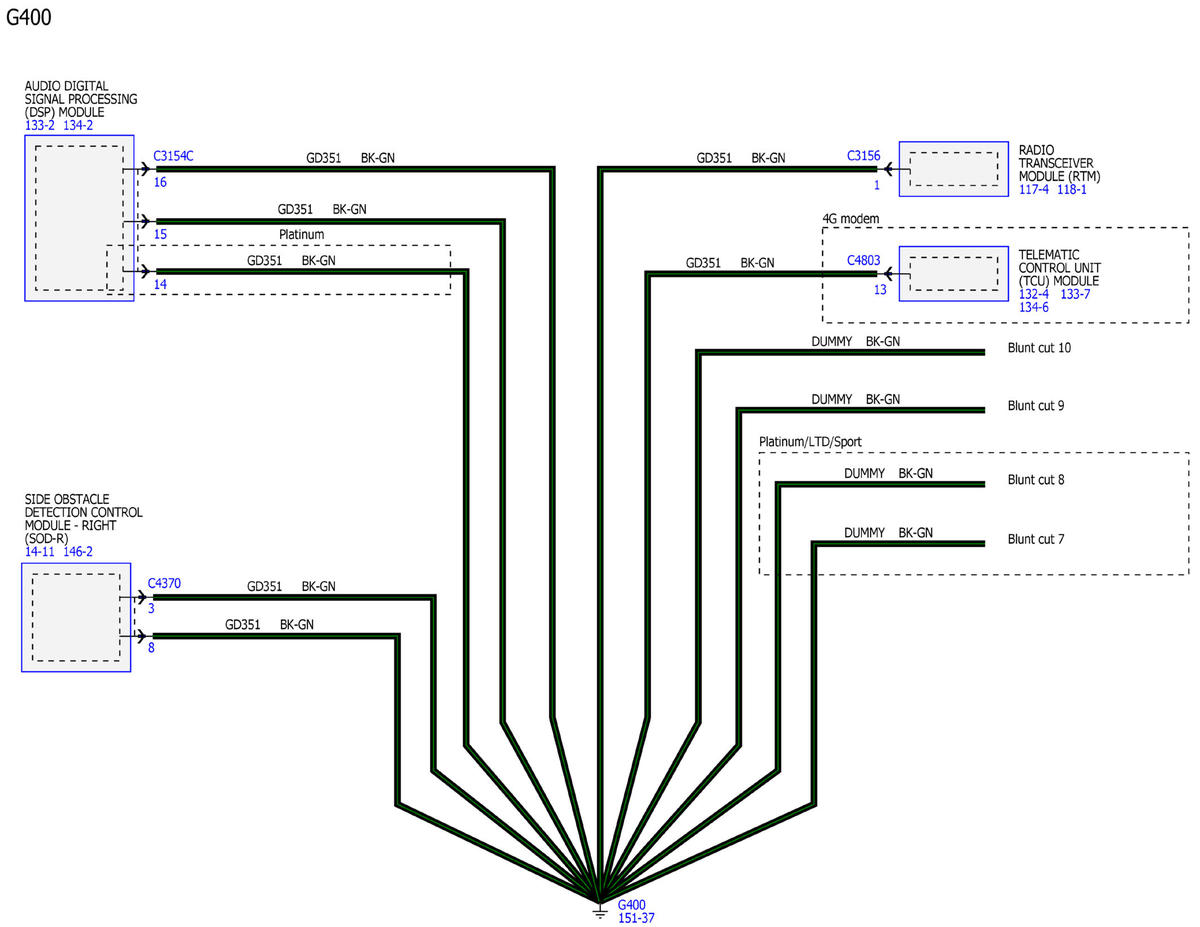

GFDWR63875Courtesy of FORD MOTOR COMPANY

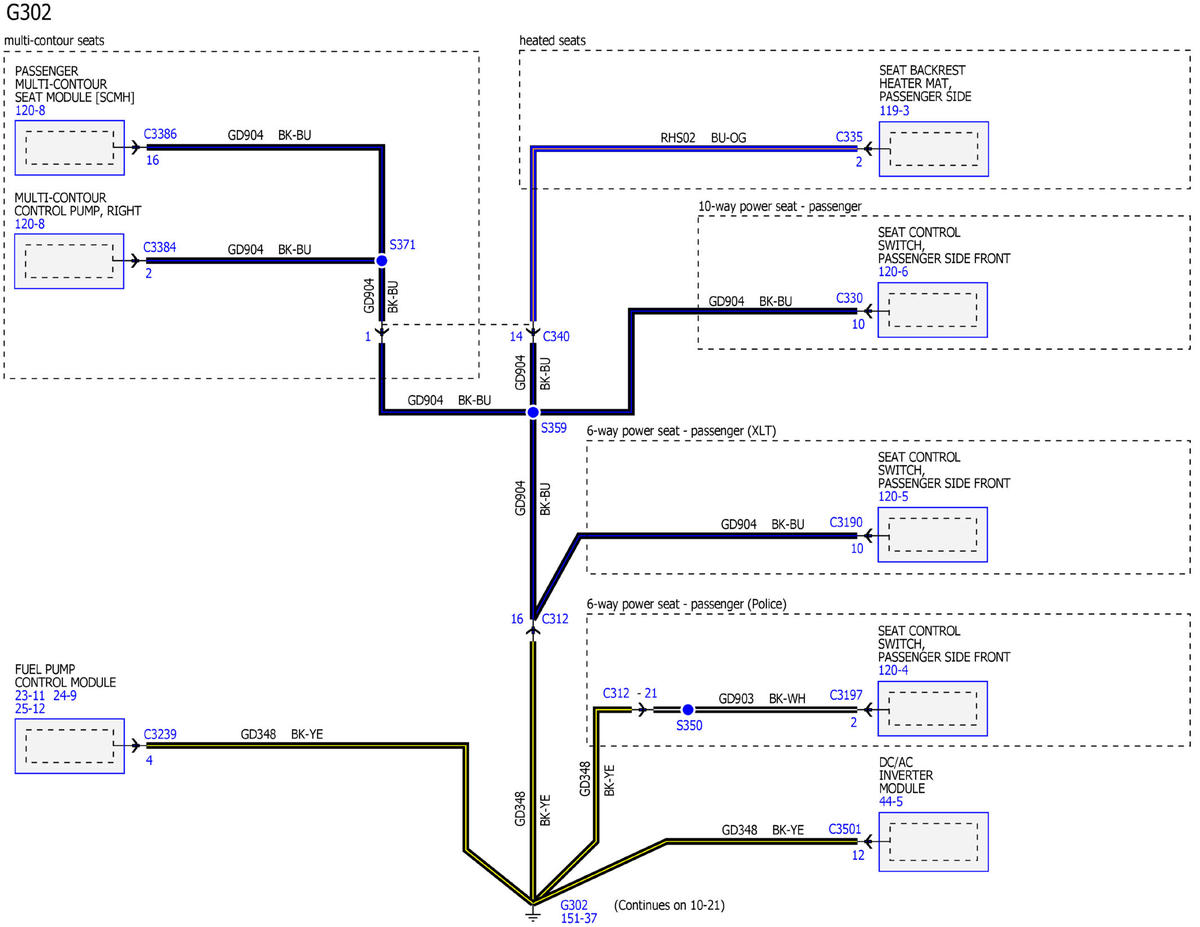

GFDWR63876Courtesy of FORD MOTOR COMPANY

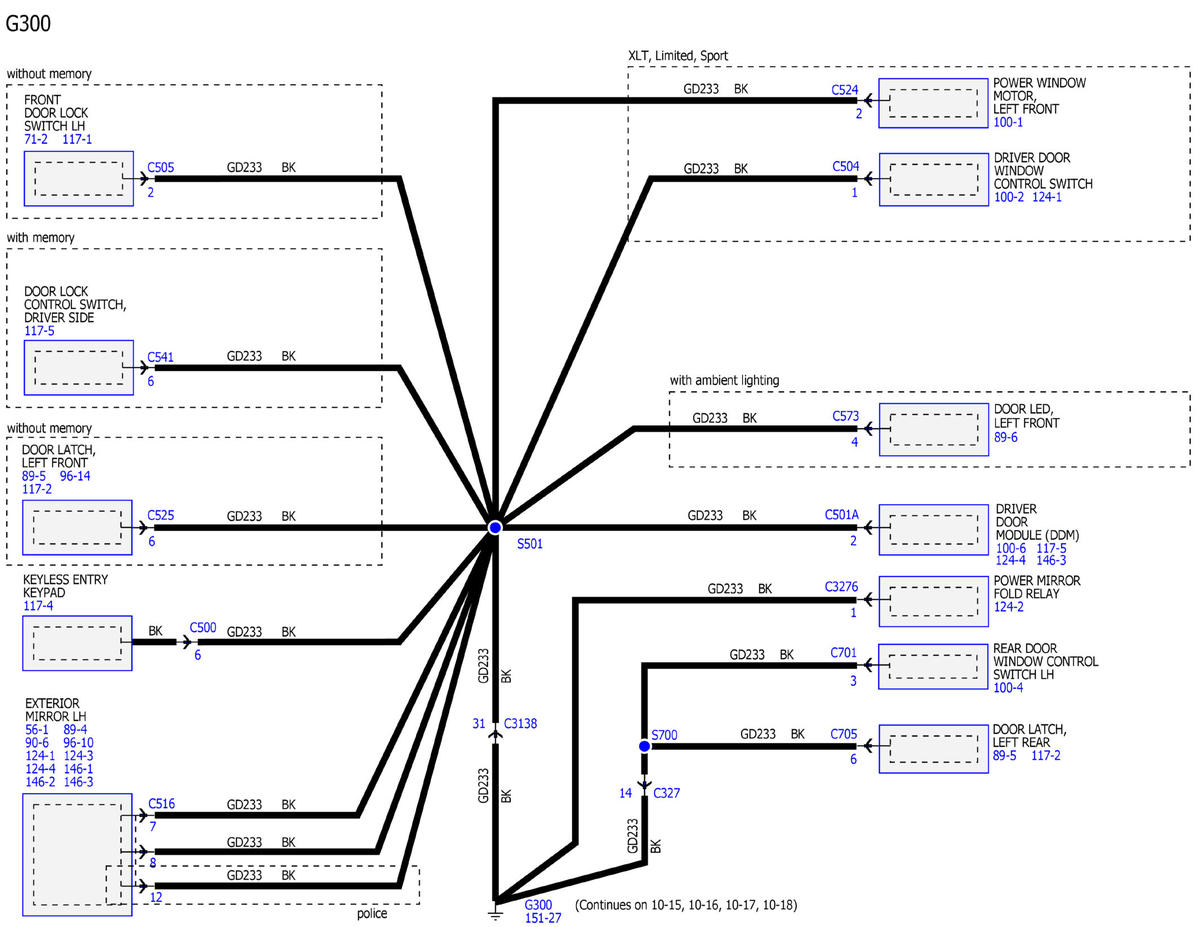

GFDWR63877Courtesy of FORD MOTOR COMPANY

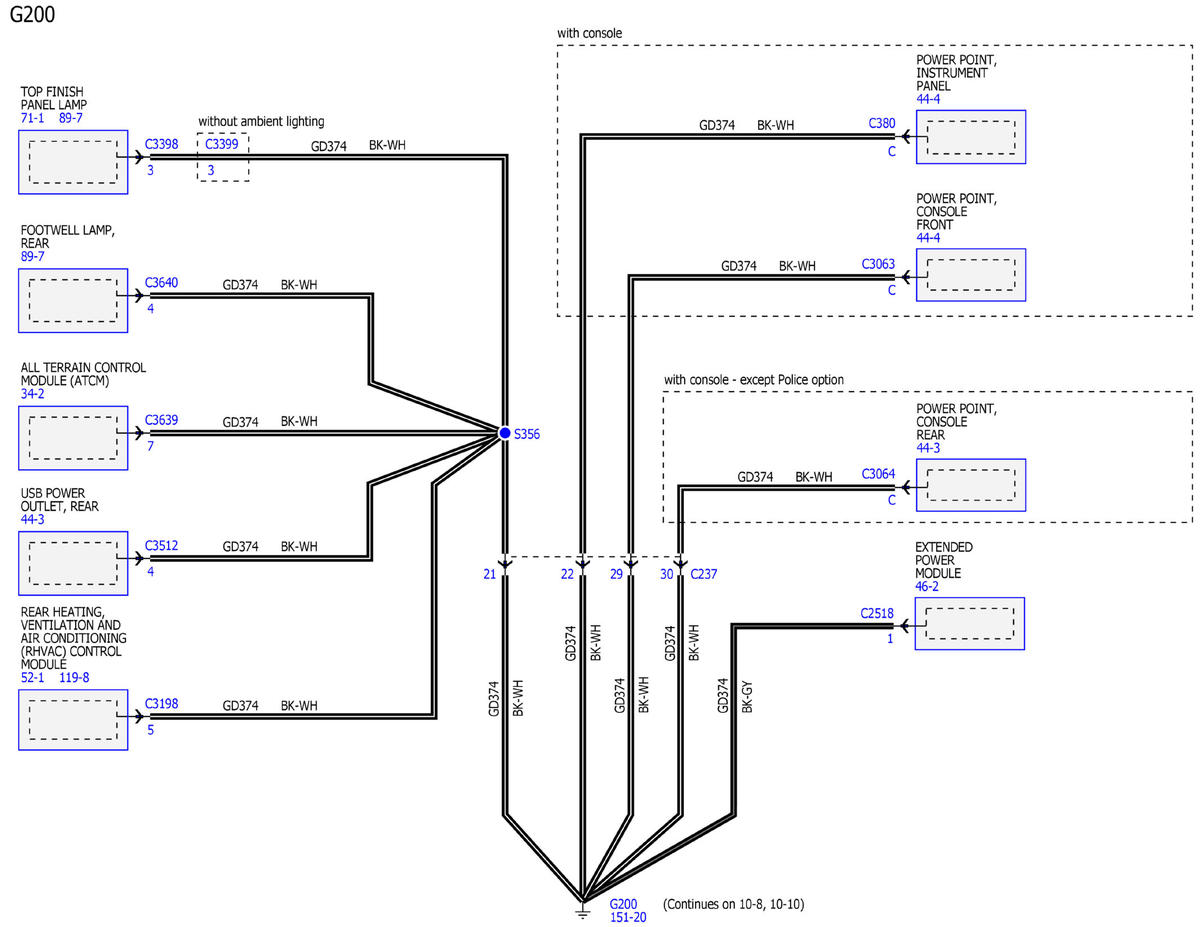

GFDWR63878Courtesy of FORD MOTOR COMPANY

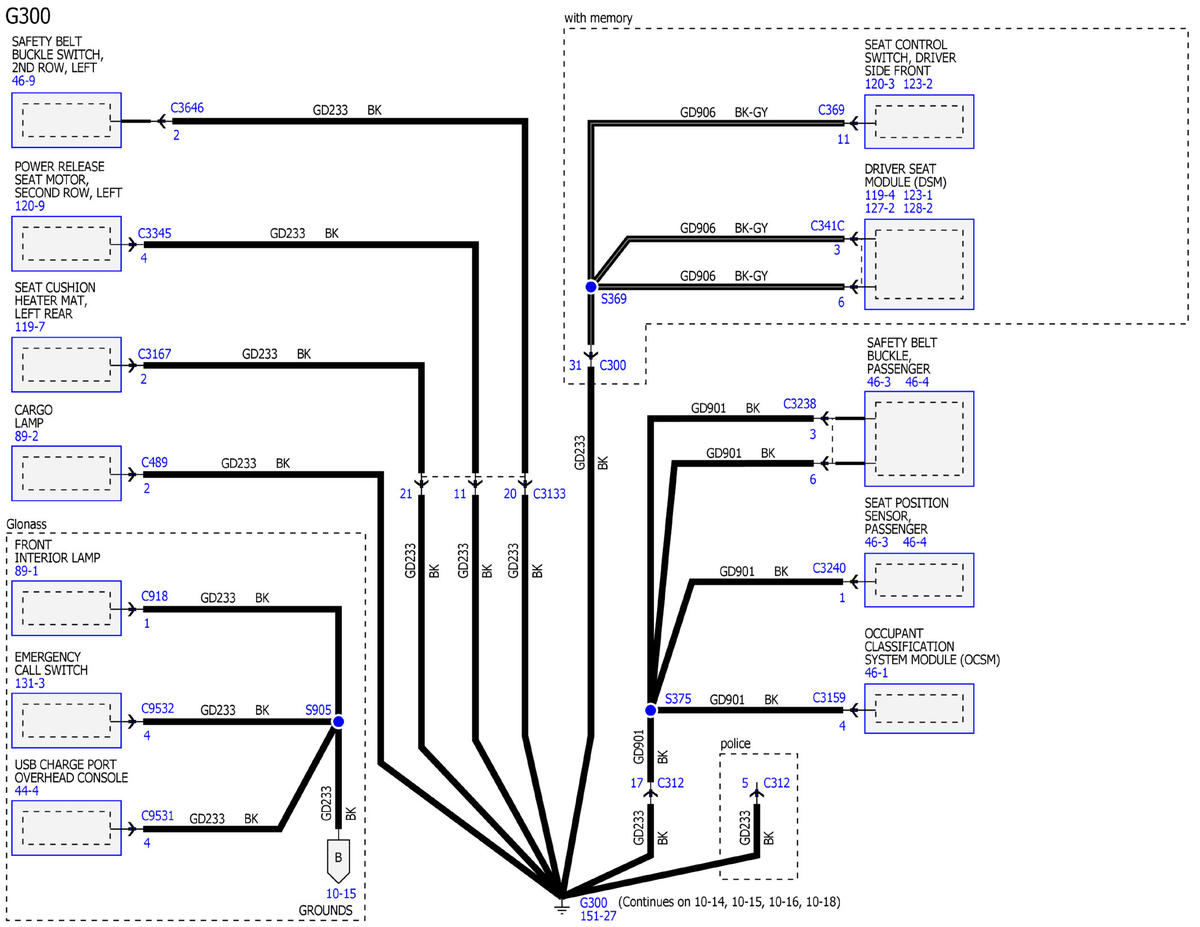

GFDWR63879Courtesy of FORD MOTOR COMPANY

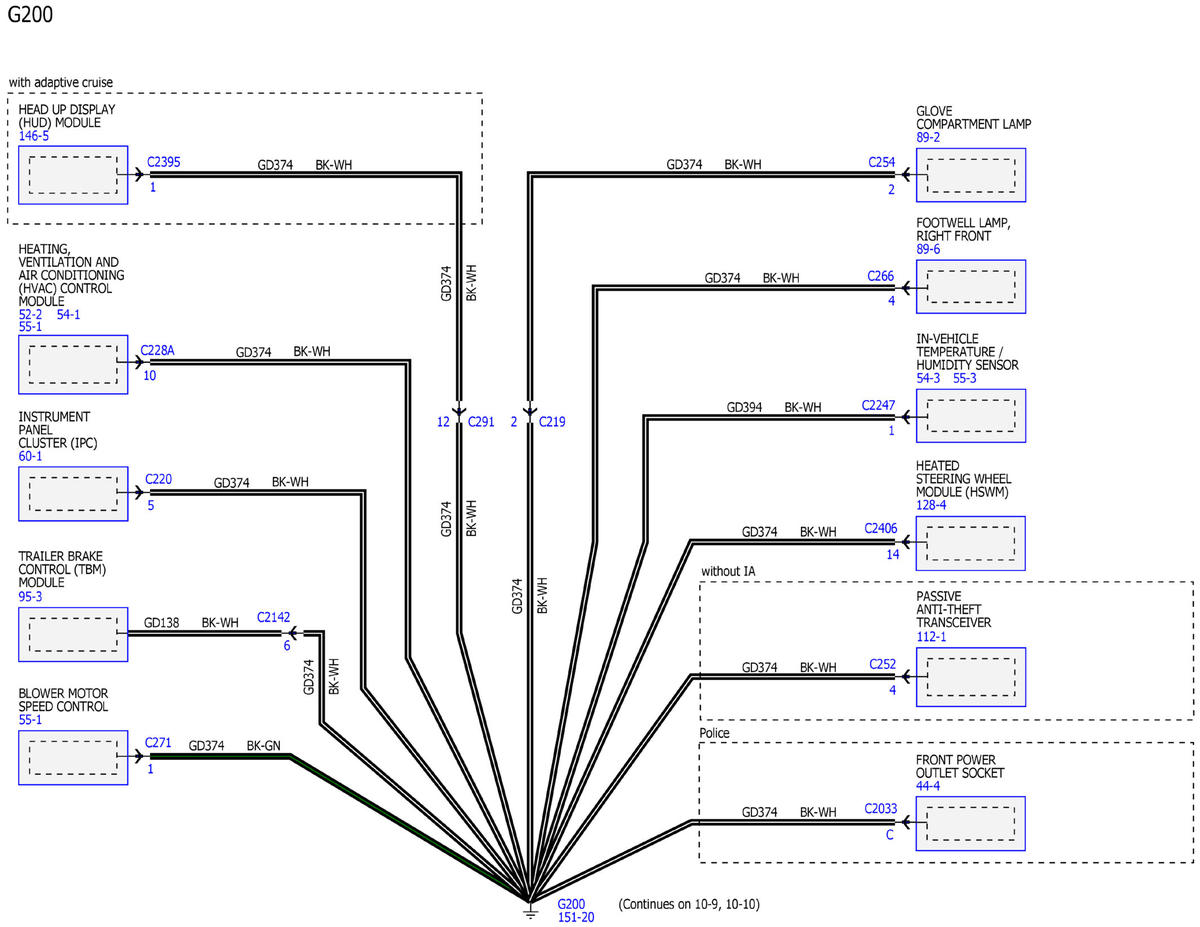

GFDWR63880Courtesy of FORD MOTOR COMPANY

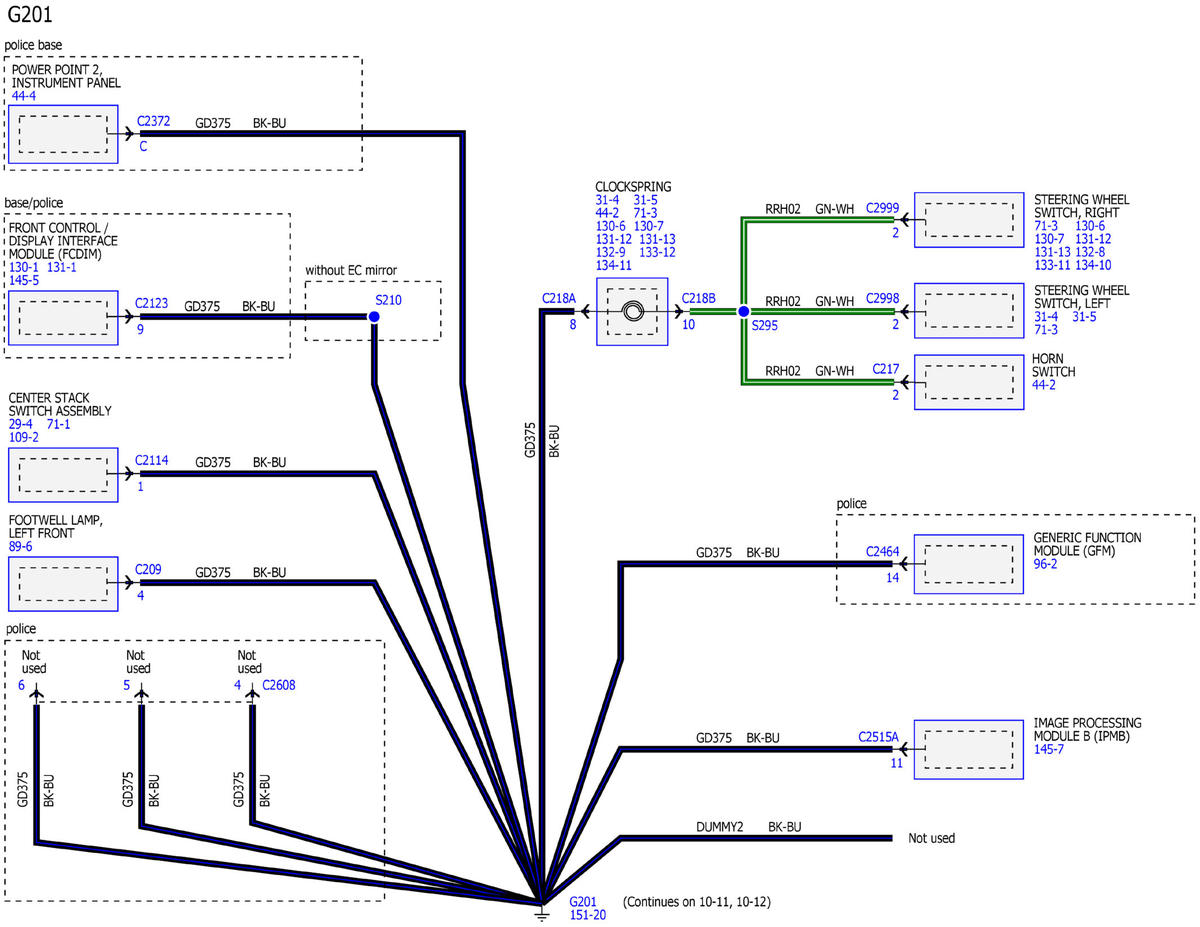

GFDWR63881Courtesy of FORD MOTOR COMPANY

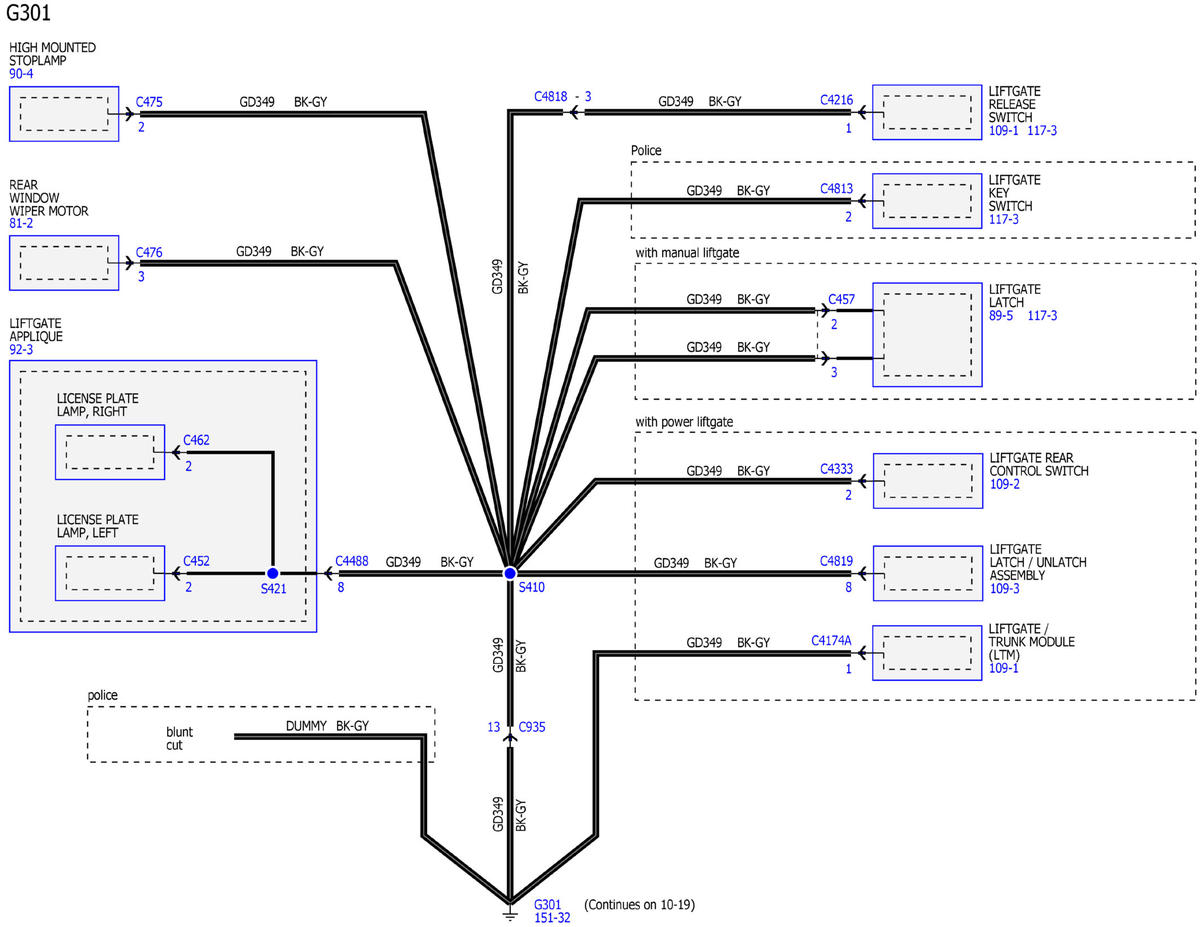

GFDWR63882Courtesy of FORD MOTOR COMPANY

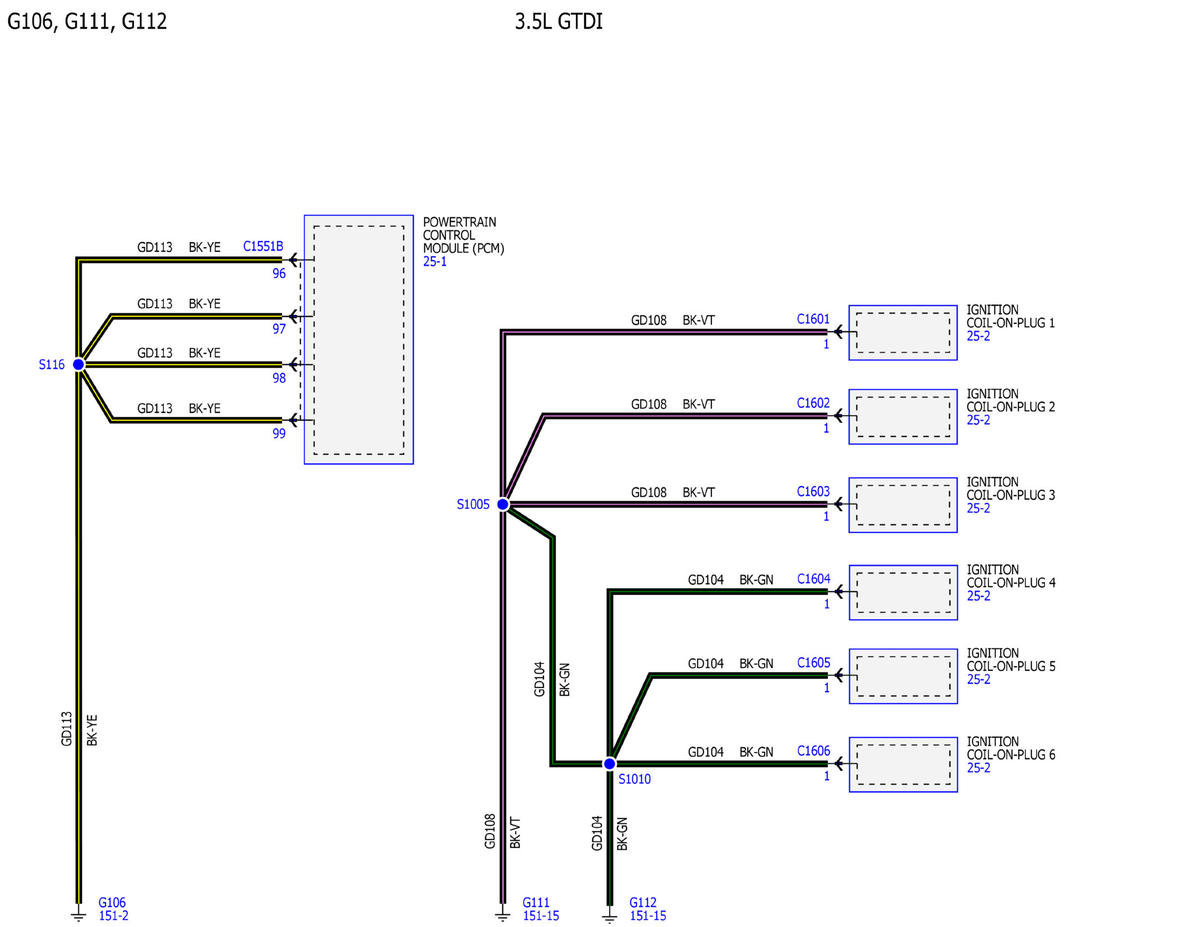

GFDWR63883Courtesy of FORD MOTOR COMPANY

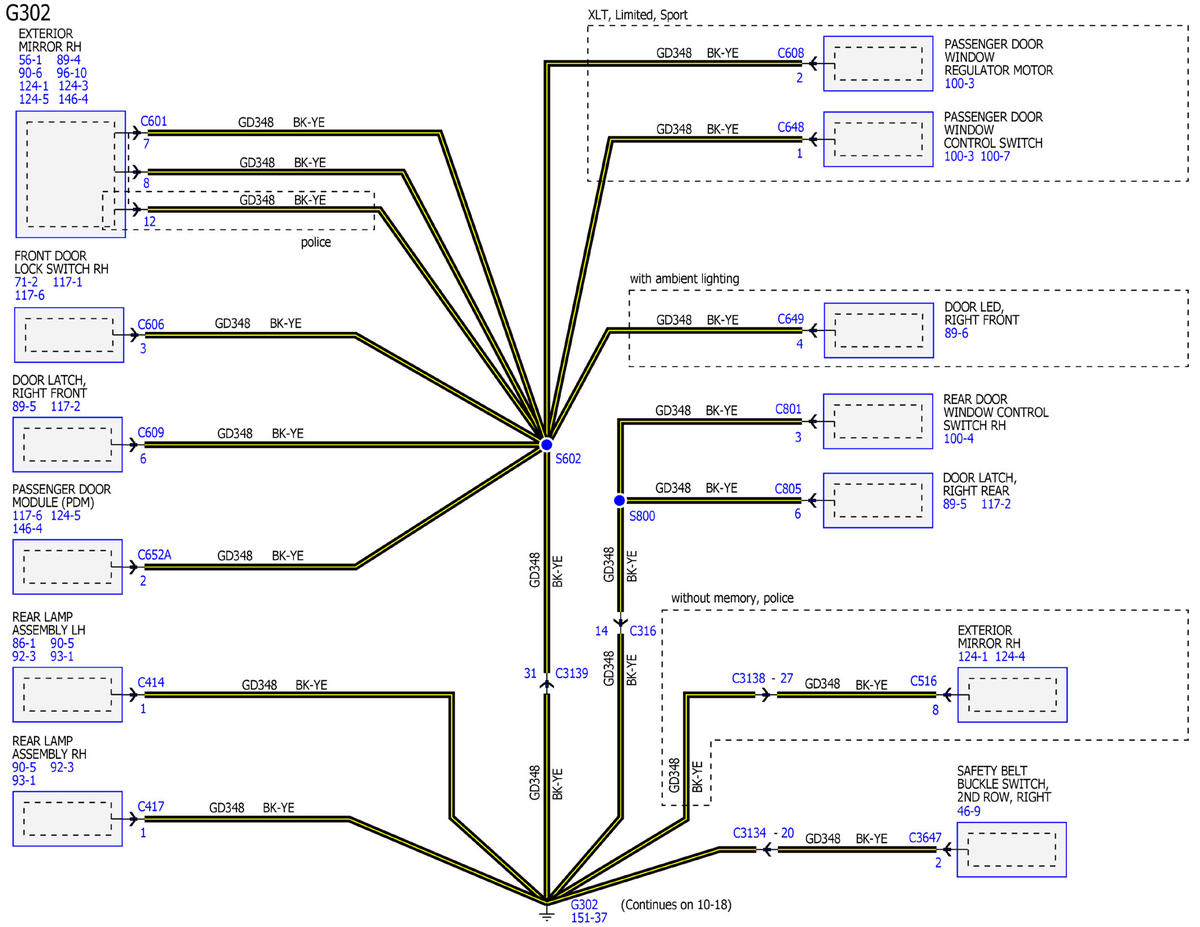

GFDWR63884Courtesy of FORD MOTOR COMPANY

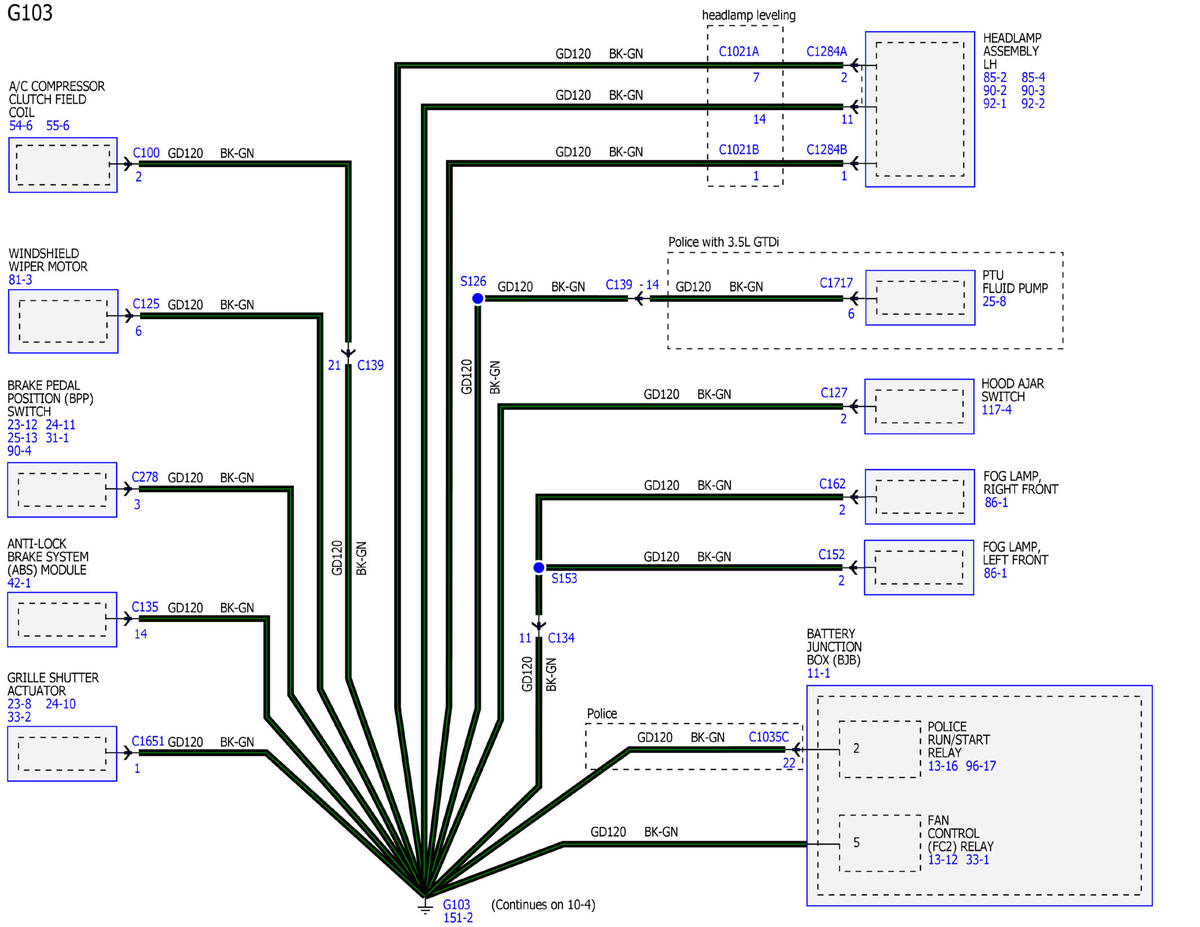

GFDWR63885Courtesy of FORD MOTOR COMPANY

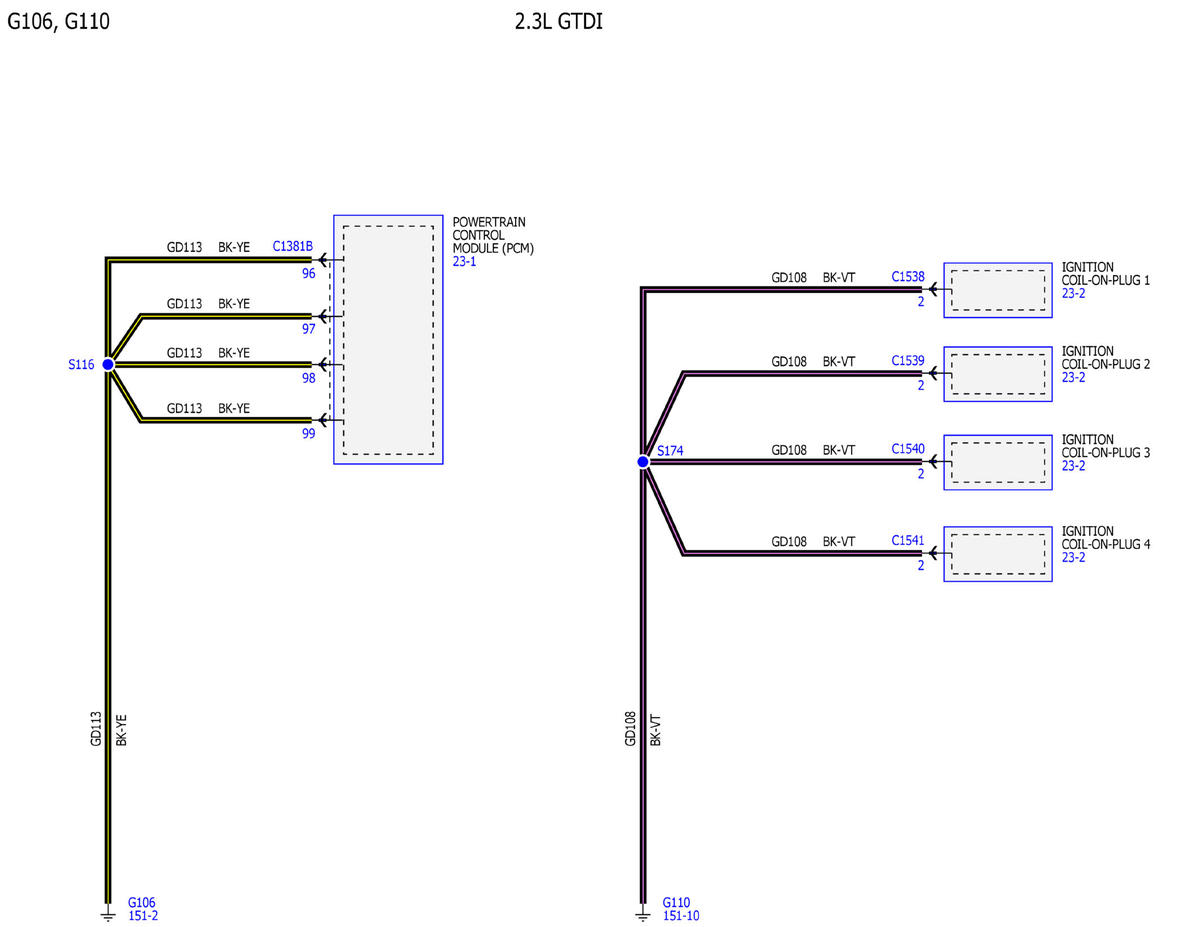

GFDWR63886Courtesy of FORD MOTOR COMPANY

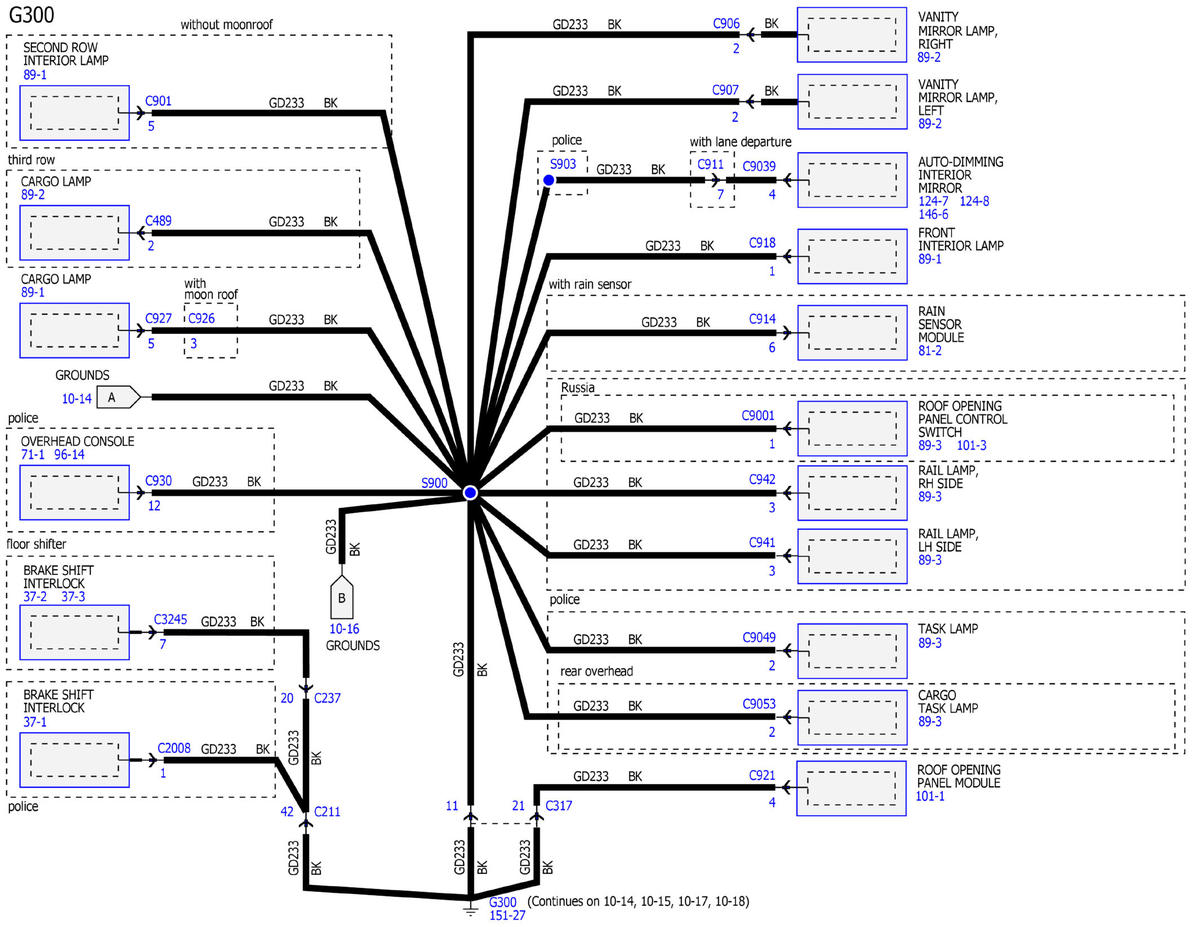

GFDWR63887Courtesy of FORD MOTOR COMPANY

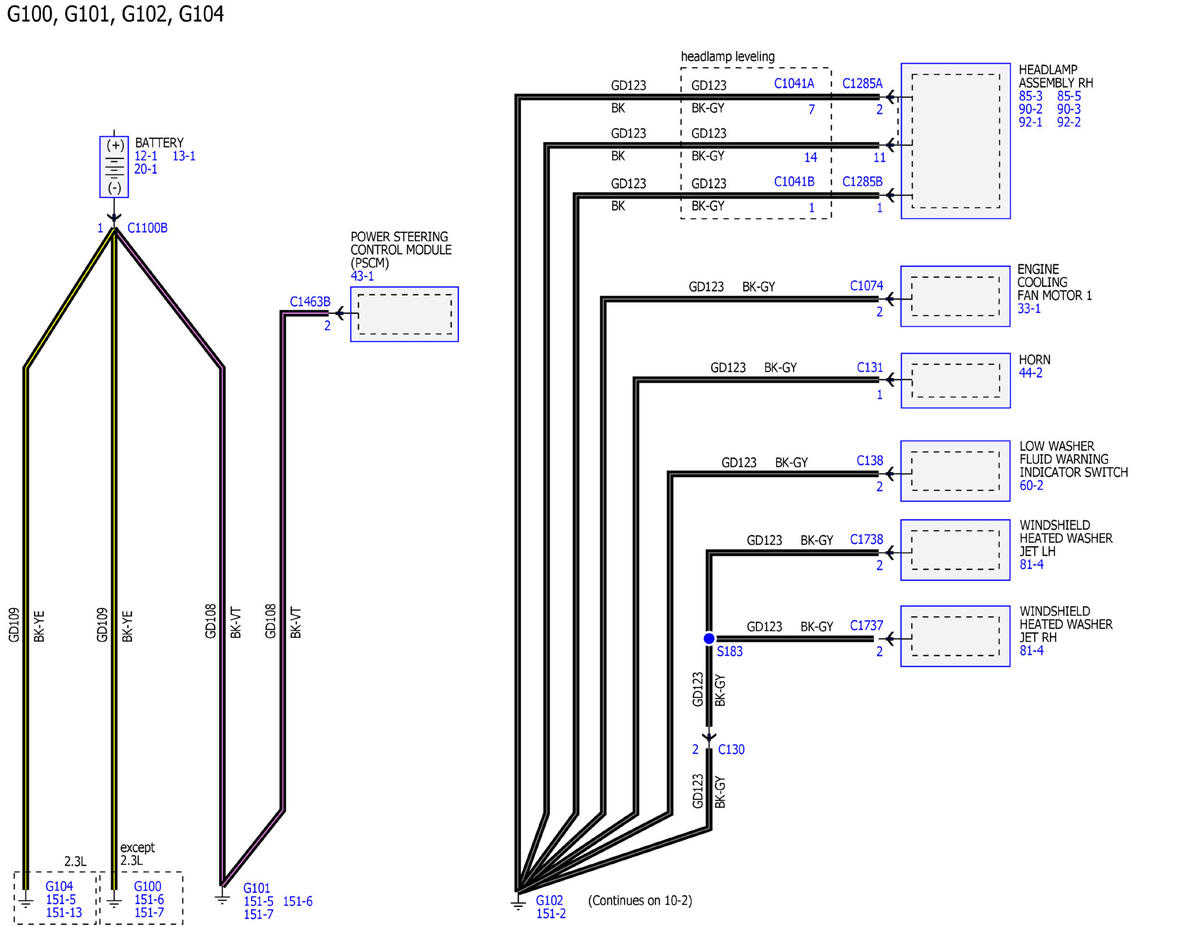

GFDWR63888Courtesy of FORD MOTOR COMPANY

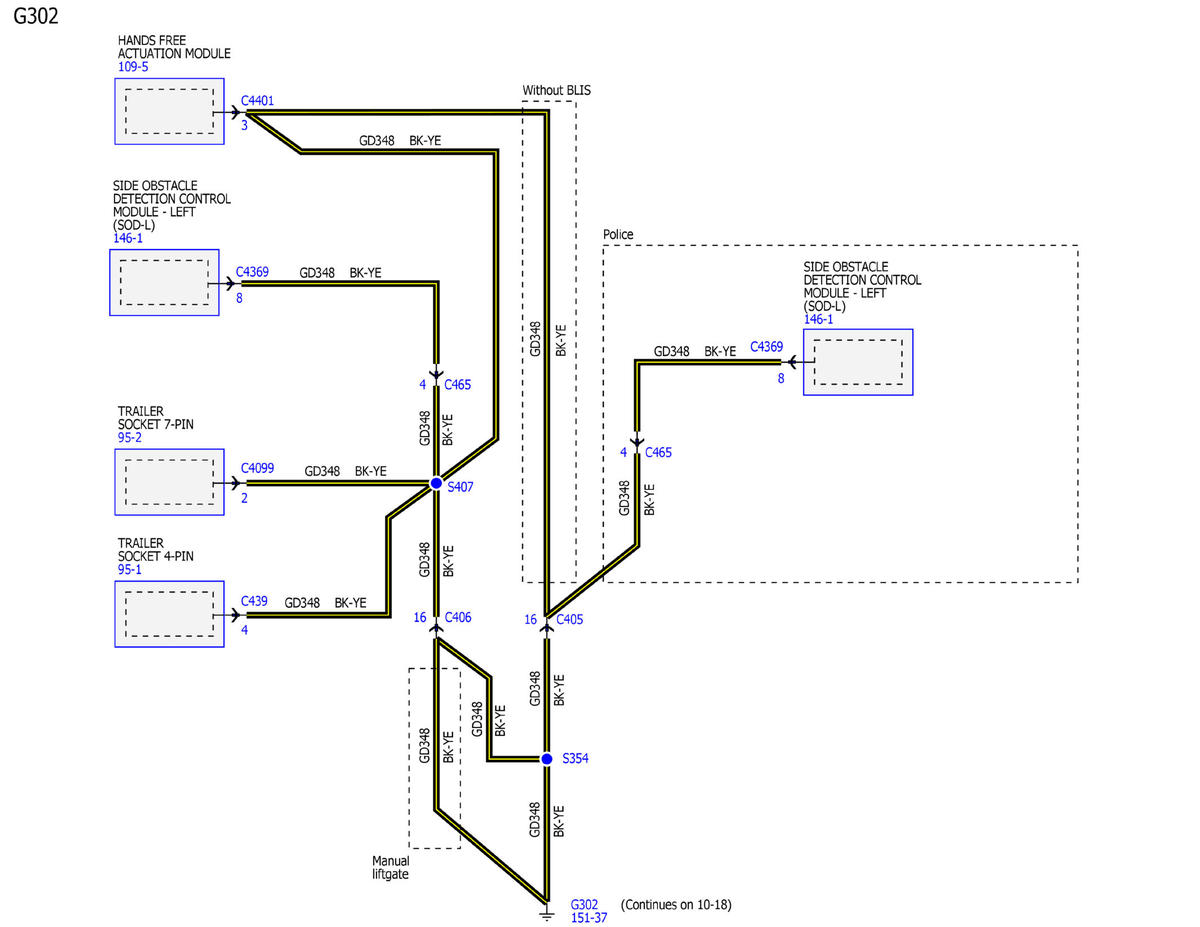

GFDWR63889Courtesy of FORD MOTOR COMPANY

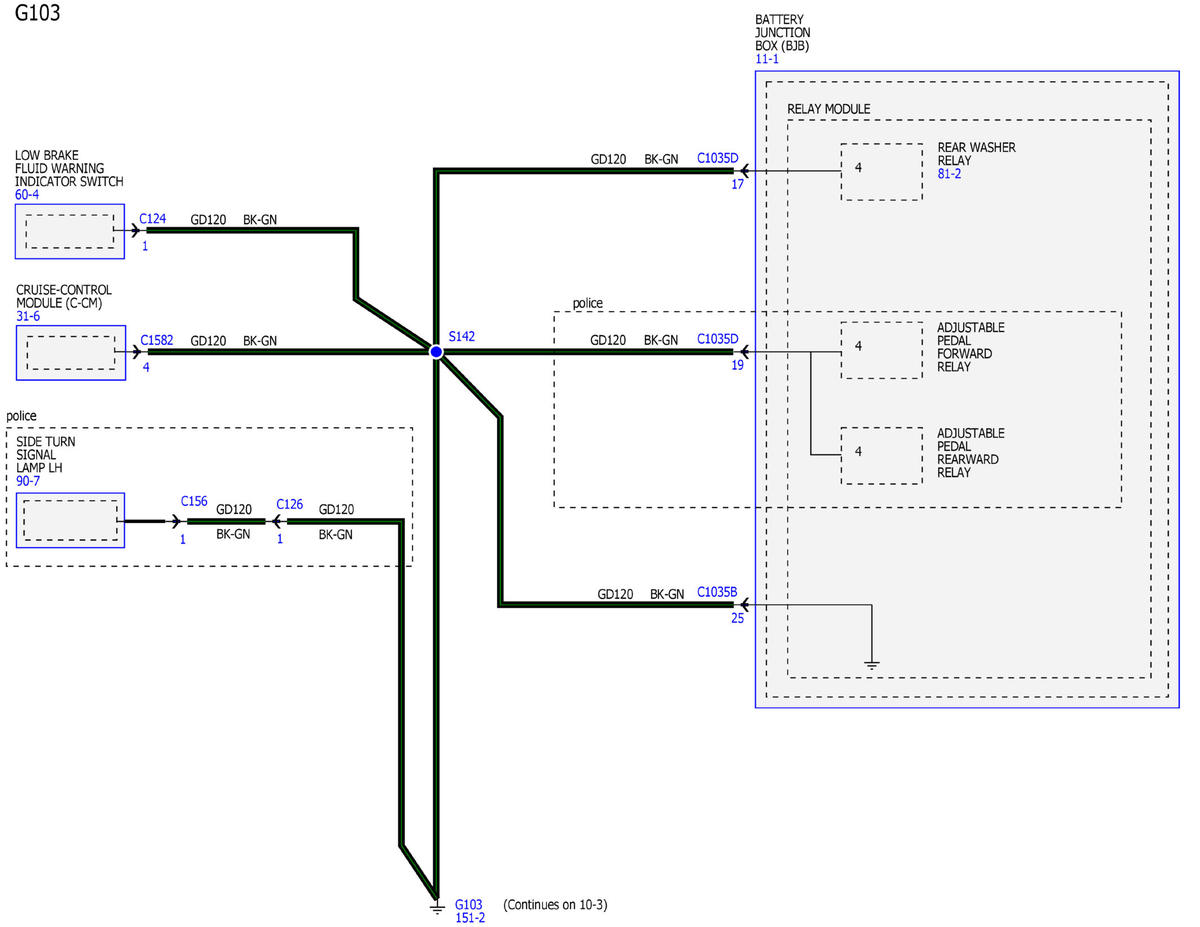

GFDWR63890Courtesy of FORD MOTOR COMPANY

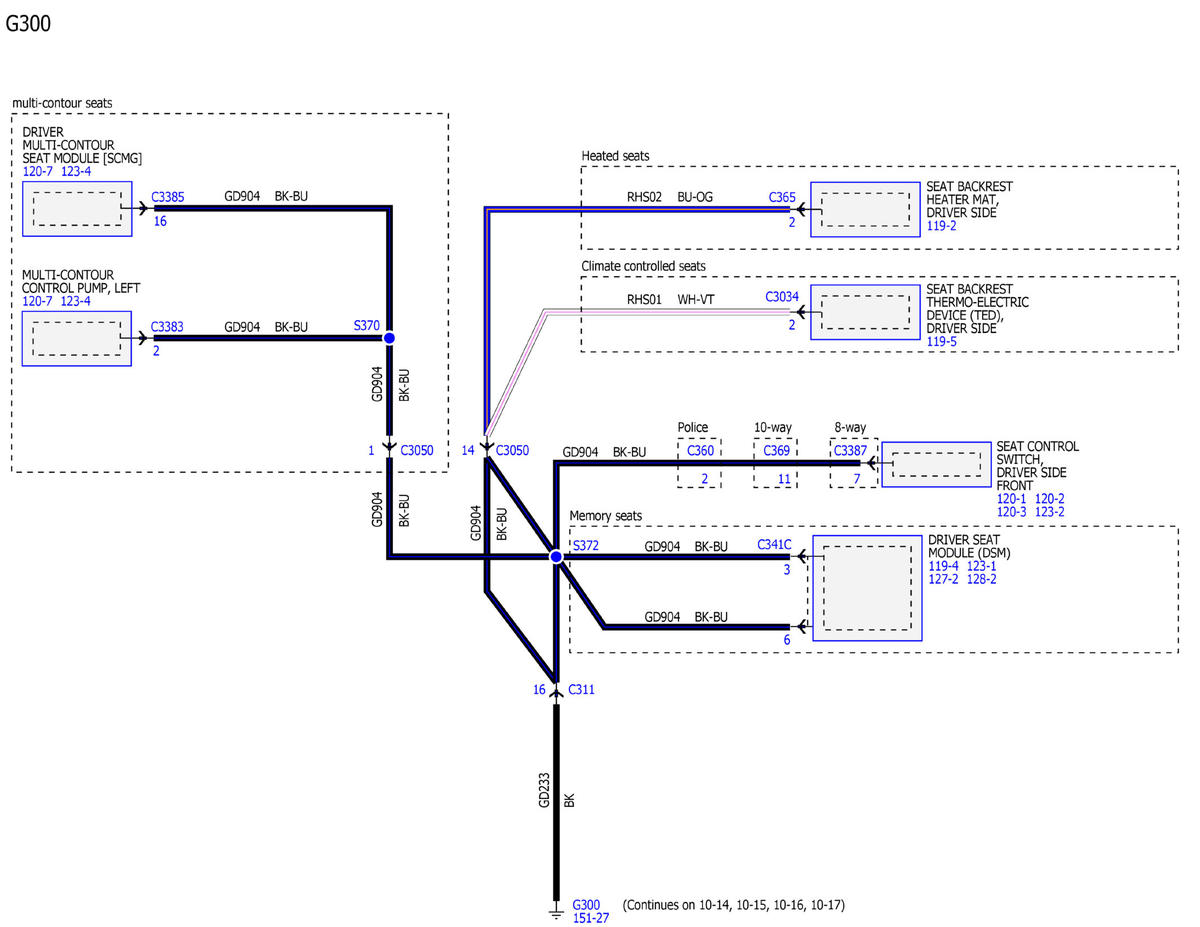

GFDWR63891Courtesy of FORD MOTOR COMPANY

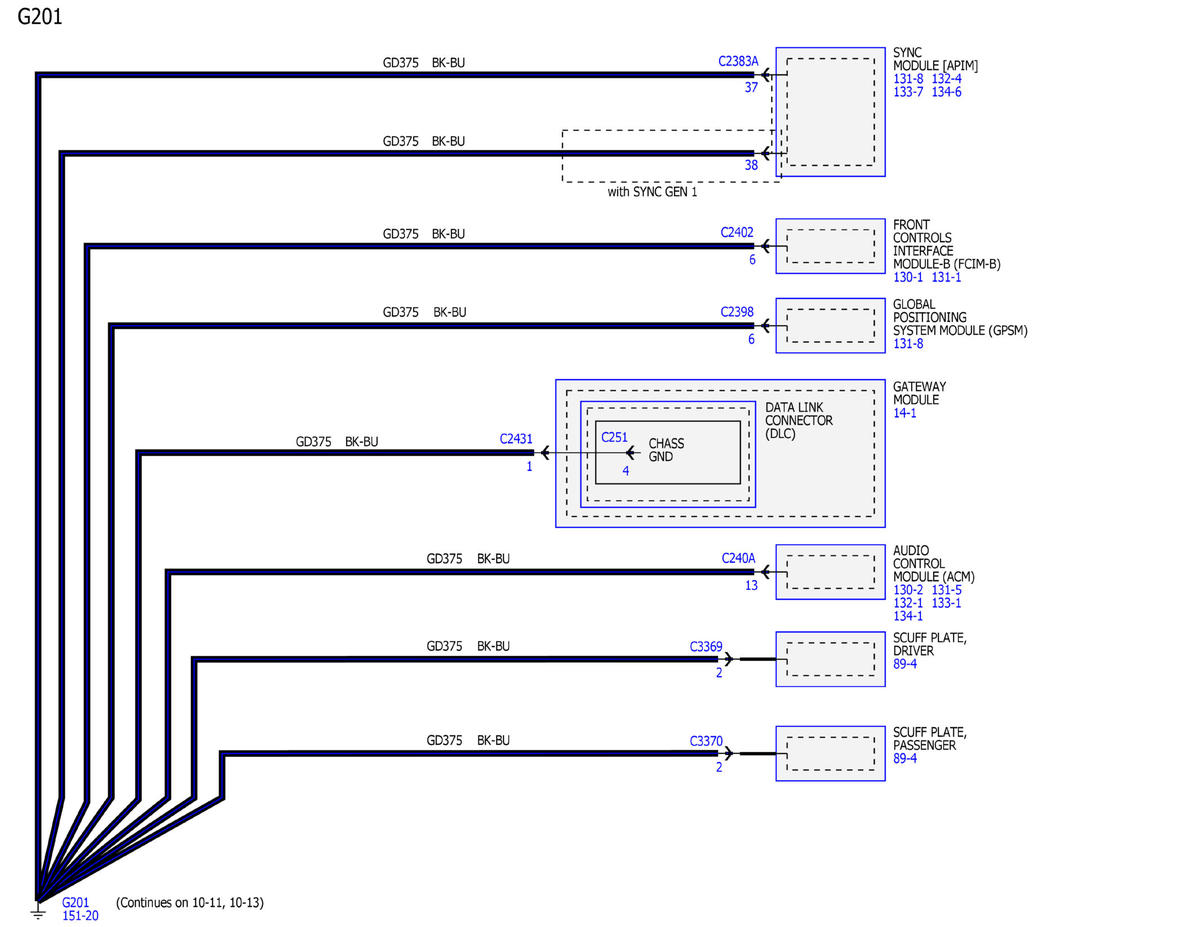

GFDWR63892Courtesy of FORD MOTOR COMPANY
GFDWR63893Courtesy of FORD MOTOR COMPANY

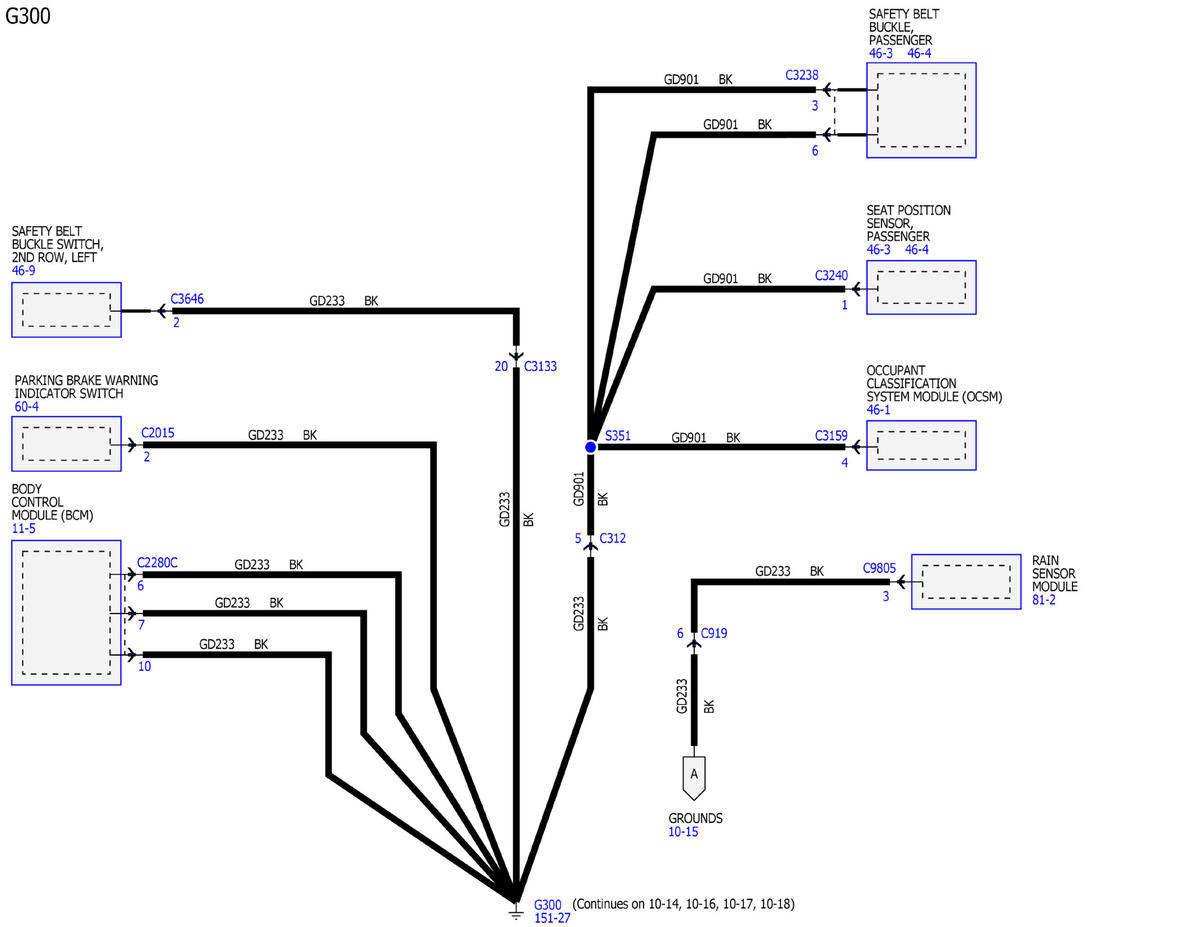

GFDWR63894Courtesy of FORD MOTOR COMPANY

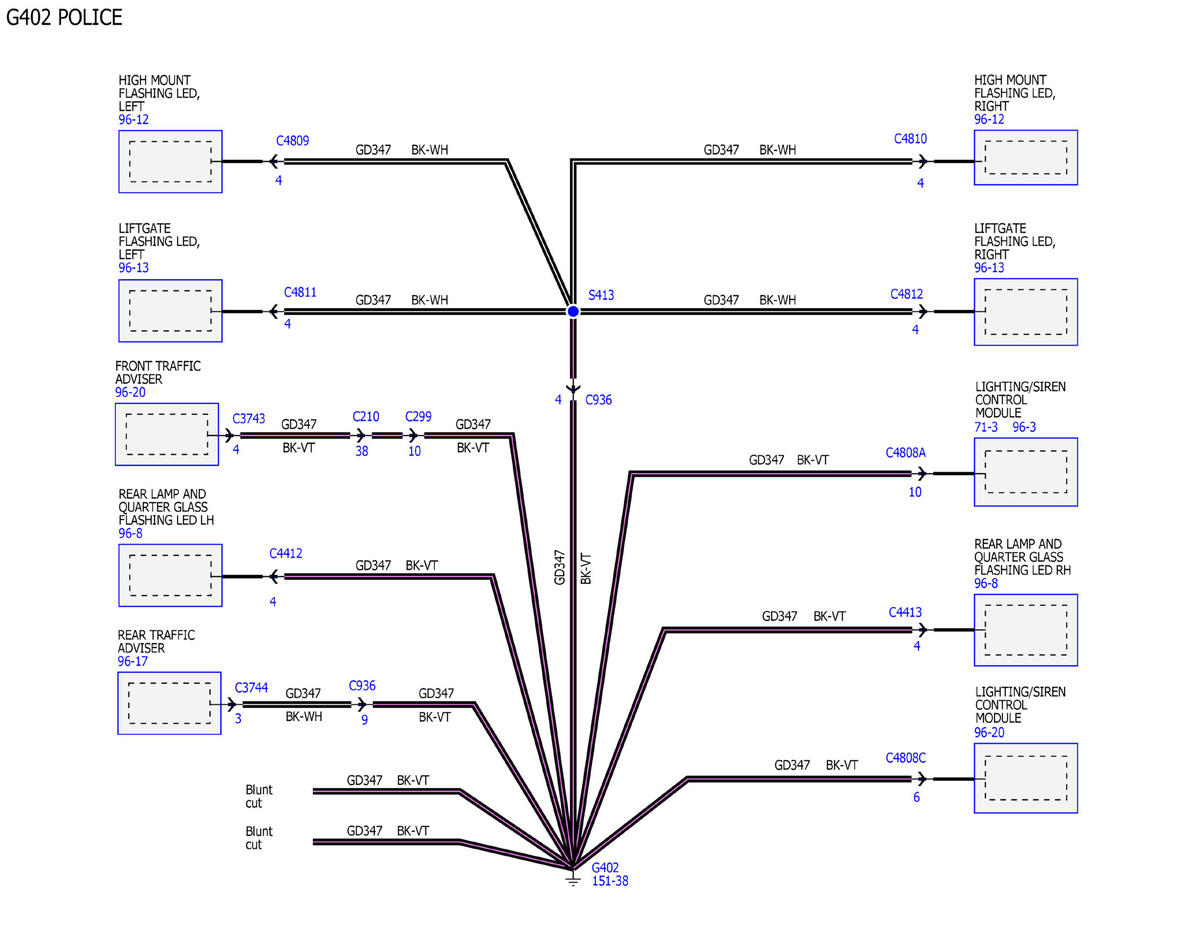

GFDWR63895Courtesy of FORD MOTOR COMPANY

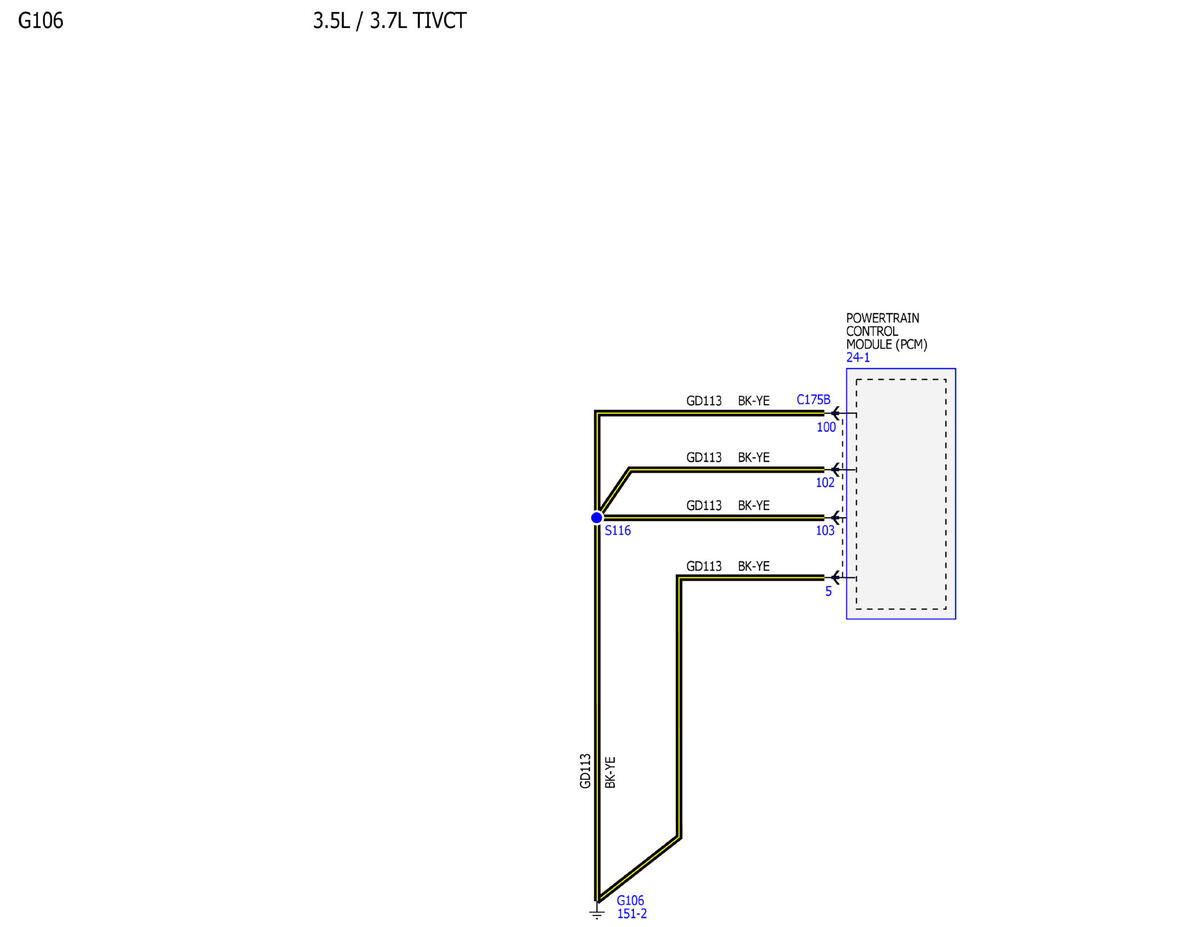

GFDWR63896Courtesy of FORD MOTOR COMPANY

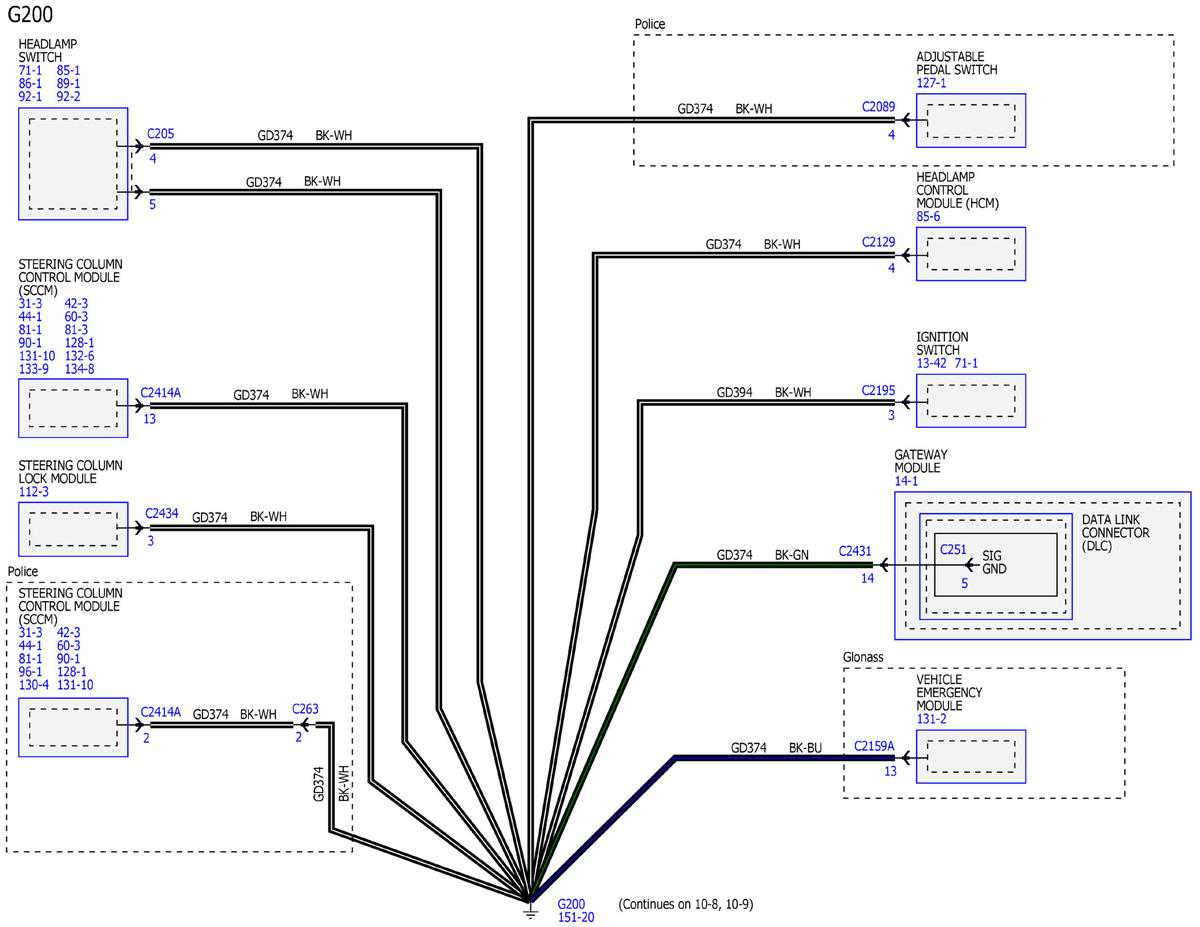

GFDWR63897Courtesy of FORD MOTOR COMPANY
