Connector Repair Procedures

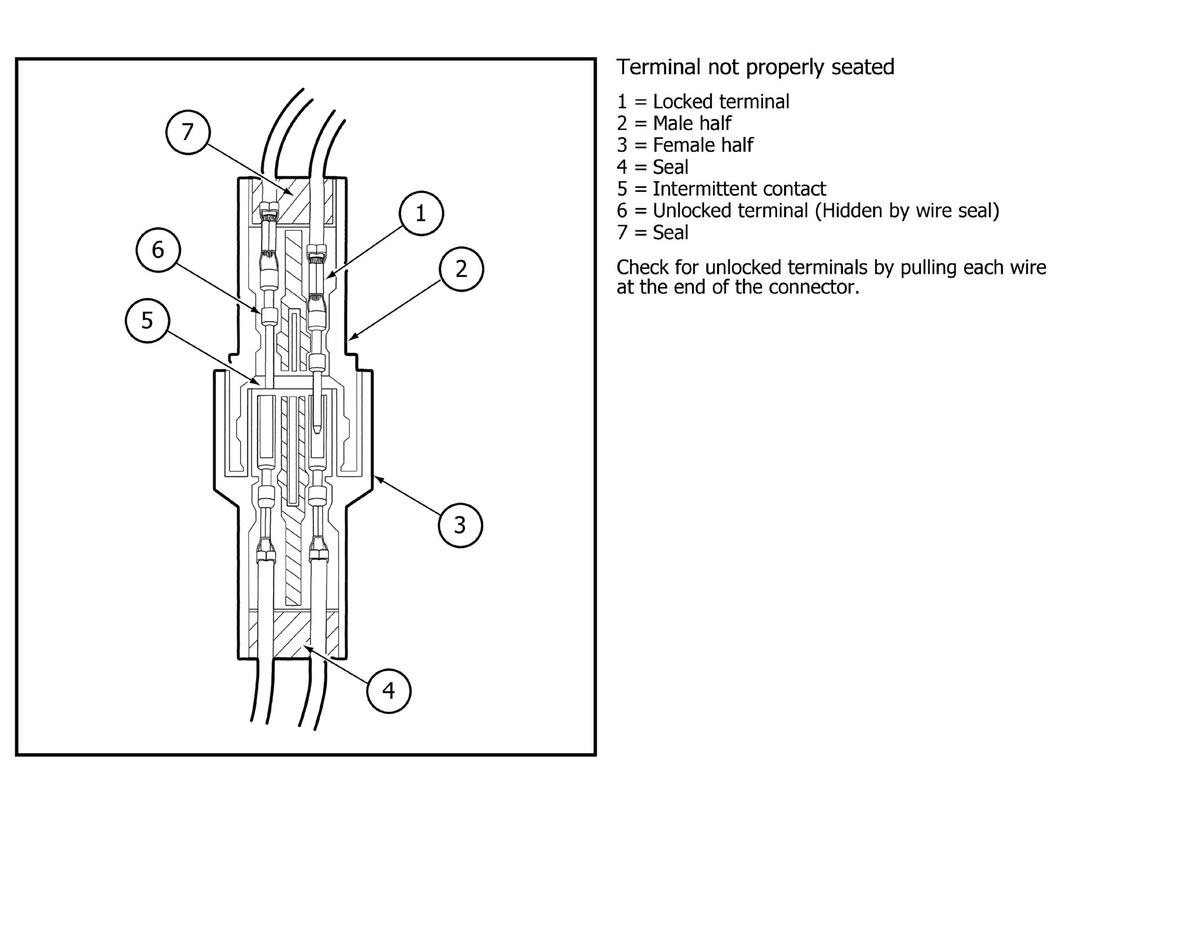

GFDWR63854Courtesy of FORD MOTOR COMPANY

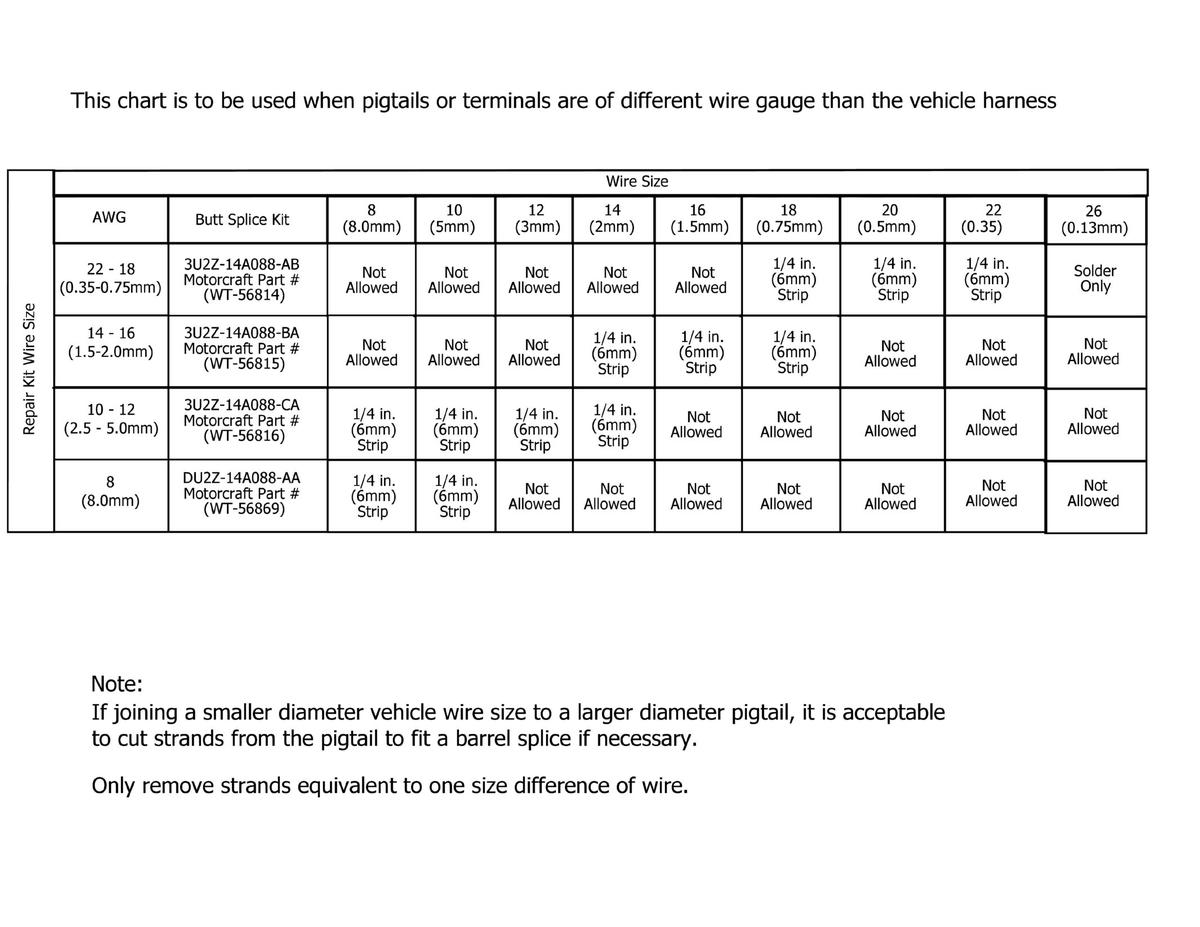

GFDWR63855Courtesy of FORD MOTOR COMPANY

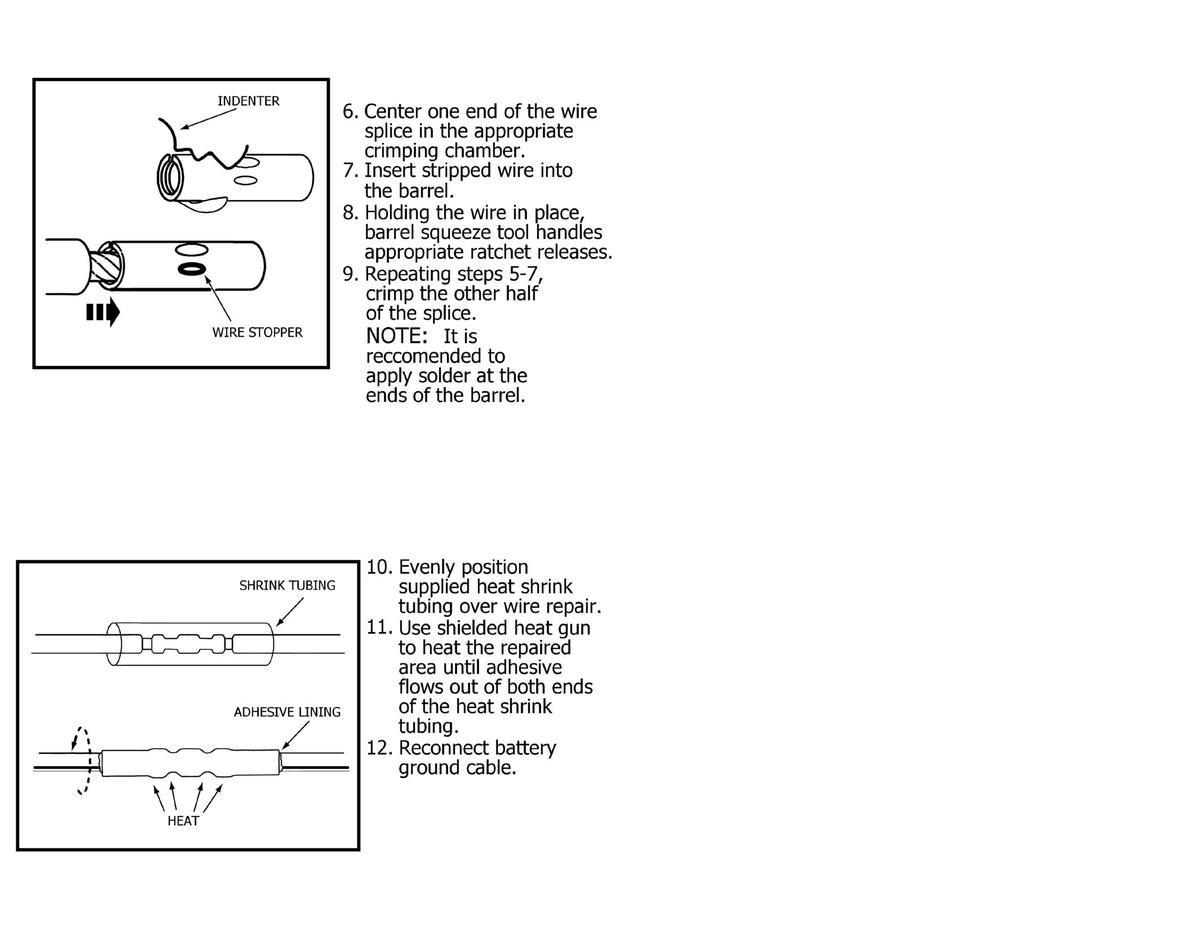

GFDWR63856Courtesy of FORD MOTOR COMPANY

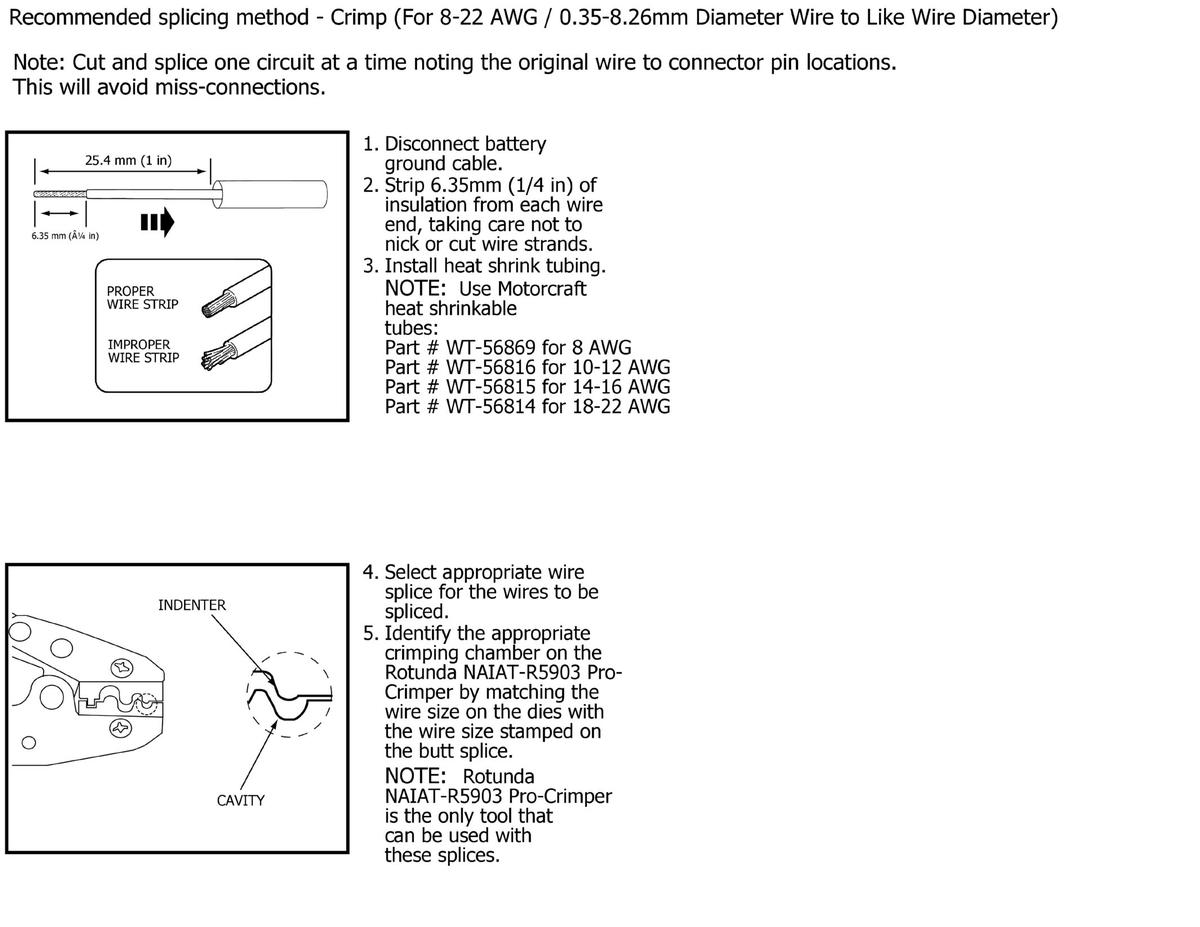

GFDWR63857Courtesy of FORD MOTOR COMPANY

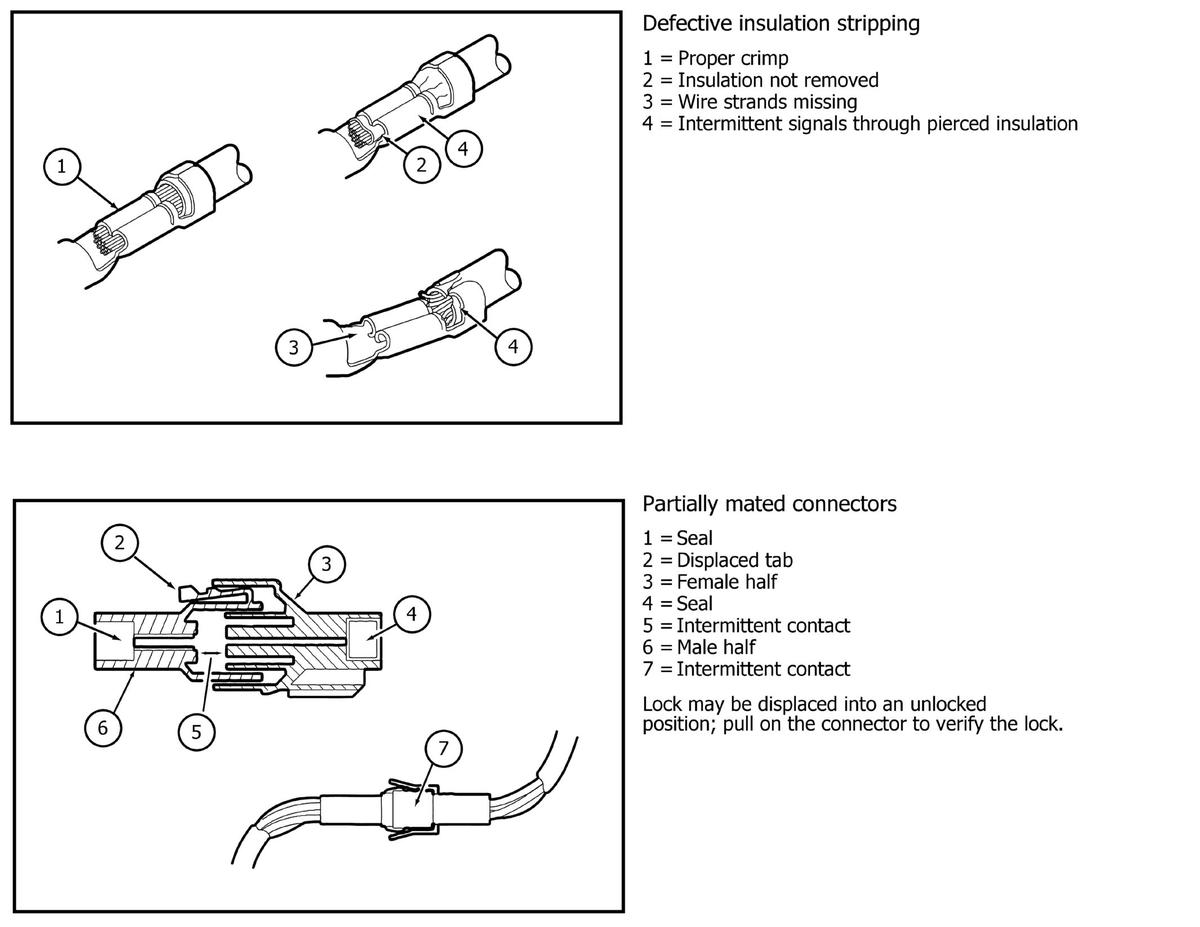

GFDWR63858Courtesy of FORD MOTOR COMPANY

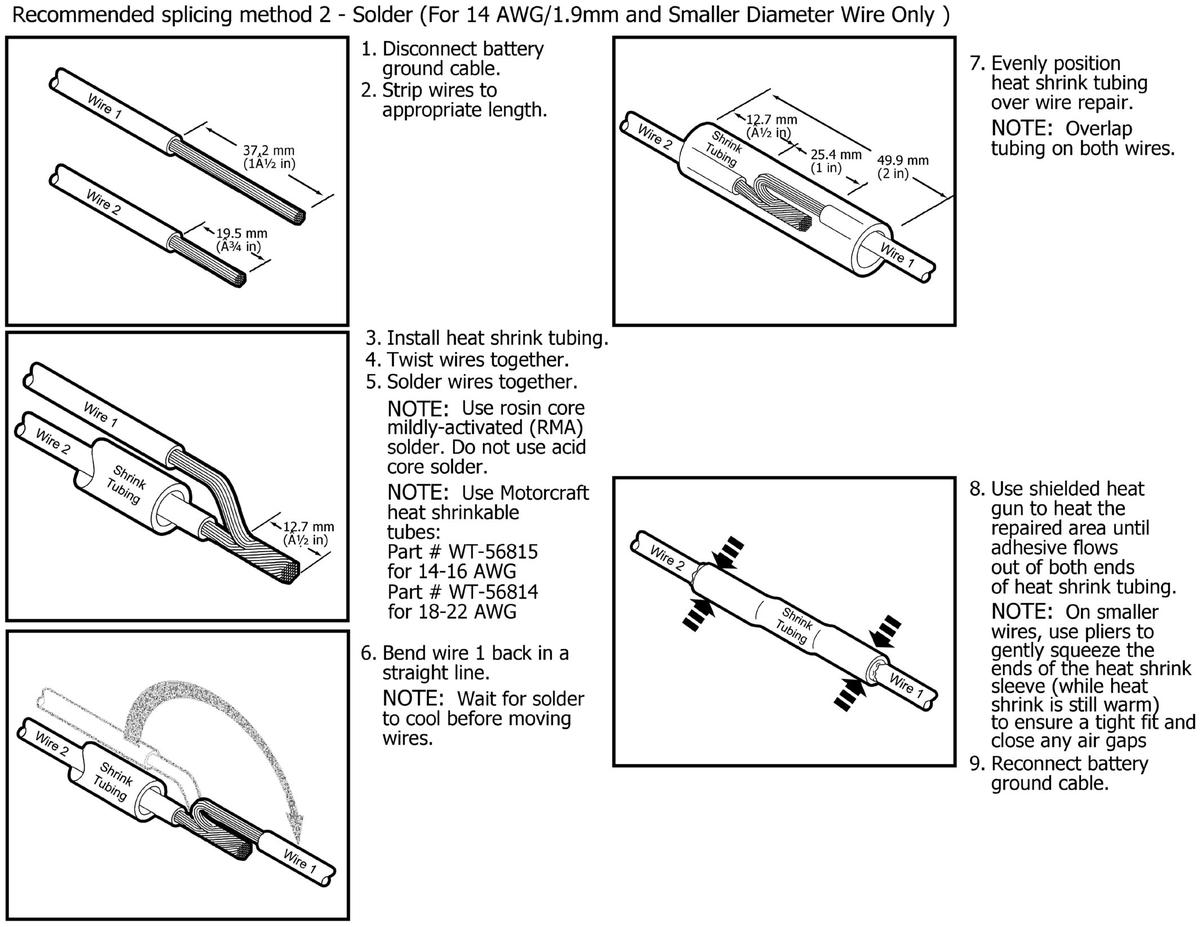

GFDWR63859Courtesy of FORD MOTOR COMPANY

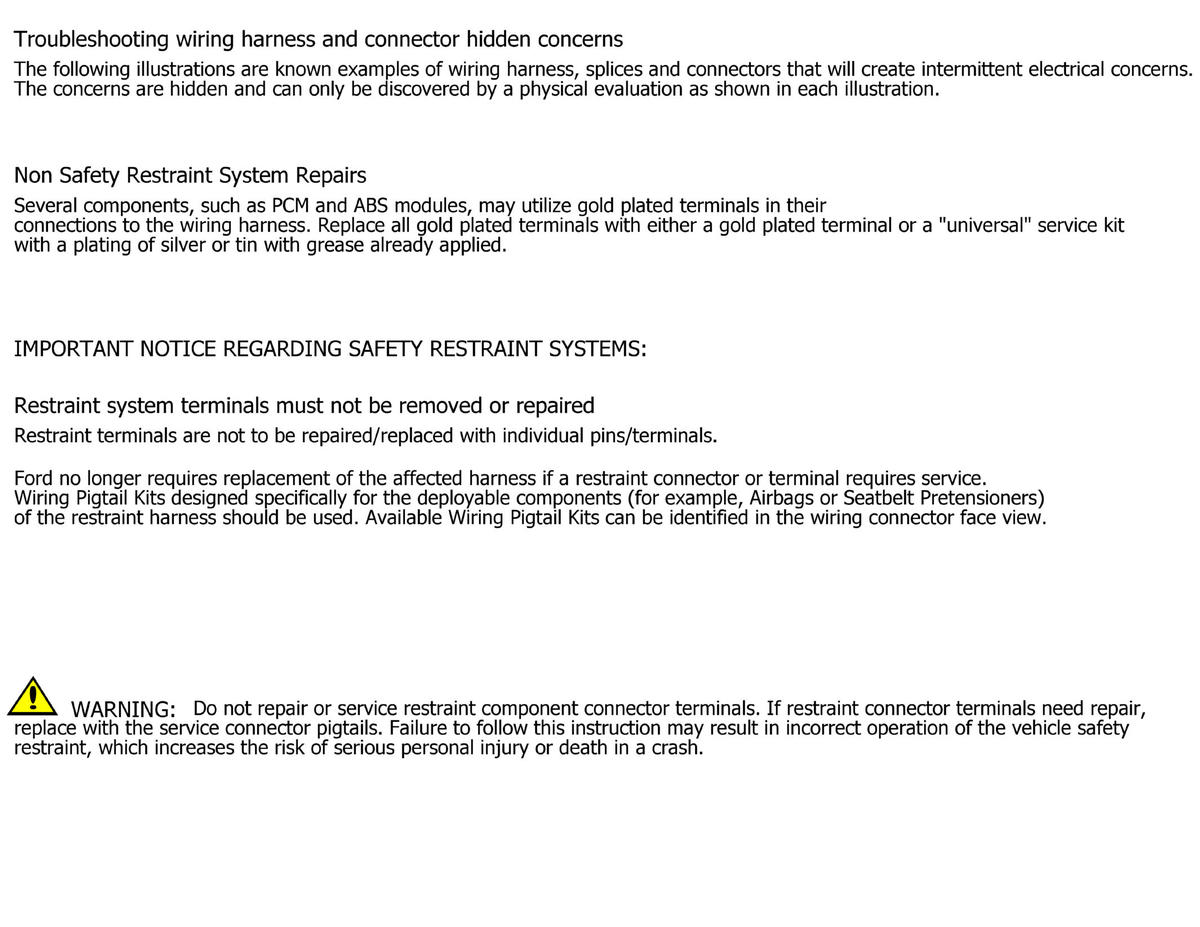

GFDWR63860Courtesy of FORD MOTOR COMPANY

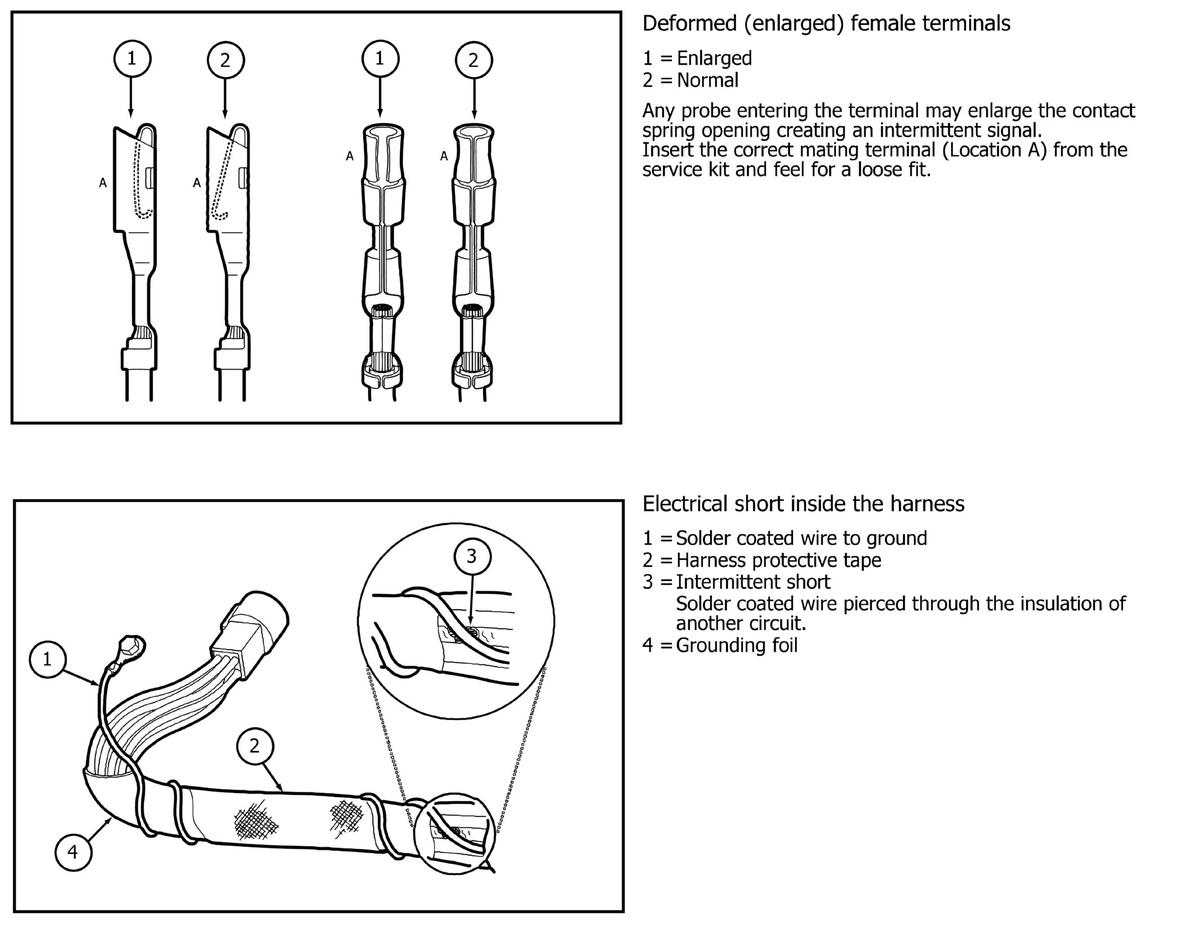

GFDWR63861Courtesy of FORD MOTOR COMPANY

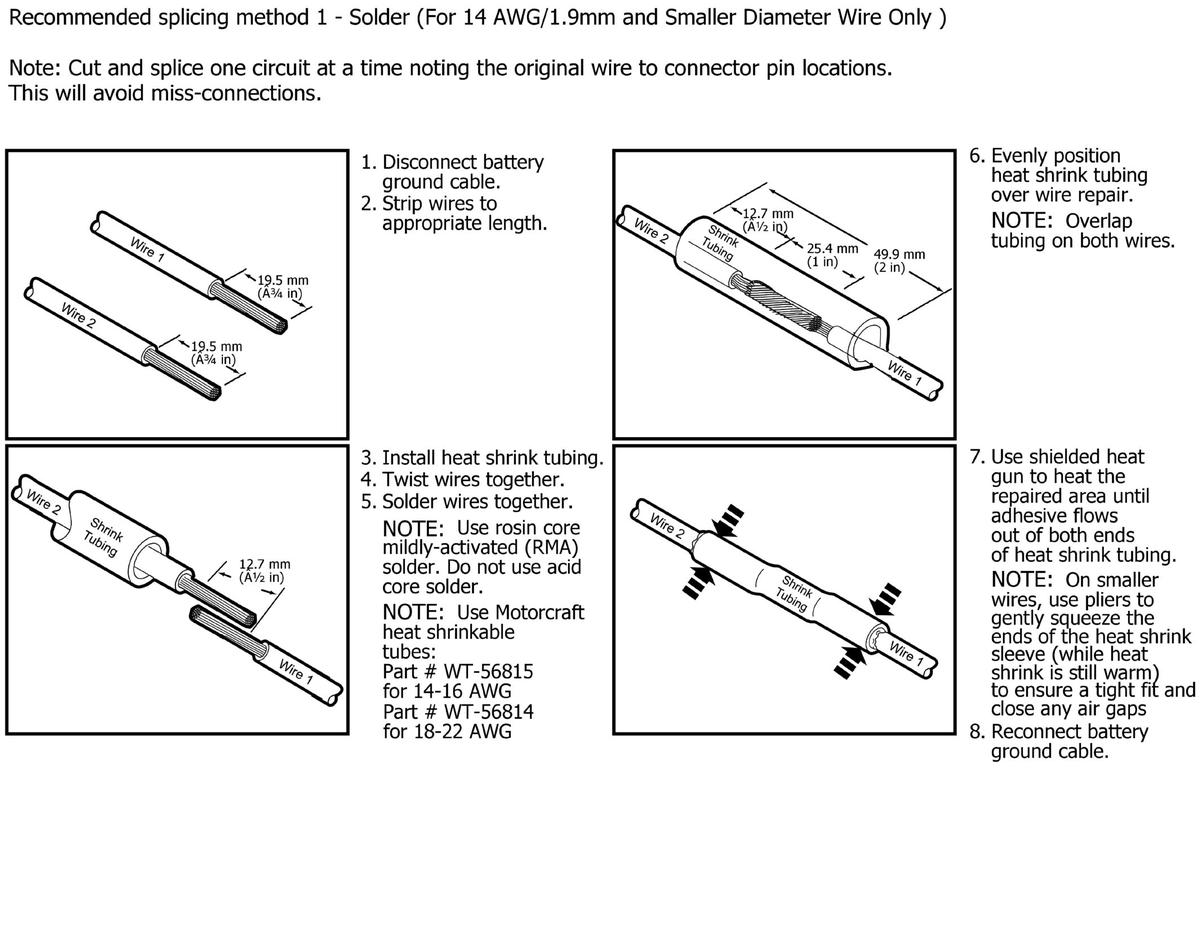

GFDWR63862Courtesy of FORD MOTOR COMPANY
