Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming . Use the General Equipment: Ford Diagnostic Equipment

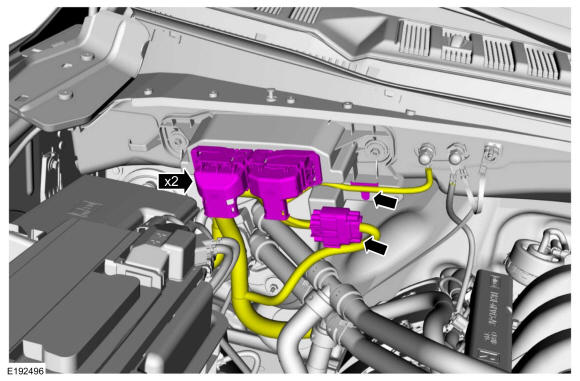

Disconnect the PCM electrical connectors, release the harness retainers to position aside wire harness.

Courtesy of FORD MOTOR COMPANY

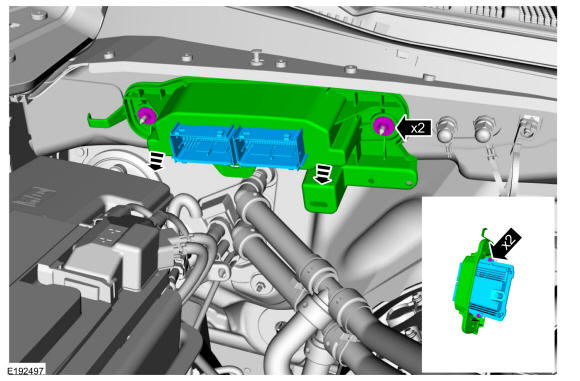

- Remove the 2 retainers and the PCM.
  Torque: 53 lb.in (6 Nm)
- Remove the retainers and remove the PCM from the mounting frame.
  Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
