Fiesta S, Standard Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System - General Information
>>
Description And Operation
>>
Charging System - 1.6L EcoBoost (132kW/180PS) - Sigma - System Operation and Component Description
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

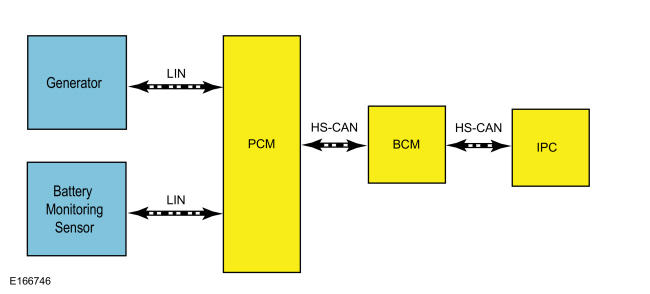

System Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
