Input Shaft: Assembly

  1. Inspect the inner input shaft for wear or damage, replace as needed.

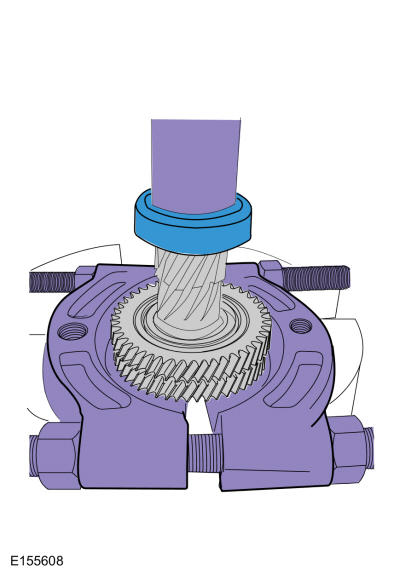

  2. Using the general equipment, carefully press the bearing on the input shaft. Use the General Equipment: Bearing Separator. Use the General Equipment: Hydraulic Press
    GFD301418Courtesy of FORD MOTOR COMPANY

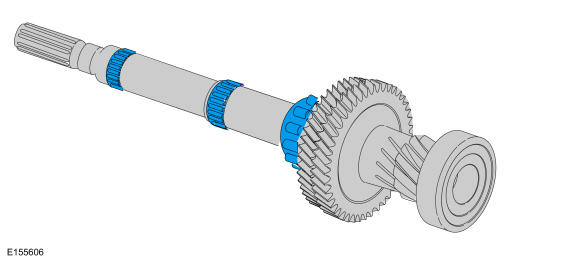

  3. Install the bearings on the input shaft.
    GFD301416Courtesy of FORD MOTOR COMPANY
