Transmission Control Module (TCM) Wiring Harness: Installation

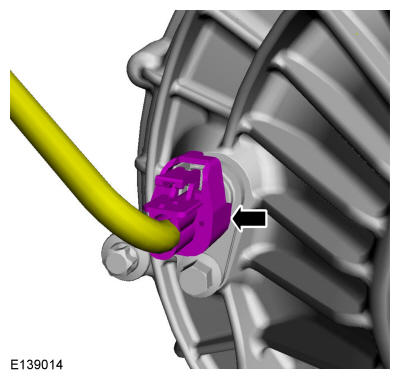

- Connect the OSS sensor electrical connector.
-
NOTE: Make sure that the surface is clean and free of foreign material before taping around the component.

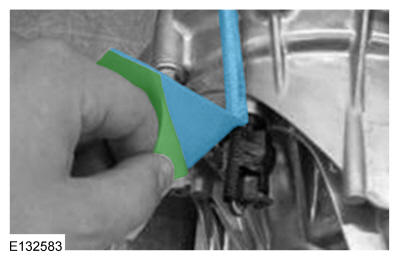

Remove the foil tape backing and wrap the foil tape around the OSS sensor wiring harness.

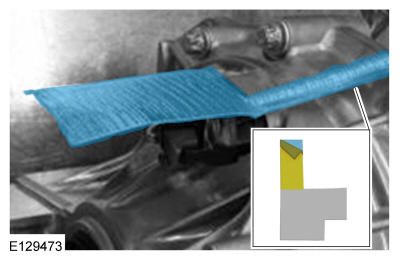

- Remove the foil tape backing from the rest of the foil tape.

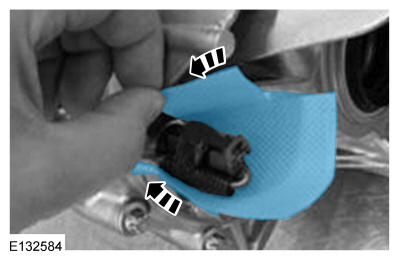

- Wrap the foil tape around the OSS sensor electrical connector.

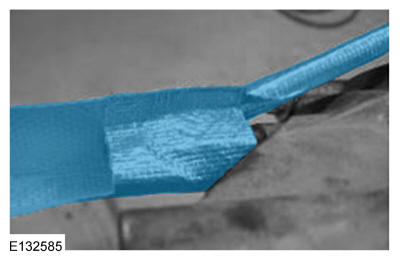

- Stick the foil tape ends together.

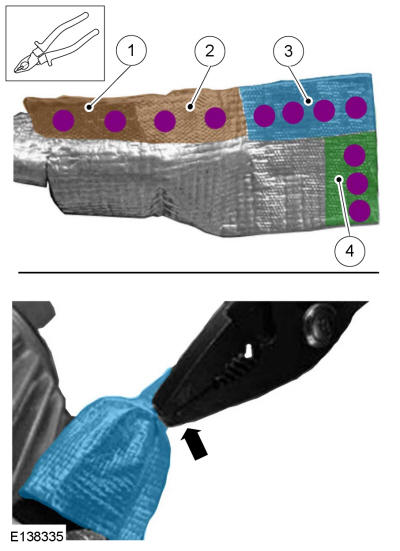

- Using the locking plier, crimp around the edge starting from the sensor portion. Use the General Equipment: Locking Pliers

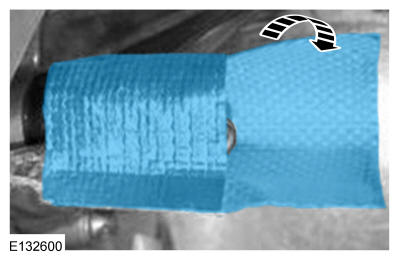

- Fold the remaining portion of the foil tape.
- Using the locking plier, crimp around the edge starting from the sensor portion moving around. Use the General Equipment: Locking Pliers
- To install, reverse the removal procedure.
