Transfer Case - Vehicles With: Electronic Shift Transfer Case: Disassembly

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Seal all openings before cleaning the transfer case exterior. This will prevent entry of dirt and water, which may cause damage to internal components.

    Clean the transfer case with solvent and dry with compressed air.

  2. Using a transmission adjustable mounting arm, secure the transfer case to the bench. Use the General Equipment: Adjustable Mounting Arm
    GFD205317Courtesy of FORD MOTOR COMPANY
  3. Remove the transfer case rear seal. Refer to: Transfer Case Rear Seal .
  4. Remove the coil wire pin from the electrical connector.

    1. Remove the inner retainer from the wire connector.
    2. Press the release tab and remove the coil wire pin.

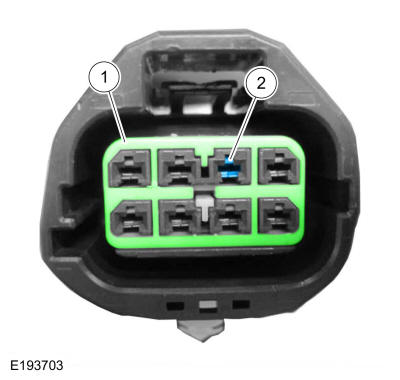

    GFD205273Courtesy of FORD MOTOR COMPANY
    1. Loosen the transfer case shift motor bracket nuts.
    2. Remove the transfer case shift motor bracket bolt.
    3. Remove the transfer case shift motor bolts.
    4. Remove the transfer case shift motor.

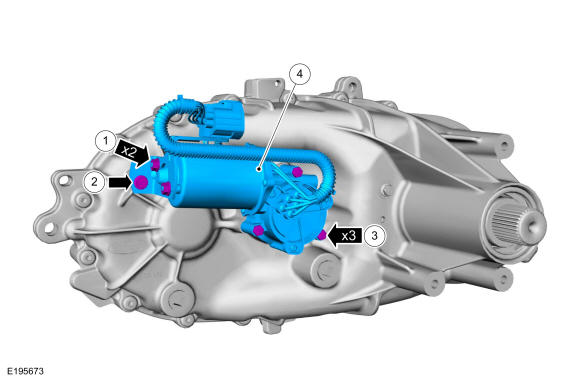

    GFD205318Courtesy of FORD MOTOR COMPANY
  5. Remove the coil nuts.
    GFD205319Courtesy of FORD MOTOR COMPANY
  6. NOTE: The transfer case bolts are self tapping, and it is normal to find metal shavings while removing the cover.

    Remove the transfer case bolts.

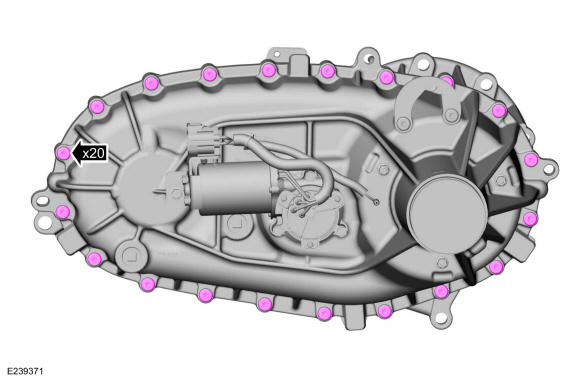

    GFD205320Courtesy of FORD MOTOR COMPANY
  7. NOTE: Use care not damage the field coil wire.

    Using the pry bosses, separate the transfer case covers.

    GFD205321Courtesy of FORD MOTOR COMPANY
  8. Remove the transfer case field coil.
    GFD205322Courtesy of FORD MOTOR COMPANY
  9. Remove the field coil housing snap ring.
    GFD205323Courtesy of FORD MOTOR COMPANY
  10. Remove the field coil housing.
    GFD205324Courtesy of FORD MOTOR COMPANY
  11. Remove the lock up hub, shift fork and shift fork spring.
    GFD205325Courtesy of FORD MOTOR COMPANY
  12. NOTE: Remove the lockup hub assembly as a single unit. If disassembly is required, proceed with the following.

    Disassemble the lockup hub assembly.

    1. Remove the lockup hub snap ring.
    2. Separate the lockup collar.
    3. Separate the 2 lockup springs.
    4. Separate the lockup hub.
    5. Remove the armature.

    GFD205326Courtesy of FORD MOTOR COMPANY
  13. NOTE: Remove the drive chain and sprockets as an assembly.

    Remove the drive chain and sprockets.

    GFD205327Courtesy of FORD MOTOR COMPANY
  14. Remove the center bearing support assembly.
    GFD205328Courtesy of FORD MOTOR COMPANY
  15. NOTE: The pump assembly is not repairable.

    Remove the oil pump assembly and magnet.

    GFD205329Courtesy of FORD MOTOR COMPANY
  16. Remove the shift rail.
    GFD205330Courtesy of FORD MOTOR COMPANY
  17. Remove the shift fork.
    GFD205331Courtesy of FORD MOTOR COMPANY
  18. Remove the output shaft.
    GFD205332Courtesy of FORD MOTOR COMPANY
  19. Remove the reduction hub.
    GFD205333Courtesy of FORD MOTOR COMPANY
  20. NOTE: The electric shift cam is serviced as an assembly. Do not disassemble the shift cam assembly.

    Remove the electric shift cam assembly.

    GFD205334Courtesy of FORD MOTOR COMPANY
  21. NOTE: Replace the inner planet carrier needle bearing if necessary.

    Remove the planet carrier thrust bearing and the front planet carrier.

    GFD205335Courtesy of FORD MOTOR COMPANY
  22. Remove the ring gear circlip and the ring gear.
    GFD205336Courtesy of FORD MOTOR COMPANY
  23. NOTE: Do not let the front output shaft fall while removing the snap ring or damage to the component may occur.

    Remove the output shaft circlip and the out put shaft.

    GFD205337Courtesy of FORD MOTOR COMPANY
  24. Remove and discard the front input shaft seal and the front output shaft seal.
    GFD205338Courtesy of FORD MOTOR COMPANY
  25. Using the special tool with the Slide Hammer, remove the rear output shaft bearing. Use Special Service Tool: 308-047 (T77F-1102-A) Remover, Bearing Cup. Use the General Equipment: Slide Hammer
    GFD205339Courtesy of FORD MOTOR COMPANY
  26. Using the special tool and a Slide Hammer, remove the front output shaft support bearing. Use Special Service Tool: 307-318 Remover, Stator Bearing. Use the General Equipment: Slide Hammer
    GFD205340Courtesy of FORD MOTOR COMPANY
  27. Using the special tool with the Slide Hammer, remove the front output shaft bearing. Use Special Service Tool: 308-047 (T77F-1102-A) Remover, Bearing Cup. Use the General Equipment: Slide Hammer
    GFD205341Courtesy of FORD MOTOR COMPANY
  28. Using the special tool and a Slide Hammer, remove the front planet carrier bearing. Use Special Service Tool: 308-047 (T77F-1102-A) Remover, Bearing Cup. Use the General Equipment: Slide Hammer
    GFD205342Courtesy of FORD MOTOR COMPANY
  29. Clean and inspect the components of the transfer case for damage and install new components as necessary.
  30. Remove the center support bearing. Use the General Equipment: Copper Hammer Use the General Equipment: Punch
GFD205343Courtesy of FORD MOTOR COMPANY
