Head Up Display (HUD) Module: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

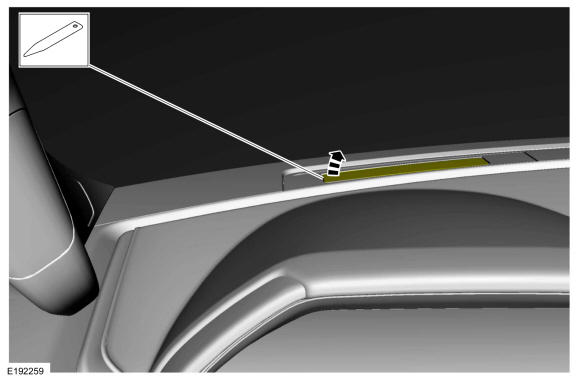

  1. Using a non-marring tool, release the heads up display tab and position the heads up display aside.
    GFD410362Courtesy of FORD MOTOR COMPANY

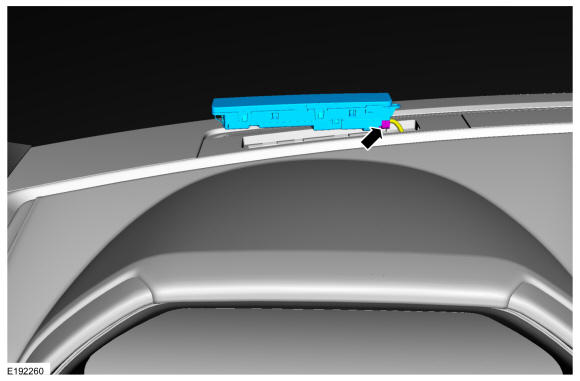

  2. Disconnect the electrical connector and remove the heads up display.
GFD410363Courtesy of FORD MOTOR COMPANY
