Valve Train Analysis

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

The following component tests are used to diagnose valve train concerns.

Valve Train Analysis - Engine Off, Valve Cover Removed

Check for damaged or severely worn parts and correct assembly. Make sure correct parts are used with the static engine analysis as follows.

Valve Train Analysis - Engine Off, Camshaft Roller Followers and Hydraulic Lash Adjusters, Overhead Camshaft

Valve Train Analysis - Engine Off, Camshaft - Engines

Valve Train Analysis - Valve Springs

Valve Train Analysis - Engine Off, Valve Spring Retainer and Valve Spring Retainer Keys

Valve Train Analysis - Engine Off, Valves and Cylinder Head

Static checks (engine off) are to be made on the engine prior to the dynamic procedure.

Valve Train Analysis - Engine Running, Valves and Cylinder Head

If insufficient oiling is suspected, check oil passages for blockage, then accelerate the engine to 1, 200 RPM with the transmission in NEUTRAL and the engine at normal operating temperature. Oil should spurt from the rocker arm oil holes such that valve tips and camshaft roller followers are well oiled. With the valve covers off, some oil splash may overshoot camshaft roller followers.

Valve Train Analysis - Camshaft Lobe Lift

Check the lift of each camshaft lobe in consecutive order and make a note of the readings.

  1. Remove the spark plugs. REFER to: Spark Plugs 6.2L V8 or REFER to: Spark Plugs 6.8L Triton-30V - V10 .

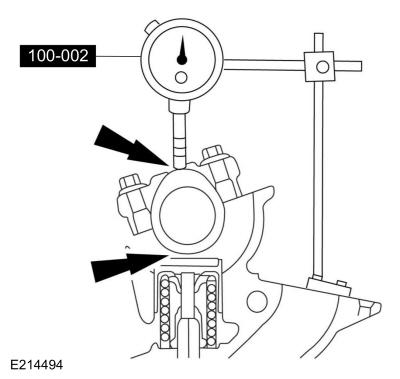

  2. Install the Dial Indicator Gauge with Holding Fixture so the rounded tip of the dial indicator is on top of the camshaft lobe and on the same plane as the hydraulic lash adjuster.
    GFD201173Courtesy of FORD MOTOR COMPANY
  3. Rotate the crankshaft using a breaker bar and socket attached to the crankshaft pulley retainer bolt. Rotate the crankshaft until the base circle of the camshaft lobe is reached.
  4. Zero the dial indicator. Continue to rotate the crankshaft until the high-lift point of the camshaft lobe is in the fully raised position (highest indicator reading).
  5. To check the accuracy of the original dial indicator reading, continue to rotate crankshaft until the base circle is reached. The indicator reading should be zero. If zero reading is not obtained, repeat Steps 2 through 5.
  6. If the lift on any lobe is below specified service limits, install a new camshaft and camshaft roller followers. REFER to: Specifications 6.2L V8 or REFER to: Specifications 6.8L Triton-30V - V10, .
  7. Install the spark plugs. REFER to: Spark Plugs 6.2L V8 or REFER to: Spark Plugs 6.8L Triton-30V - V10 .
