Piston Diameter
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Check
NOTE:
Refer to the appropriate Engine article for the specification.

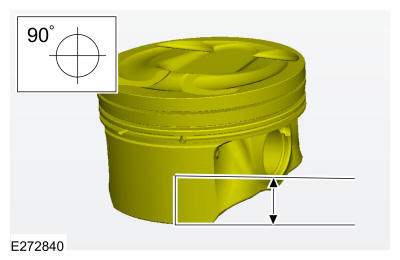

- Measure the piston diameter (at the measuring window) 90 degrees from the piston pin and 10 mm (.394 in) up from the bottom of the piston at the point indicated.
