Powertrain/Drivetrain Mount Neutralizing

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Adjustment

1. Refer to: Jacking and Lifting - Overview .
2. Remove the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma .

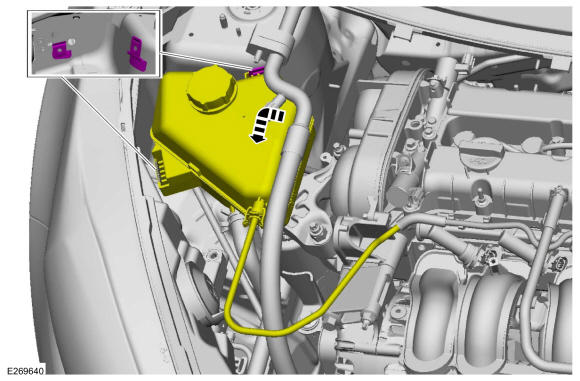

3. Position the degas bottle aside.

   Courtesy of FORD MOTOR COMPANY

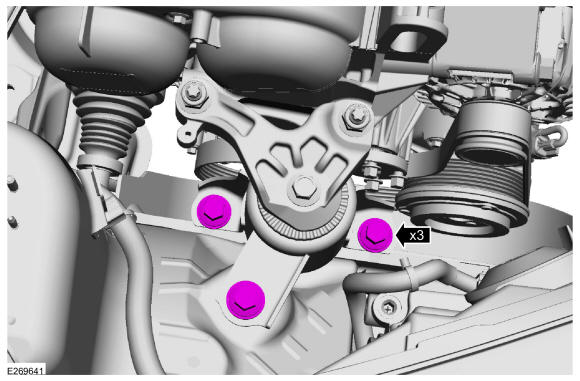

4. Loosen, but do not remove the engine mount bolts.

   Courtesy of FORD MOTOR COMPANY

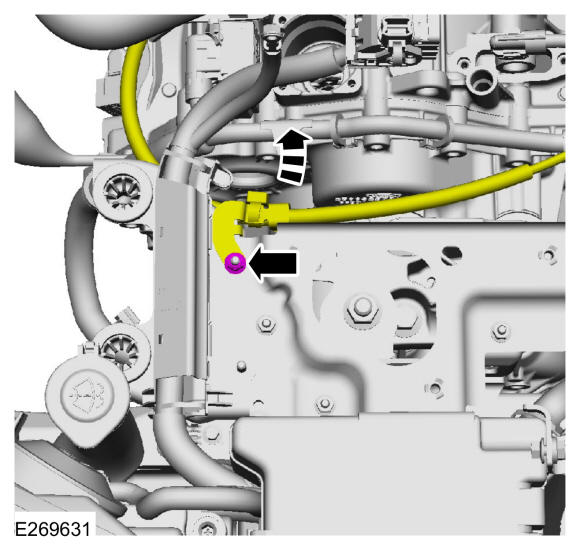

5. Remove the nut and position the wire aside.

   Courtesy of FORD MOTOR COMPANY

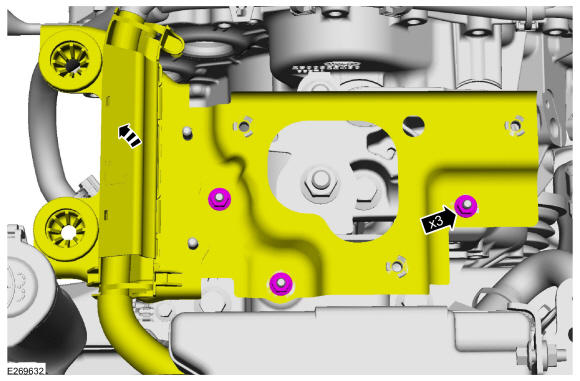

6. Remove the nuts and position the battery tray bracket aside.

   Courtesy of FORD MOTOR COMPANY

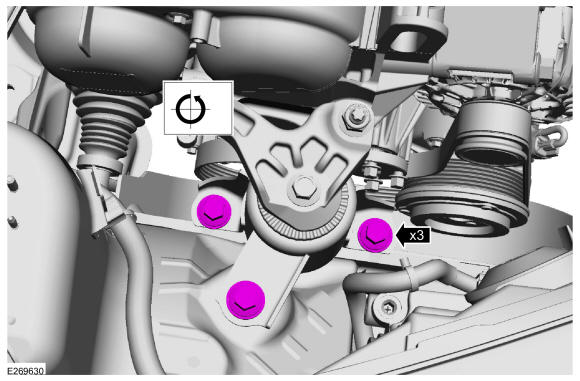

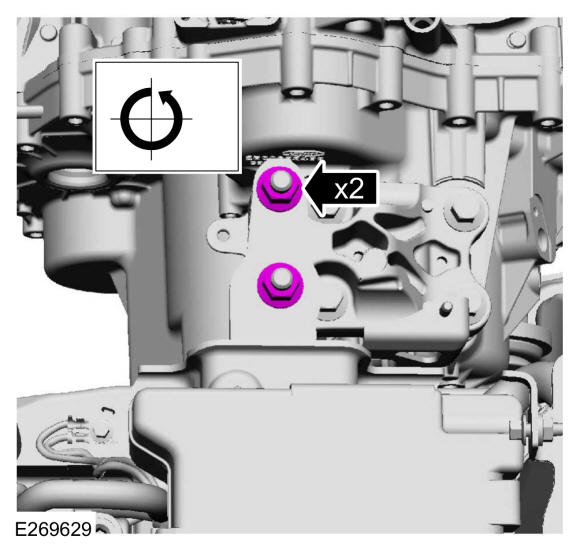

7. Loosen, but do not remove the transmission mounting assembly nuts.

   Courtesy of FORD MOTOR COMPANY

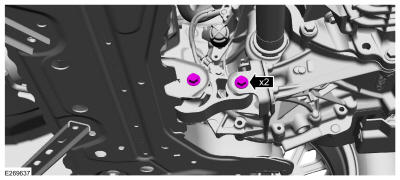

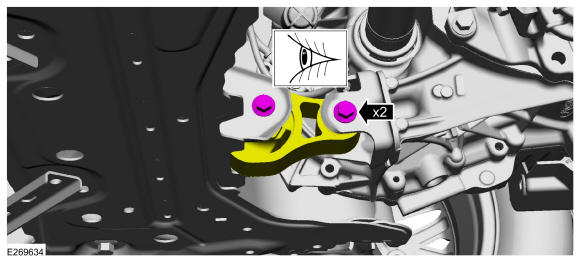

8. Loosen, but do not remove the 2 roll restrictor bolts. Verify that the roll restrictor is loose.

   Courtesy of FORD MOTOR COMPANY

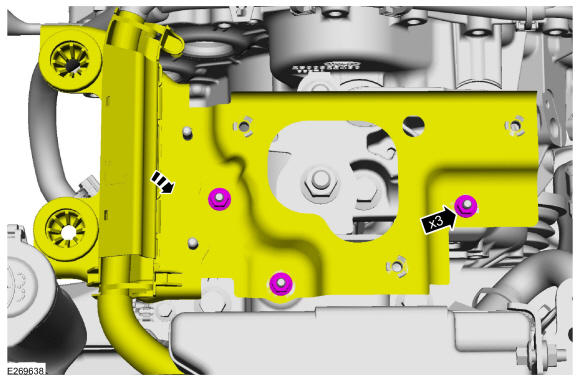

9. Install the battery tray bracket and nuts.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Install the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma .
11. Install the battery. Refer to: Battery .
12. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

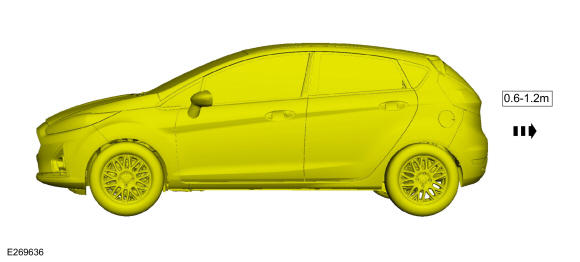

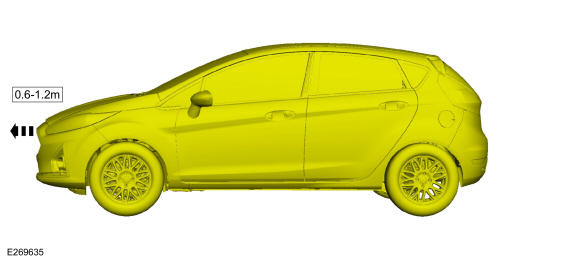

    Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

    Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    Courtesy of FORD MOTOR COMPANY

14. Remove the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma .
15. Remove the nuts and position the battery tray bracket aside.

    Courtesy of FORD MOTOR COMPANY

16. Tighten the roll restrictor bolts.

    Torque: 52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

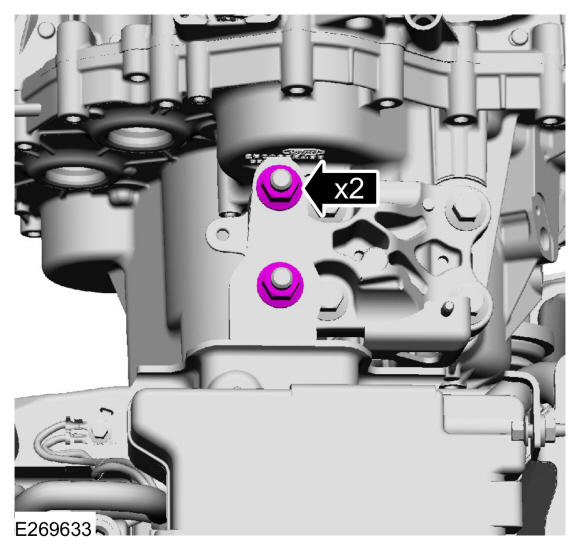

17. Tighten the transmission mounting assembly nuts.

    Torque: 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

18. Install the battery tray bracket and nuts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Install the transmission cable and nut.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Install the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma .
21. Install the battery. Refer to: Battery .
22. Position back the degas bottle.

    Courtesy of FORD MOTOR COMPANY

23. Tighten the engine mount bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Test the system for normal operation.
