Ambient Air Temperature Sensor: Notes
WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

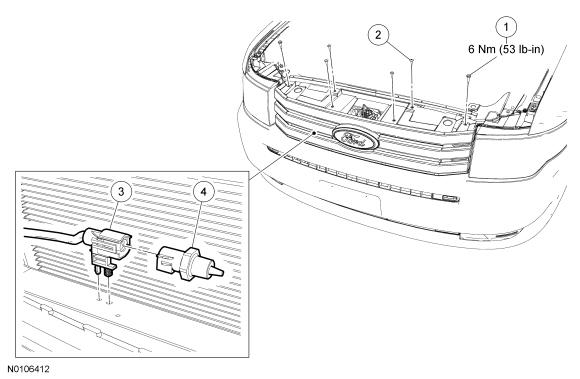

| Item | Part Number | Description |
|---|---|---|
| 1 | W711685 | Front bumper cover bolt (2 required) |
| 2 | W706350 | Front bumper cover scrivet (4 required) |
| 3 | -- | Ambient temperature sensor electrical connector (part of 14290) |
| 4 | 12A647 | Ambient temperature sensor |
