Compressor To Condenser Discharge Line 3.5L Ti-VCT: Notes
WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
/td>

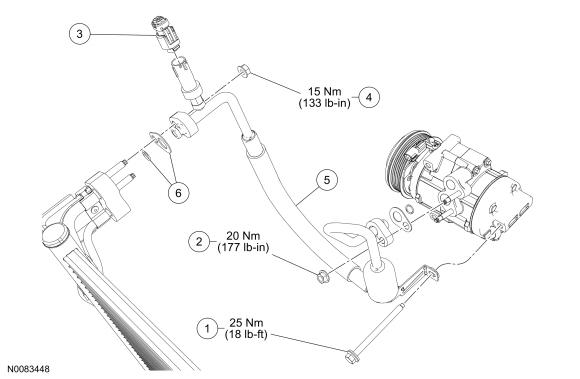

Compressor to Condenser Discharge Line -- 3.5L Ti-VCT
MATERIAL
| Item | Specification |
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |
| Item | Part Number | Description |
|---|---|---|
| 1 | W712611 | Rear A/C compressor bolt |
| 2 | W520413 | A/C compressor discharge fitting nut |
| 3 | -- | A/C pressure transducer electrical connector (part of 14290) |
| 4 | W520413 | Condenser inlet fitting nut |
| 5 | 19972 | Compressor-to-condenser discharge line |
| 6 | 19B596 | O-ring seal and gasket seal kit (1 required) |
