Head Up Display (HUD) Module: Notes

WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

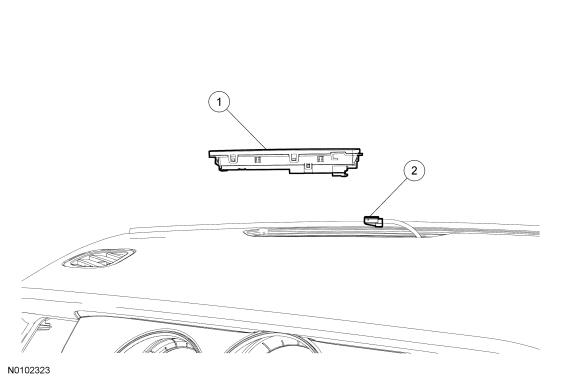

GFD322692Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 19G468 Head Up Display (HUD) module
2 -- HUD module electrical connector (part of 14401)
