Removal And Installation

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the RH C-pillar trim panel. For additional information, refer to C-PILLAR TRIM PANEL .

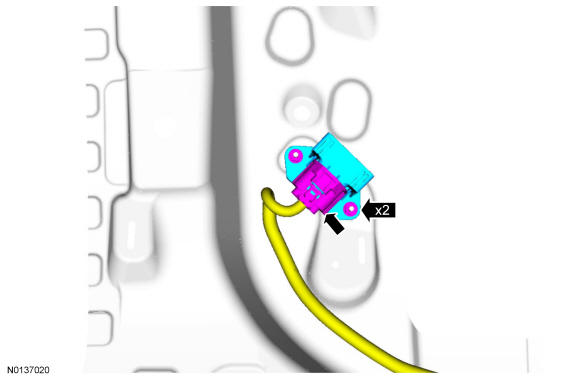

  2. NOTE: Do not overtighten the fasteners or damage to the module will occur.

    • Tighten to 5 Nm (44 lb-in).

    GFD320836Courtesy of FORD MOTOR COMPANY
  3. To install, reverse the removal procedure.
