System Diagram

WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

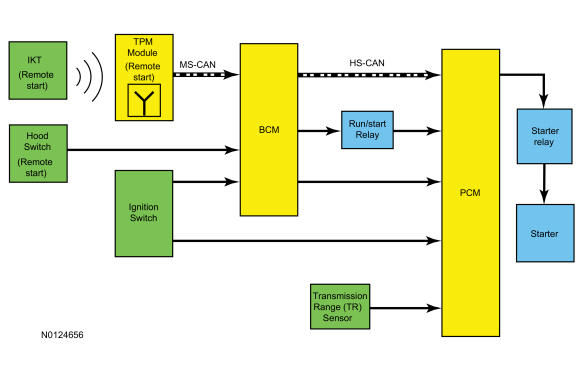

GFD320969Courtesy of FORD MOTOR COMPANY

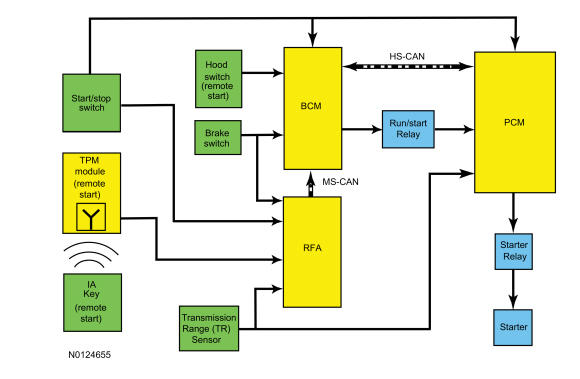

GFD320970Courtesy of FORD MOTOR COMPANY
