Front Control Display Interface Module (FCDIM) Center of dash
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

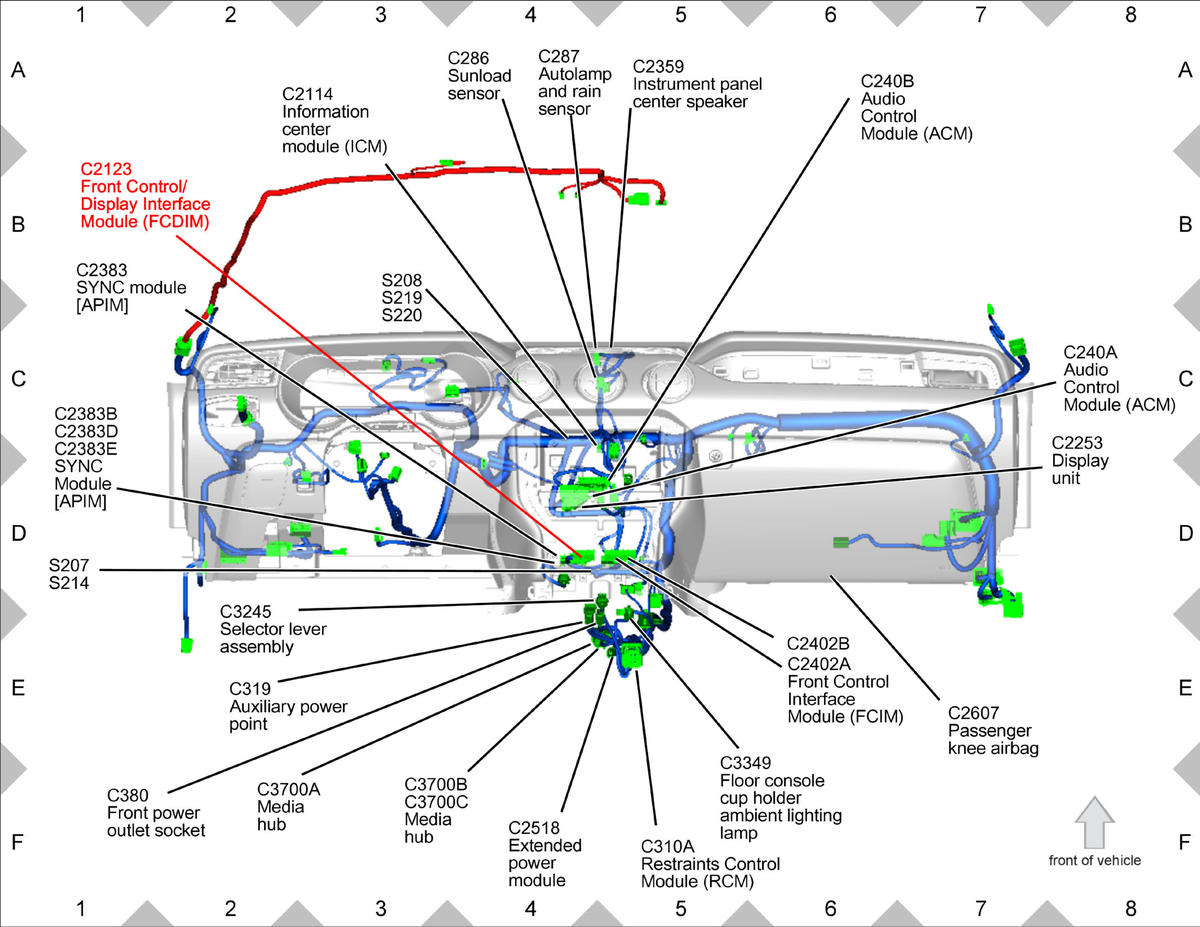

Front Control Display Interface Module (FCDIM) Center of dash
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
